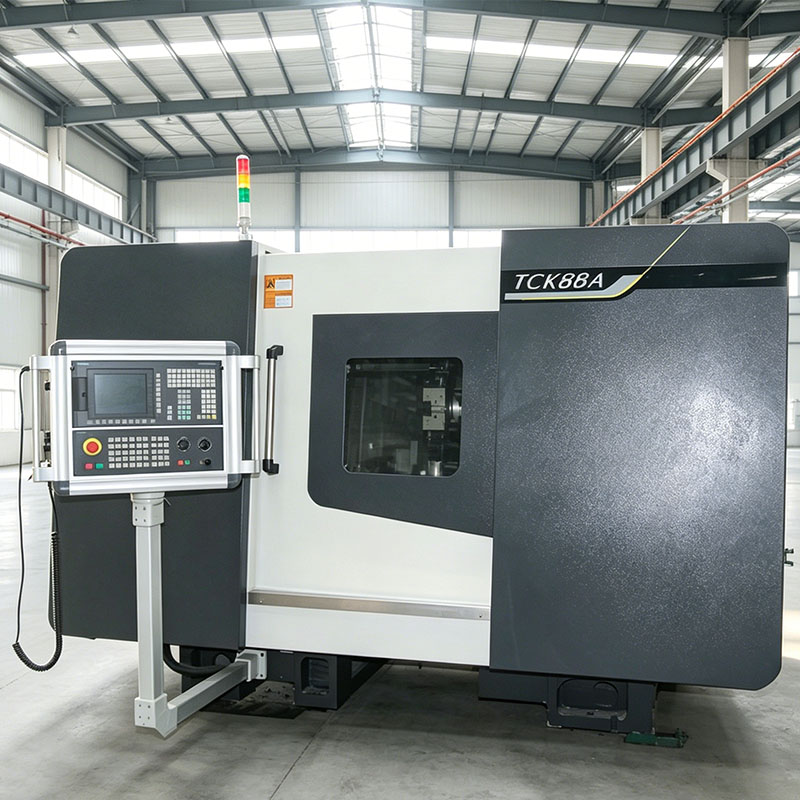

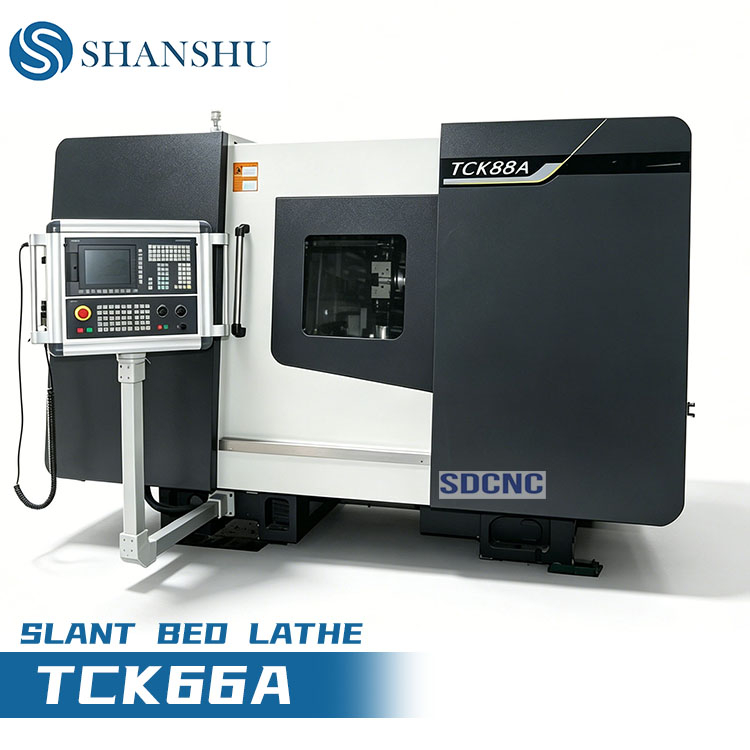

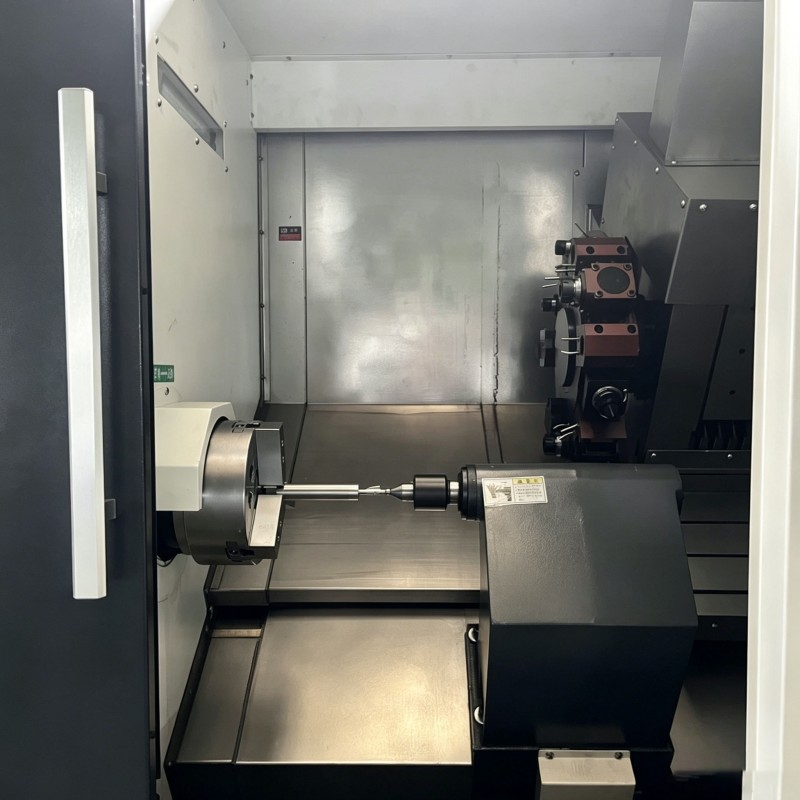

TCK66A Slant Bed CNC Lathe

SPECIFICATIONS

Unit

TCK66A

Max.swing over bed

mm

660

Max.swing over slide

mm

500

Max.processing length

mm

1000/1500/2000/3000/4000+

Max.bar capacity

mm

75/90

Max.processing diameter(plate)

mm

500

Spindle nose type

A2-8/A2-11

Spindle bore

mm

φ86/Φ104

Spindle speed range

min

3500/1500

Spindle shift mode

Stepless

Spindle motor power

kw

15

Chuck type

Hydraulic

Chuck size

Inch

12

X axis rapid traverse

m/min

12

Z axis rapid traverse

m/min

15

X axis servo motor torque

N.m

15

Z axis servo motor torque

N.m

15

X axis travel

mm

330

Z axis travel

mm

1050/1550/2050/3050/4050+

X/Z axis gulde way type

mm

55/55Linear rail

Tool post type

Horizontal 12 stations

Tool shank size

mm

Cylindrical cutters25×25/boring tools32/40

Tailstock type

Hydraulic Optional servo

Tailslock guide form

Hard rail

Tail stock quill diameler

mm

100

Til stock quill ravel

mm

150

Tail stock quill taper

MT5#

Tolal rated power

kw

22

Total rated current

A

30

Net weight

kg

6500/7500/B500/10500/11500+

Machine dimenslon(L×W×H)

mm

5000/5500/6000/8000+×2150×2350
