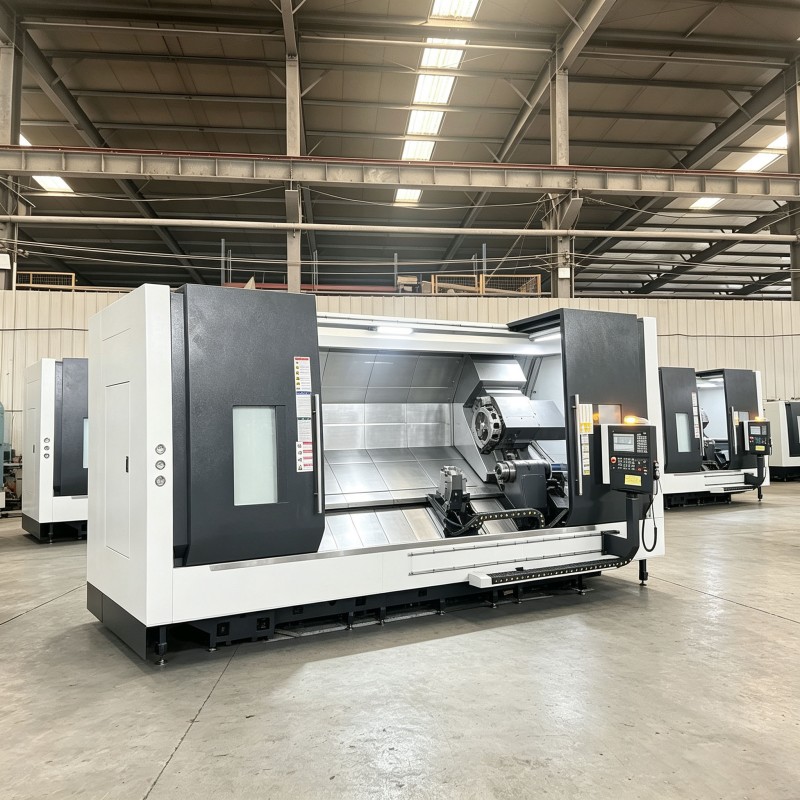

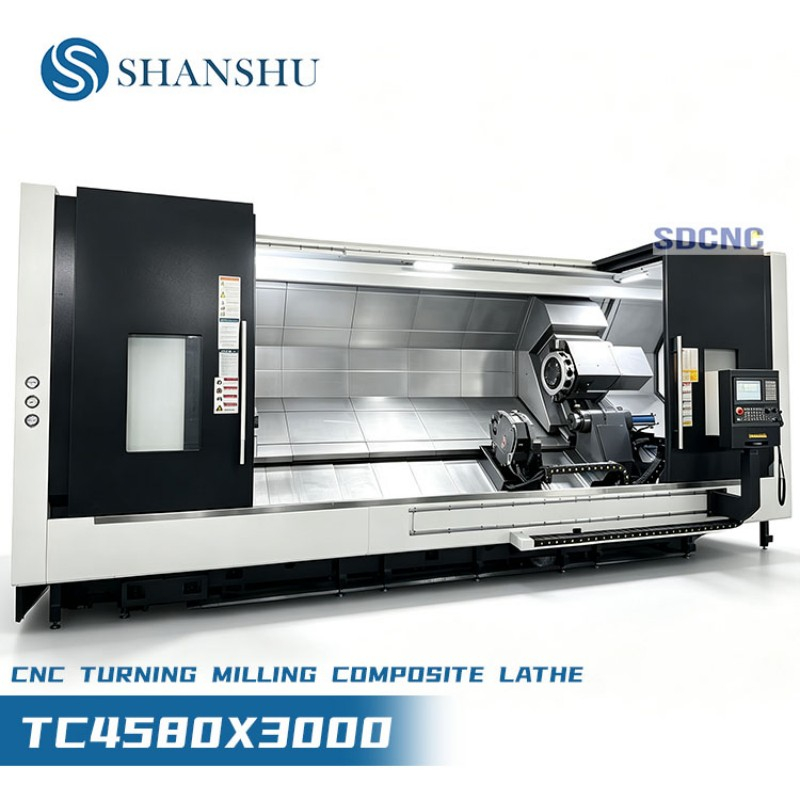

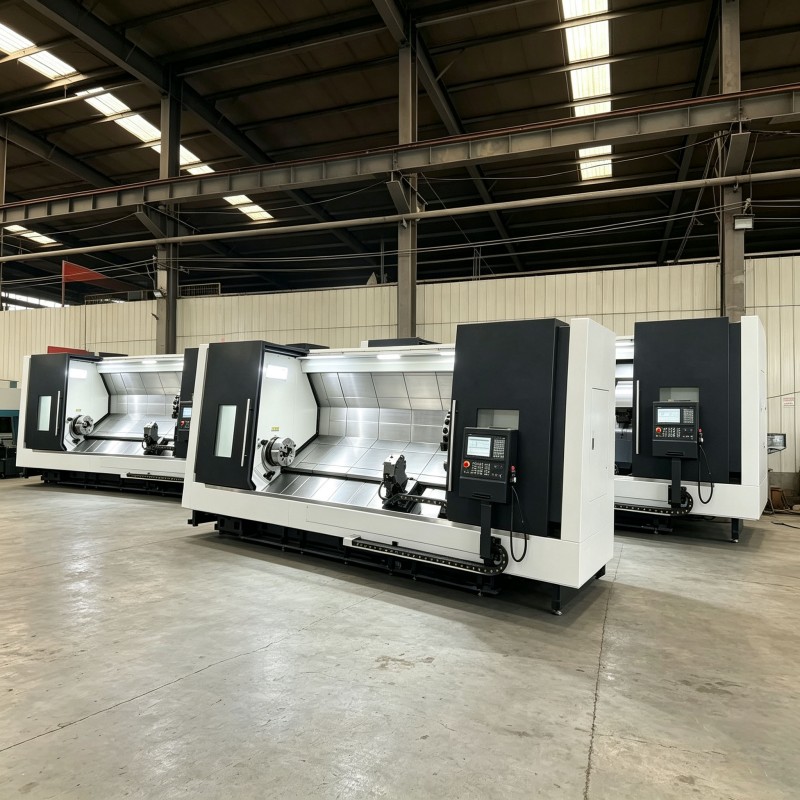

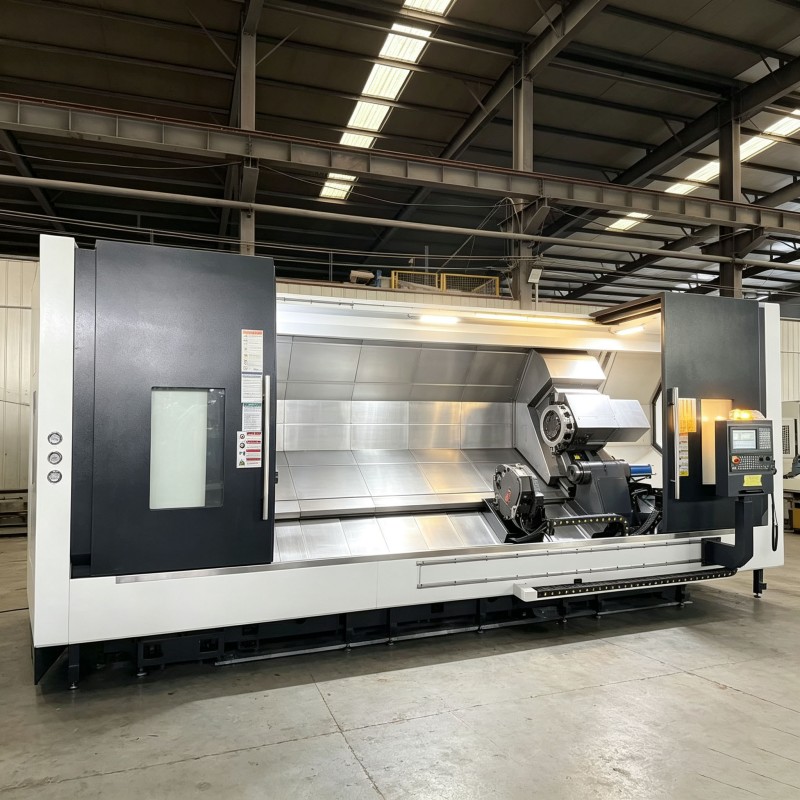

TC4580X3000 Turning Milling Machine

Specifications

Unit

TC4580

Bed incline

45°

Cutting capacity over bed

mm

Φ800

Cutting capacity over support

mm

Φ630

Max workpiece length

mm

1000/1500/2000/3000

Chuck size

A2-11 12”

Spindle power

kw

18.5-22

Spindle speeds

rpm

1500

Spindle bore

mm

Φ105

Through-spindle draw tube bore

mm

Φ90

X axis servo motor

NM

22

X travel

mm

400

Z axis servo motor

NM

22

Z travel

mm

1000/1500/2000/3000

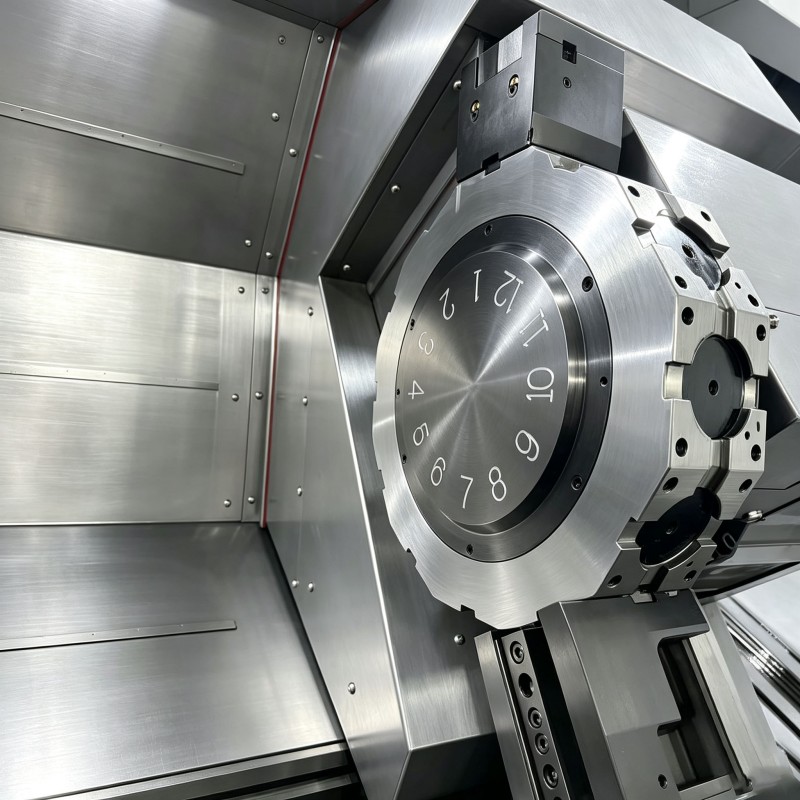

Turret capacity

12pcs

Standard handle size

mm

32×32

Tailstock sleeve diameter

mm

Φ160

Tailstock sleeve travel

mm

200

Tailstock travel

mm

700/1200/1700/2700

Tailstock taper

Metric #80

Positioning accuracy

mm

0.01

Repeatability accuracy

mm

0.008

Overall dimensions

m

5.1/5.6/6.2/7.3×2.3×2.5

Weight

kg

6200/7600/8900/11600
