TCK6340S Slant Bed CNC Lathe

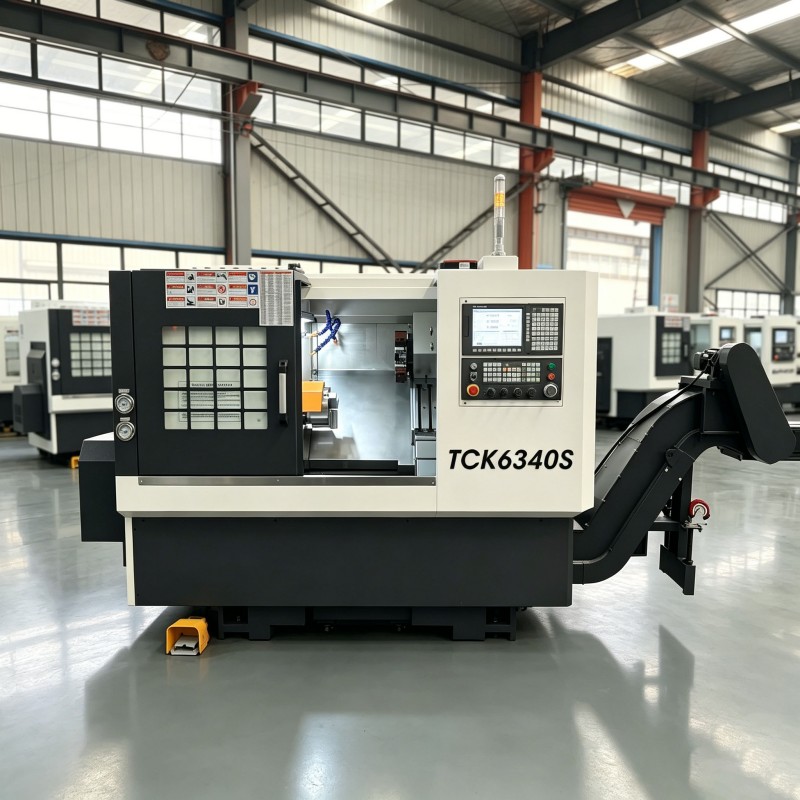

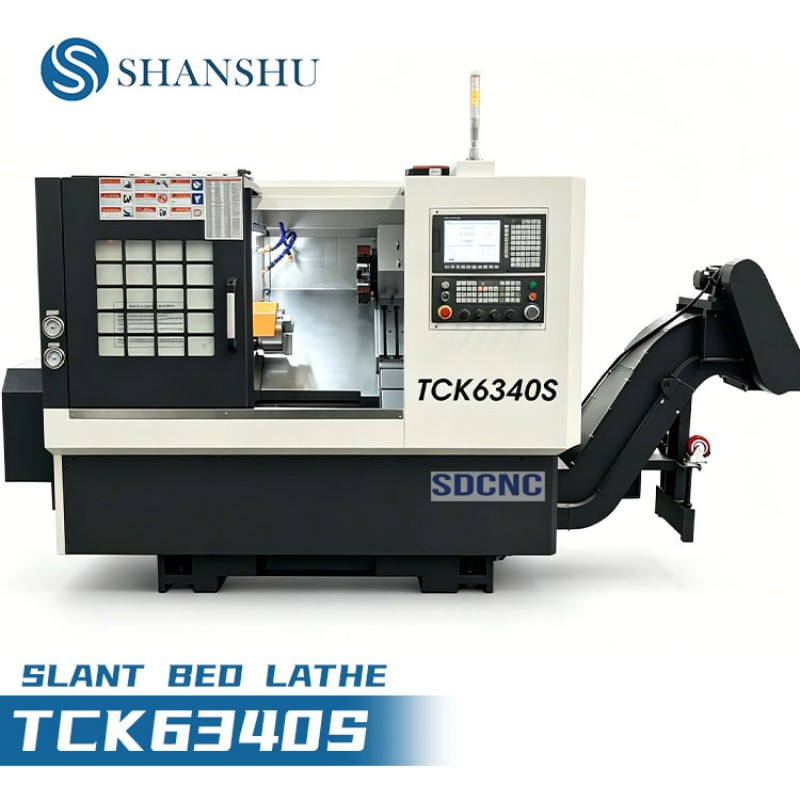

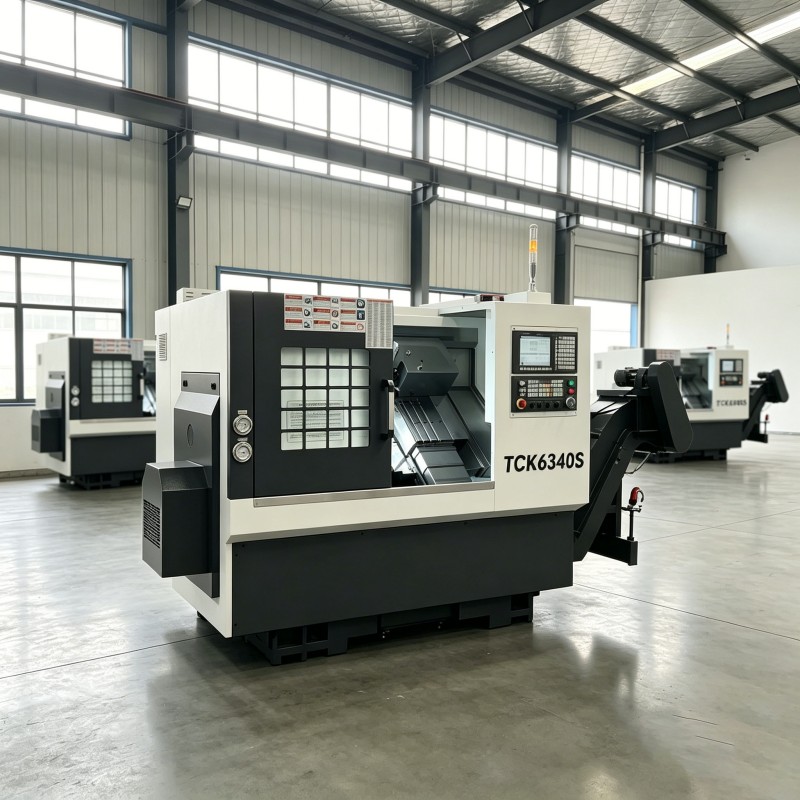

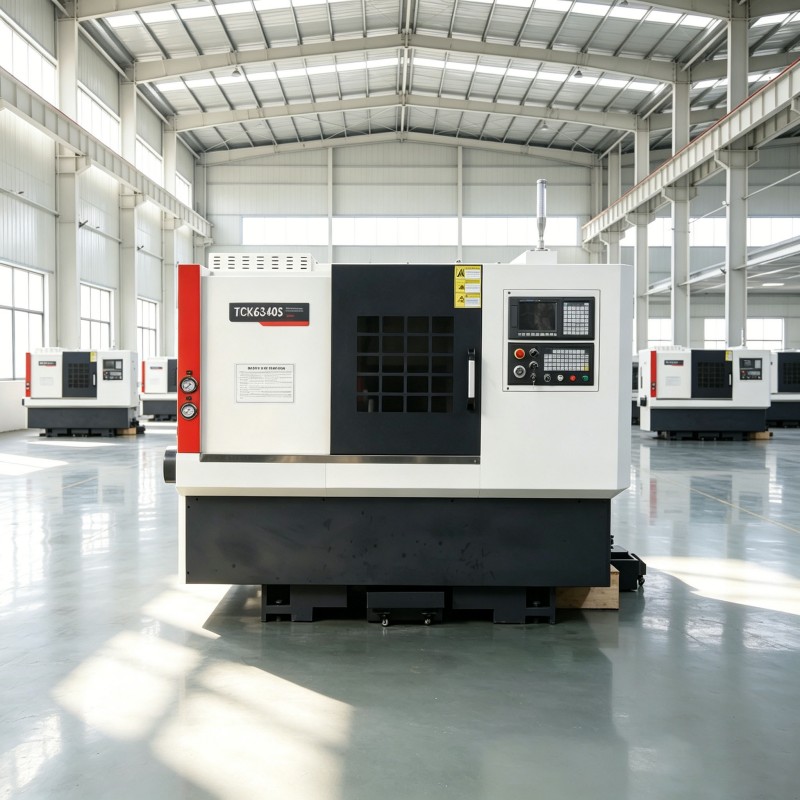

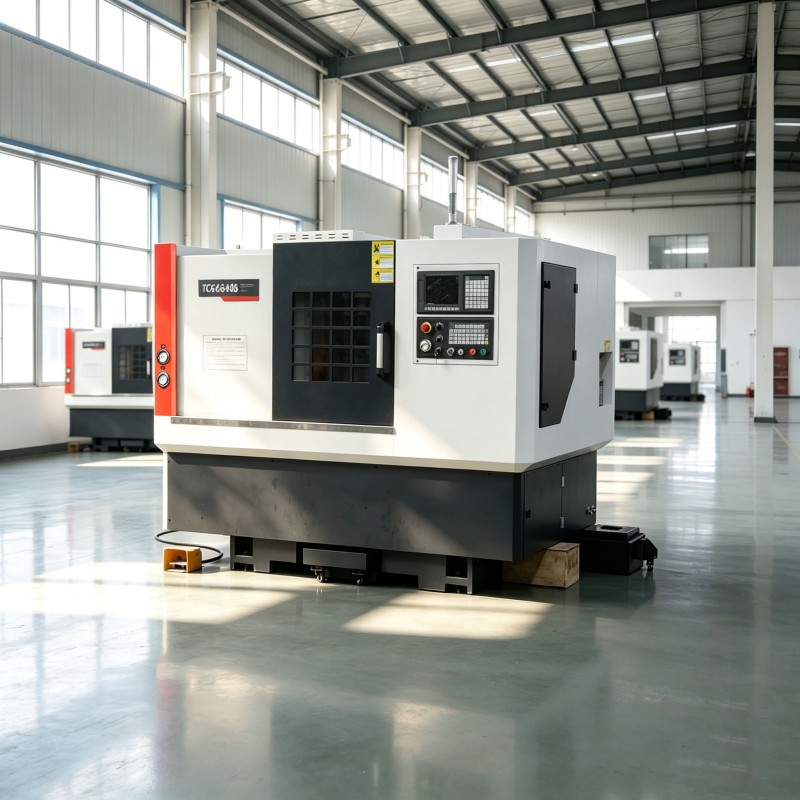

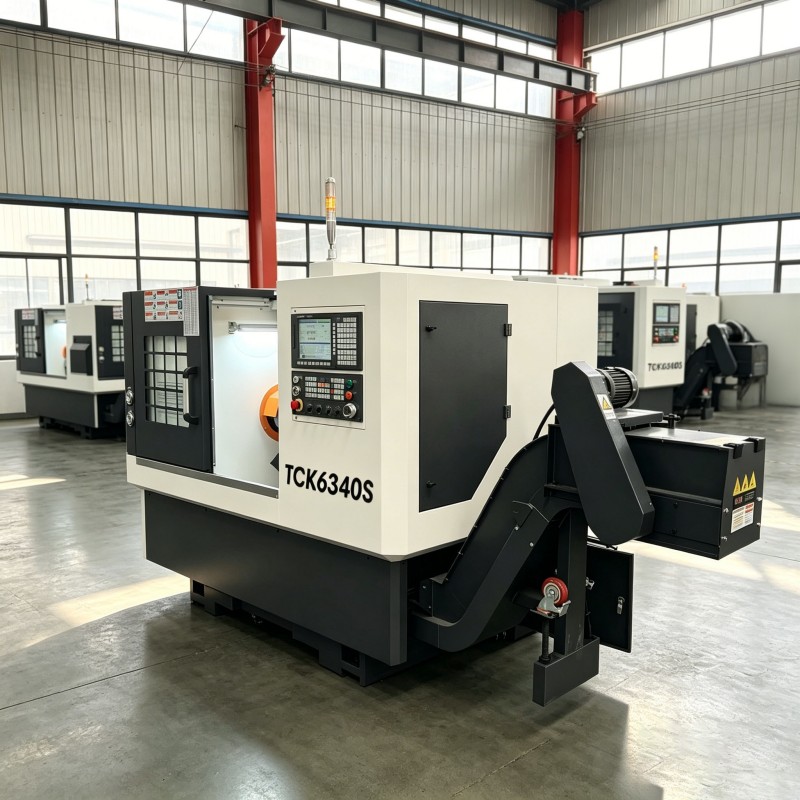

TCK6340S slant bed CNC lathe adopts linear guide and hydraulic turret. It is a 2-axis automatic numerical control turning machine with high precision and high efficiency.
This lathe is widely used for batch processing of shaft and circular metal parts.
Factory direct supply SDCNC, CE certification, 1-year after-sales warranty, system customization available.

Quantity:
Availability:





Inquire Add to Basket

Model:
TCK6340S
Brand:
SDCNC

Product Description

*Specifications*	*unit*	*parameter*
		TCK6340S
Max. swing dia.over bed	mm	Φ400
Max. swing dia.over slide	mm	Φ140
Max. processing diameter		Φ400/380
Max.work piece length	mm	300
Spindle nose		A2-5
Spindle bore	mm	Φ49
Chuck size	lnch	6
Guide way type		linear guide rail
spindle speed	rpm	3000rpm
Size of the knife body	mm	20´20
X/Z servo motor torque	6/6N.M	6/6
X / Z to fast speed	m/min	12/12
X axis travel	mm	400
z axis travel	mm	400
Spindle motor power	KW	5.5
Total power supply	KW	12
Machine tool net weight	Kg	2600
Overall dimensions (LWH)	mm	230015301780
