TCK500 Slant Bed CNC Lathe

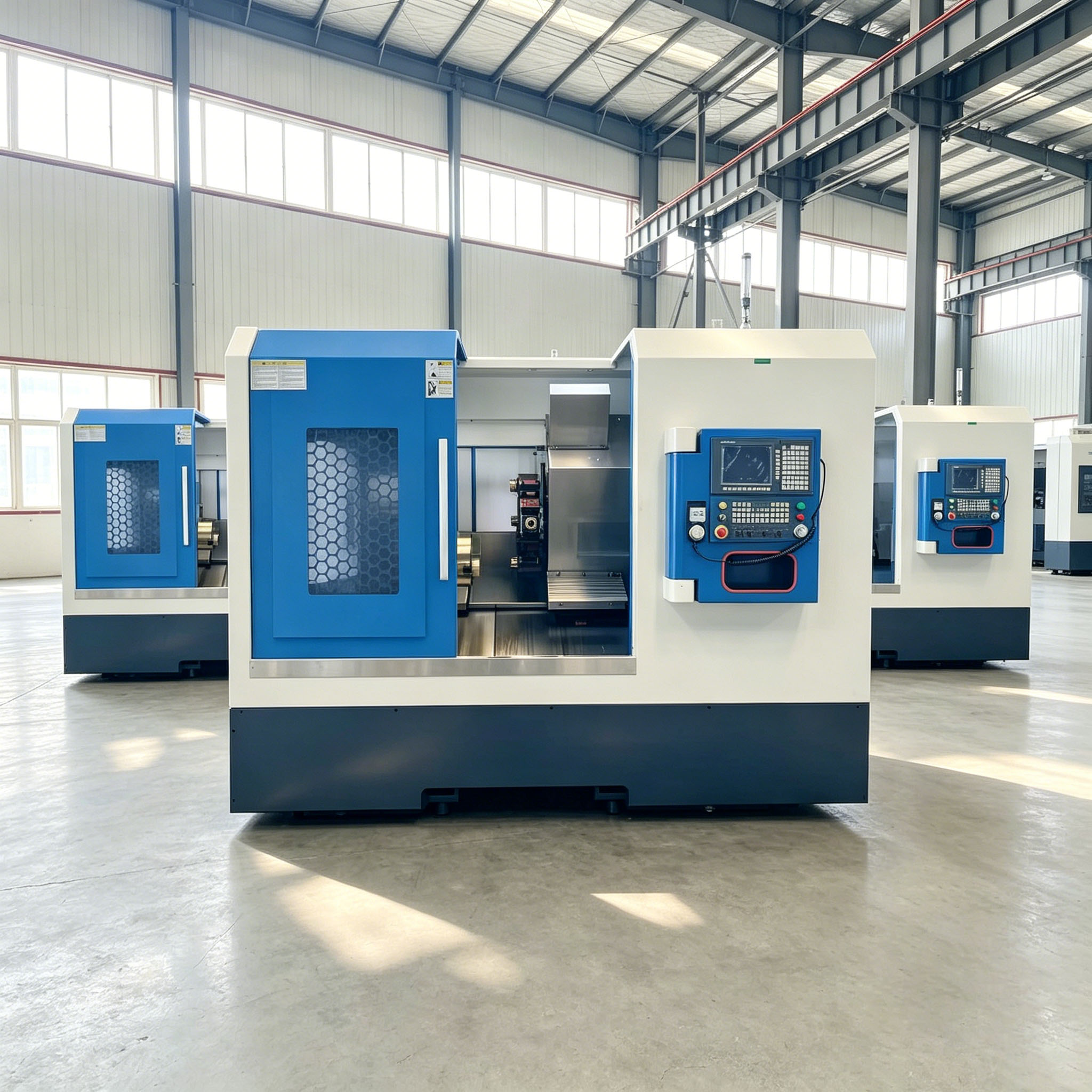

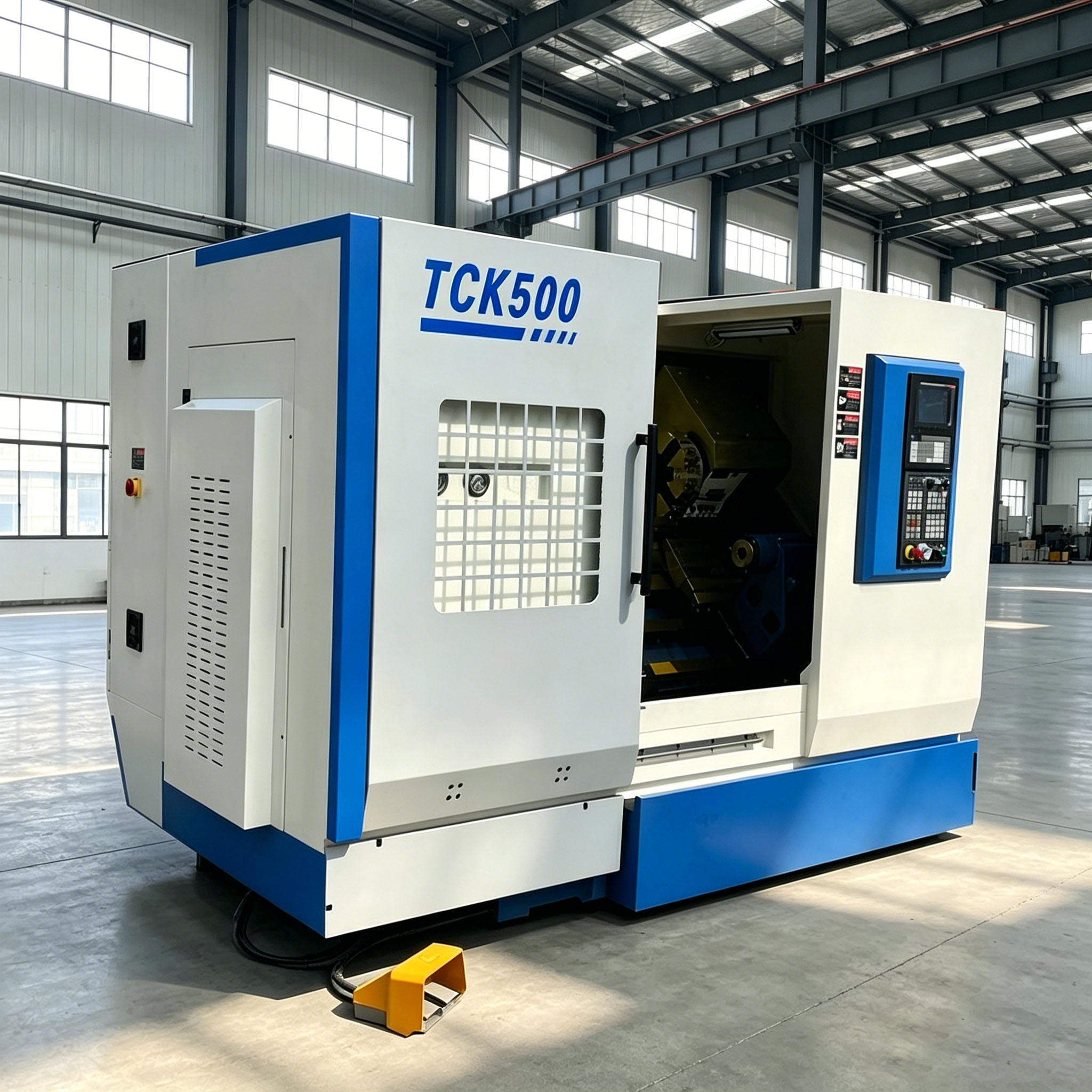

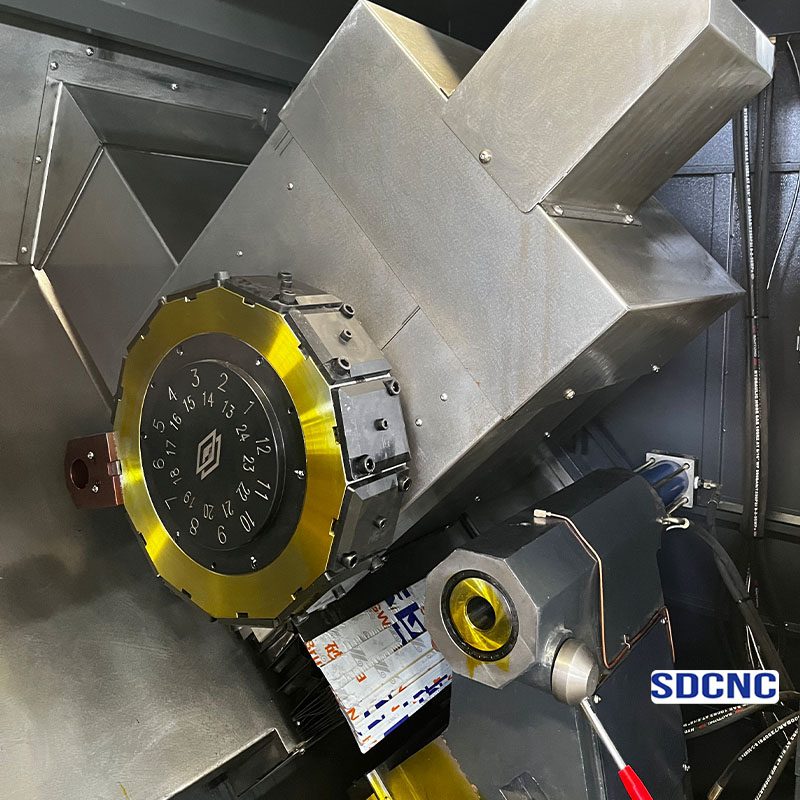

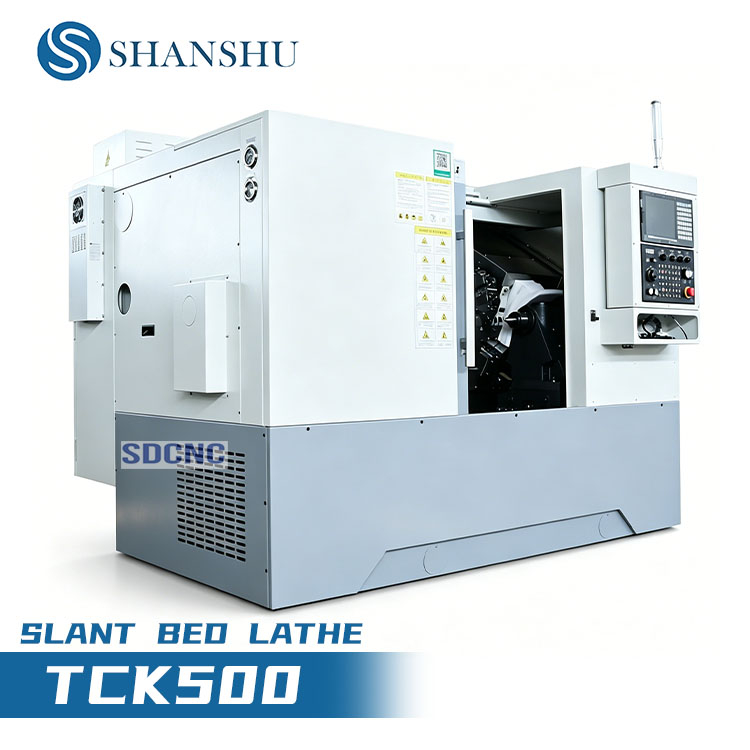

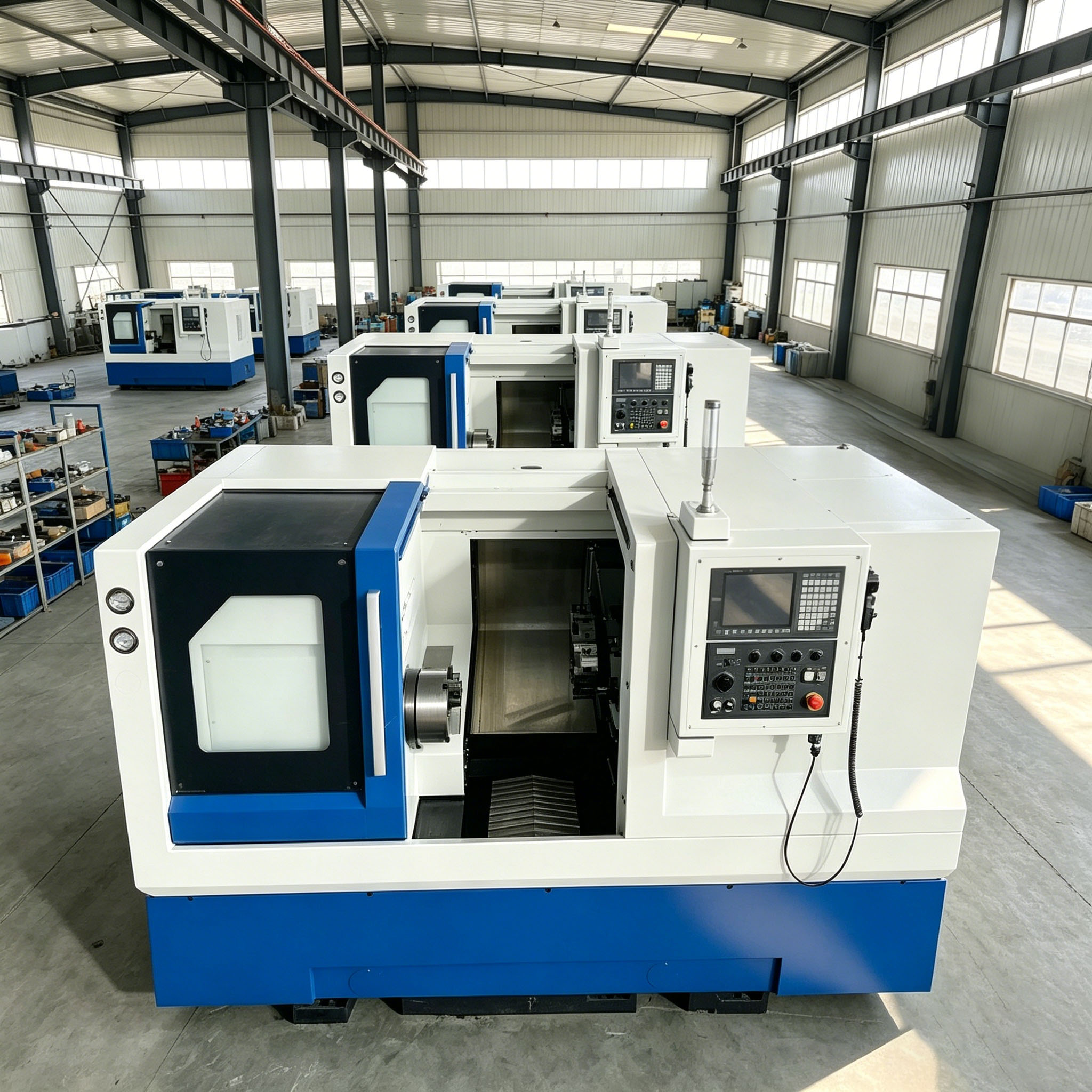

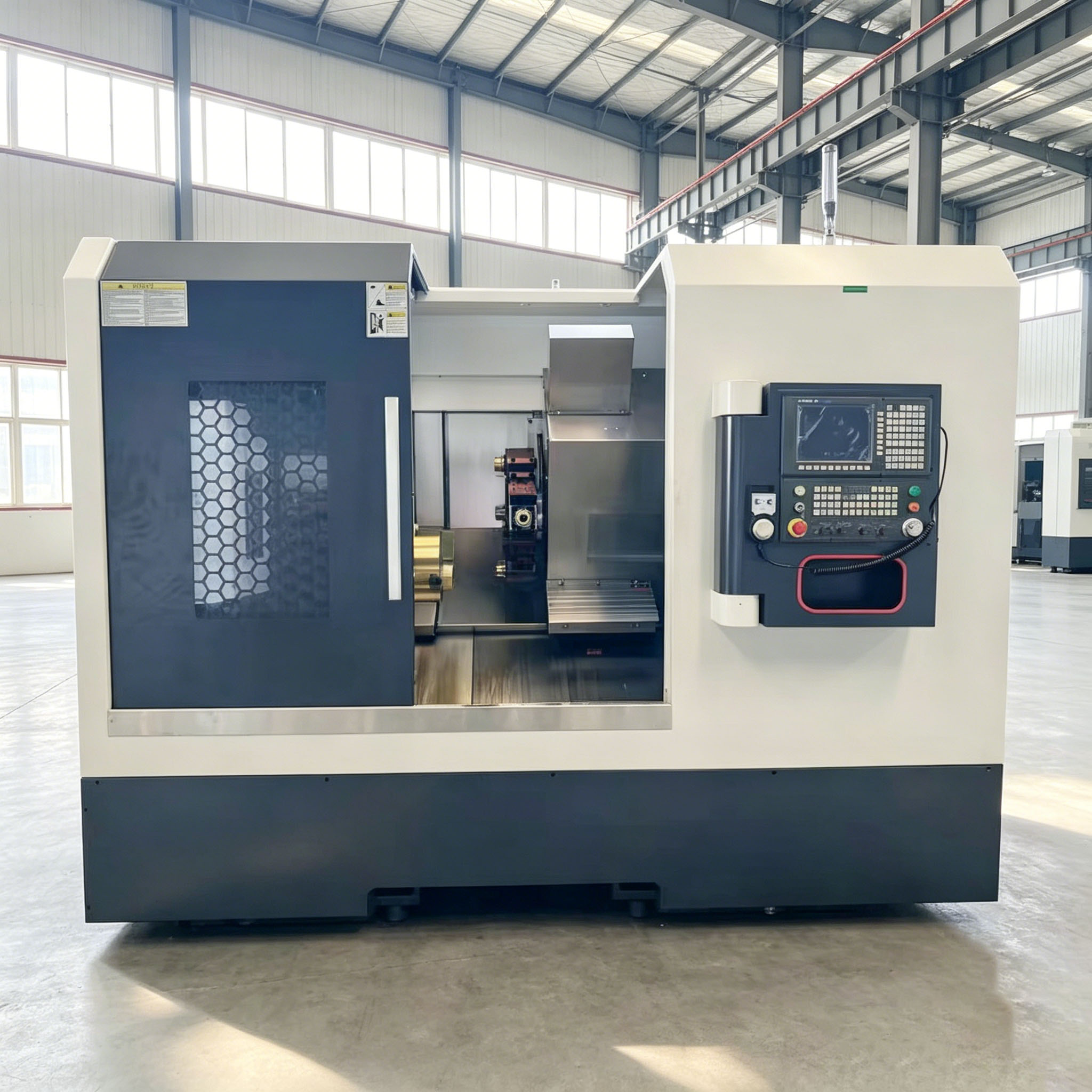

TCK500 slant bed CNC lathe adopts linear guide structure and heavy-duty cast bed. It features a large spindle bore of 80mm, 8-station hydraulic tool turret and 3000rpm high-speed spindle. This 2-axis CNC turning equipment delivers high precision and strong cutting performance, ideal for batch processing of circular metal parts.

Quantity:
Availability:





Inquire Add to Basket

Model:
TCK500
Brand:
SDCNC

Product Description

Specifications	Unit	TCK500
Max. swing dia. over bed	mm	570
Max. processing length	mm	750
Spindle nose		A2-6
Diameter of spindle through hole	mm	66
Spindle speed range	r/min	4200
Spindle shift mode		Stepless speed regulation
Motor power of spindle	kw	11
Chuck type		Hydraulic chuck
Chuck size	lnch	10
X axis rapid traverse	m/min	18
Z axis rapid traverse	m/min	18
X axis travel	mm	270
Z axis travel	mm	800
Guide way type		linear guide rail
Tool post type		8 Station
Tool shank size (square cutting tool)	mm	25x25
Net weight	kg	4000
Machine dimension(L×W×H)	mm	3250x1860x2000
