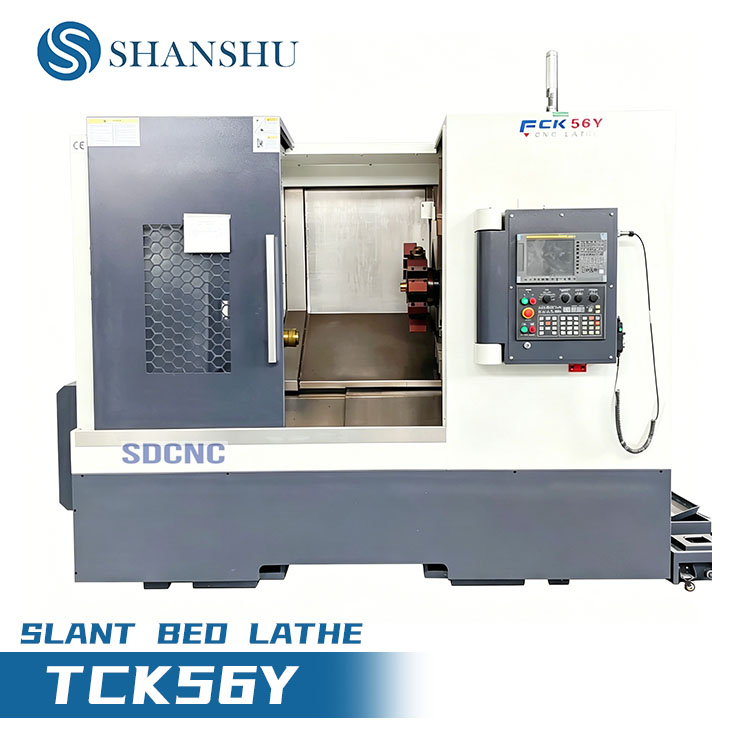

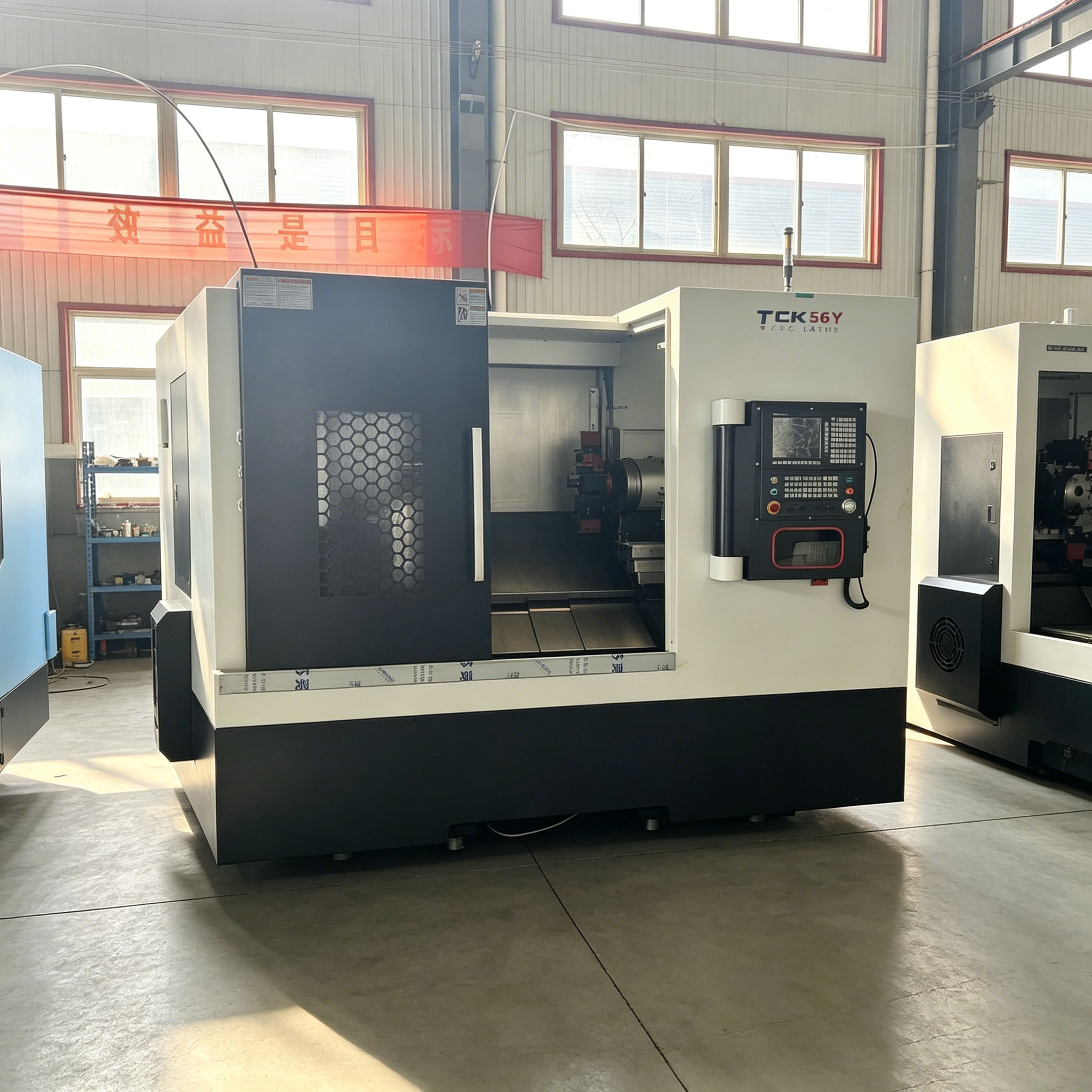

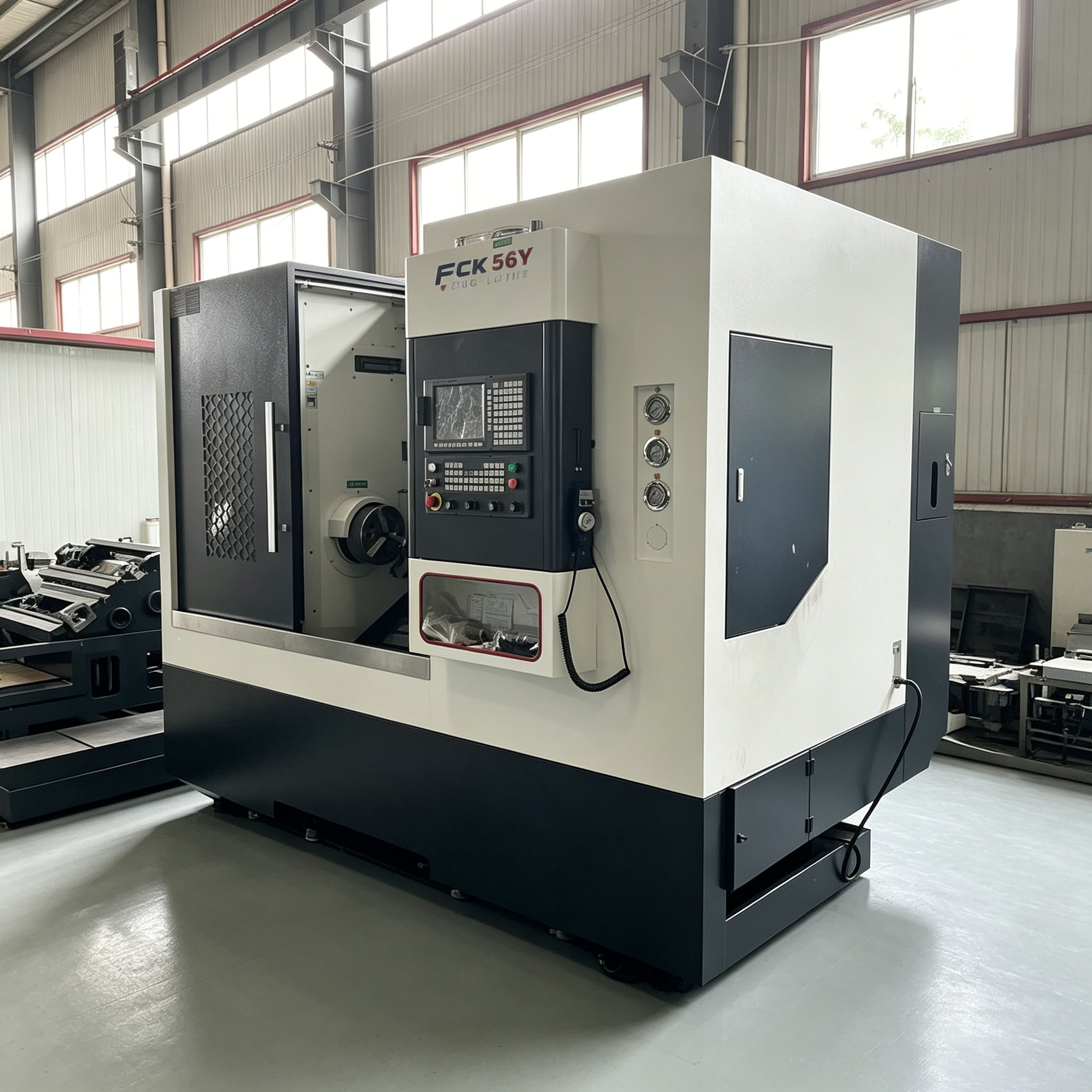

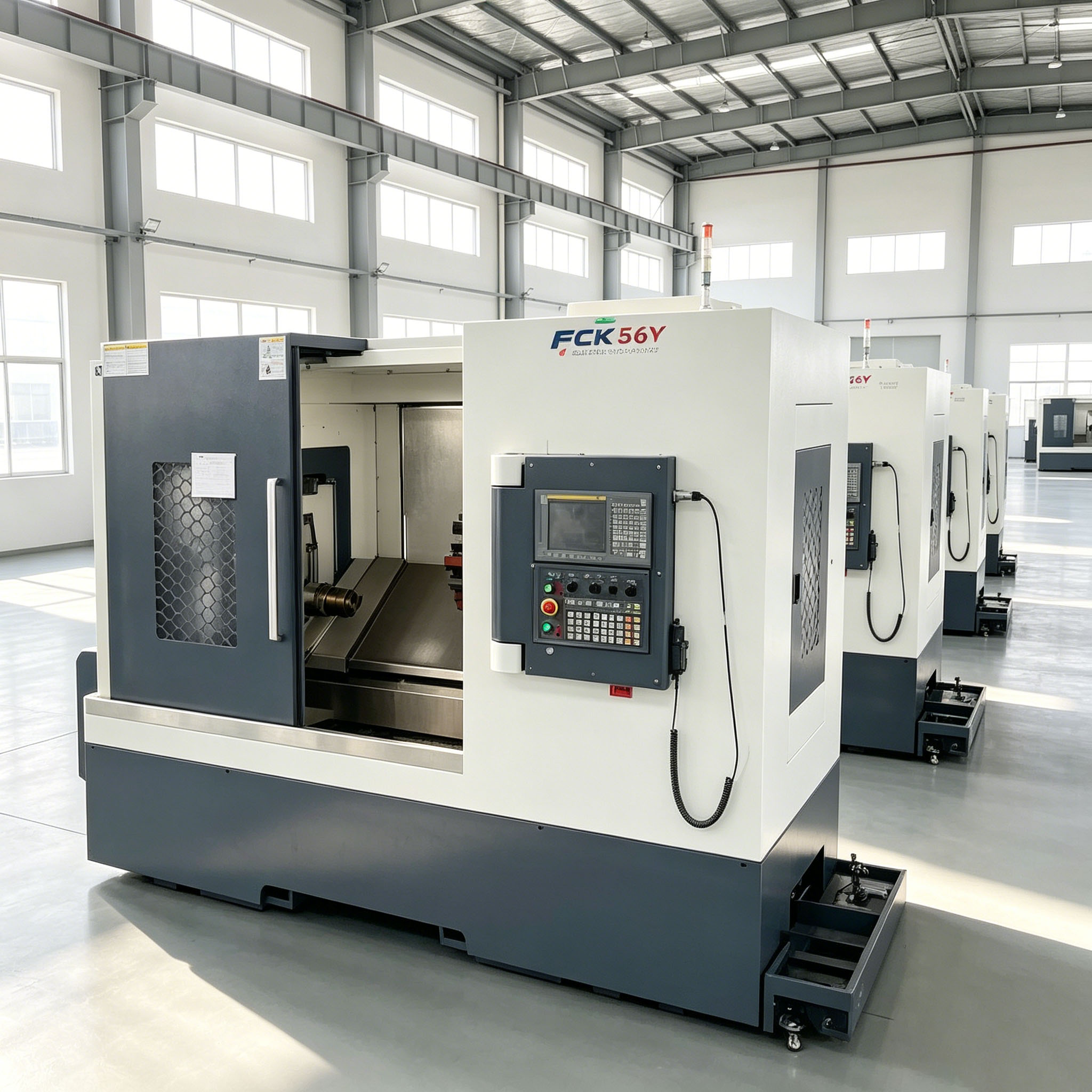

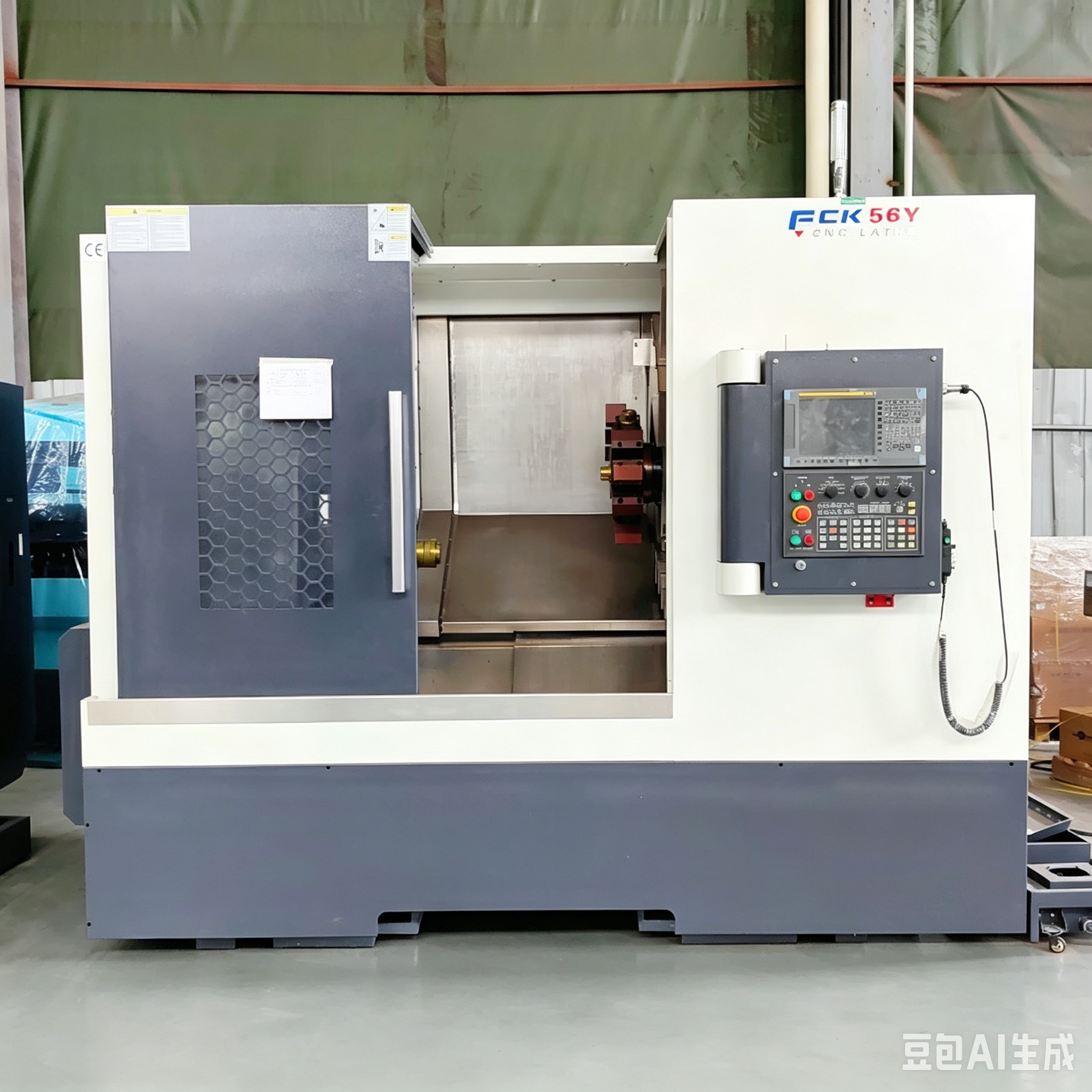

TCK56Y Slant Bed CNC Lathe Y-Axis Mill Turn Turning Center
The machine adopts one-piece 45° slant cast iron bed with stress relief treatment for high rigidity and stable heavy cutting. It is fitted with Taiwan high-precision linear guides and pre-stretched ball screws, with positioning accuracy up to ±0.008mm. The A2-6 spindle runs from 50 to 4500rpm with strong torque for both rough and finish machining. Its maximum swing diameter is 560mm, ideal for shaft parts, disc workpieces and complex shaped hardware. We offer optional FANUC, SIEMENS and GSK CNC systems, hydraulic chuck, hydraulic tailstock and chain chip conveyor. This turning center is widely used in auto parts, hydraulic valves and precision component mass production, with strict factory inspection and 1-year warranty.
