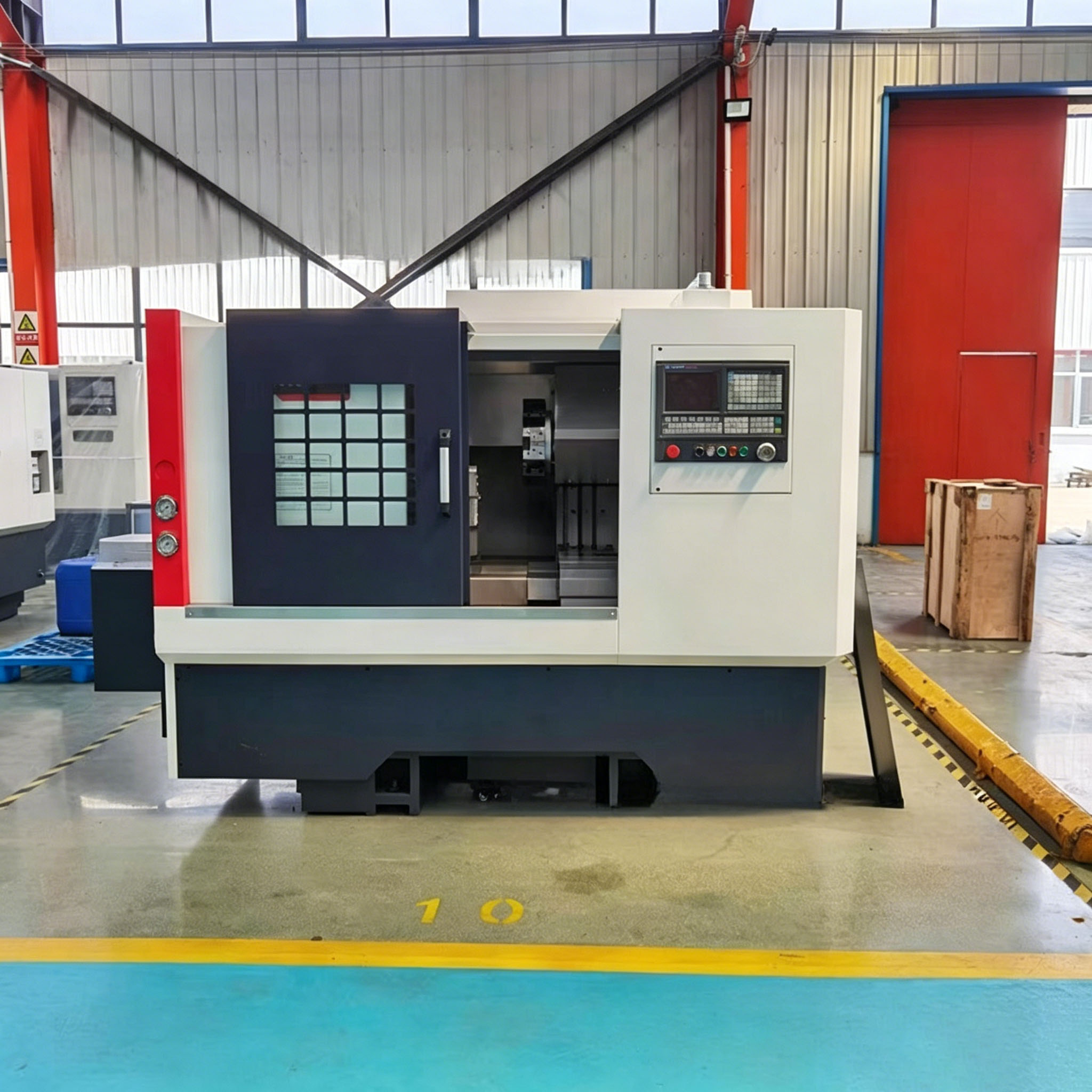

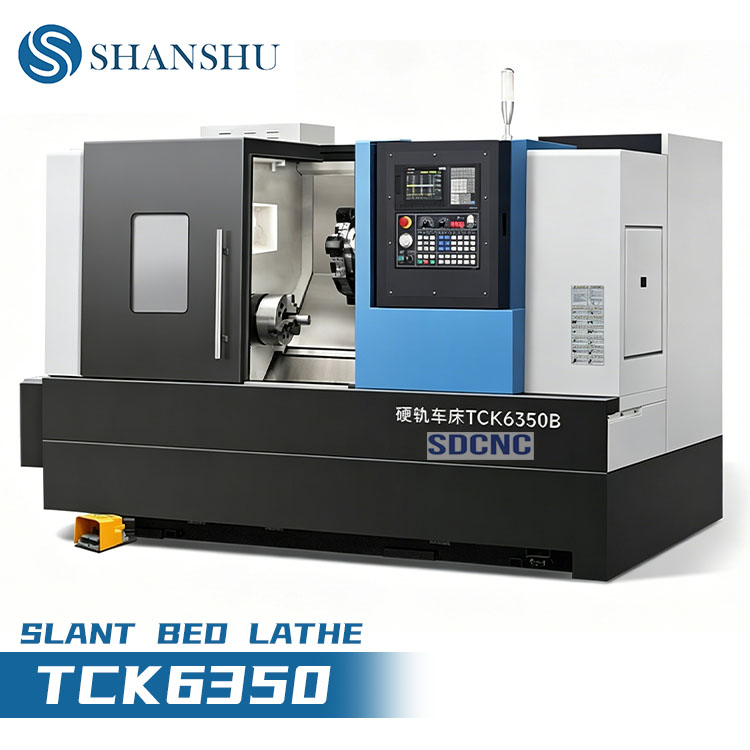

TCK6350 Slant Bed CNC Lathe

You are here: Home » Products » CNC Lathe » Inclined Bed CNC Lathe » TCK6350 Slant Bed CNC Lathe

TCK6350 Slant Bed CNC Lathe

TCK6350 is a 45° slant bed 2-axis CNC lathe with integrated cast iron bed and linear guide rail. It features a 66mm large spindle bore and 8-station hydraulic turret, ideal for bar material turning. The machine supports GSK, FANUC and SIEMENS CNC systems, with stable precision and strong heavy cutting performance. Widely used in auto parts, valve, pipe fitting and hardware batch production. We provide CE certification and strict pre-delivery testing.

Quantity:
Availability:





Inquire Add to Basket

Model:
TCK6350
Brand:
SDCNC

Product Description

Specification	Unit	TCK6350
Max.swing over bed	mm	520
Max.swing over cross slide	mm	220
Max. Processing length	mm	410(gang type tool post)/ 310(turret)
Max. Bar capacity	mm	55
Max.processing diameter of plate type of workpiece	mm	500
Spindle nose type		A2-6
Spindle bore	mm	66
Spindle speed range	r/min	50-3000
Main motor power	kw	7.5
Chuck form		Hydraulic chuck
Chuck size	inch	10
X axis rapid traverse	M/min	24
Z axis rapid traverse	M/min	24
X axis servo motor torque	N.m	7.5
Z axis servo motor torque	N.m	7.5
X axis travel	mm	500
Z axis travel	mm	500
Guide rail type		Linear rail
Tool post type		Gang type tool post
Tool shank size	mm	25x25/dia.32
Total rated power	kw	13
Total rated current	A	28
Machine weight	kg	3000
Machine dimension	mm	2500X1620X1890
