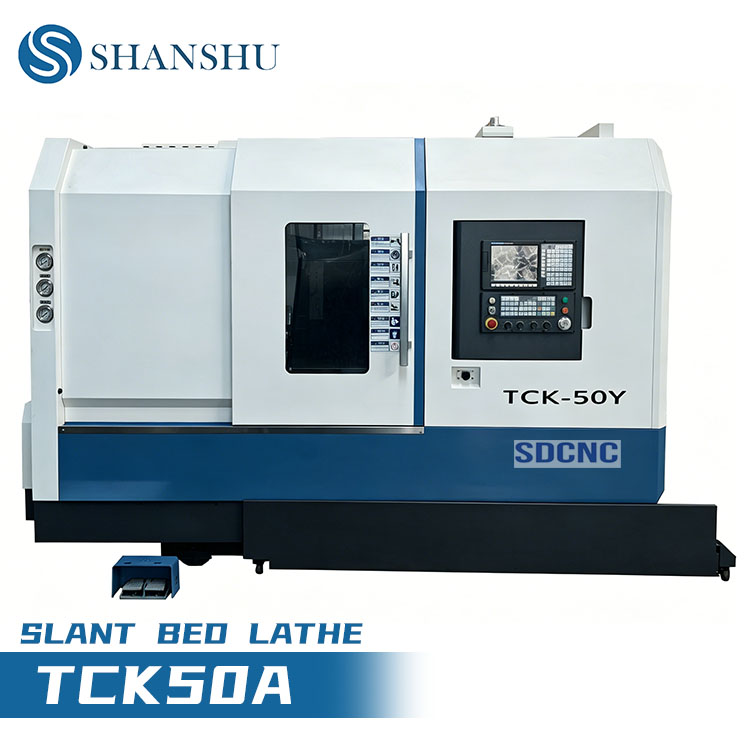

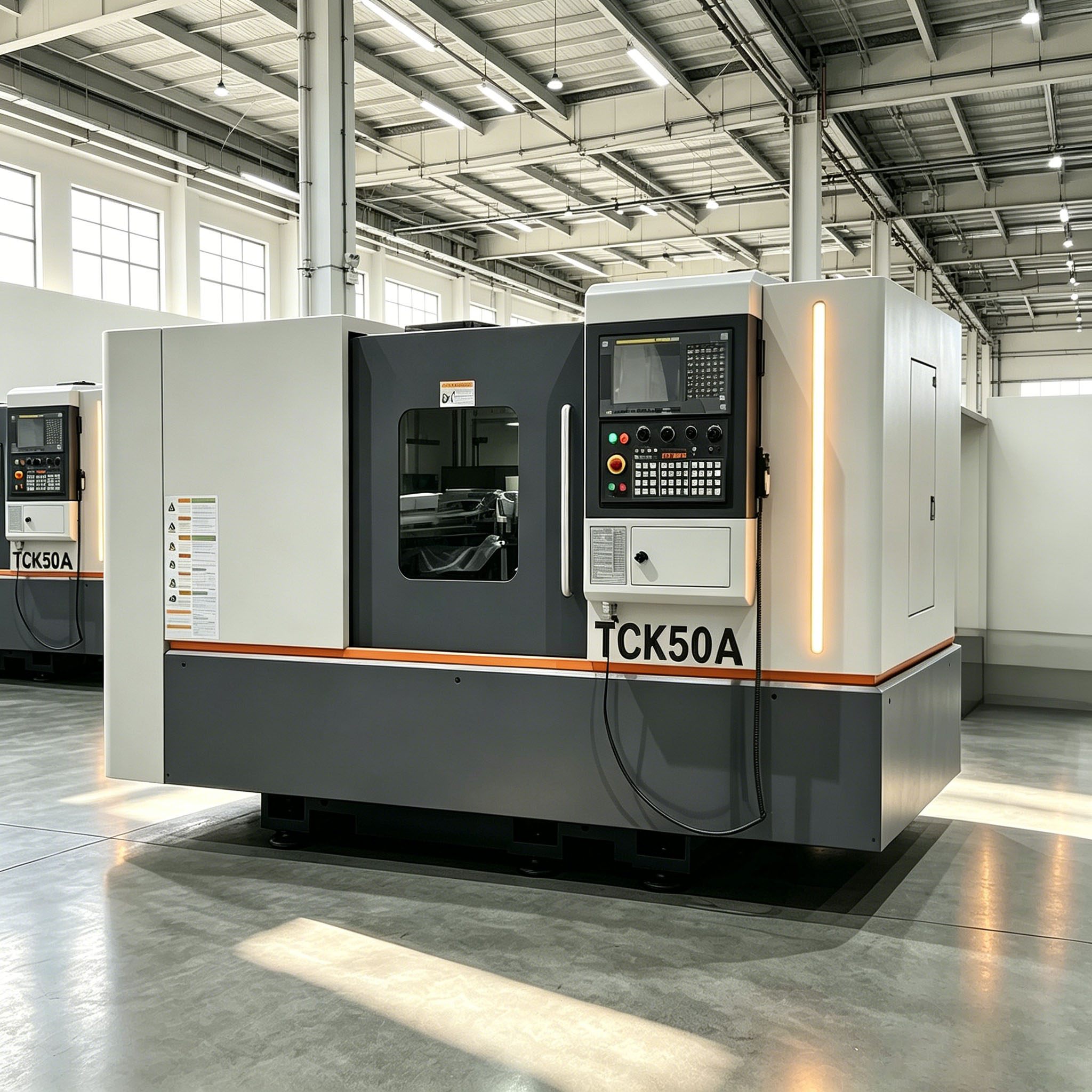

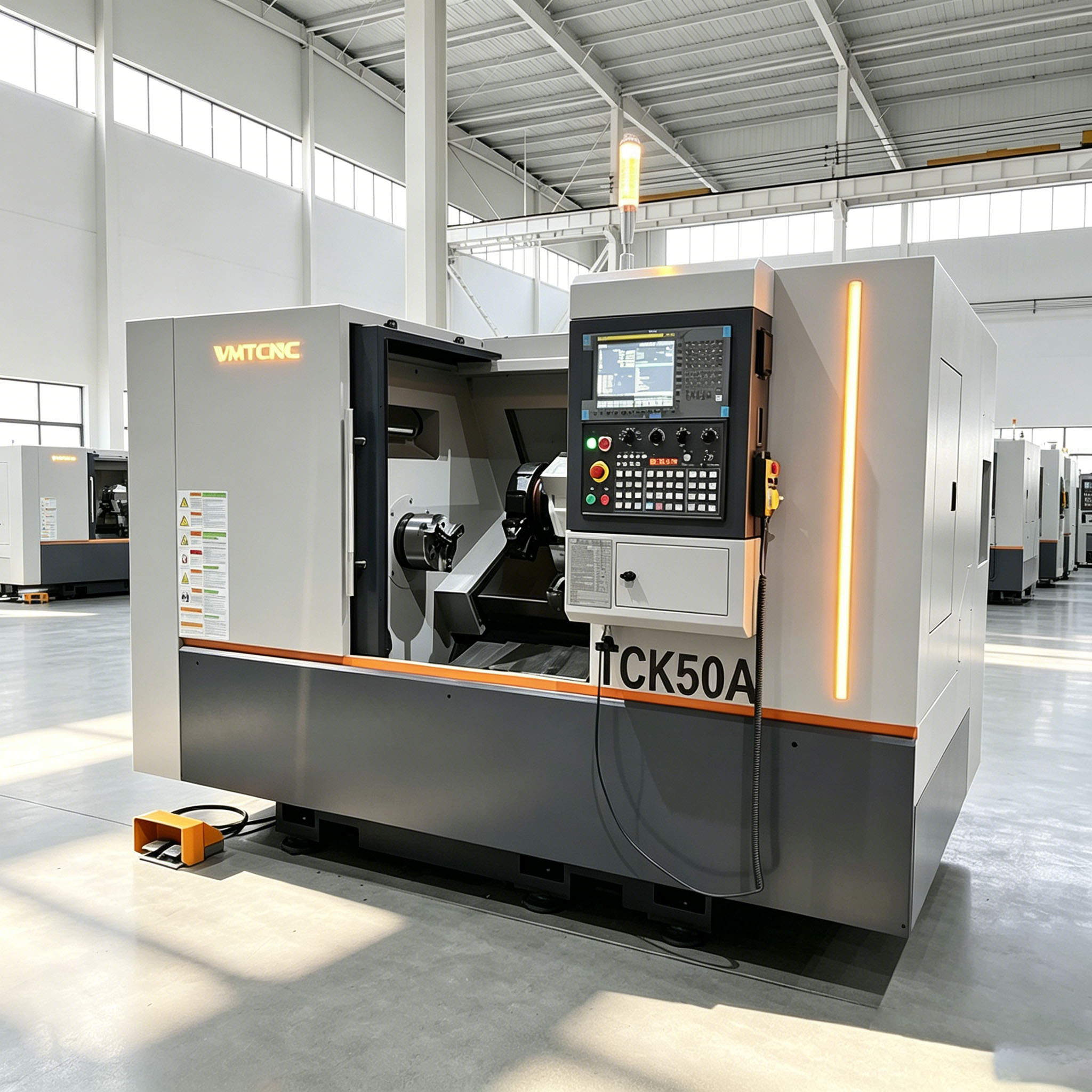

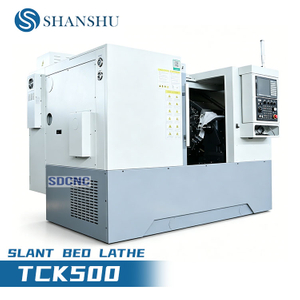

Model | TCK 50A -500(GSK 980TC3 system) |
Standard accessories | Unit ( mm ) |
Maximum turning diameter of bed | Φ560 |
Maximum turning diameter of cross slide | Φ160 |
Maximum processing length | 350 |
Maximum machining diameter (disk type) | Φ400 |
Standard chuck specifications | 10 inch Bedford/Taiwan |
Hydraulic knife tower | 8 station(Optional)12 |
X axis maximum stroke | 240 |
Z axis maximum stroke | 540 |
Spindle speed | 3000rpm |
Spindle speed stage | stepless |
Spindle end code | A2-6 |
Spindle through hole | Φ66 |
Pull tube through hole | Φ50 |
Cutting feed rate | 1-15000mm/min |
Spindle motor power | 11KW |
Turret center high dimensions | 100 |
Sleeve diameter | 70 |
Sleeve stroke | 80 |
Spindle unit | Φ200 |
Screw bearing | 35/35/PMI/HIWIN/Taiwan |
X/Z Ball Screw | 7206B/DB/P5/PMI/HIWIN/NSK |
The X/Z axis screw specifications | 3210/4010 |
Taper hole of tailstock sleeve | MT5# |
Maximum stroke of tailstock | 450 |
Dimensions (length × width × height) | 2600*1850*2000 |
Total Weight | 3200KG |
