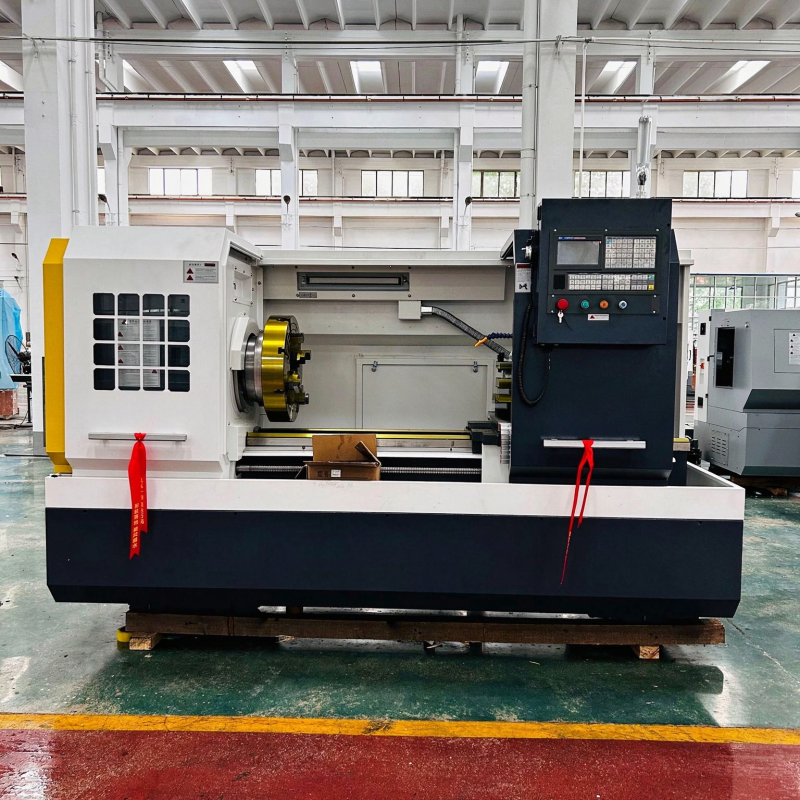

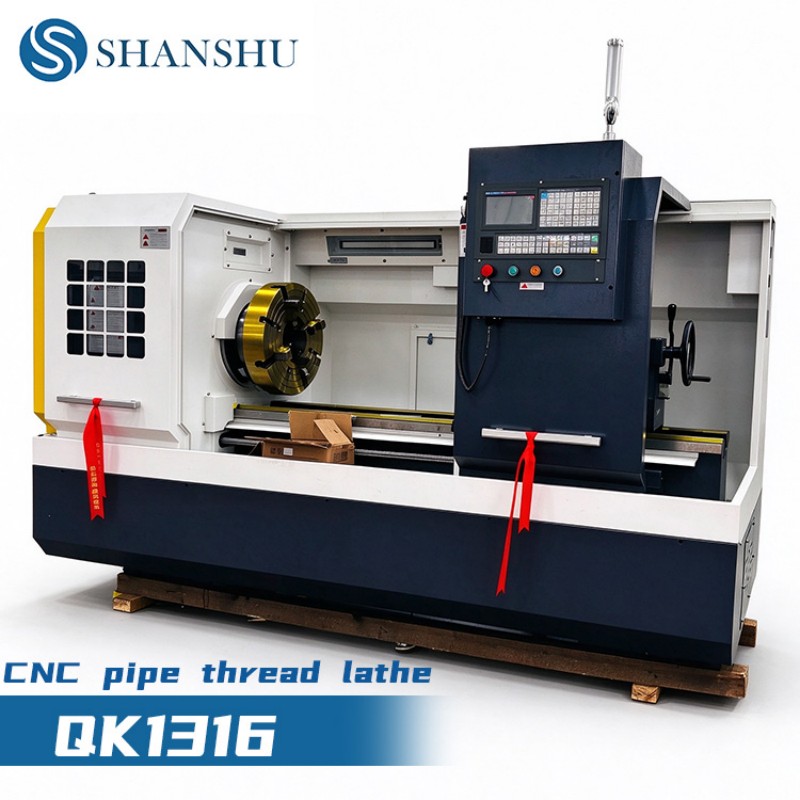

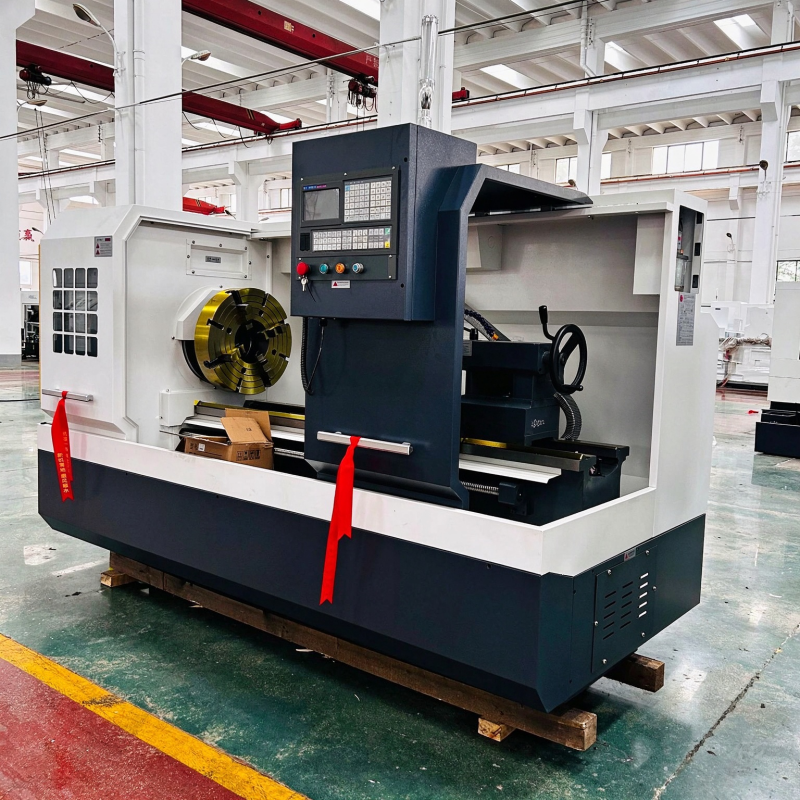

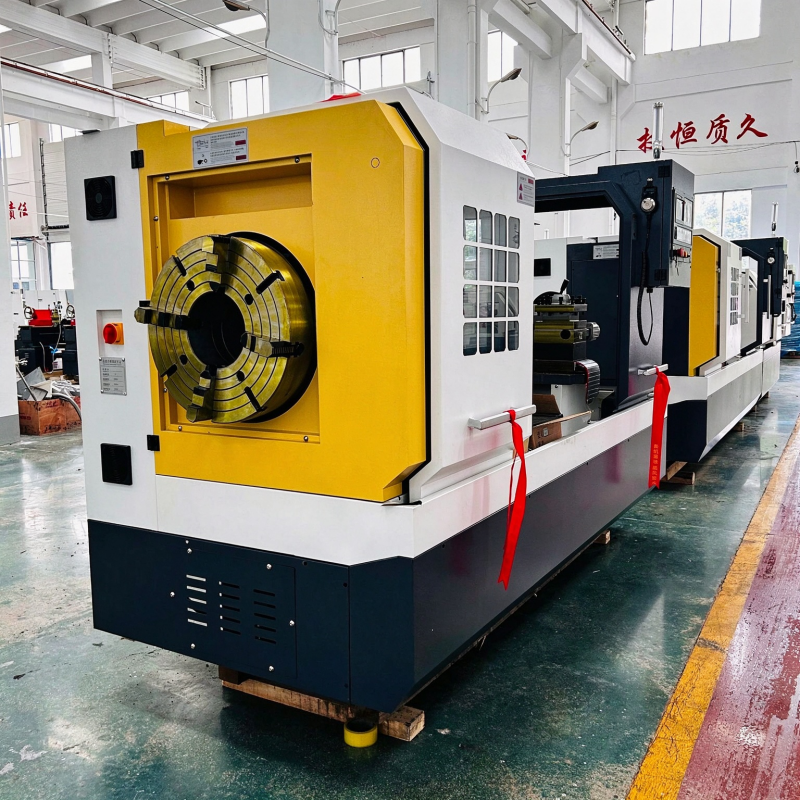

QK1316 Horizontal CNC Pipe Threading Lathe

Specifications

Units

QK1316

Swing over bed

mm

630/800

Swing over cross slide

mm

330/530

Distance between centers

mm

1000/1500/3000

Bed width

mm

550

Max.load capacity

T

3

Spindle bore

mm

165

Pipe threading range

mm

40-155

Spindle speed steps

-

2 steps VF

Spindle speed range

rpm

40-180, 150-800

Chuck

φ400 3 jaw manual

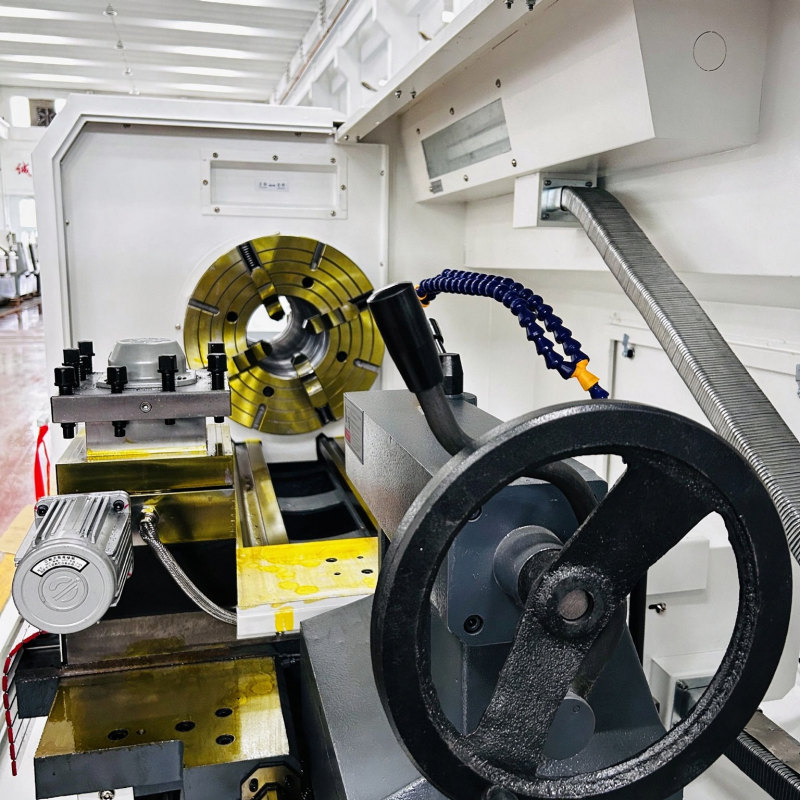

Tool post

-

Electric 4 station

Tool shank size

mm

32*32

X axis travel

mm

350

Z axis travel

mm

750/1250/2750

X axis rapid traverse

m/min

4

Z axis rapid traverse

m/min

6

Tailstock quill diameter

mm

φ100

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

250

Main motor power

kw

11

Coolant motor power

kw

0.125

Machine weight(1500mm)

T

5.2

Overall dimension(L*W*H)(1500mm)

m

3800*1900*1900
