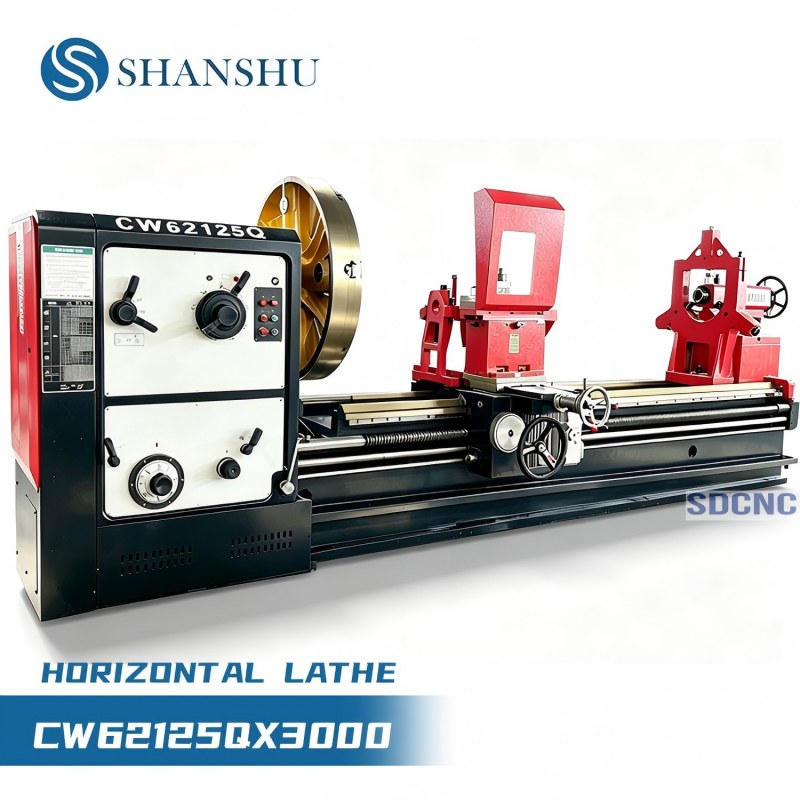

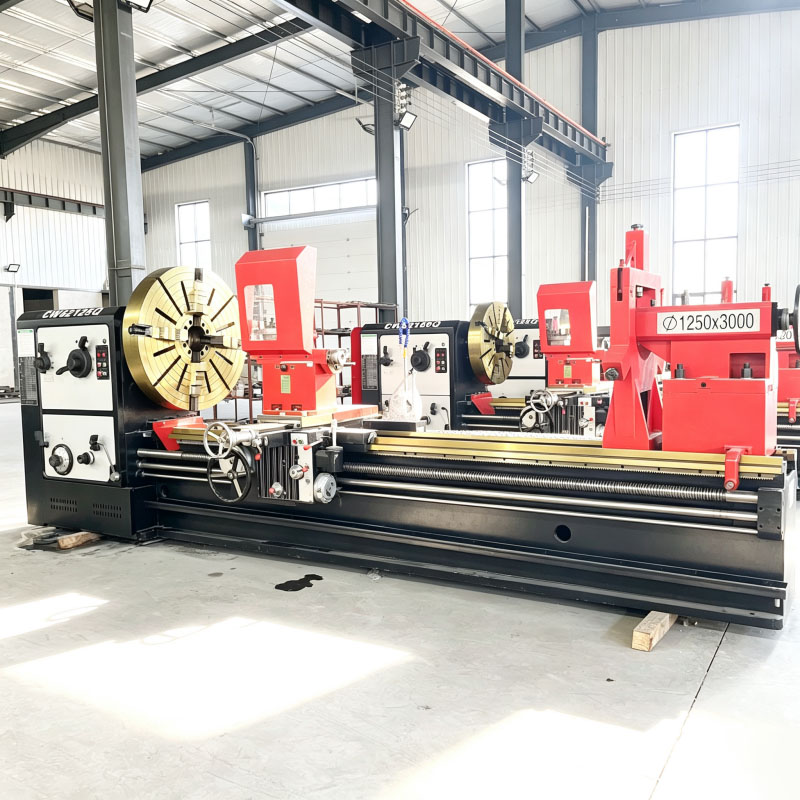

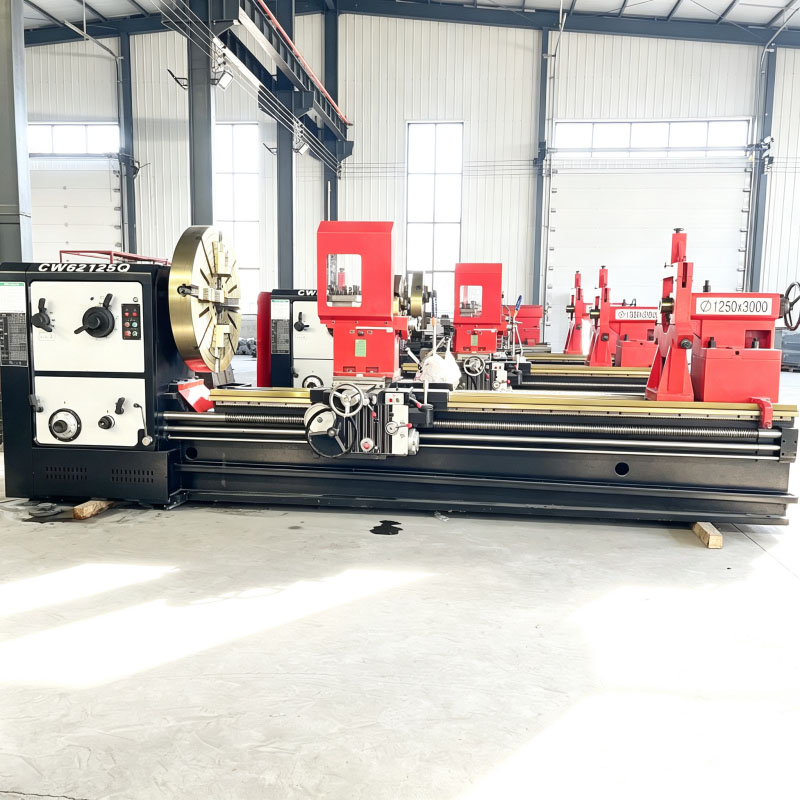

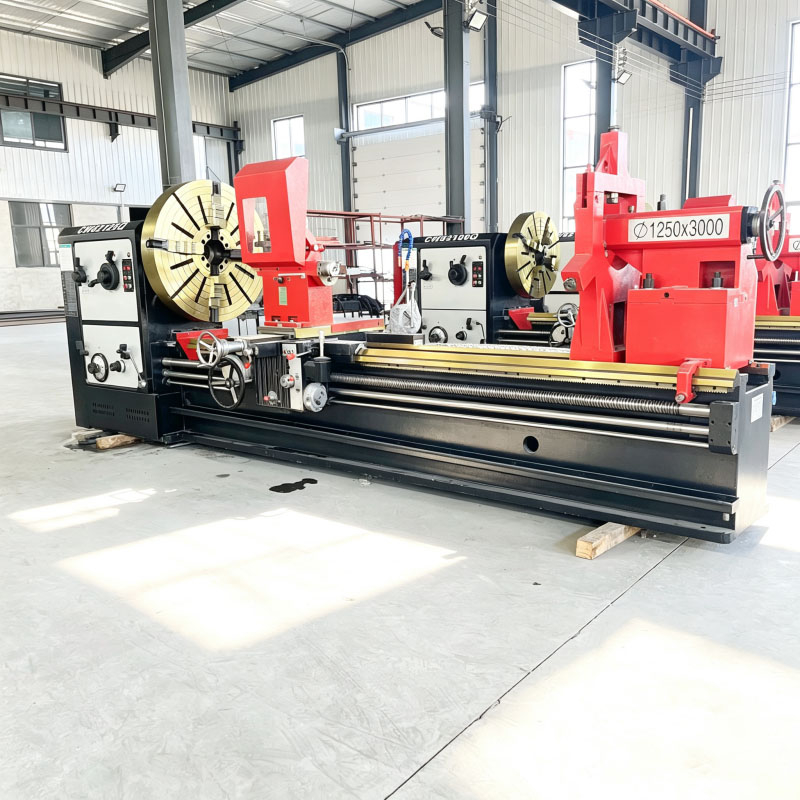

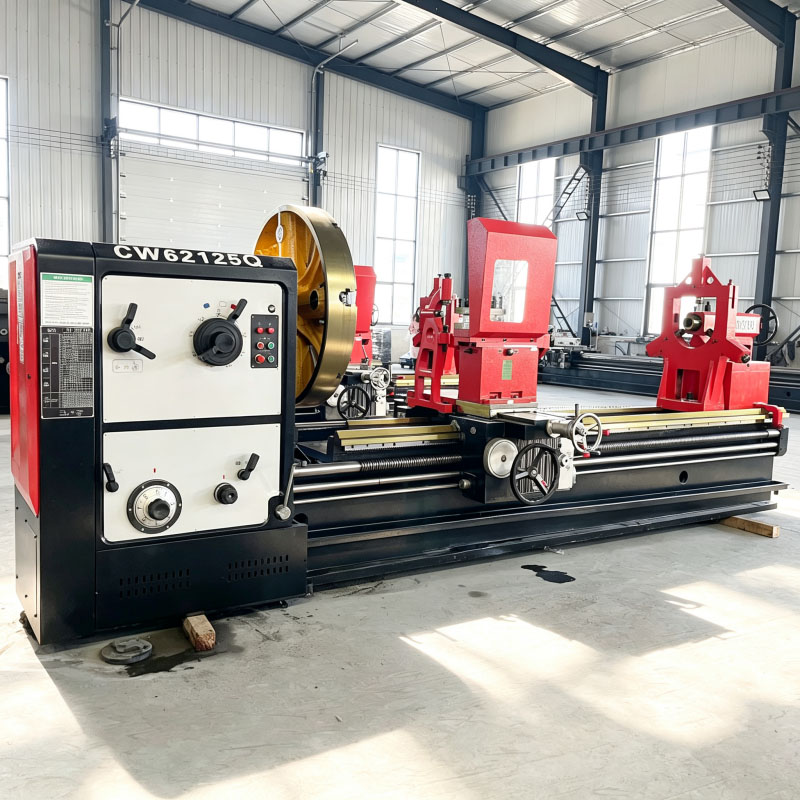

CW62125Q Gap Bed Lathe

CW62125Q gap bed lathe is a heavy‑duty manual metal turning machine with 3000mm centers. The gap‑out design supports turning large‑diameter workpieces up to 1425mm. With robust structure, stable cutting performance and easy‑to‑operate control system, it is an ideal metalworking equipment for heavy‑load turning tasks.

Quantity:
Availability:





Inquire Add to Basket

Model:
CW62125Q
Brand:
SDCNC

CW62125Q Gap Bed Lathe with 3000mm Centers 1250mm Swing 1425mm Gap Turning

Product Description

Specification	Units	CW62125
Max swing over bed	mm	1250
Max swing over cross slide	mm	930

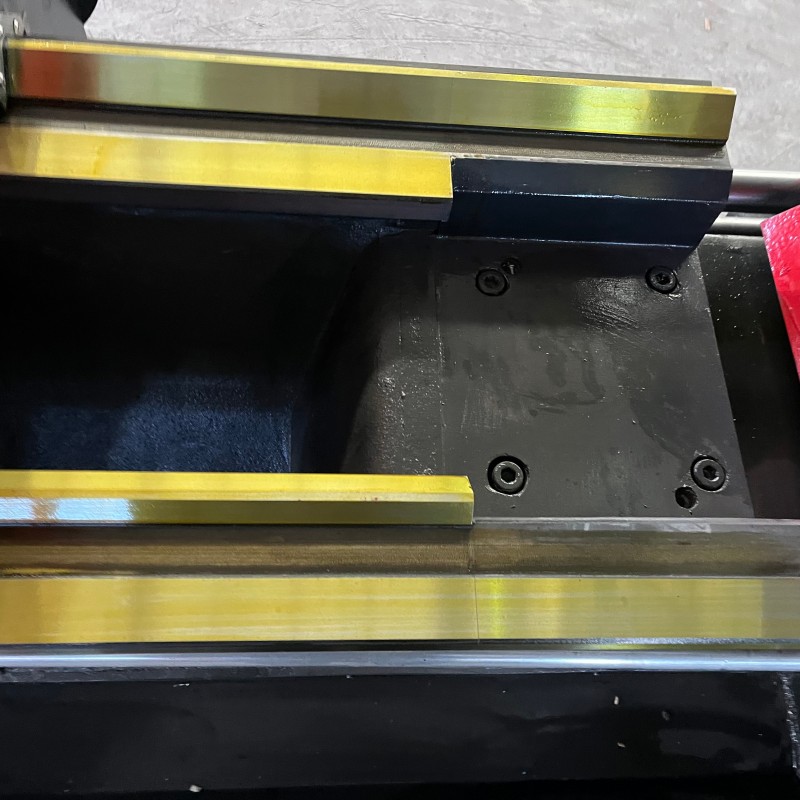

Max swing over gap	mm	1425
Distance between centers	mm	2000
Guideway width	mm	600
Spindle bore and type	mm	Standard 105mm (Optional 130mm)
Spindle nose		D11
The front cone of spindle bore and taper of center	mm	120; MT5
Number of speeds and range	rpm	18 steps; 5.4 to 720rpm
Metric thread kinds /range		1 to 240; 50 kinds
Inch thread kinds /range		14 to 1; 26 kinds
Module thread kinds/range		0.5 to 120; 53 kinds
Pitch threads kinds/range		28 to 1; 24 kinds
Longitudial feeds range (kinds)		0.06-24.3 / 64 kinds
Rapid traverse	mm/min	4000
Max horizontal travel of lower slide	mm	500
Max travel of top slide	mm	200
Travel of tailstock sleeve	mm	250
Taper of tailstock sleeve		MT5
Main motor power	kw	11
Quick motor power	kw	1.1
Coolant pump motor power	w	90
