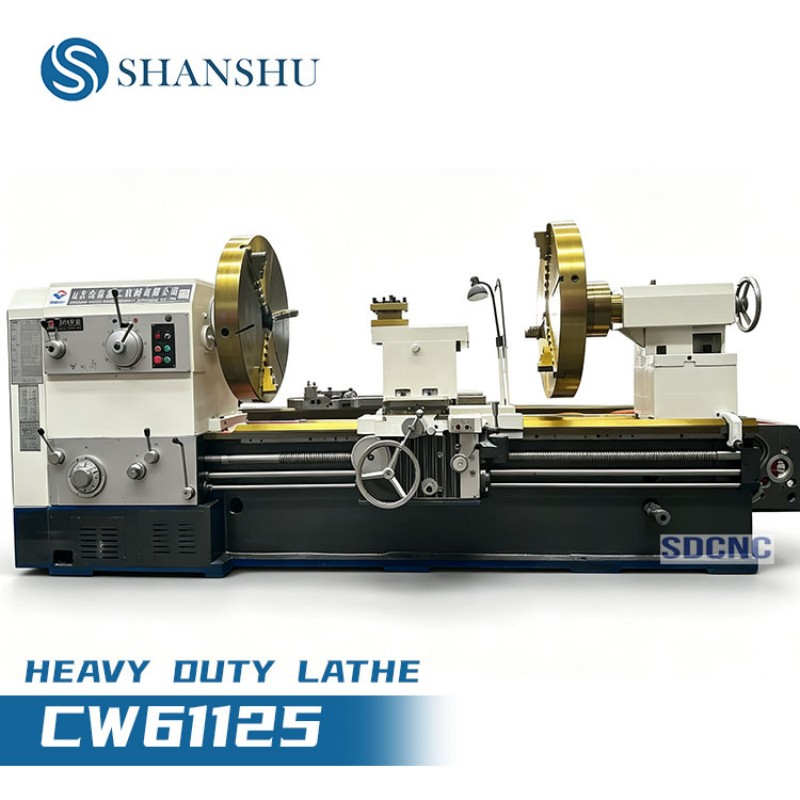

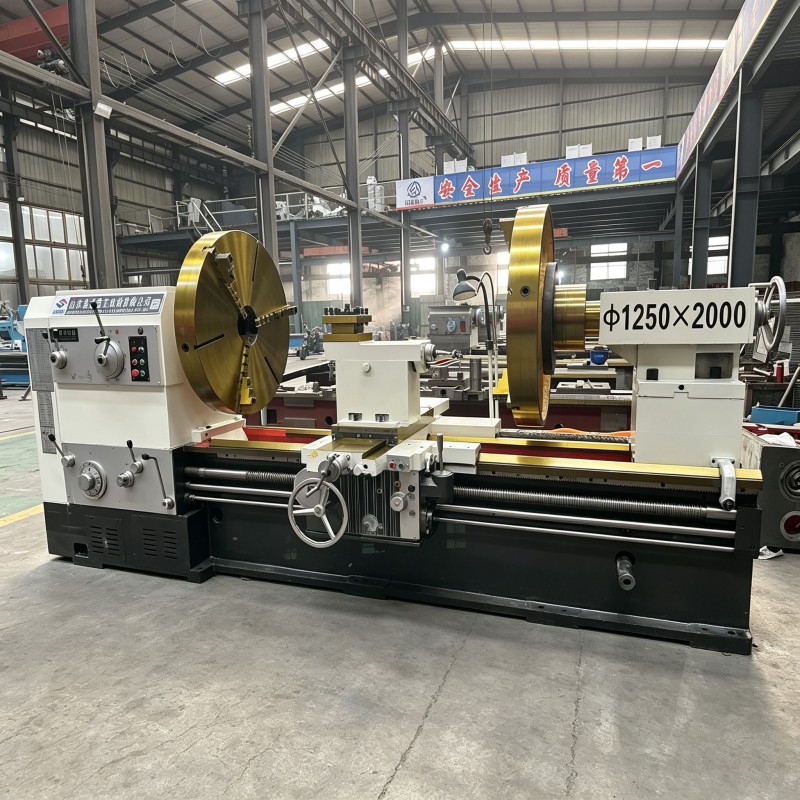

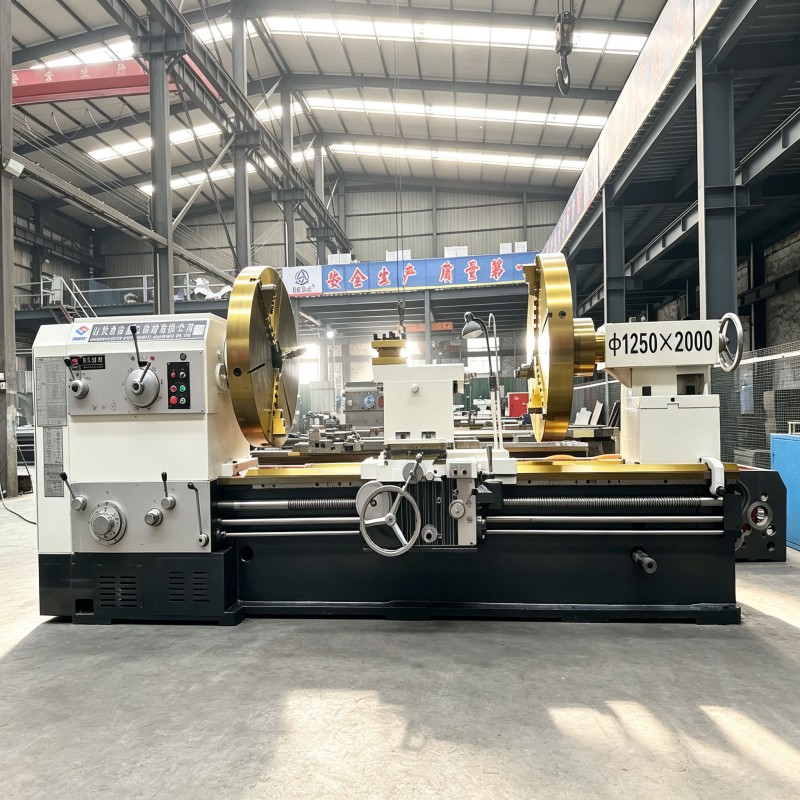

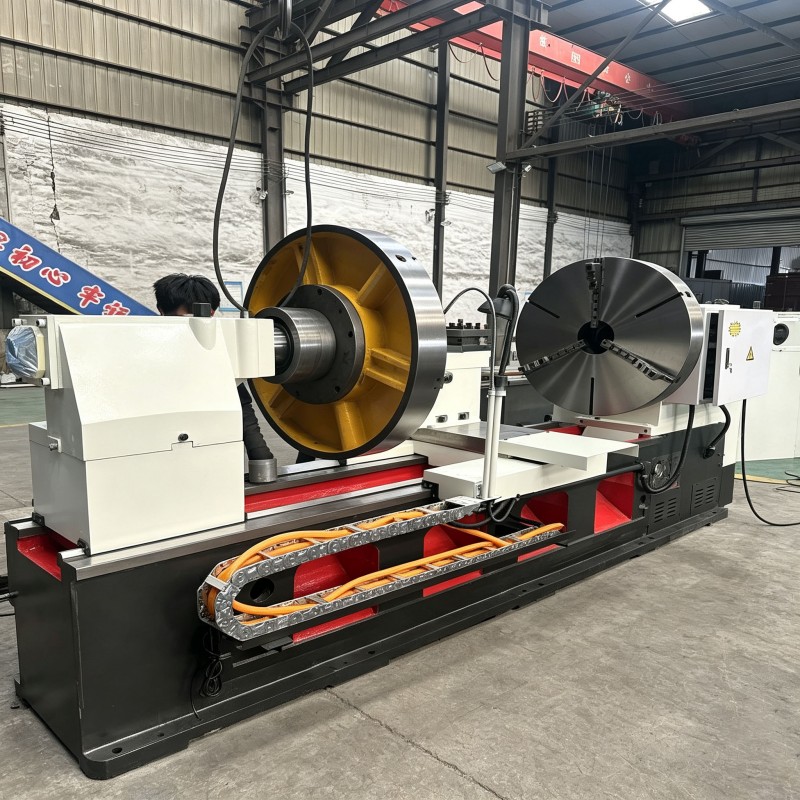

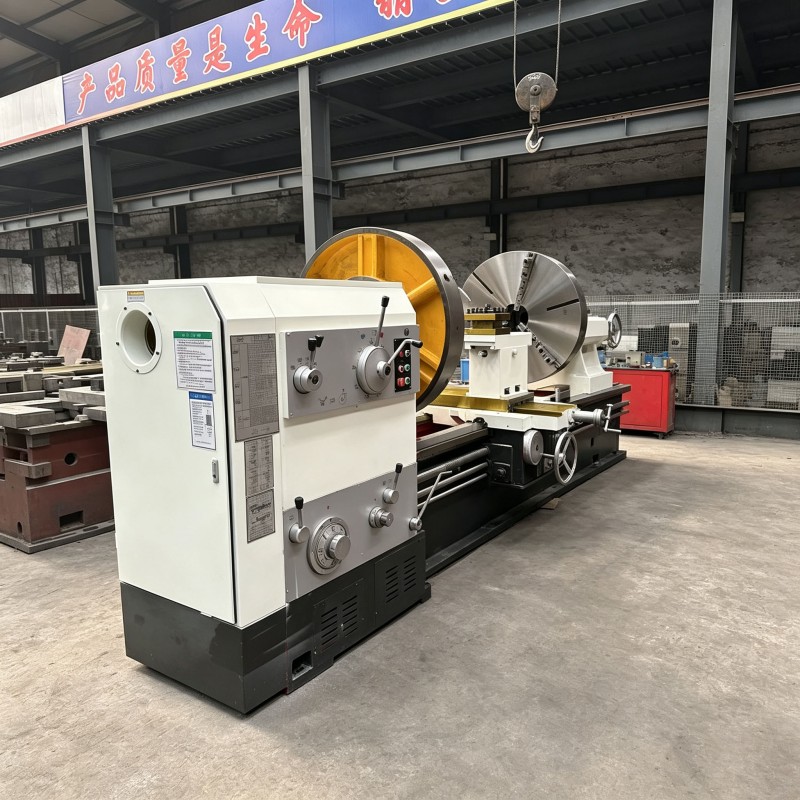

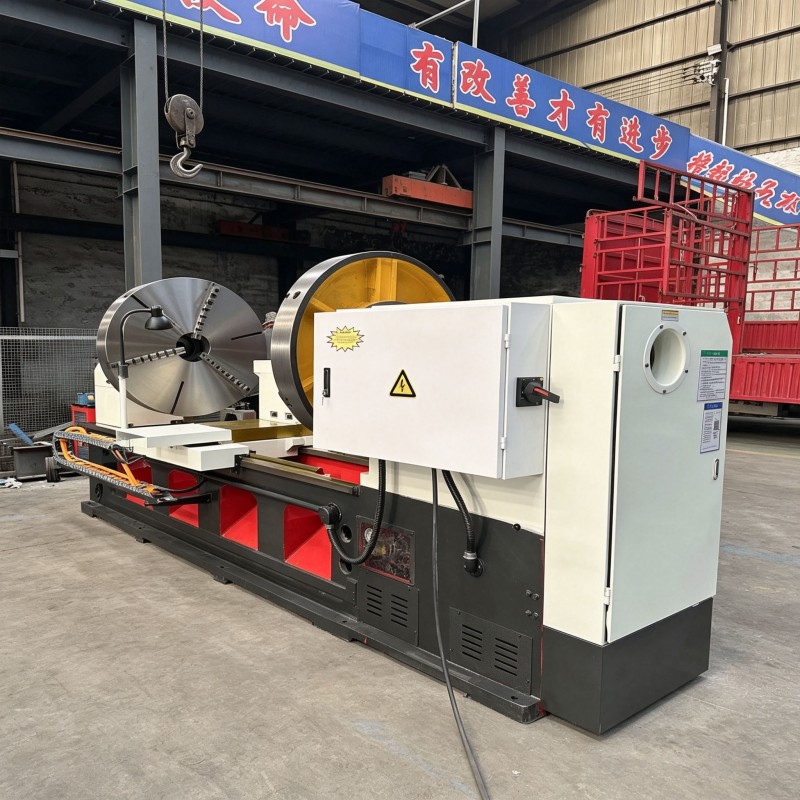

CW61125 Heavy‑Duty Flange Horizontal Lathe Machine

Project

Parameters

Guideway Width:

750 mm

Cross Slide (X-axis) Travel:

500 mm

Longitudinal Slide (Z-axis) Travel:

625 mm

Chuck Diameter:

800 / 1000 mm

Swing Diameter Over Bed:

1250 mm

Machine Weight (approx.):

3.5 t

Motor Power:

7.5 kW

Number of Chuck Jaws:

4

Max. Machining Weight (Workpiece Capacity):

500 kg

Tool Post Feed Range:

2 - 57 mm/min (Assumed)

Tool Post Rapid Traverse Speed:

200 mm/min (Assumed)
