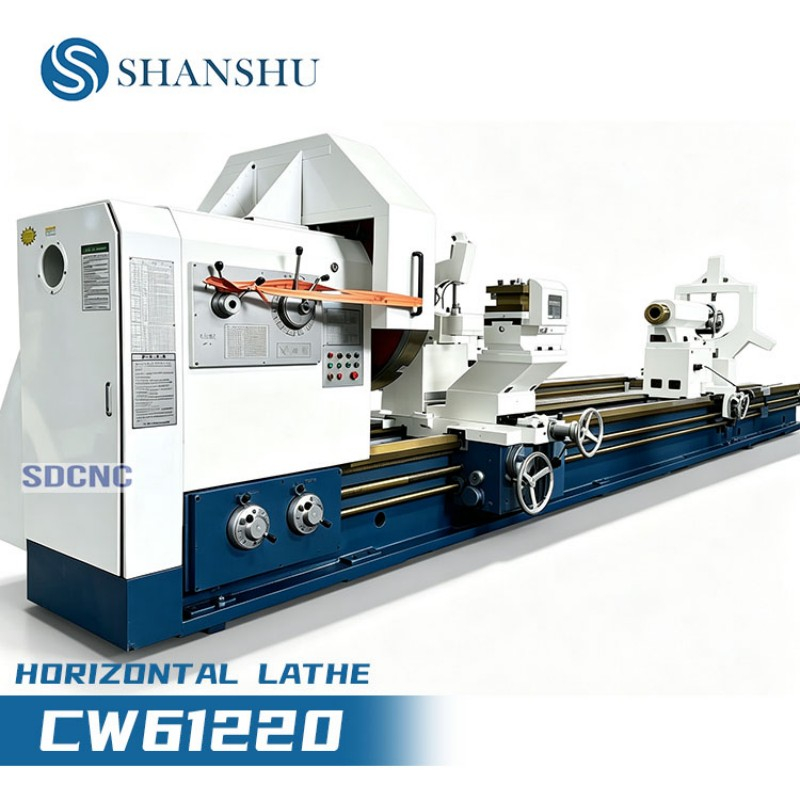

CW61220 Heavy Duty Horizontal Lathe

CW61220 heavy‑duty horizontal lathe is designed for large‑size and super‑heavy metal turning. It adopts one‑piece heavy cast‑iron bed with wide hardened guide‑rail, delivering outstanding rigidity and vibration resistance under 20‑ton workpiece load. 2200mm swing‑over‑bed supports extra‑large‑diameter parts. Multiple‑length versions are available from 1m‑10m, widely used for rollers, flanges, large shafts and heavy machinery components.

Quantity:
Availability:





Inquire Add to Basket

Model:
CW61220
Brand:
SDCNC

CW61220 heavy duty lathe horizontal lathe metal turning lathe conventional lathe roller processing l

Product Description

Main specifications		Unit	CW61100	CW61125	CW61140	CW61220
CAPACITY	Max.swing over bed	mm	1000	1250	1400	2200
	Max.swing over cross slide	mm	630	880	1030	1850
	Max.workpiece weight	kg	6000(Opt.8000\10000)
	Bed width	mm	1600
	Center Distance	mm	1500\2000\3000\4000\5000\6000\8000
HEADSTOCK	Spindle hole	mm	130/85
	Spindle taper	mm	Metric 140/120(1:20)
	Spindle speed(Number)	rpm	3.15-315(18 steps)/0.8-160
FEEDS	Longitudinal metric feeds	mm/r	56 kinds 0.1-12
	Cross metric feeds	mm/r	56 kinds 0.05-6
	Metric threads range	mm	52kinds 1-120
	Inch threads range	TPI	43kinds 1/4-30
	Moudle threads range	MP	46kinds 0.5-60
	Pitch threads range	DP	49kinds 1/2-60
CARRIAGE	Max.travel of top slide	mm	300
	Max.size of toolshank	m²	4545/7070
TAILSTOCK	Dia.of tailstock sleeve	mm	160/300(Opt.200\240)
	Taper of tailstock sleeve	/	Metric 80/100
	Max.travel of tailstock	mm	300
MOTOR	Main drive motor	KW	11\15/80
