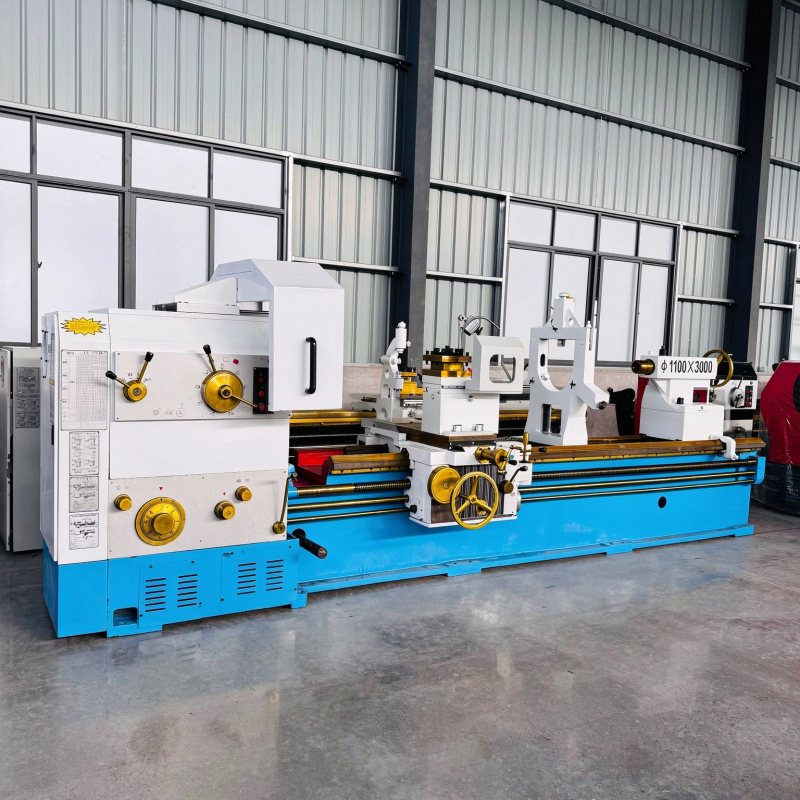

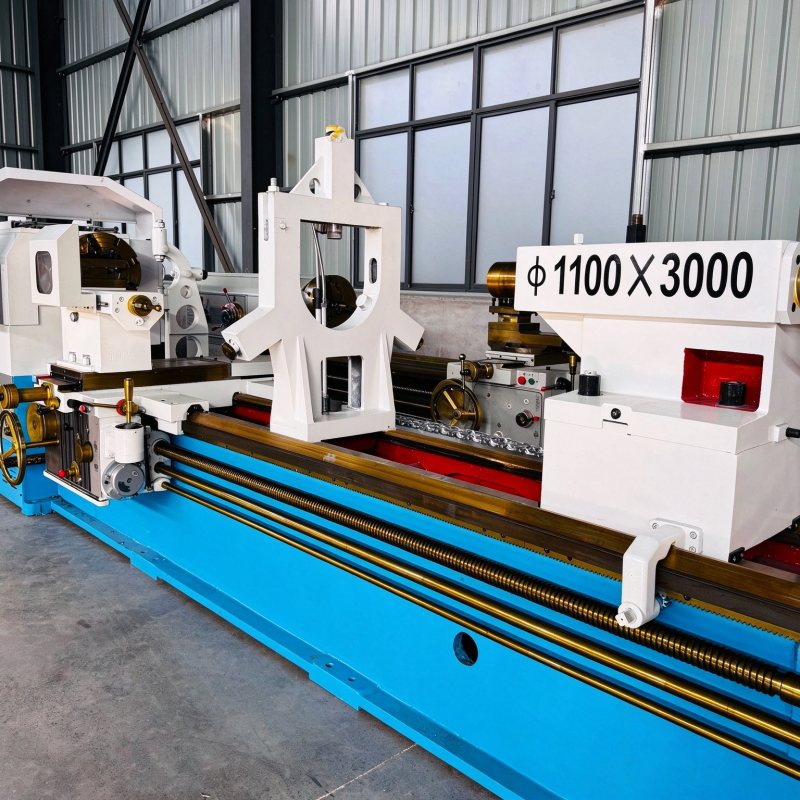

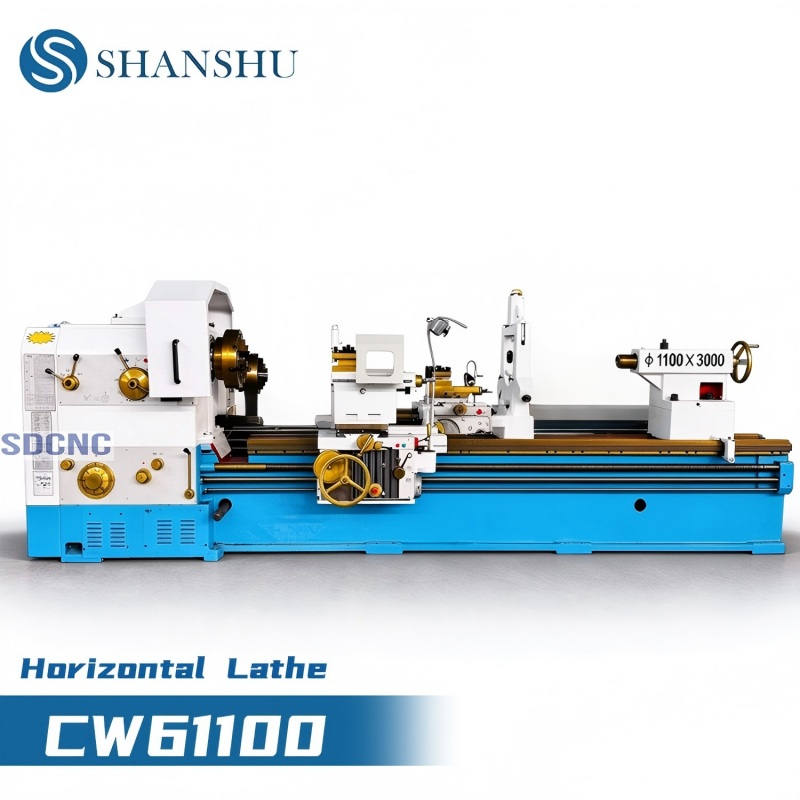

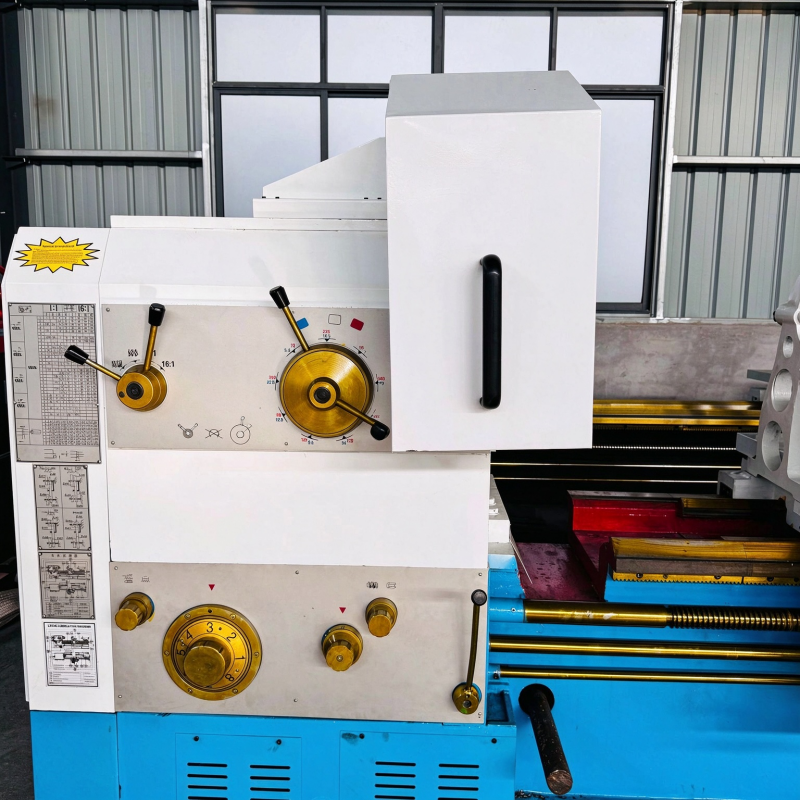

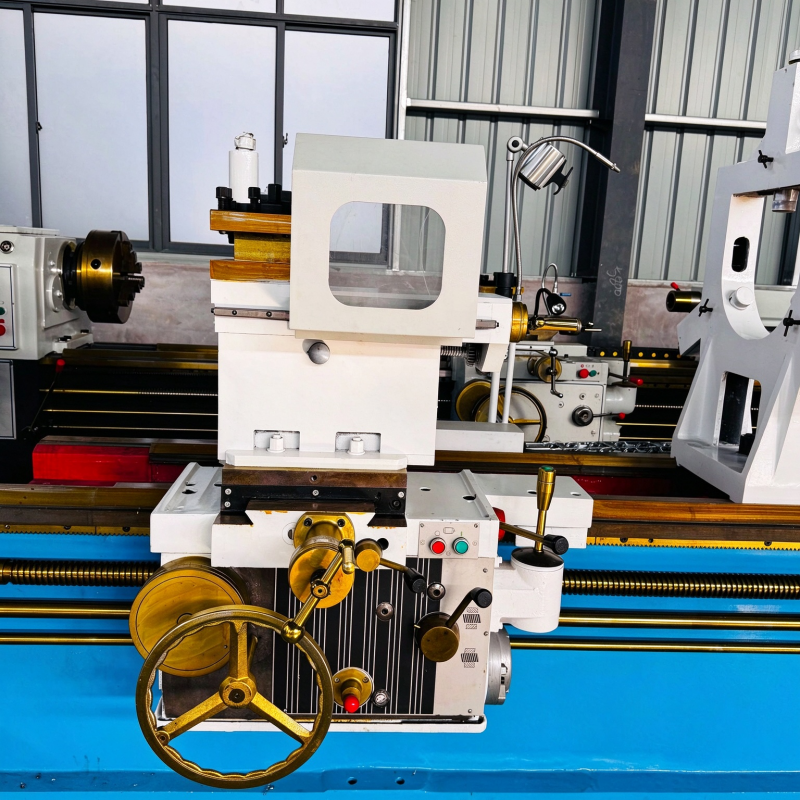

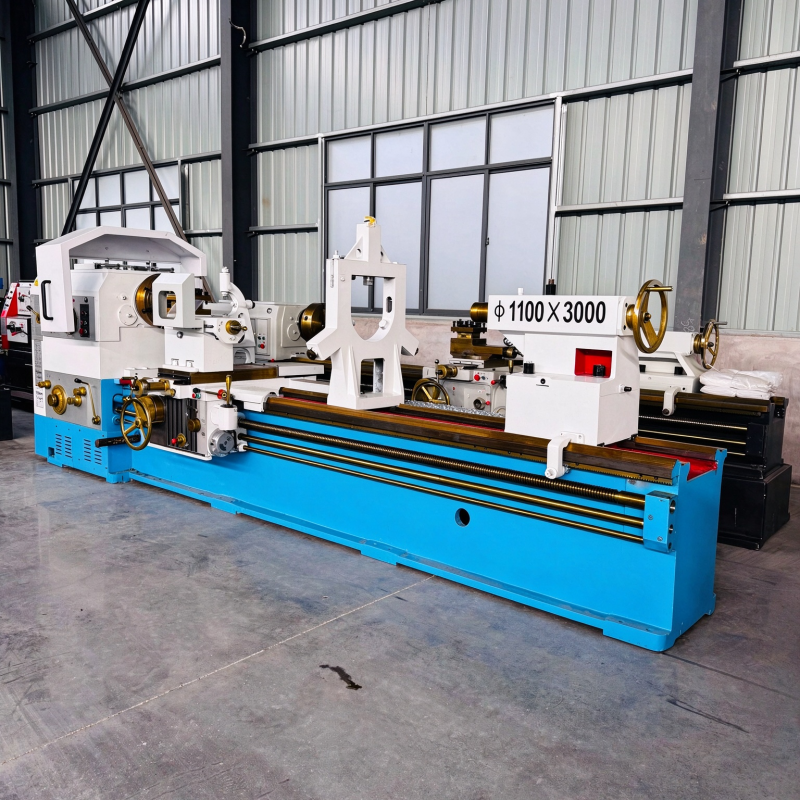

CW61100 Heavy Duty Horizontal Manual Lathe

CW61100 heavy duty horizontal manual lathe is a conventional metal turning lathe with high rigidity cast iron bed. It has 1000mm swing over bed and 105mm spindle bore, suitable for large shaft and pipe machining. It supports various thread cutting, runs stably with low noise. Easy to operate and maintain. Factory direct sale with pre-delivery inspection and 1 year warranty. Widely used in metalworking and machinery repair.

Quantity:
Availability:





Inquire Add to Basket

Model:
CW61100
Brand:
SDCNC

CW61100 manual lathe Horizontal Lathe Metal Turning Lathe conventional lathe torno

Product Description

Specification	Units	CW62100
Max swing over bed	mm	1000
Max swing over cross slide	mm	680
Max swing over gap	mm	1200
Distance between centers	mm	2000
Guideway width	mm	600
Spindle bore and type	mm	Standard 105mm (Optional 130mm)
Spindle nose		D11
The front cone of spindle bore and taper of center	mm	120; MT5
Number of speeds and range	rpm	18 steps; 5.4 to 720rpm
Metric thread kinds /range		1 to 240; 50 kinds
Inch thread kinds /range		14 to 1; 26 kinds
Module thread kinds/range		0.5 to 120; 53 kinds
Pitch threads kinds/range		28 to 1; 24 kinds
Longitudial feeds range (kinds)		0.06-24.3 / 64 kinds
Rapid traverse	mm/min	4000
Max horizontal travel of lower slide	mm	500
Max travel of top slide	mm	200
Travel of tailstock sleeve	mm	250
Taper of tailstock sleeve		MT5
Main motor power	kw	11
Quick motor power	kw	1.1
Coolant pump motor power	w	90
