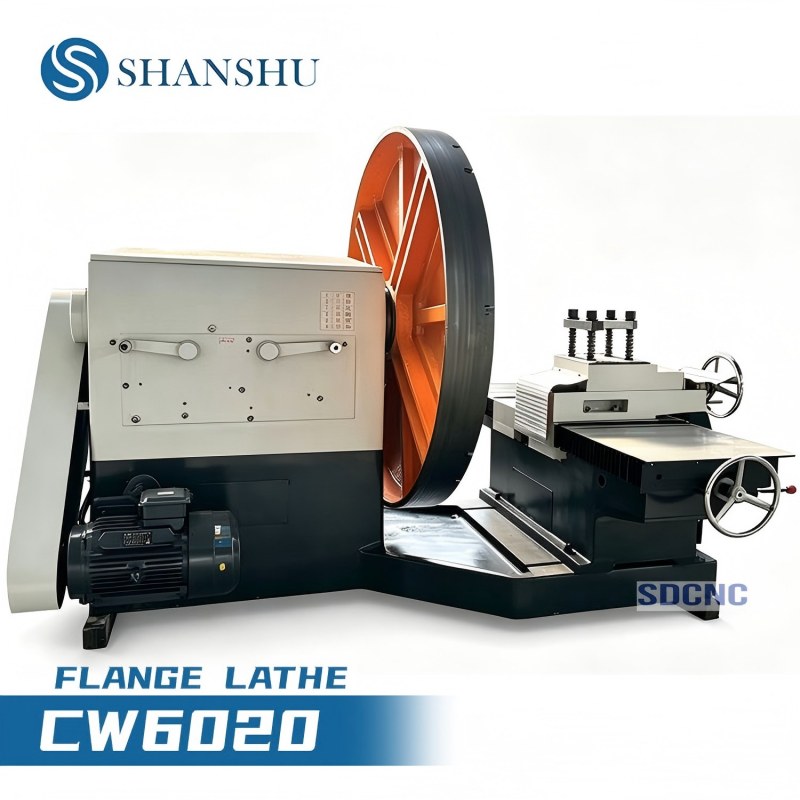

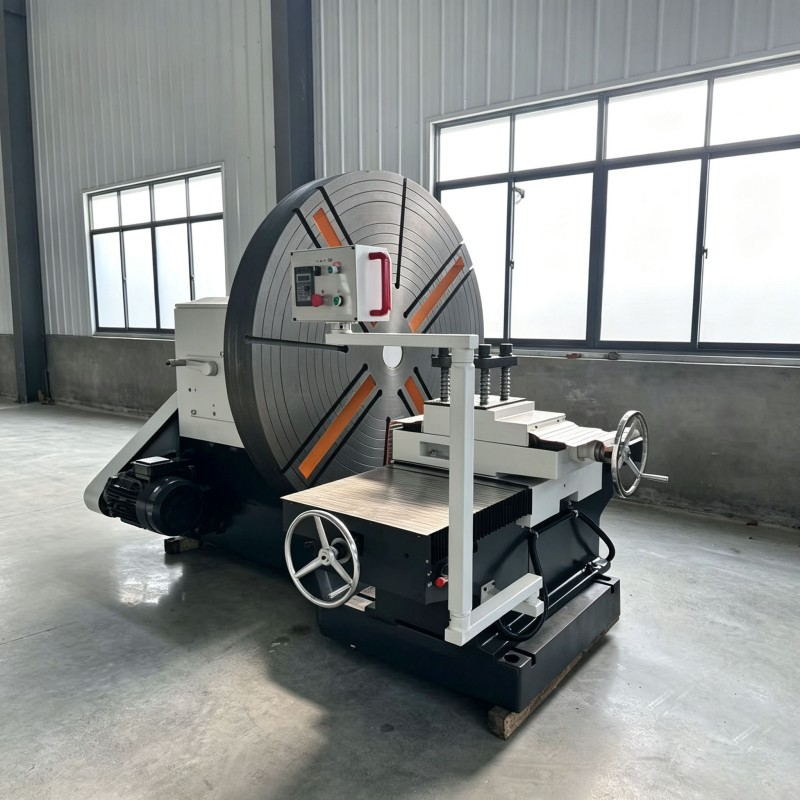

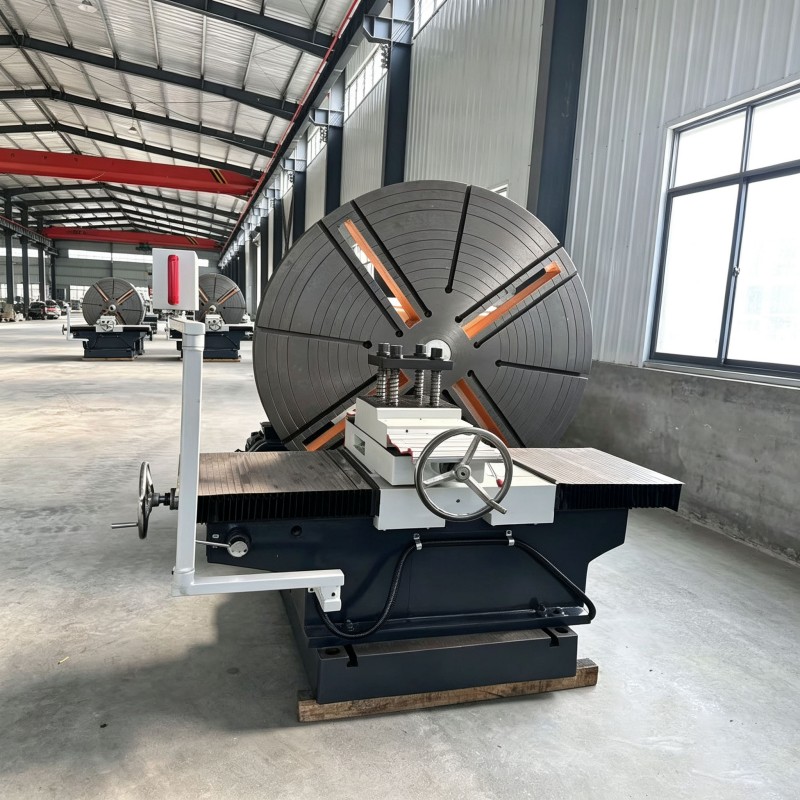

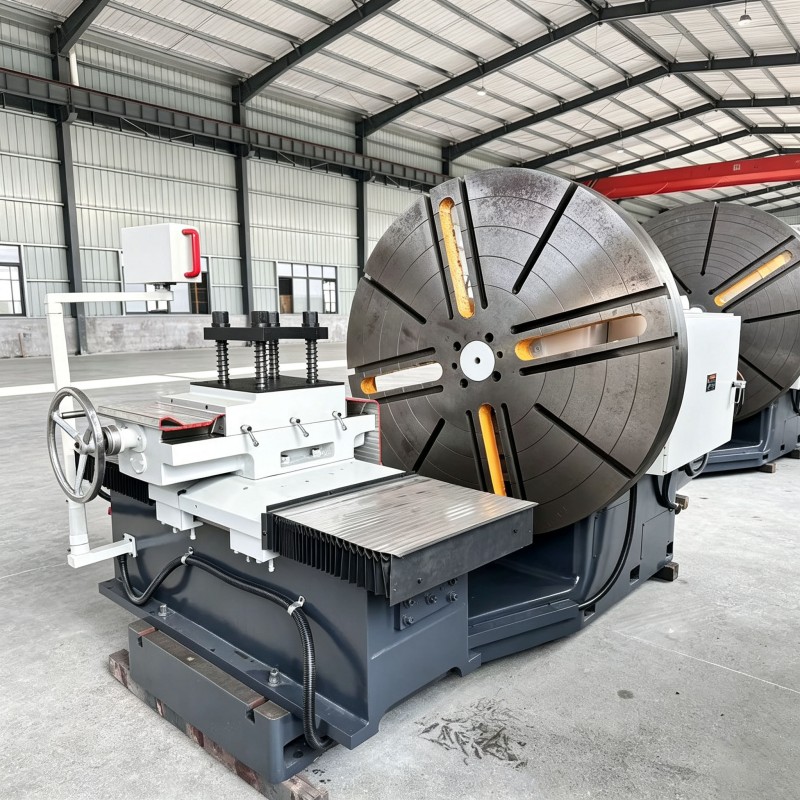

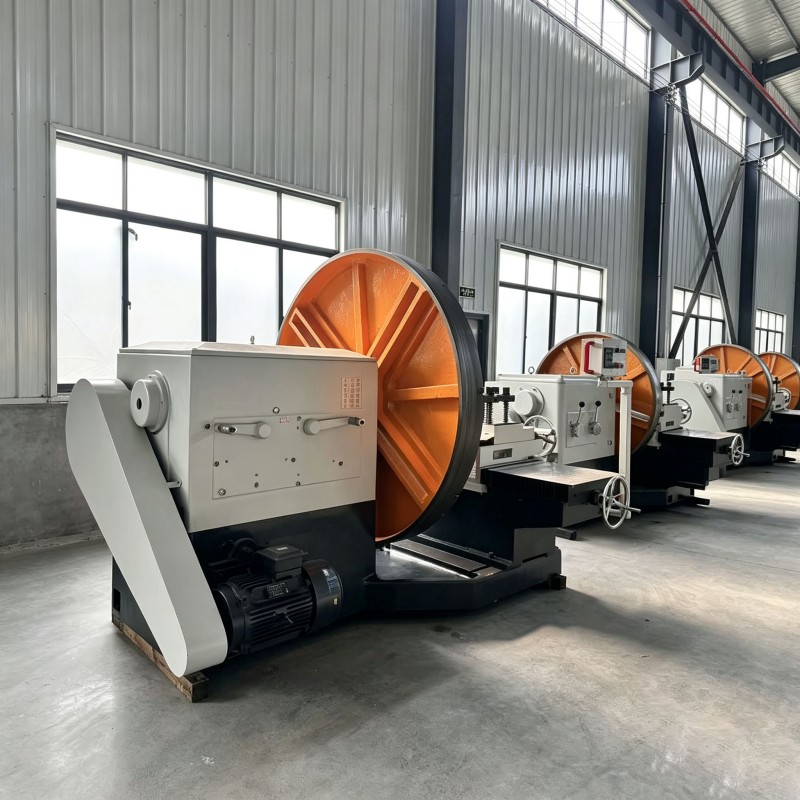

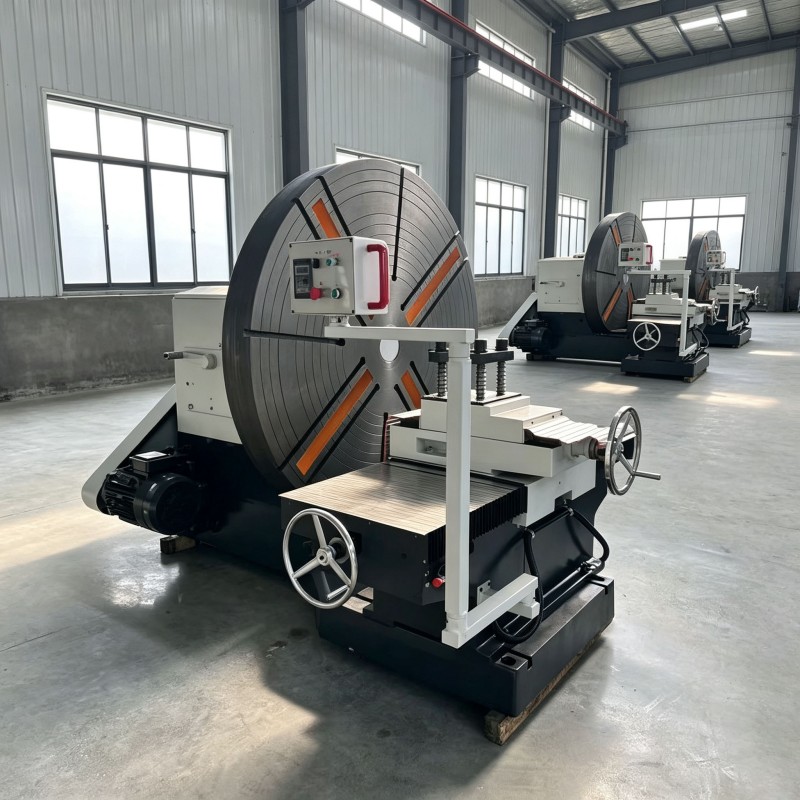

CW6020 Floor‑type Flange Lathe

2000mm quenched heavy‑duty cast‑iron face‑plate with T‑slots for fixing flange and disc‑shaped work‑pieces
Integrated thick cast‑steel base for high rigidity and low‑vibration heavy‑load cutting
Removable cantilever control panel, free‑to‑adjust for unblocked operating view
Triple‑screw tool holder fitted with multiple turning tools, smooth manual feed for end‑face, outer‑diameter and chamfer processing

Quantity:
Availability:





Inquire Add to Basket

Model:
CW6020
Brand:
SDCNC

floor‑type lathe flange lathe disk processing lathe CW6020 heavy‑duty facing lathe large faceplate l

Product Description

Item	Unit	C6010	C6016	C6020	C6025	C6030
Max. turning diameter	mm	1000	1600	2000	2500	3000
Chuck diameter	mm	800	1400	1600	2000	2500
Max. length of work pieces	mm	200	400	600	600	600
Max weight of workpiece	T	1	2	3	3	5
Power of main motor	kW	11	11	15	15	22
Spindle speed	r/min	8-120	16-128	12-94	12-94	4-40
Spindle diameter	mm	190	200	200	200	300
Feed way of tool rest	Infinitely variable frequency
Horizontal stroke	mm	320	320	320	320	320
Longitudinal travel	mm	500	800	900	1400	1400
Weight	T	4	5	8	10	17
