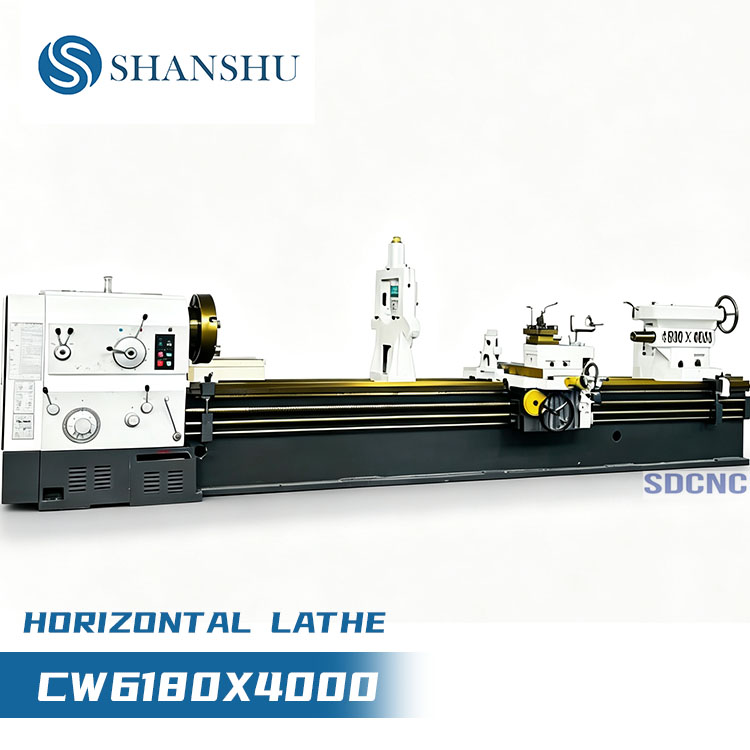

CW6180x4000 Horizontal Lathe

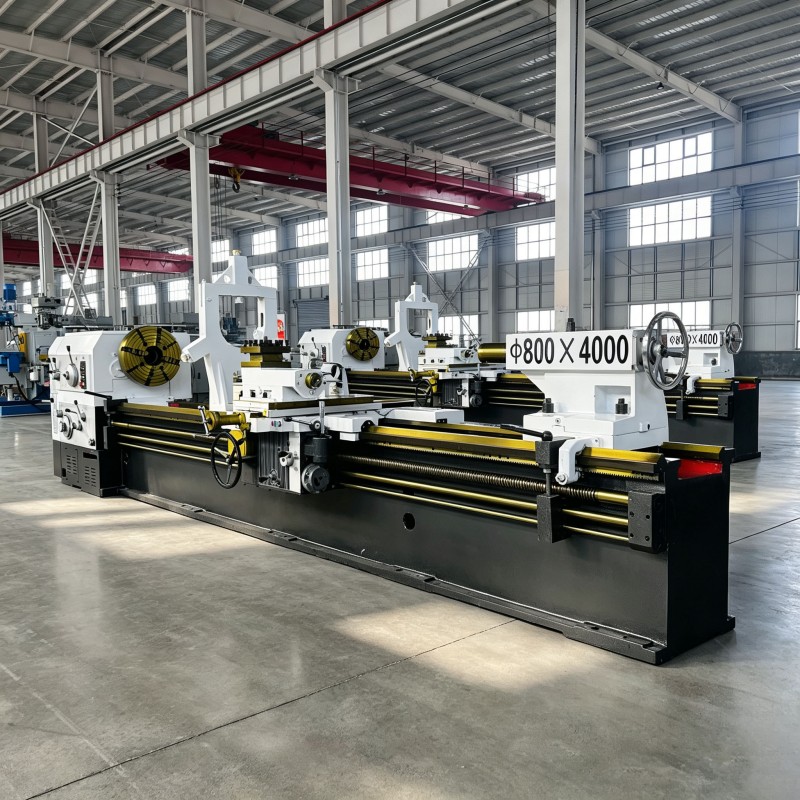

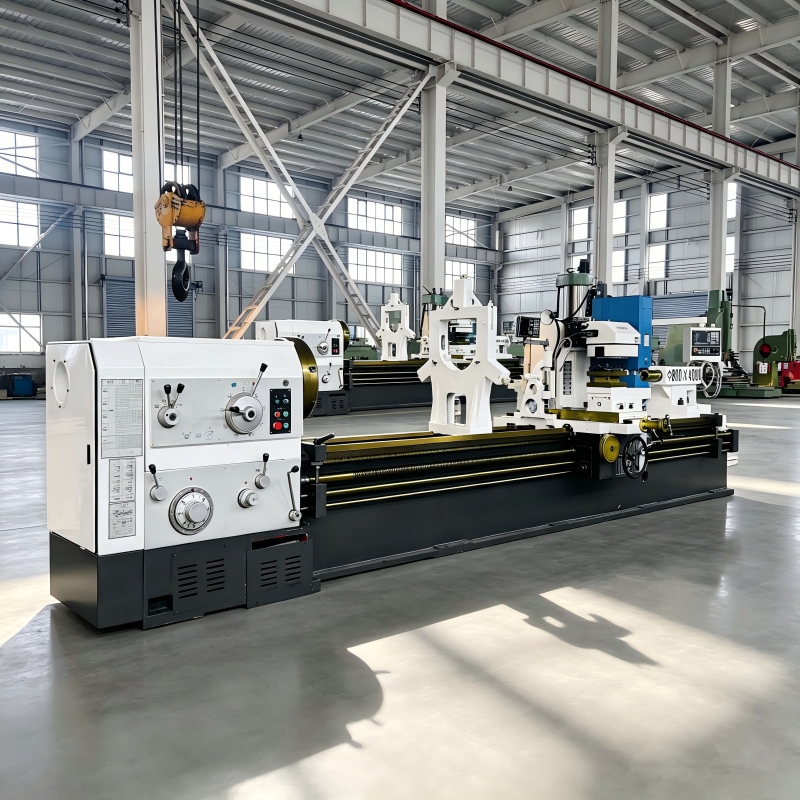

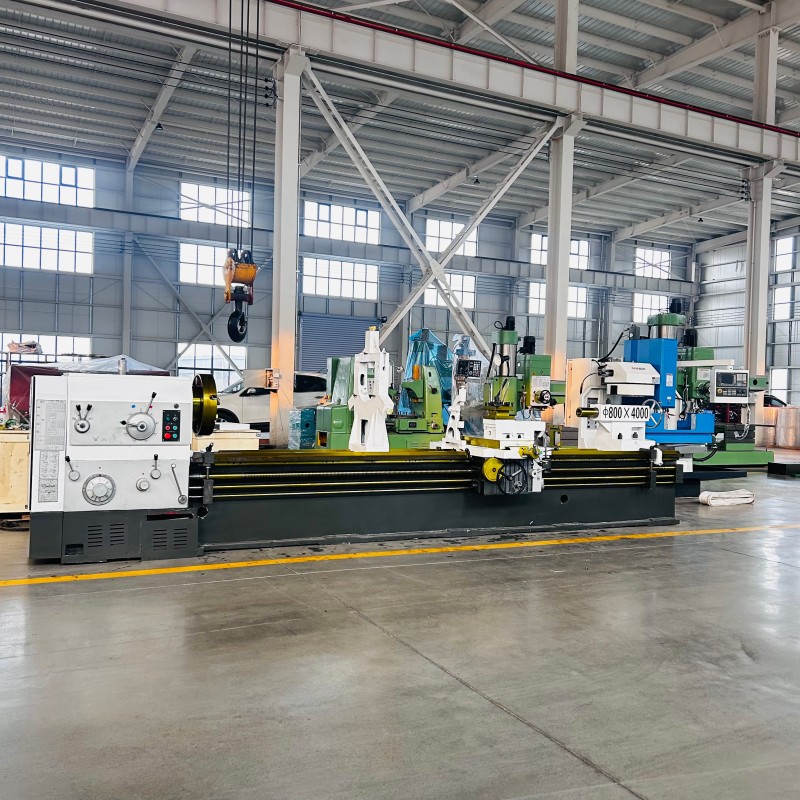

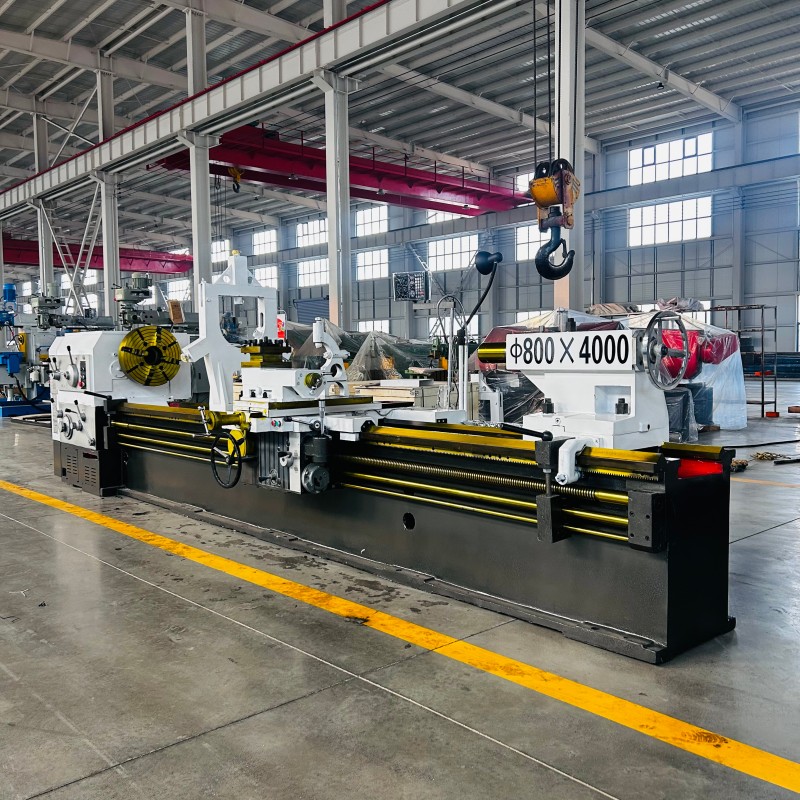

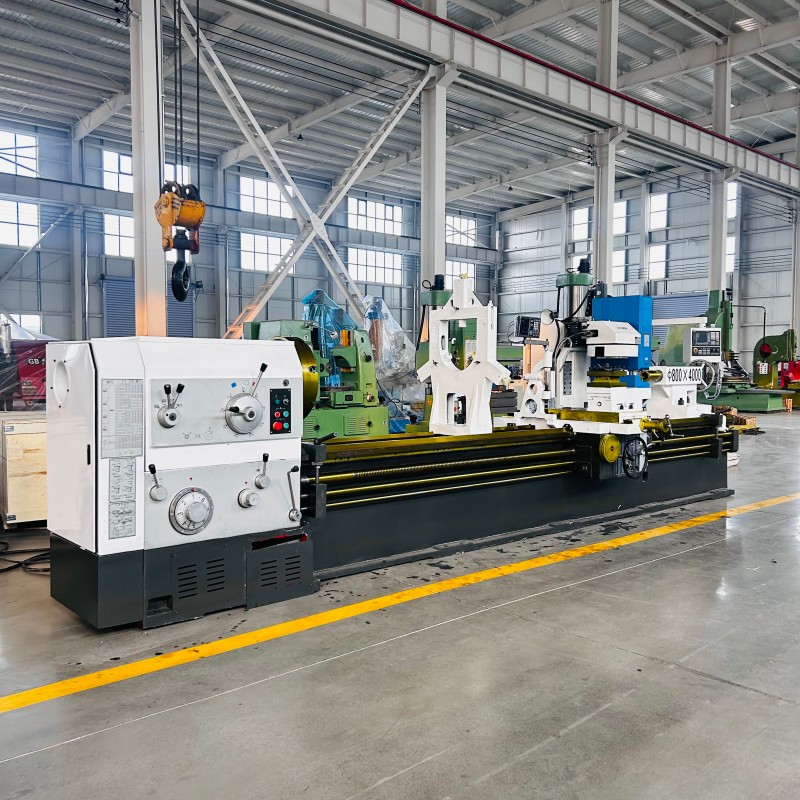

CW6180×4000 Horizontal Lathe is a heavy‑duty manual metal‑turning machine with 4000mm working stroke. High rigidity, strong cutting power and easy operation. Suitable for turning, threading, boring and grooving of long metal parts. Widely applied in mechanical processing, metallurgy, mining and equipment maintenance industries. Factory‑supply high‑quality lathe from SDCNC China.

Quantity:
Availability:





Inquire Add to Basket

Model:
CW6180×4000
Brand:
SDCNC

CW6180 lathe CW6180x4000 horizontal lathe metal turning lathe conventional lathe

Product Description

Specification	Unit	CW616/CW6263		CW6180/CW6280
Swing over bed	mm	630		800
Swing over gap	mm	-	800	-	1000
Swing over cross slide	mm	350		520
Distance between centers	mm	1500/2000/3000/ 4000/5000/6000		1500/2000/3000/ 4000/5000/6000
Guideway width	mm	550		550
Max. load capacity	T	3		3
Spindle bore	mm	104		104
Spindle bore taper	-	Metric φ120/MT5		Metric φ120/MT5
Spindle nose type	-	C11		C11
Spindle speed steps	-	FWD. 18 steps		FWD. 18 steps
Spindle speed range	rpm	7.5-1000		6-800
Chuck	mm	φ315 3-jaw manual		φ315 3-jaw manual
Turret/tool post	-	Manual turret 4 position		Manual turret 4 position
Tool shank size	mm	30 x 30		30 x 30
X axis travel	mm	320		420
Z axis travel	mm	1350/1850/2850/ 3850/4850/5850		1350/1850/2850/ 3850/4850/5850
X axis feed grade/range	mm/r	64/0.05-12.15		64/0.05-12.15
Z axis feed grade/range	mm/r	64/0.1-24.3		64/0.1-24.3
X axis rapid traverse	mm/min	2300		2300
Z axis rapid traverse	mm/min	4000		4000
Metric thread grade/range	mm	50/1-240		50/1-240
Inch thread grade/range	T.P.I	26/14-1		26/14-1
Module thread grade/range	mm	53/0.5-120		53/0.5-120
DP thread grade/range	D.P.	24/28-1		24/28-1
Tailstock quill diameter	mm	φ100		φ100
Tailstock quill taper	-	MT5		MT5
Tailstock quill travel	mm	250		250
Main spindle motor	kW	11		11
Rapid traverse motor	kW	1.1		1.1
Coolant pump motor	kW	0.125		0.125
Width x Height	mm	1400 x 1450		1500 x 1450
