CW6163E Heavy Duty Lathe

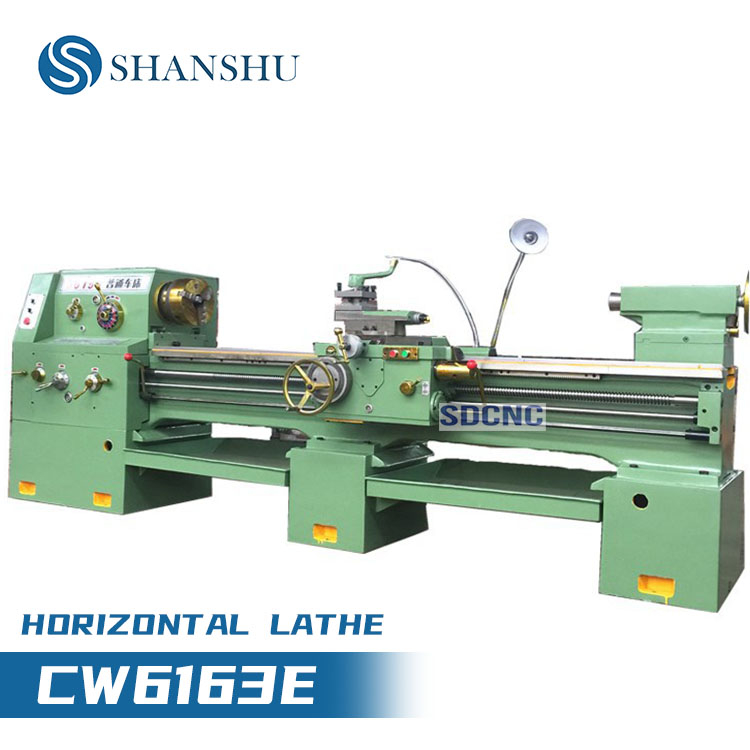

CW6163E is a classic gap bed heavy-duty horizontal engine lathe with maximum swing diameter of 630mm. The integral cast iron bed ensures strong rigidity and stable cutting precision. It is widely used in machinery repair, hardware processing, automobile and mold industries for turning shafts, flanges, sleeves and pipe fittings. We provide complete spare parts and professional after-sales technical support.

Quantity:
Availability:





Inquire Add to Basket

Model:
CW6163E
Brand:
SDCNC

Product Description

MAIN specifications		unit	CW6163E	CW6263E	CW6180E	CW61100E	CW62100E
CAPACITY	Max.swing over bed	mm	630		800	1000
	Max.swing over cross slide	mm	350		480	710
	Max.swing over gap	mm	/	800	/ 1000	/	1230
	Effective length of gap	mm	350
	Center Distance	mm	1000\1500\2000\300014000\5000\6000
HEADSTOCK	Spindle hole	mm	105\130
	Spindle taper	mm	Metric 120\Metric 140(1:20)
	Spindle speed(Number)	rpm	7.5-1000(18 steps)
FEEDS	Longitudinal metric feeds	mm/r	64 kinds 1/10.1-1.52;16/11.6-24.3
	Cross metric feeds	mm/r	64 kinds 1/10.05-0.76;16/10.8-12.15
	Metric threads range	mm	52kinds 0.5-240		50kinds 1-240	52kinds 0.5-240
	Inch threads range	TPI	34kinds 1-28		26kinds 1-14	34kinds 1-28
	Moudle threads range	MP	53kinds 0.5-120
	Pitch threads range	DP	24kinds 1-28
CARRIAGE	Max.travel of top slide	mm	200
	Max.size of toolshank	m²	30*30
TAILSTOCK	Dia.of tailstock sleeve	mm	100
	Taper of tailstock sleeve	/	MT6
	Max.travel of tailstock	mm	250
MOTOR	Main drive motor	KW	11\15
