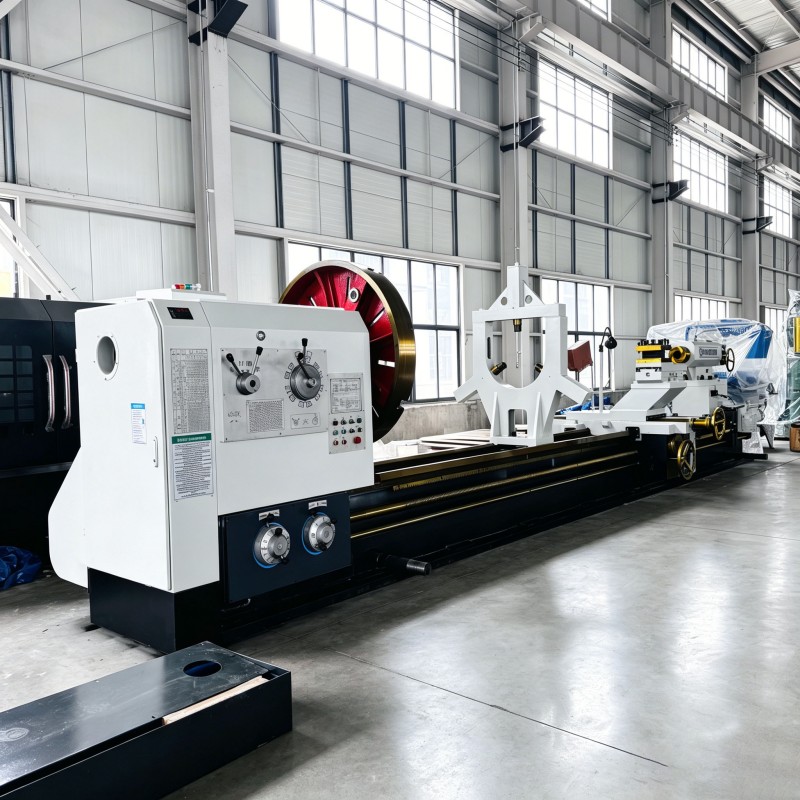

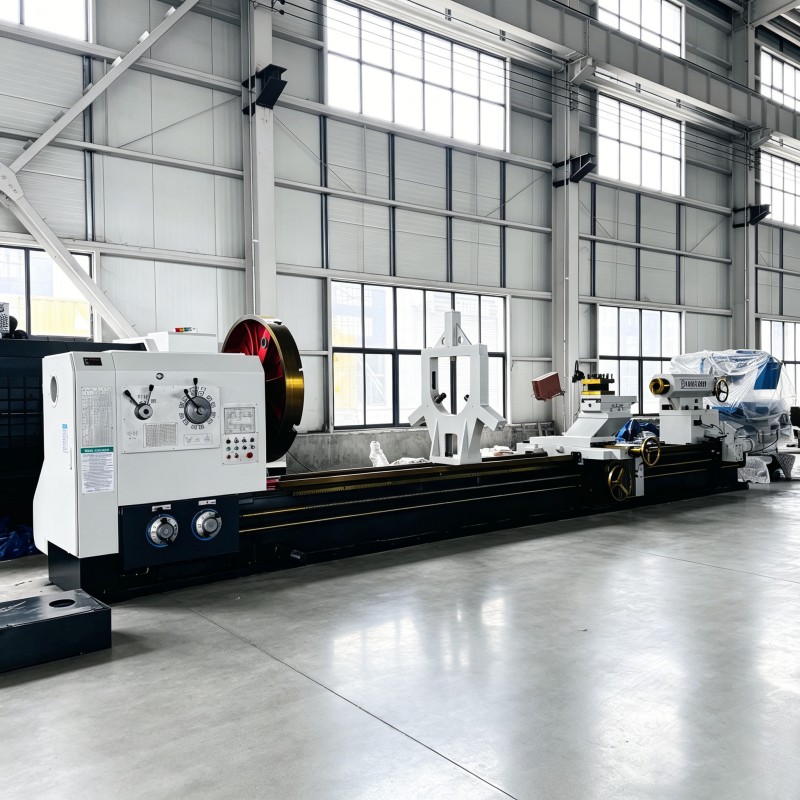

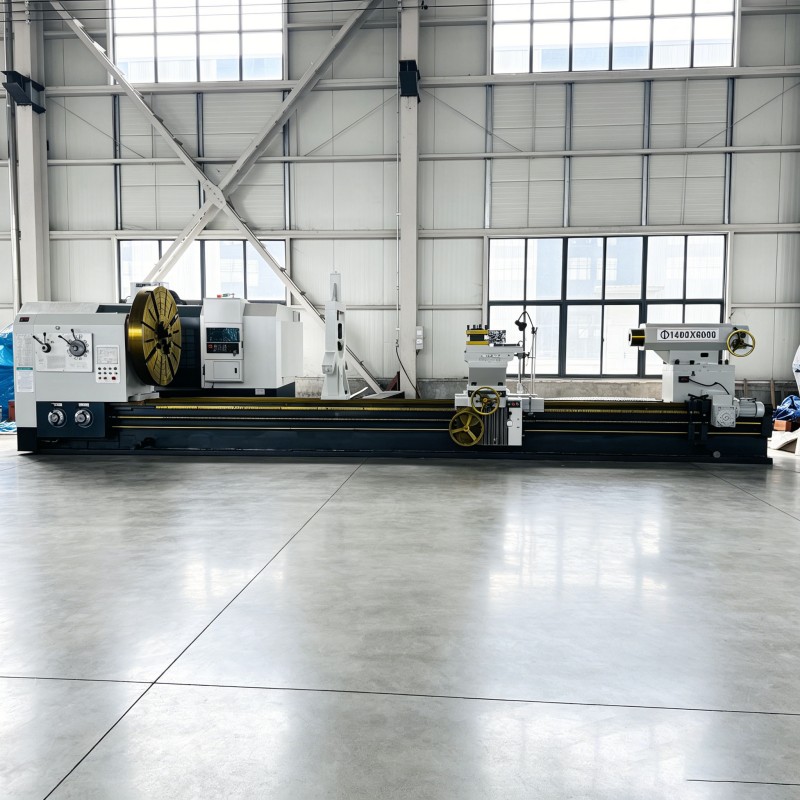

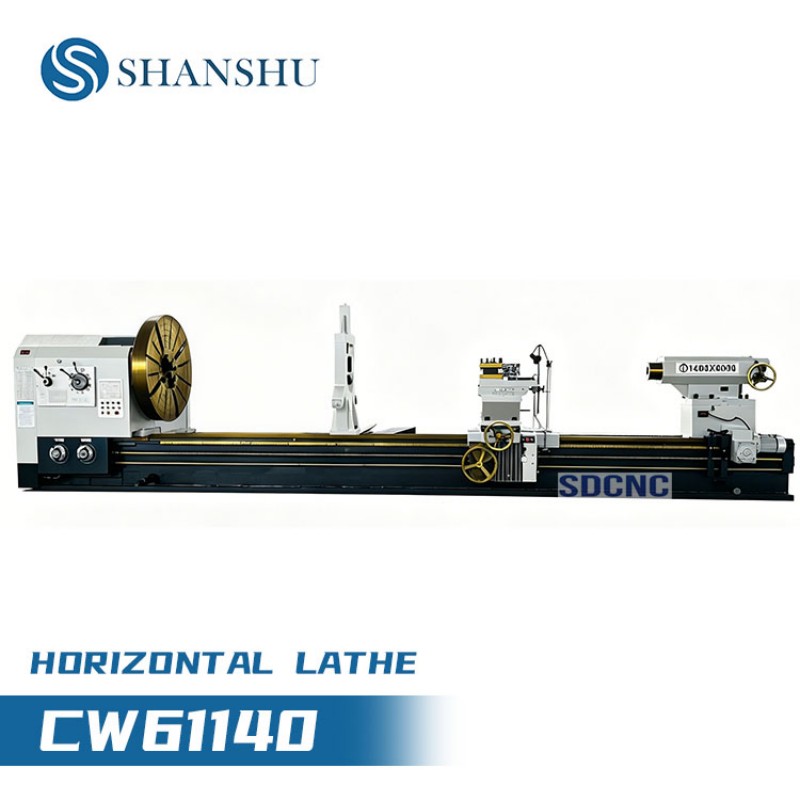

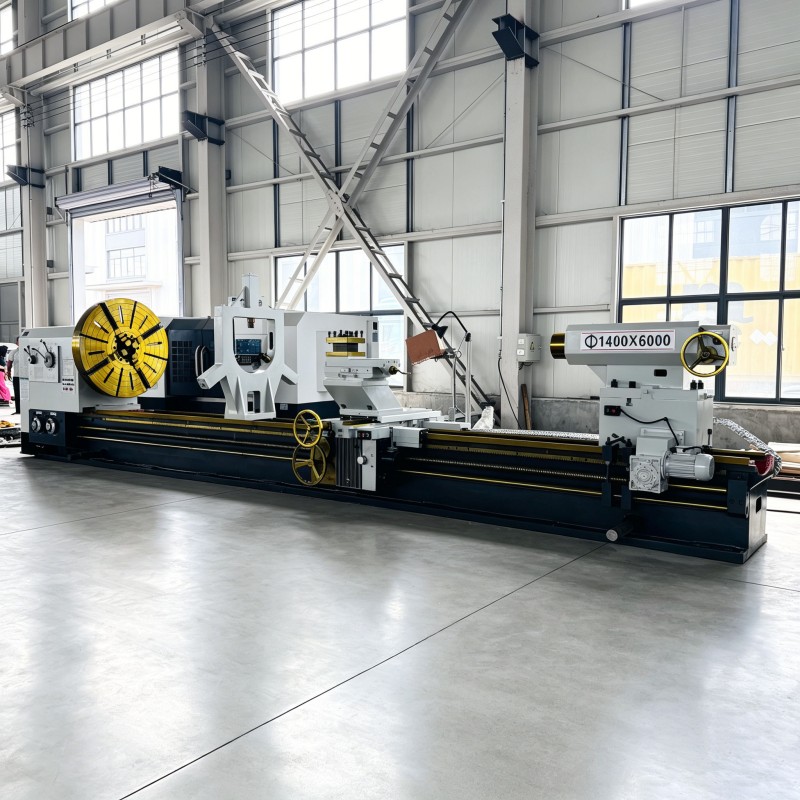

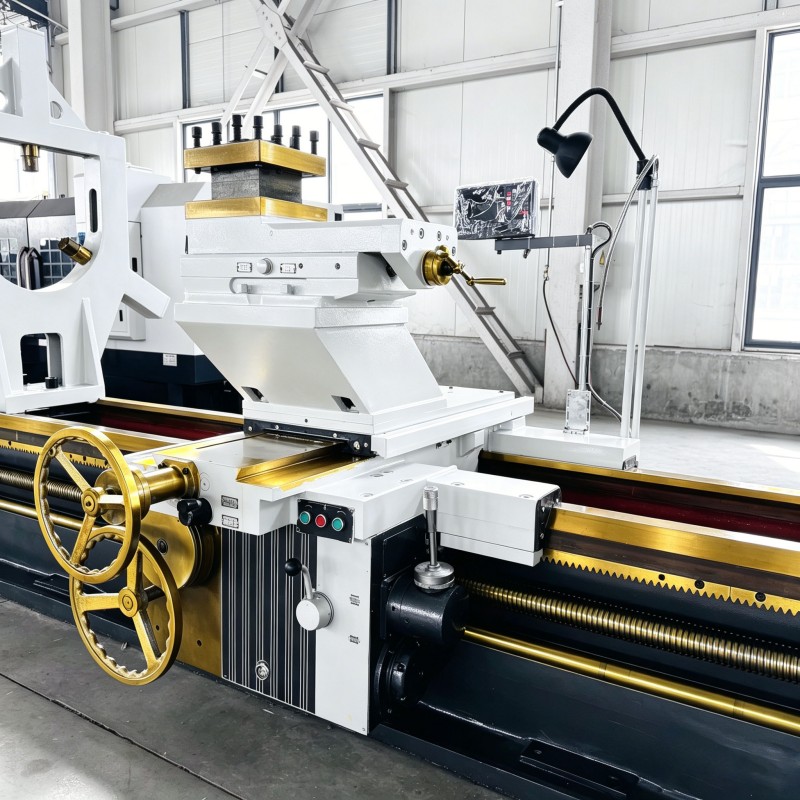

CW61140 Heavy Duty Manual Horizontal Lathe

Specification

UNIT

CW61140

Swing ove bed

mm

1400

Swingovwr cross slide

mm

1000

Distance between centers

mm

1500/3000

Guideway width

mm

755

Max.load capacity

T

6

Spindle bore

mm

130

Spindle bore taper

—

Metric φ140/MT6

Spindle nose type

—

A2-15

Spindle spesd steps

—

FWD.21 steps

Spindle speed range

rpm

3.15-315

Chuck

mm

1000 4-jaw manual

Turret/tool post

—

/Manual turret 4 position

Tool shank size

mm

45×45

Y axis travel

mm

620

Z axis travel

mm

1350/2850

X axis feed grade/range

mm/r

56/0.05-6

Z axis feed grade/range

mm/r

56/0.1-12

X axis rapid traverse

mm/min

1870

Z axis rapid traverse

mm/min

3740

Metric thread grade/range

mm

44/1-120

Inch thread grade/range

T.P.I

31/28-3/8

Module thread grade/range

mm

45/0.5-60

DP thread grade/range

D.P.

30/56-1

Teilstock quill diameter

mm

φ140

Tailstosk quill taper

mm

MT6

Tailstock quill travel

mm

300

Main sindle motor

kW

22

Rapid traverse motor

kW

1.5

Coolant pump motor

kW

0.125

Width x Height

mm

2250×2050

Length

mm

4600/6100

Net weight

T

11.2/12.3
