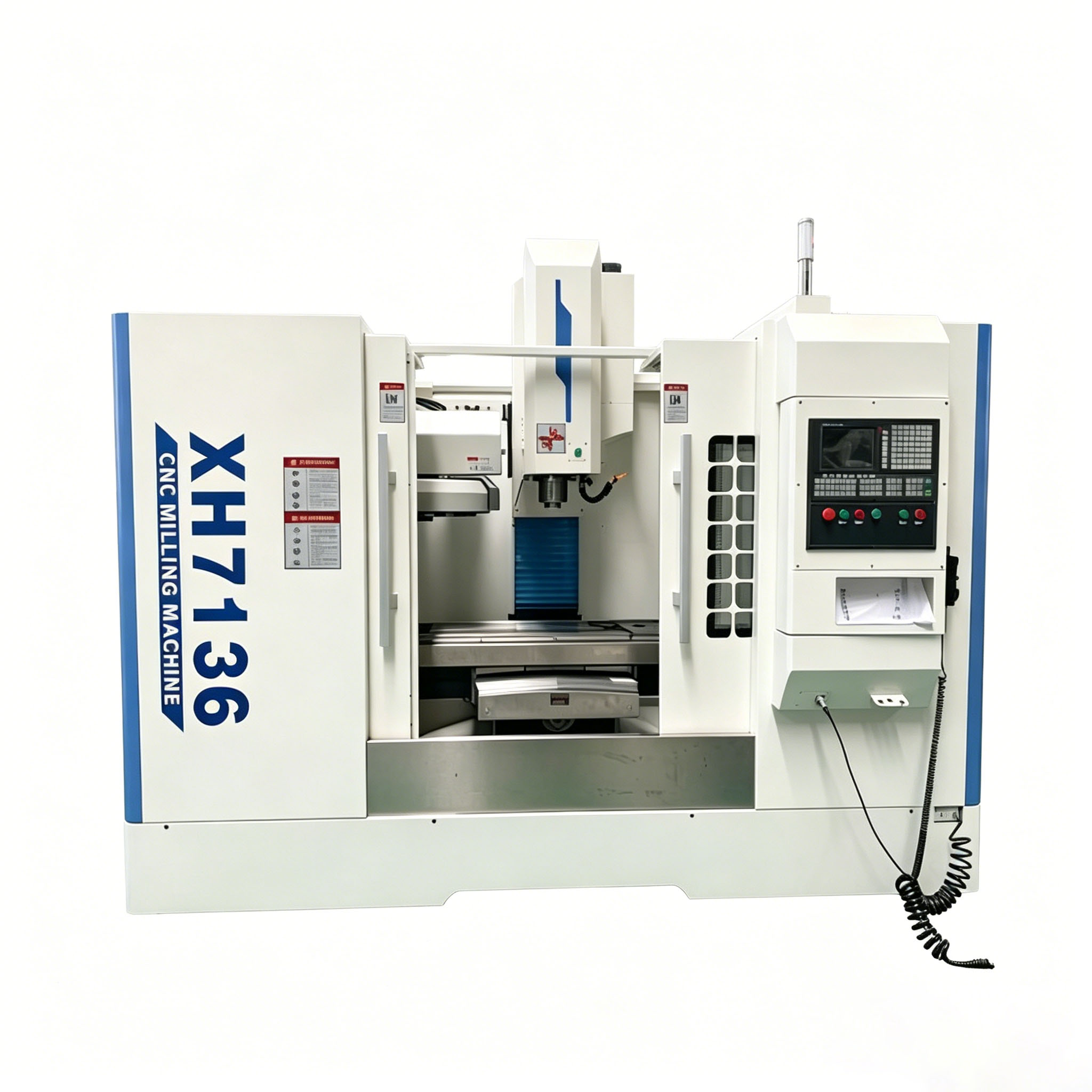

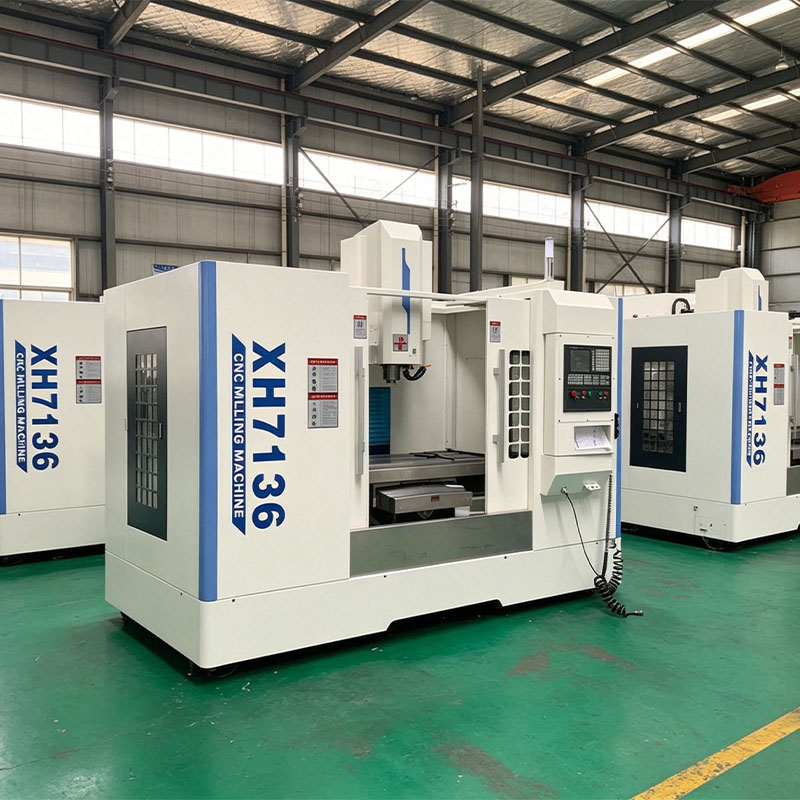

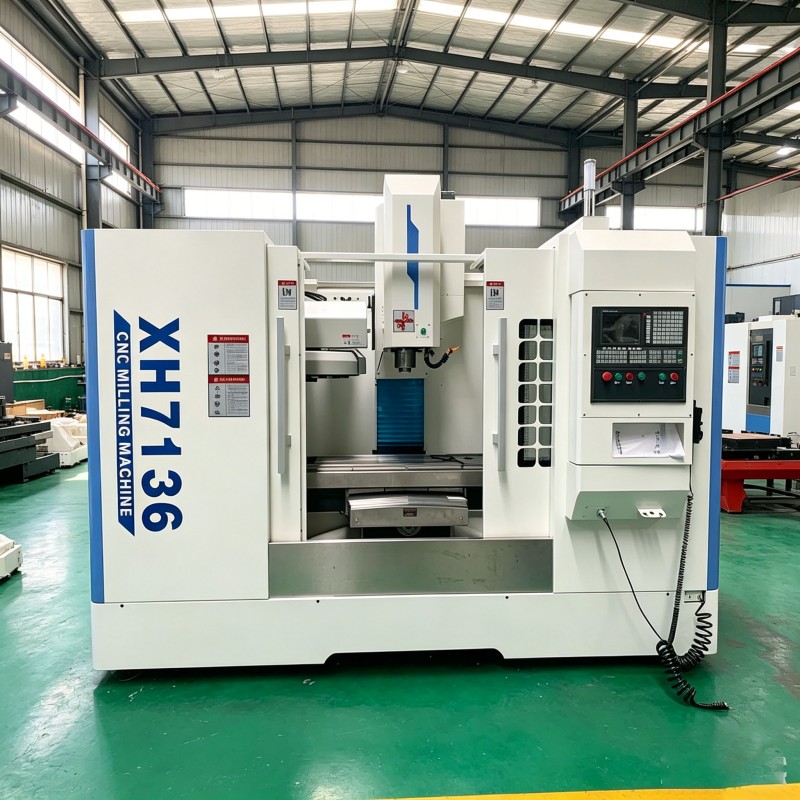

XH7136 Vertical CNC Machining Center

High Rigid Cast Iron Frame
All main components are resin sand casting with aging treatment, strong shock resistance, stable long-term machining accuracy, linear guide or hard guide optional.
BT40 High Precision Spindle
5.5/7.5kw main motor, max speed 8000rpm (optional 10000/12000rpm), Taiwan spindle unit, powerful cutting & rigid tapping.
Automatic Tool Changer ATC
Standard 16-tool umbrella magazine, optional 24-arm disc magazine, auto tool change to finish milling, drilling, boring, tapping in one clamping.
Precision 3-axis Drive
Taiwan ball screw & HIWIN/PMI guide rail, ±0.0075mm positioning accuracy, stable feeding for high precision metal parts.
Multiple CNC System Optional
GSK/KND/SIEMENS/FANUC/MITSUBISHI available, multi-language operation panel, USB & Ethernet program input.
Complete Auxiliary System
Auto centralized lubrication, cooling system, spindle air blast, full enclosed safety cover, MPG handwheel, 4th axis compatible.
Wide Application & Reliable After-sales
Ideal for mold, auto parts, hardware, box & shell workpiece; 1 year whole machine warranty, factory inspection report provided.

Quantity:
Availability:





Inquire Add to Basket

Model:
XH7136
Brand:
SDCNC

Product Description

SPECIFICATIONS	Units	XH7136
Table size	mm	900*400
X axis travel	mm	800
Y axis travel	mm	400
Z axis travel	mm	500
Max. worktable load	kg	450
T slot(number-width*pitch)	-	3-18*120
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40
Main motor power	kw	5.5
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-10000
Guide rail type	-	Linear rail
Distance from spindle axis to column surface	mm	520
Distance between spindle nose and table surface	mm	130-630
Tool magazine	-	Arm 16
Max. tool diameter	mm	78/120
Max. tool weight	kg	8
Machine weight	kg	4000
Overall dimension(LWH)	mm	250020502550
