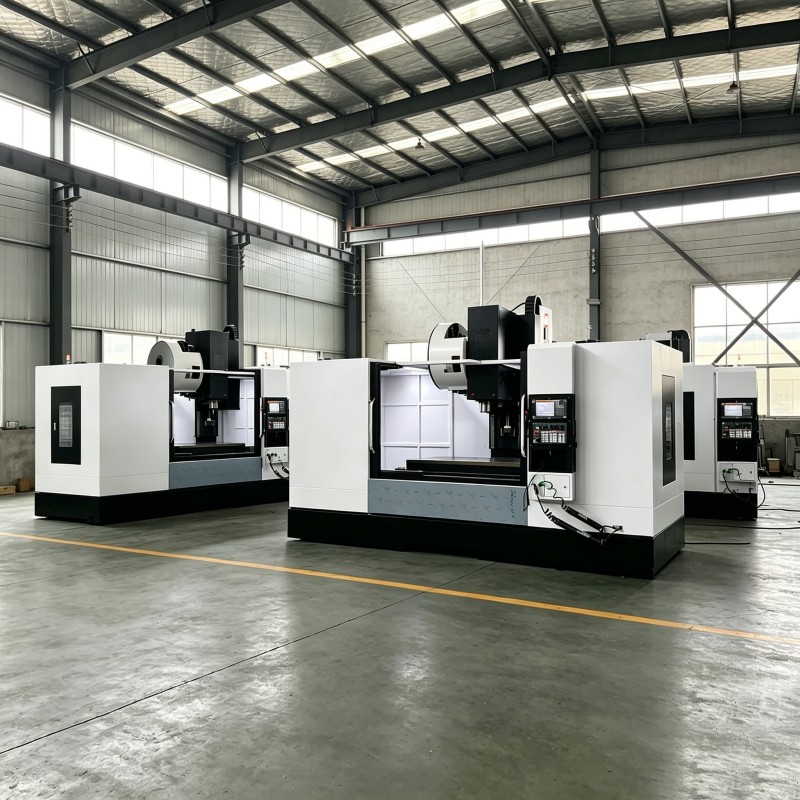

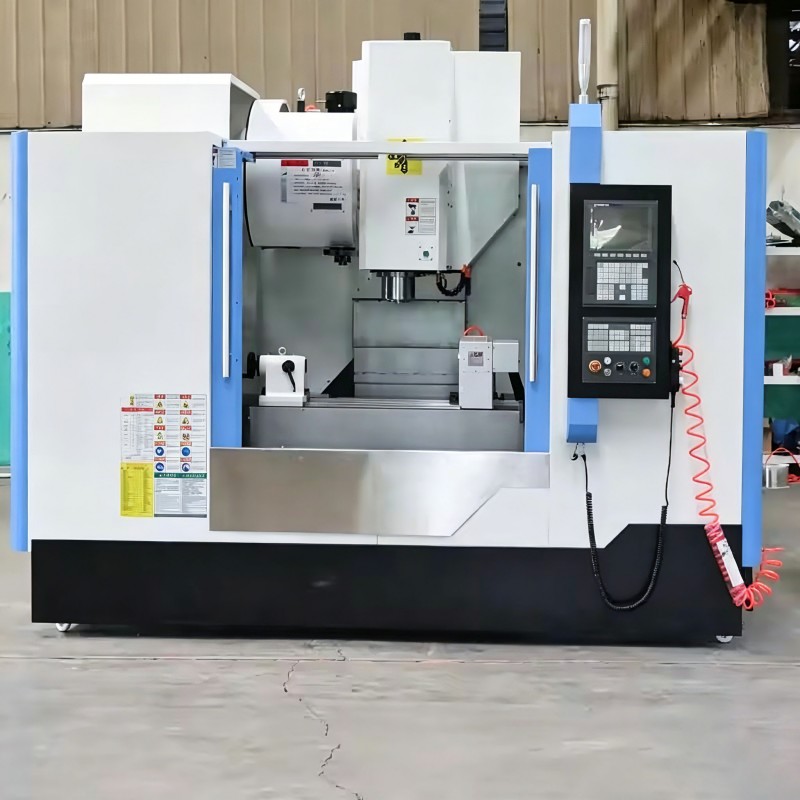

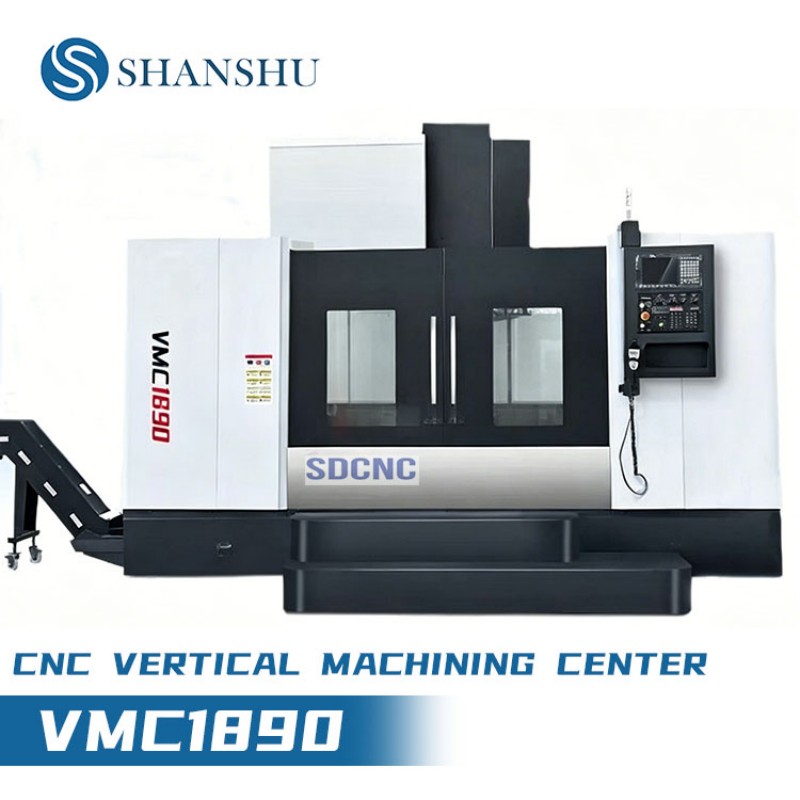

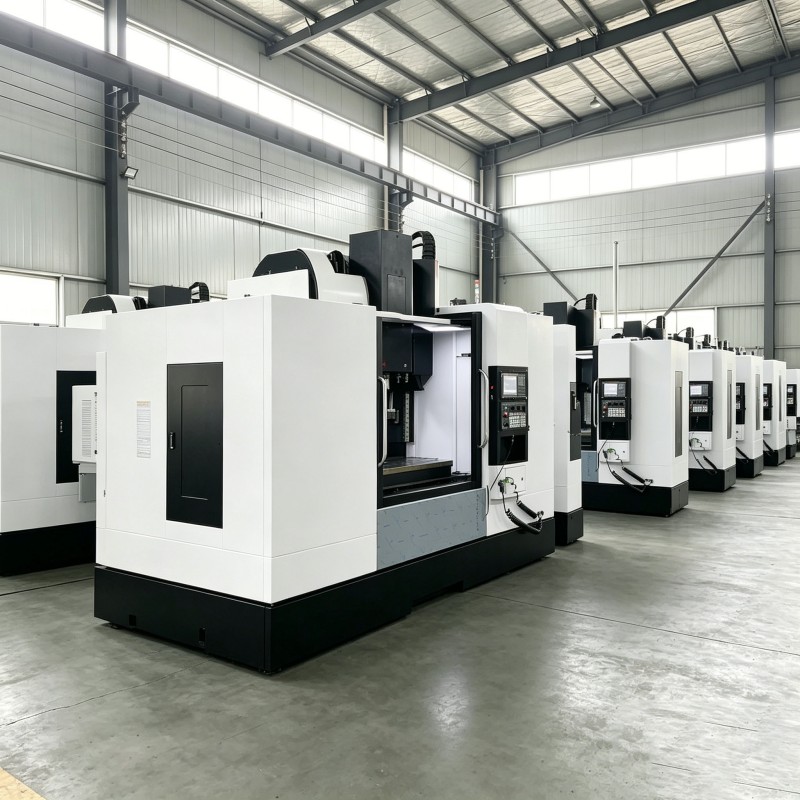

VMC1890 Vertical CNC Machining Center

Specifications

Units

VMC1890

工作台尺寸Table size

mm

2000x900

X轴行程X axis travel

mm

1800

Y轴行程Y axis travel

mm

900

Z轴行程Z axis travel

mm

800

工作台最大承重Max. worktable load

kg

1600

T型槽（数量-宽度-间隙）
T slot(number-width-pitch)

5-22x165

主轴转速Max. spindle speed

rpm

6000(Optional:8000)

主轴锥度Spindle taper

mm

BT50

主电机功率Main motor power

kw

22/26

X/Y/Z轴快移速度
X/Y/Z rapid traverse speed

m/min

15/15/12

切削进给速度Cutting feed speed

mm/min

1-5000

导轨形式Guide rail type

Linear rail

主轴中心到立柱表面距离
Distance from spindle axis to column surface

mm

950

主轴端部到工作台表面距离
Distance between spindle nose and worktable surface

mm

160-900

定位精度Positioning accuracy

mm

±0.01

重复定位精度Repeat positioning accuracy

mm

±0.0075

第四轴Fourth axis

mm

320

刀库Tool magazine

Arm 24

刀具最大直径Max. tool diameter

mm

φ112 (Adjacent)/ φ200(Apart)

刀具最大重量Max.tool weight

kg

18

机床重量Machine weight

kg

15000

外形尺寸Overall dimension

mm

5100x3800x3200
