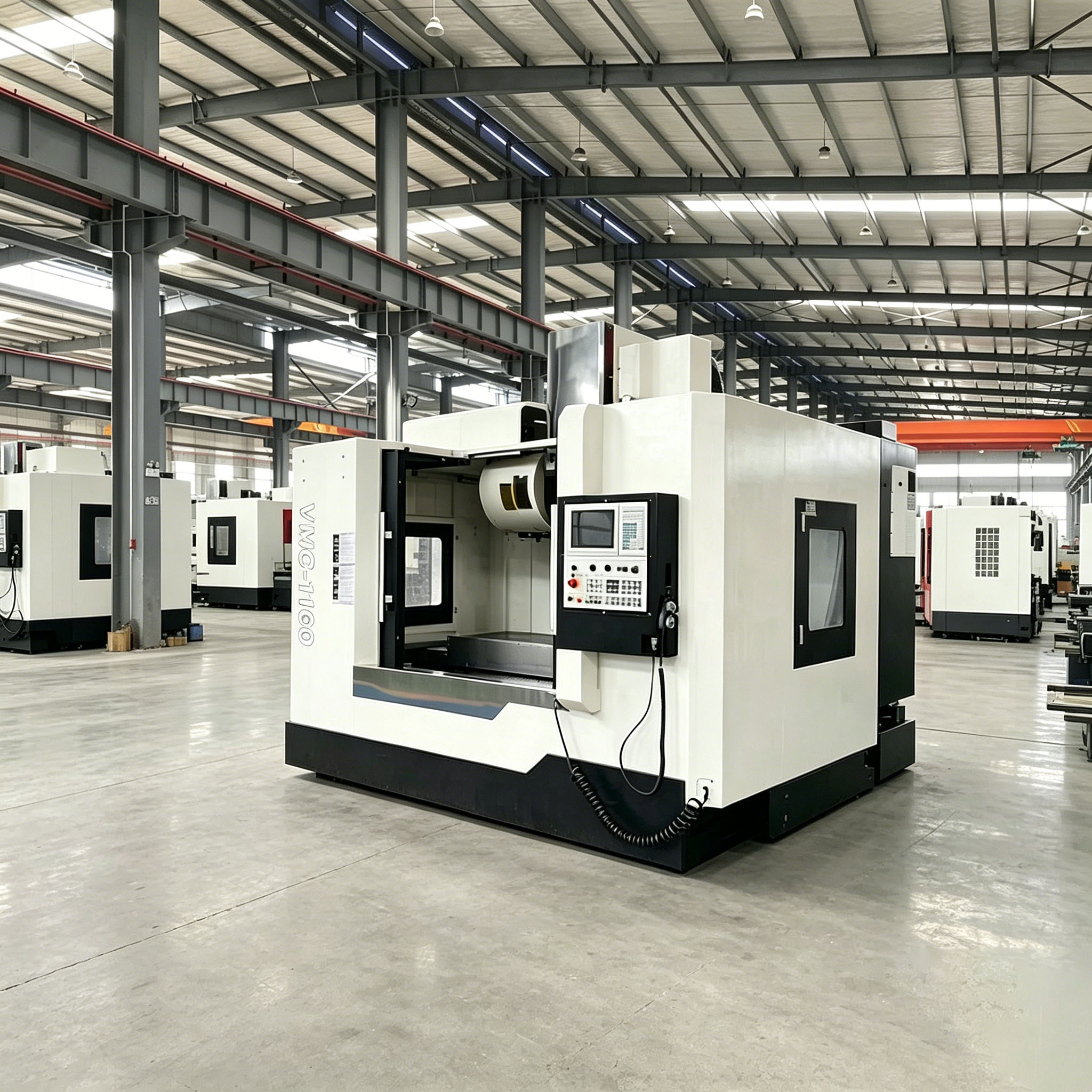

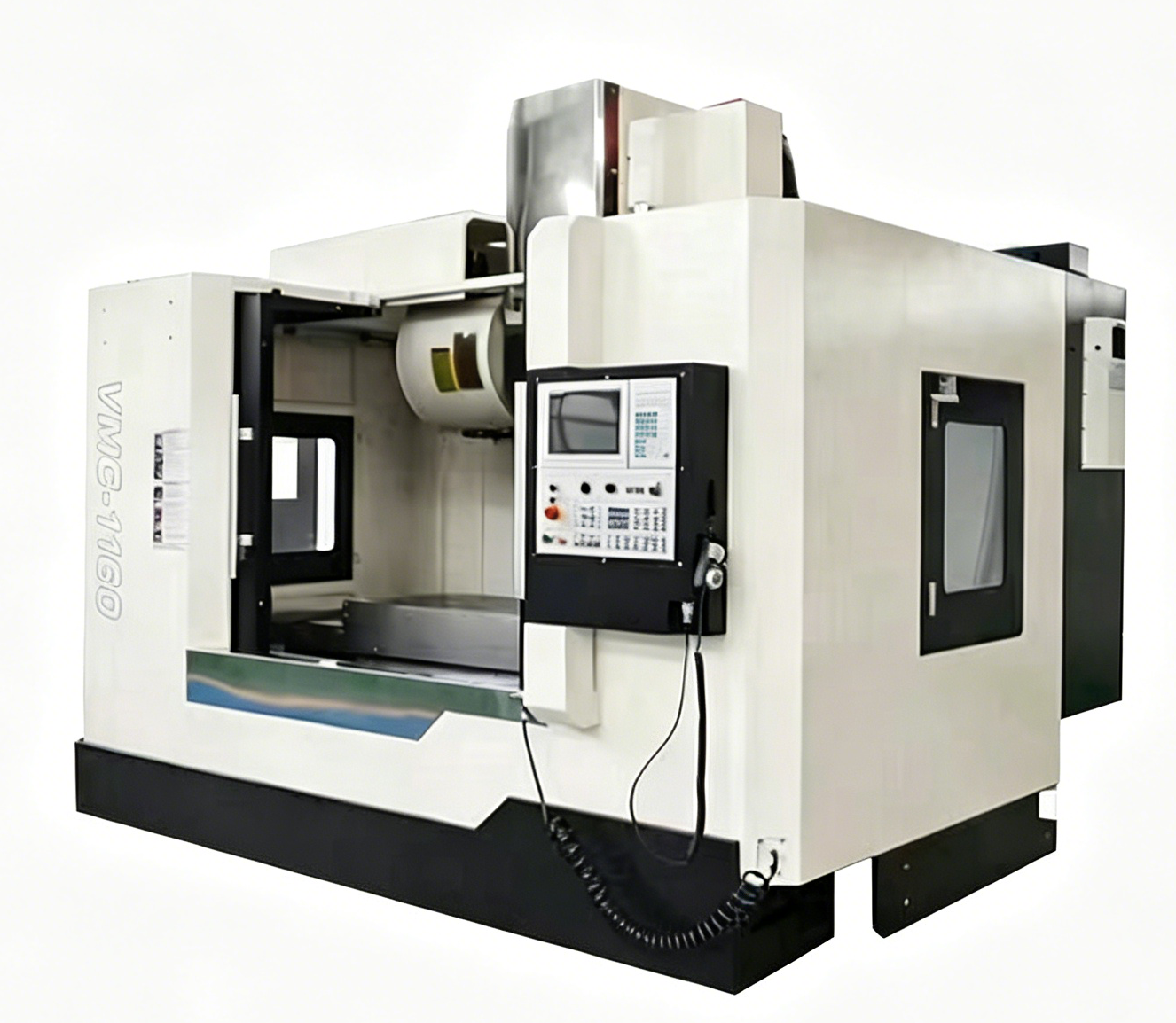

VMC1167 Vertical CNC Machining Center

Heavy cast iron frame, max table load 1000kg for heavy cutting
High precision linear guide, positioning accuracy ±0.0075mm
11KW BT40 spindle, max speed 8000rpm for metal & mold processing
24-arm tool magazine, stable automatic tool change
Optional FANUC/SIEMENS/GSK/KND/MITSUBISHI CNC system
1 year full machine warranty, factory direct supply

Quantity:
Availability:





Inquire Add to Basket

Model:
VMC1167
Brand:
SDCNC

VMC1167 Vertical CNC Milling Machine

Product Description

Specifications	Units	VMC1167
Table size	mm	1200*600 mm
X axis travel	mm	1100 mm
Y axis travel	mm	600 mm
Z axis travel	mm	700 mm
Max. table load	kg	1000 kg
T slot (number-width*pitch)		5-18*110
Max. spindle speed	rpm	8000 rpm
Spindle taper	mm	BT40 mm
Main motor power	kw	11 kw
X/Y/Z rapid traverse speed	m/min	24/24/20 m/min
Cutting feed speed	mm/min	1-6000 mm/min
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	650 mm
Distance between spindle nose and table surface	mm	95-795 mm

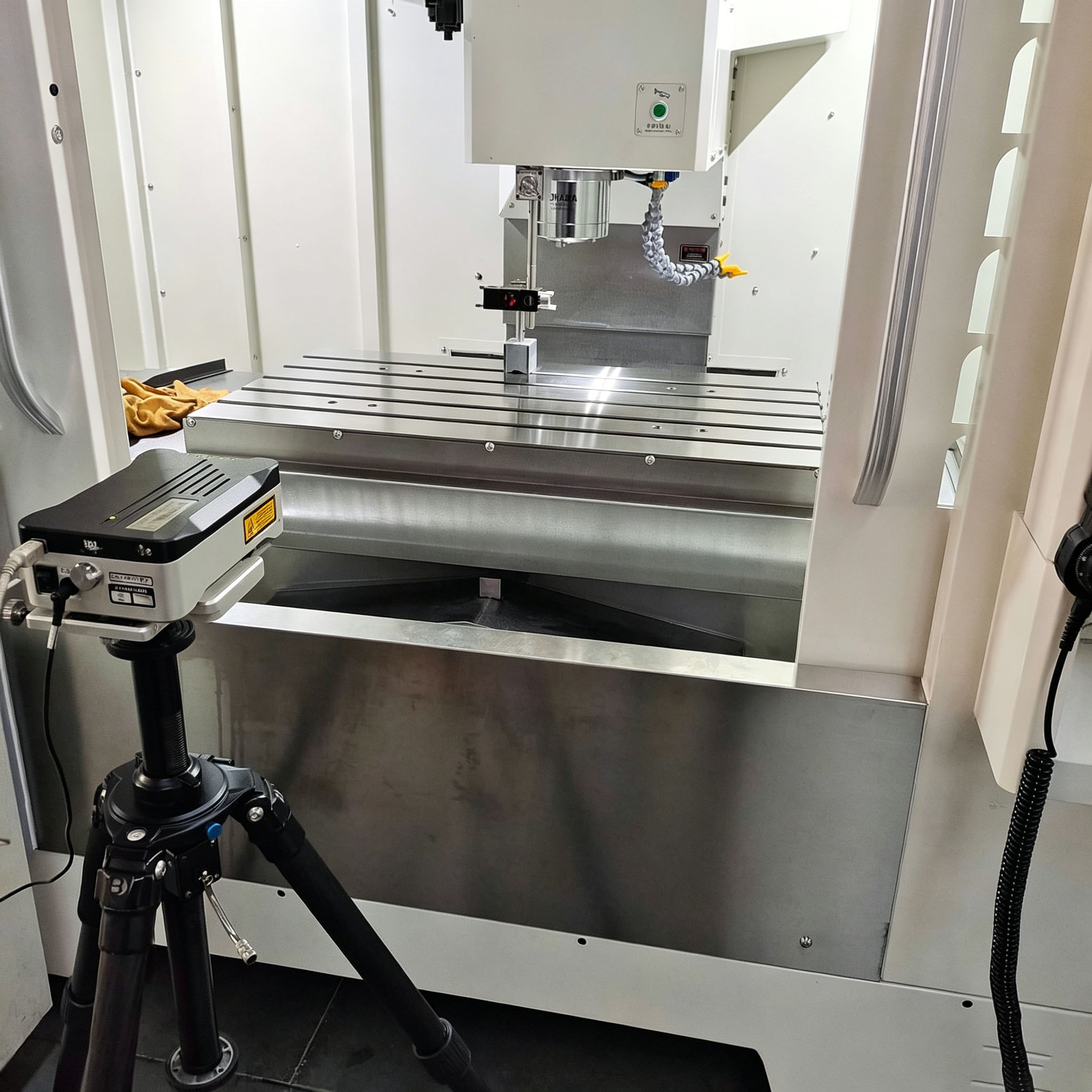

Positioning accuracy	mm	±0.0075 mm
Repeat positioning accuracy	mm	±0.005 mm
Tool magazine		Arm 24 Disc Type
Max. tool diameter	mm	78/120 mm
Max. tool weight	kg	8 kg
Machine weight	kg	7000 kg
Overall dimension (LWH)	mm	3400 2500 3060 mm
