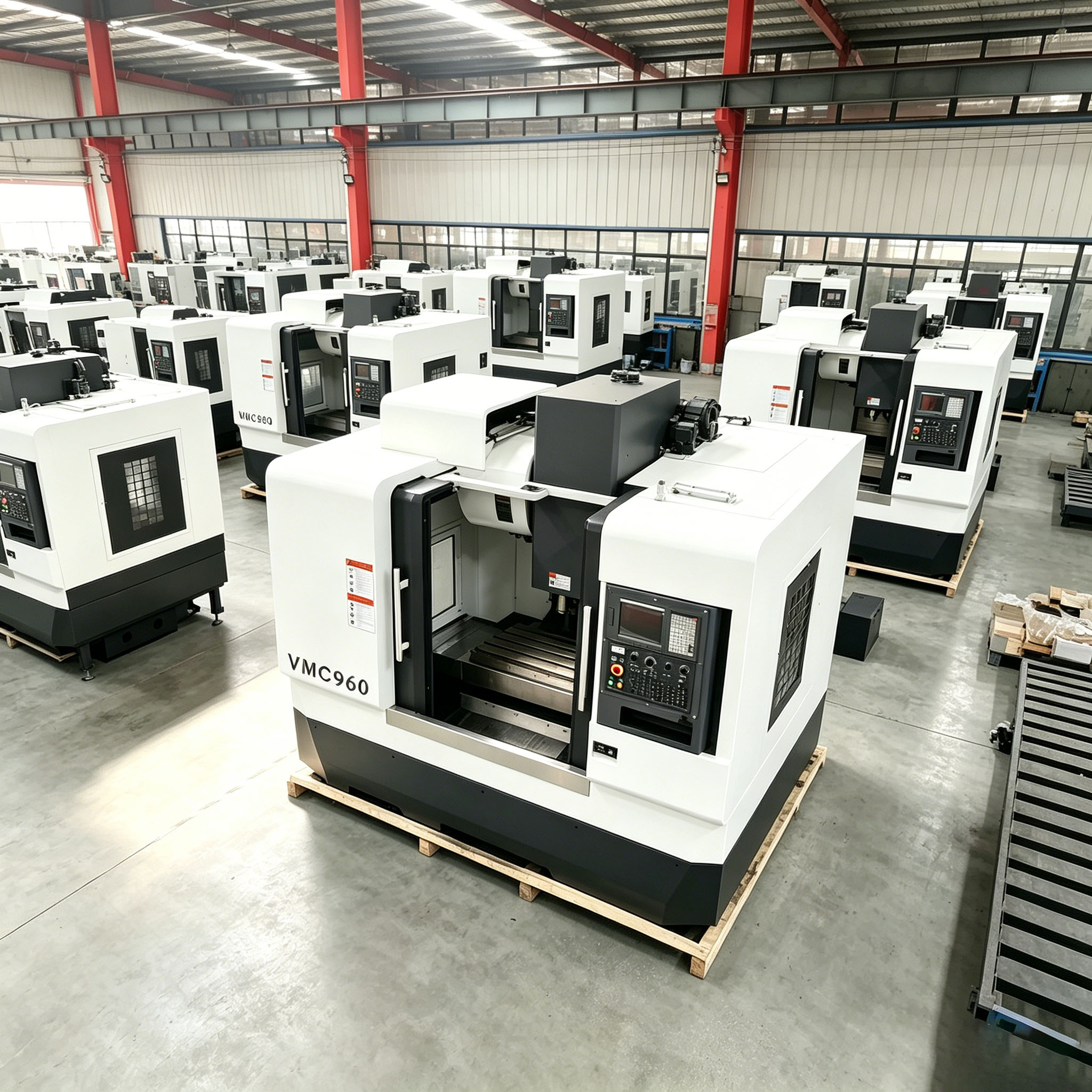

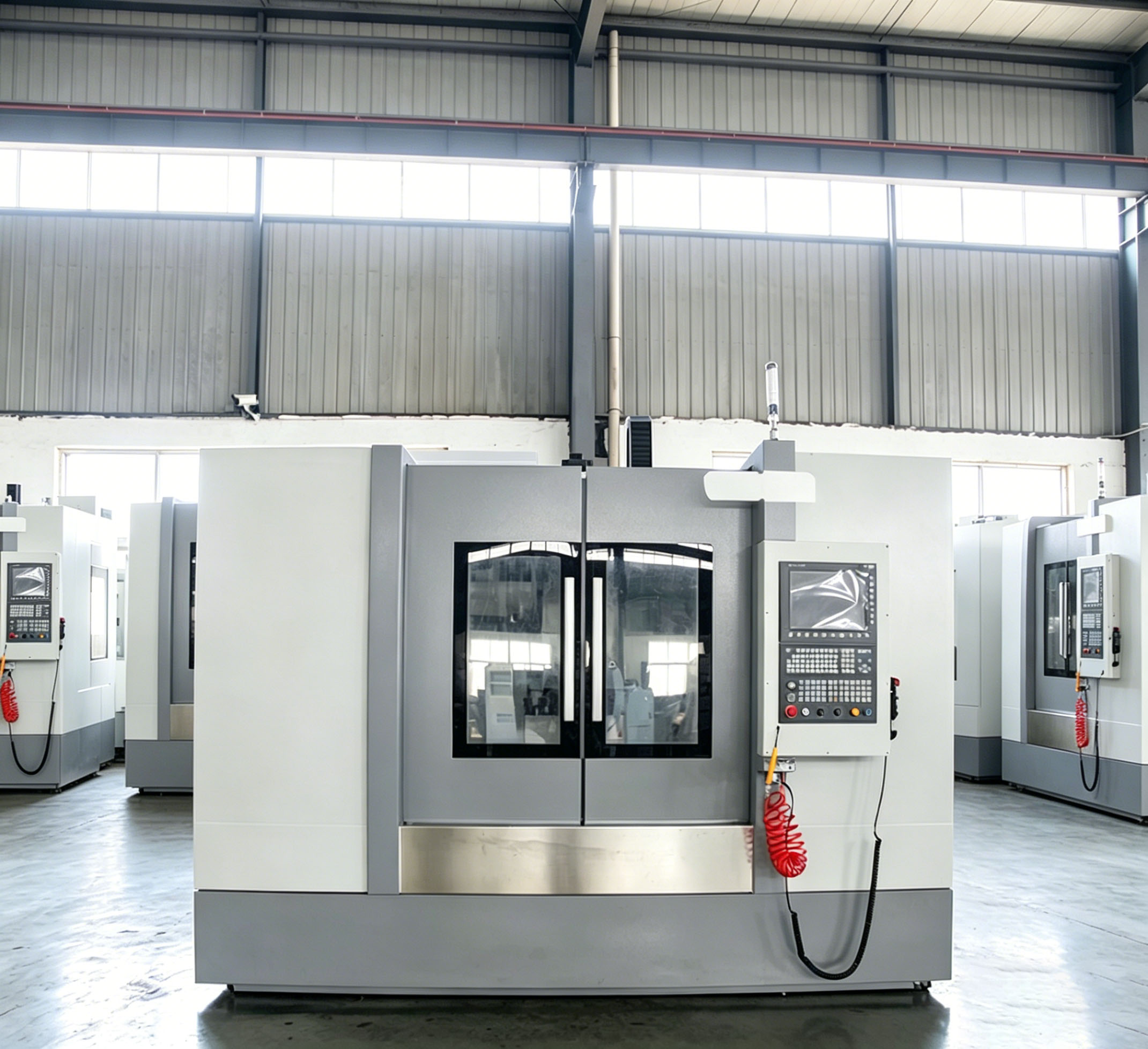

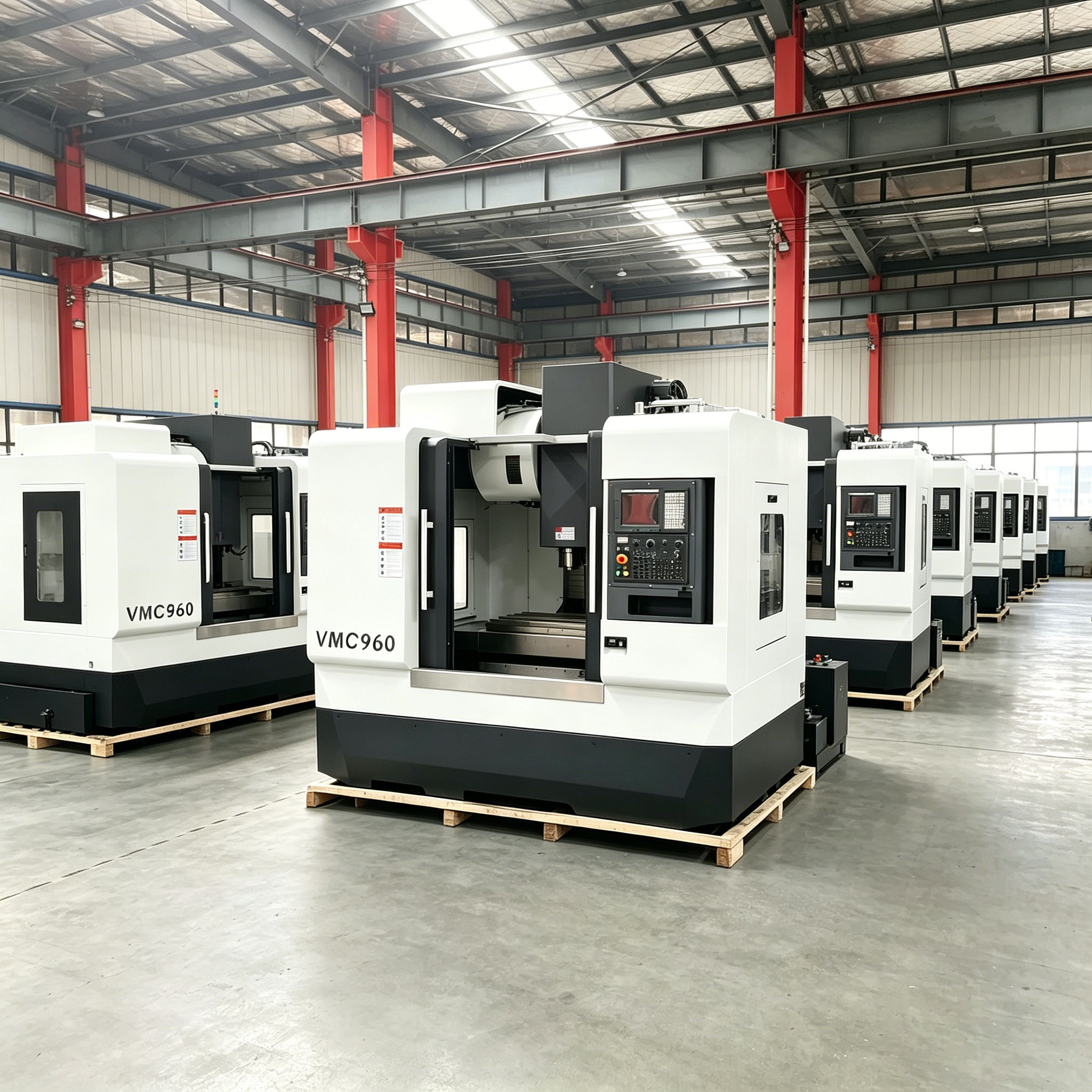

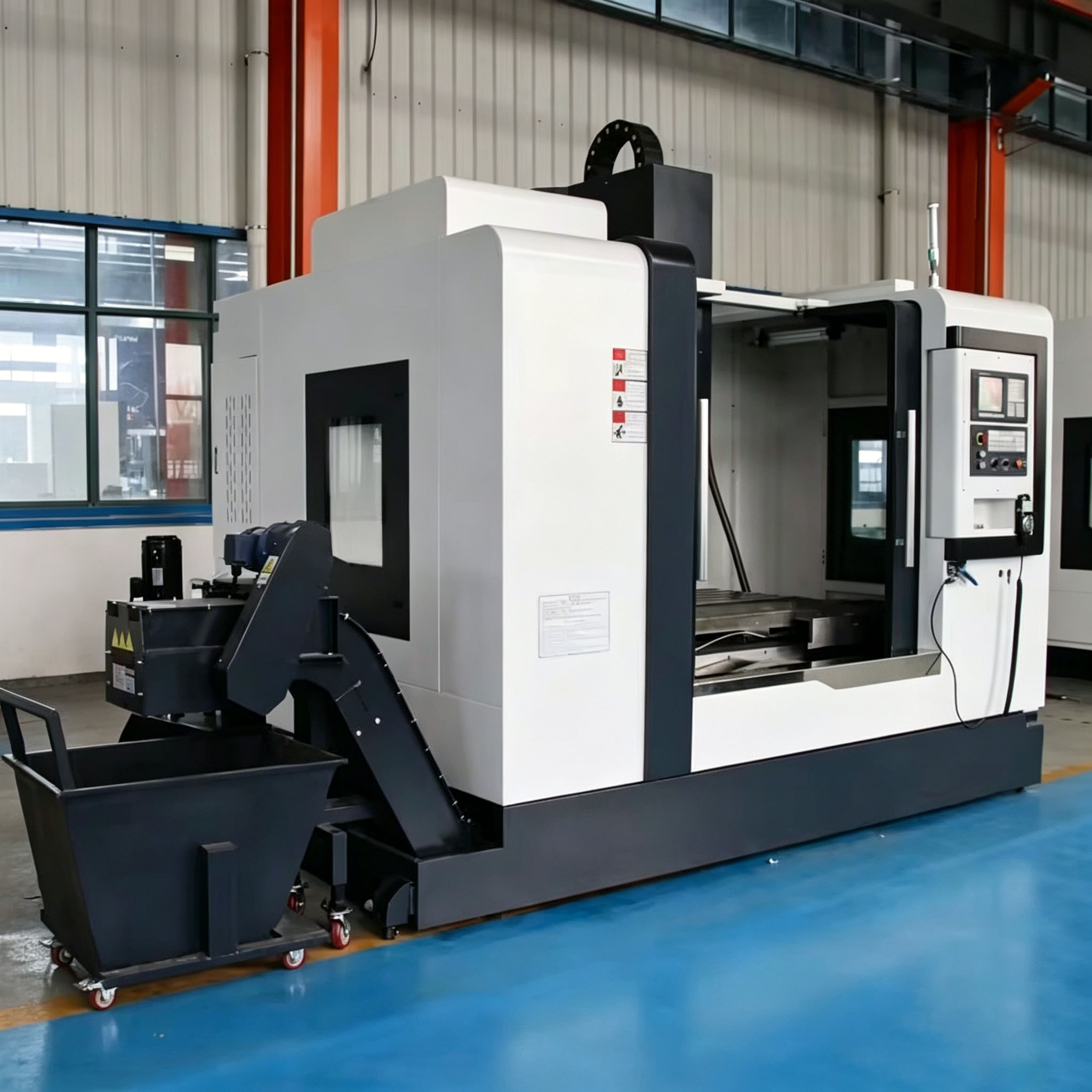

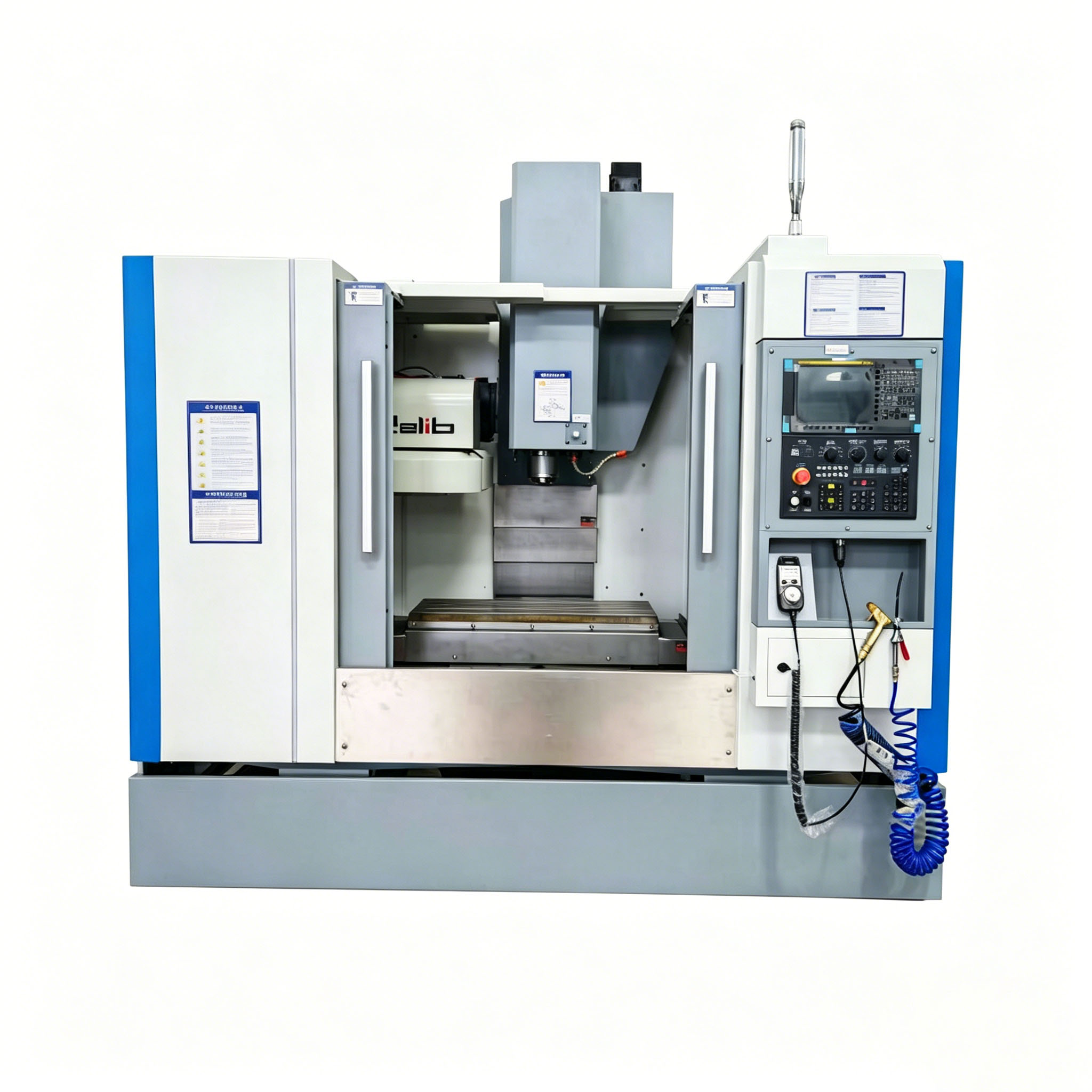

VMC960 Vertical CNC Milling Machine

VMC960 vertical CNC machining center is a high-precision heavy-duty metal processing equipment for mold, auto parts, hardware and mechanical component manufacturing.

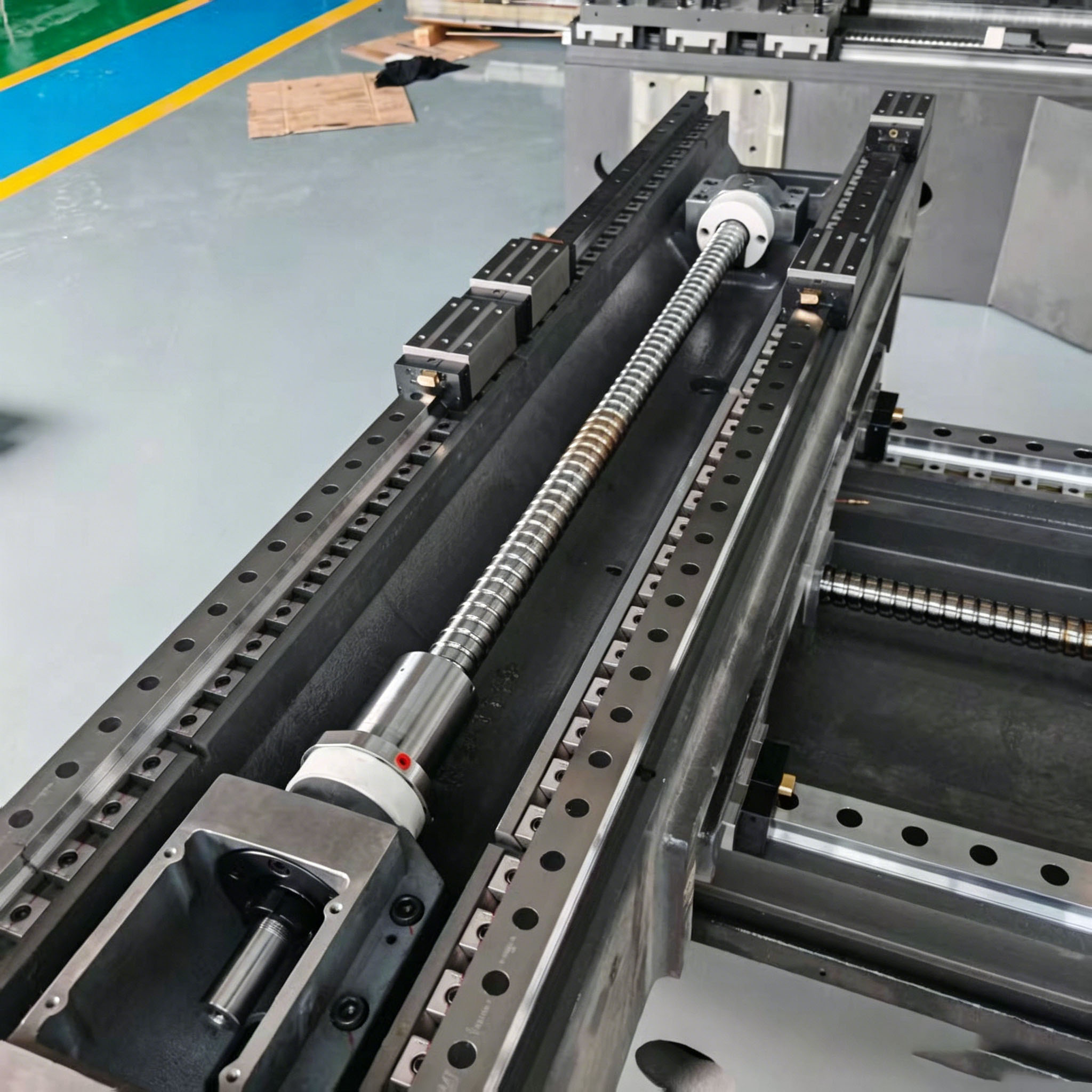

It adopts thick cast iron integral bed structure with strong shock resistance and stable cutting performance. Equipped with linear guide rails for X/Y/Z three axes, it ensures high moving smoothness and long service life.
Standard BT40 spindle with stable power output, support optional spindle speed upgrade. Matched automatic disc tool magazine, realizing fast tool change for multi-process one-clamping machining.
Multiple mainstream CNC control systems are optional, including FANUC, SIEMENS, GSK, MITSUBISHI, compatible with multi-language operation interface for global operators.

Quantity:
Availability:





Inquire Add to Basket

Model:
VMC960
Brand:
SDCNC

Product Description

Specifications	Units	VMC960
工作台尺寸Table size	mm	1000x600
X轴行程X axis travel	mm	900
Y轴行程Y axis travel	mm	600
Z轴行程Z axis travel	mm	700
工作台最大承重Max. worktable load	kg	700
T型槽（数量-宽度-间隙） T slot(number-width-pitch)		5-18x100
主轴转速Max. spindle speed	rpm	8000(Optional:10000 )
主轴锥度Spindle taper	mm	BT40
主电机功率Main motor power	kw	7.5/11
X/Y/Z轴快移速度 X/Y/Z rapid traverse speed	m/min	24/24/20 (Optional:48/48/36)
切削进给速度Cutting feed speed	mm/min	1-8000
导轨形式Guide rail type		Linear rail
主轴中心到立柱表面距离 Distance from spindle axis to column surface	mm	590
主轴端部到工作台表面距离 Distance between spindle nose and worktable surface	mm	130-800
定位精度Positioning accuracy	mm	±0.0075
重复定位精度Repeat positioning accuracy	mm	±0.005
刀库Tool magazine		Arm 24
刀具最大直径Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart)
刀具最大重量Max.tool weight	kg	8
机床重量Machine weight	kg	6700
外形尺寸Overall dimension	mm	2900x2400x2800
