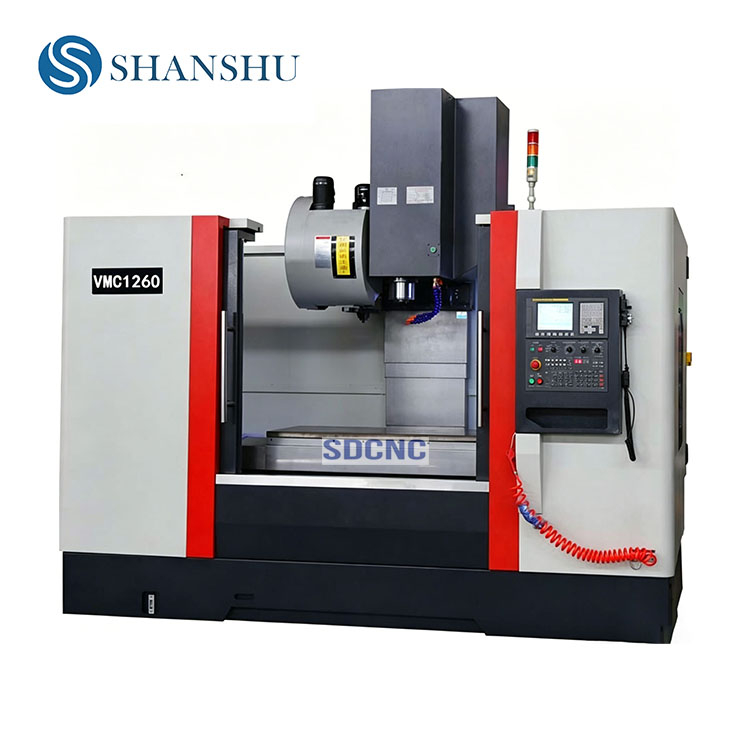

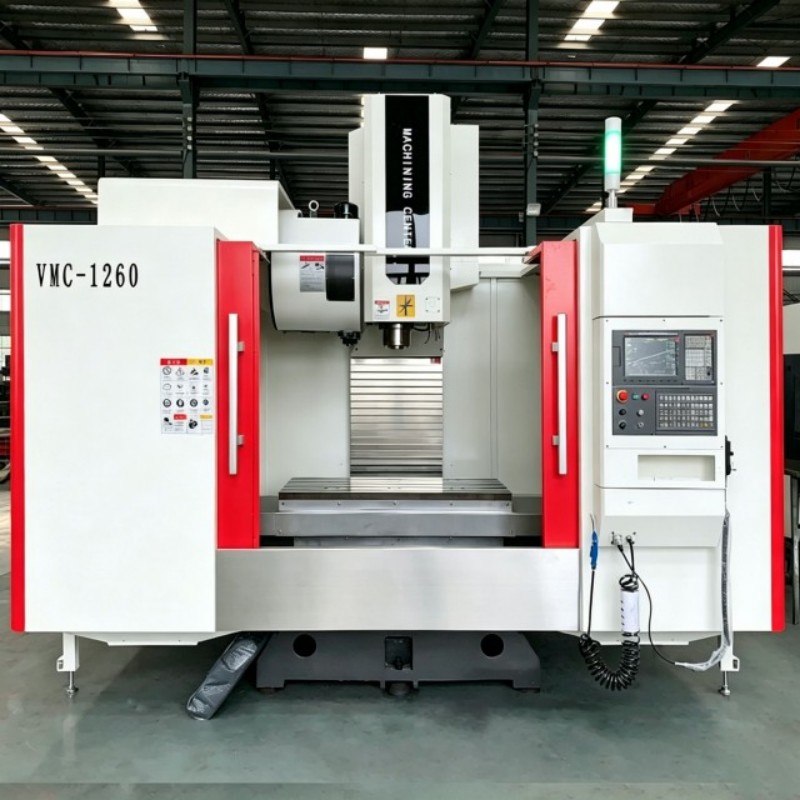

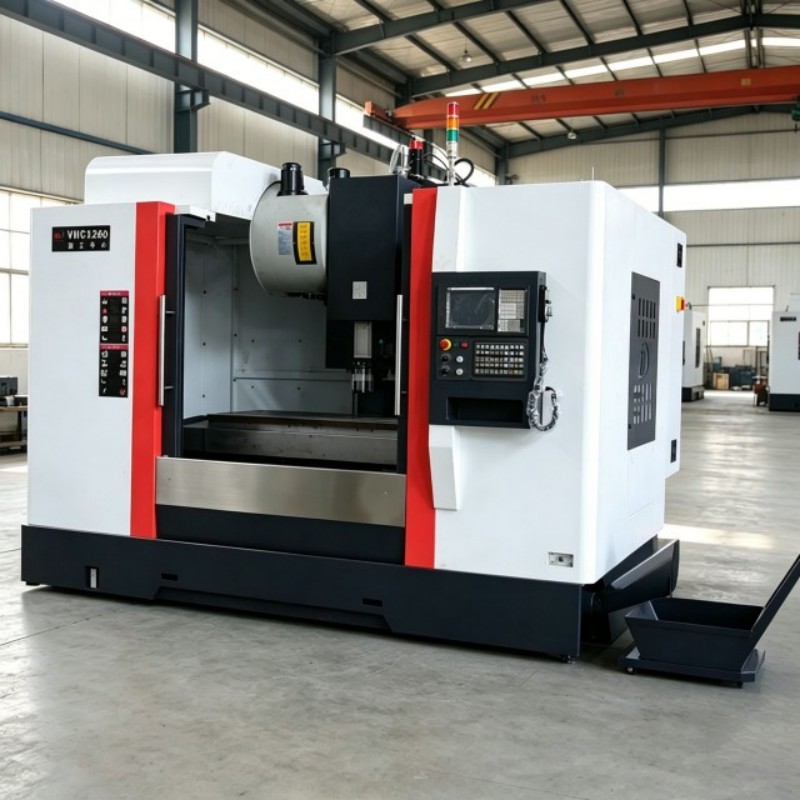

VMC1260 Vertical CNC Milling Machine

Specifications

Units

VMC1260

工作台尺寸Table size

mm

1200x600

X轴行程X axis travel

mm

1100

Y轴行程Y axis travel

mm

600

Z轴行程Z axis travel

mm

600

工作台最大承重Max. worktable load

kg

1000

T型槽（数量-宽度-间隙）
T slot(number-width-pitch)

5-18x125

主轴转速Max. spindle speed

rpm

8000(Optional:10000 )

主轴锥度Spindle taper

mm

BT40

主电机功率Main motor power

kw

11/15

X/Y/Z轴快移速度
X/Y/Z rapid traverse speed

m/min

24/24/20

切削进给速度Cutting feed speed

mm/min

1-8000

导轨形式Guide rail type

Linear rail

主轴中心到立柱表面距离
Distance from spindle axis to column surface

mm

650

主轴端部到工作台表面距离
Distance between spindle nose and worktable surface

mm

140-740

定位精度Positioning accuracy

mm

±0.0075

重复定位精度Repeat positioning accuracy

mm

±0.005

刀库Tool magazine

Arm 24

刀具最大直径Max. tool diameter

mm

φ78( Adjacent)/ φ120(Apart)

刀具最大重量Max.tool weight

kg

8

机床重量Machine weight

kg

7000

外形尺寸Overall dimension

mm

3400x2480x2960
