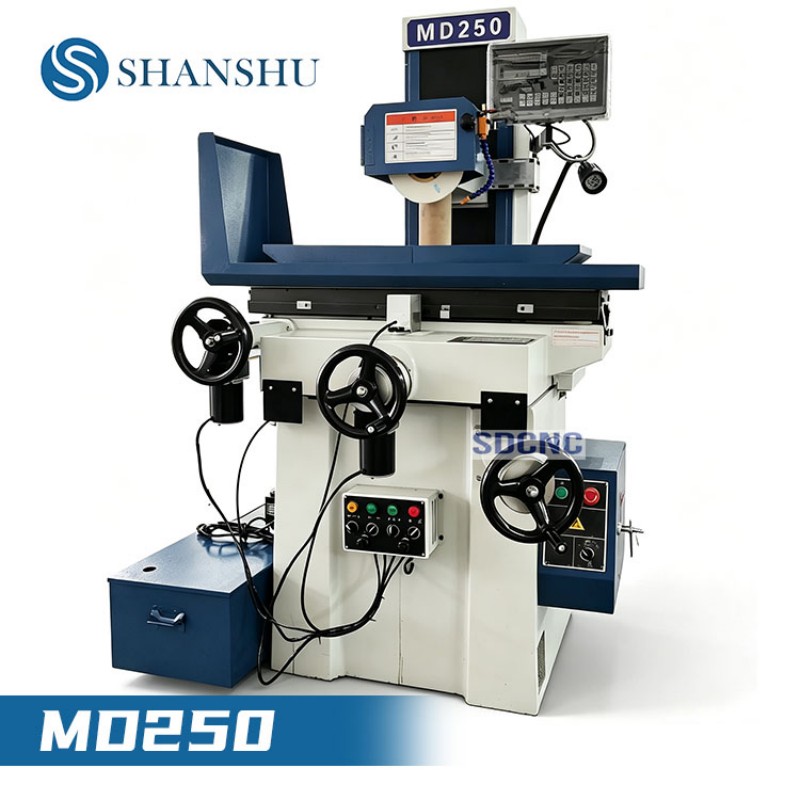

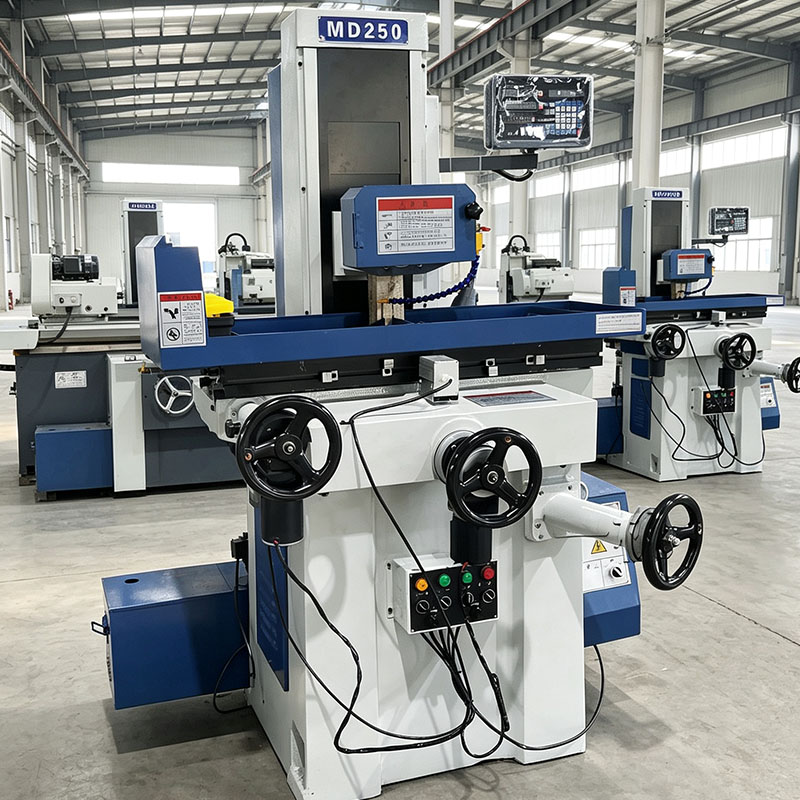

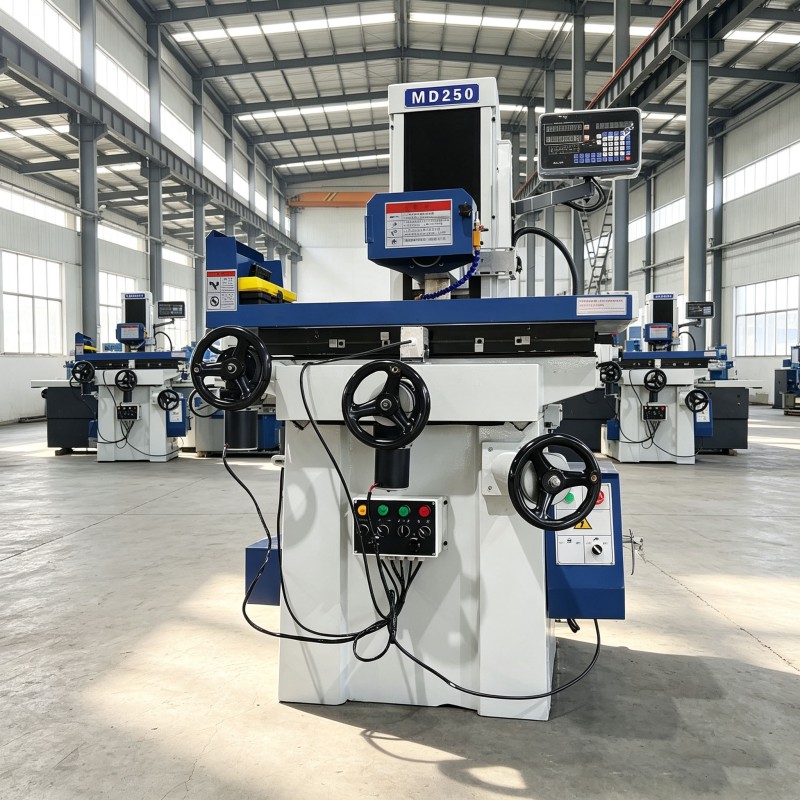

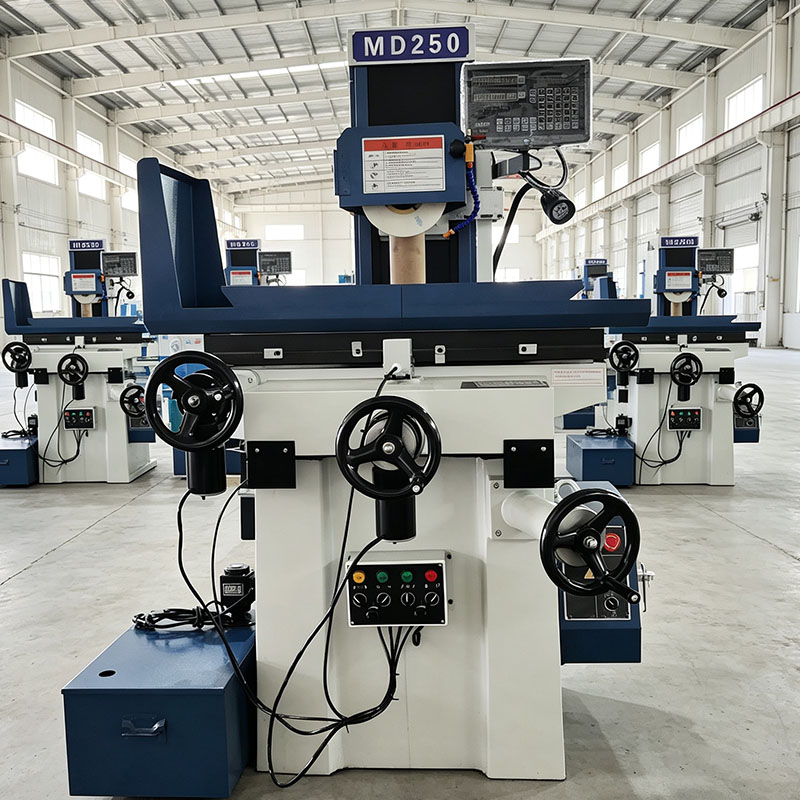

MD250 Surface Grinder

High Precision: Ensures accurate grinding results for precision workpieces.
Hydraulic Operation: Smooth and efficient control for precise grinding operations.
Large Worktable: 500x250mm worktable accommodates various size grinding tasks.
Compact Design: Ideal for small workshops due to its compact size and manageable weight.
Comprehensive Documentation: Includes mechanical test report and factory video inspection for quality assurance.

Quantity:
Availability:





Inquire Add to Basket

Model:
MD250
Brand:
SDCNC

Product Description

Specification		Unit	MD250
Worktable	Working surface of table	mm	500*250
	Max table travel	mm	550*250
	Max grinding size(WLH)	mm	580260380
	T Slot(Number*Width)	mm	1*14
Grinding head	Distance between table surface to spindle center	mm	470
	Wheel size(diawidthbore)	mm	Φ20020φ31.75
	Spindle speeds(50Hz)	r/min	2850
Work precision	Table longitudinal (left and right) speed (stepless)	m/min	3-23
	Continuous (variable speed)	mm/min	150
	Intermittent (stepless)	mm	0-5
	The handwheel rotatos	mm	2.5
	Hand wheel each grid	mm	0.02
	Handwheel rotates	mm	1.25
	Hand wheel each grid	mm	0.01
Motor	Spindle motor	kw	1.5
Motor	Cooling motor	w	40
Machine size	Net weight	kg	950
	Gross weight	kg	1000
	Dimension(LWH)	mm	170013001800
