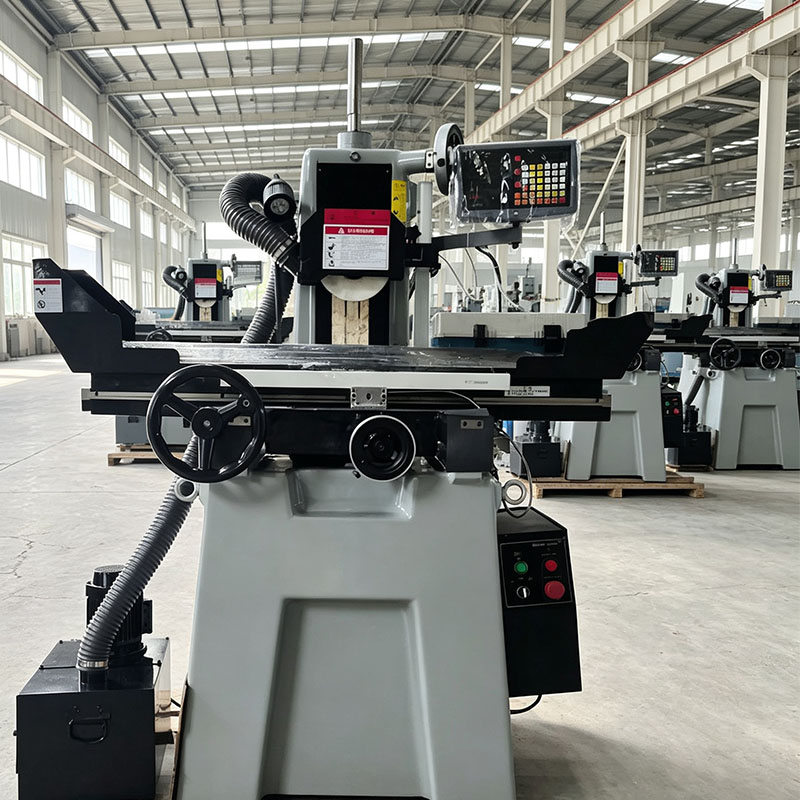

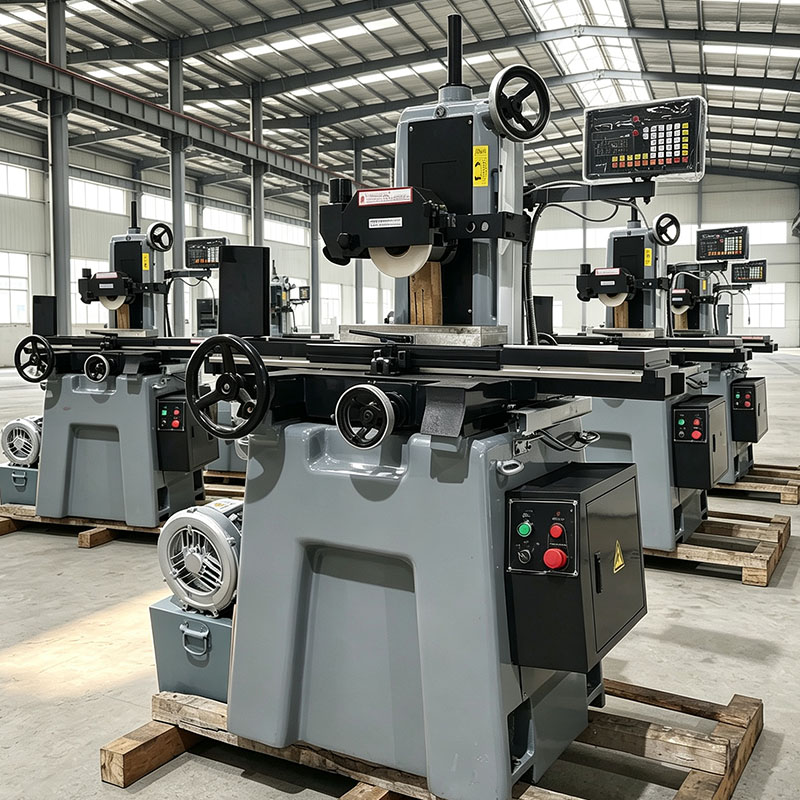

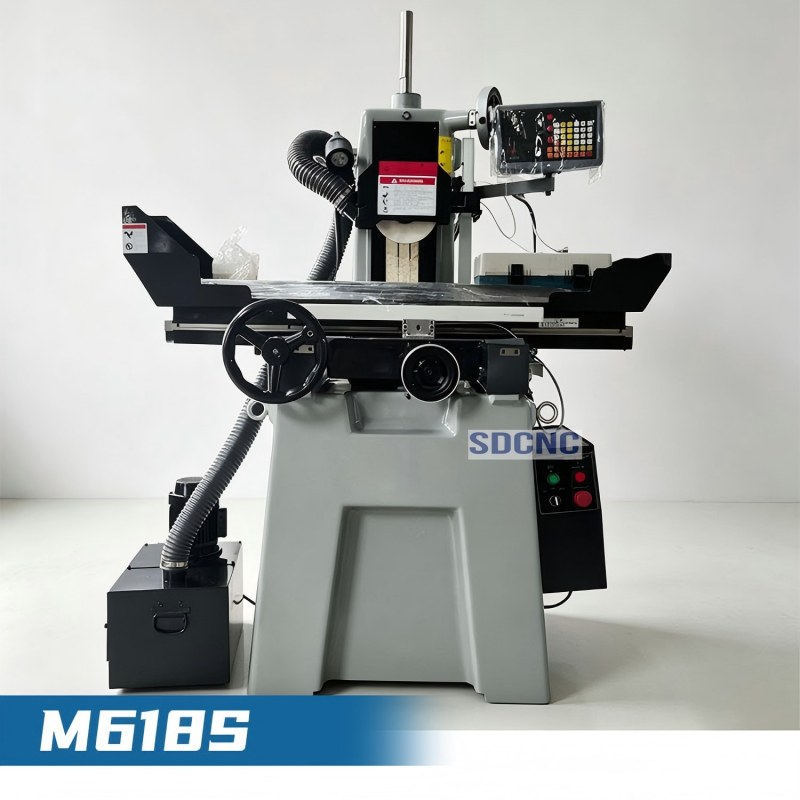

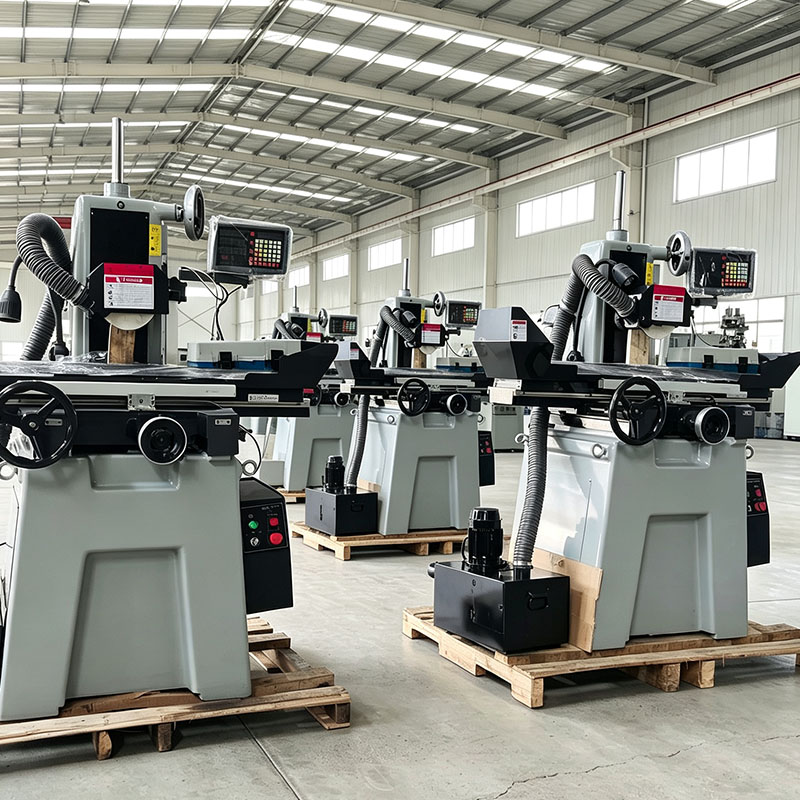

M618S Surface Grinder

Manual vertical structure, easy operation for mold precision grinding
Equipped with DRO digital readout, accurate size control
Built-in dry dust collector, clean working environment
High precision grinding, surface roughness up to 0.32μm
Stable spindle, small vibration, neat grinding surface
Compact body, small footprint, suitable for small workshop
1-year full machine warranty, durable spare parts

Quantity:
Availability:





Inquire Add to Basket

Model:
M618S
Brand:
SDCNC

Product Description

Specifications	Parameters		Unit	M618S
Worktable	Working Surface of Table		mm	457*150
	Max Grinding Size（LWH）		mm	475*160
	Distance from wheel center to table surface		mm	400
	Left and right hand stroke		mm	465
	Front and rear manual stroke		mm	170
	Max Table Load		kg	80
Grinding head	Vertical feed Handwheel	1 grad	mm	0.005
		1 rev		1.0
	Cross feed Handwheel	1 grad	mm	0.02
		1 rev		5.0
Work precision	Grinding Wheel（ODWID）		mm	Φ18016Φ31.75
	Spindle Speed	50/60HZ	rpm	3000/3600
Motor	Spindle Motor		kw	1.5
	Vacuum and pump motor		kw	0.37/0.04
Machine size	Net Weight		kg	850
	Gross Weight		kg	950
	Dimension（LWH）		mm	150011002100
