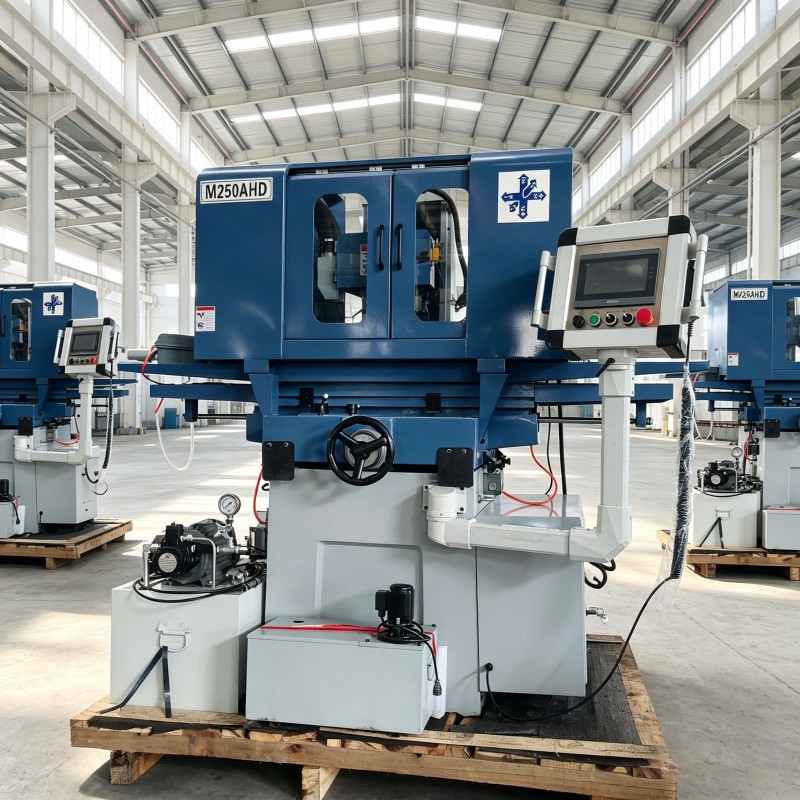

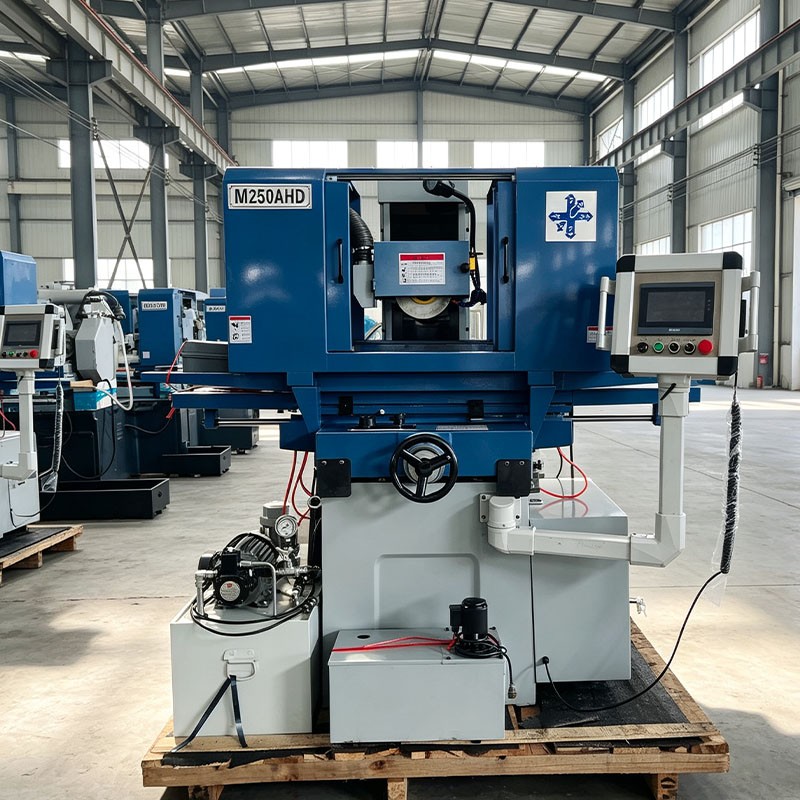

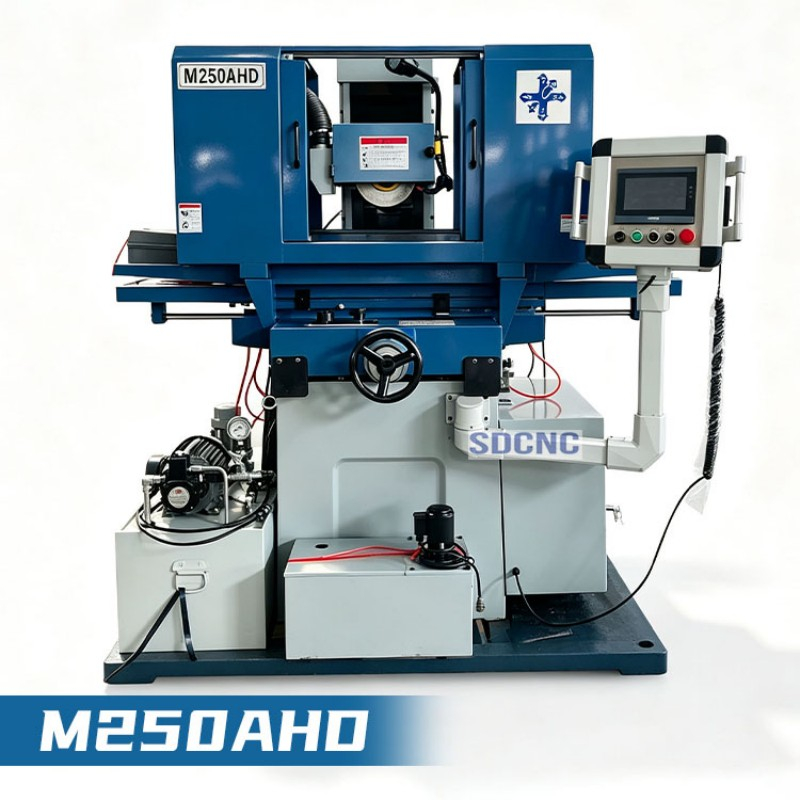

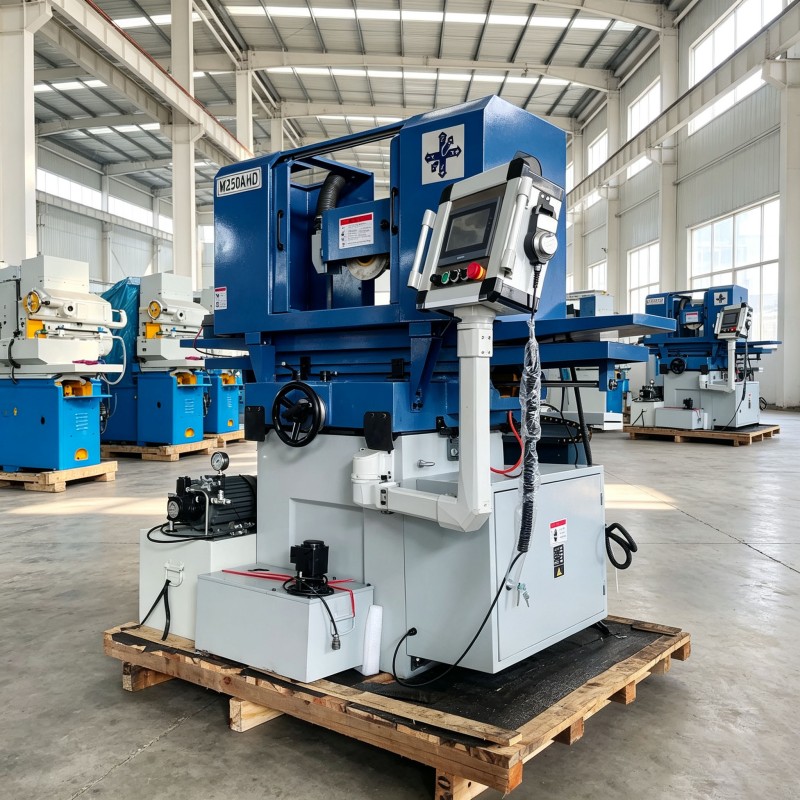

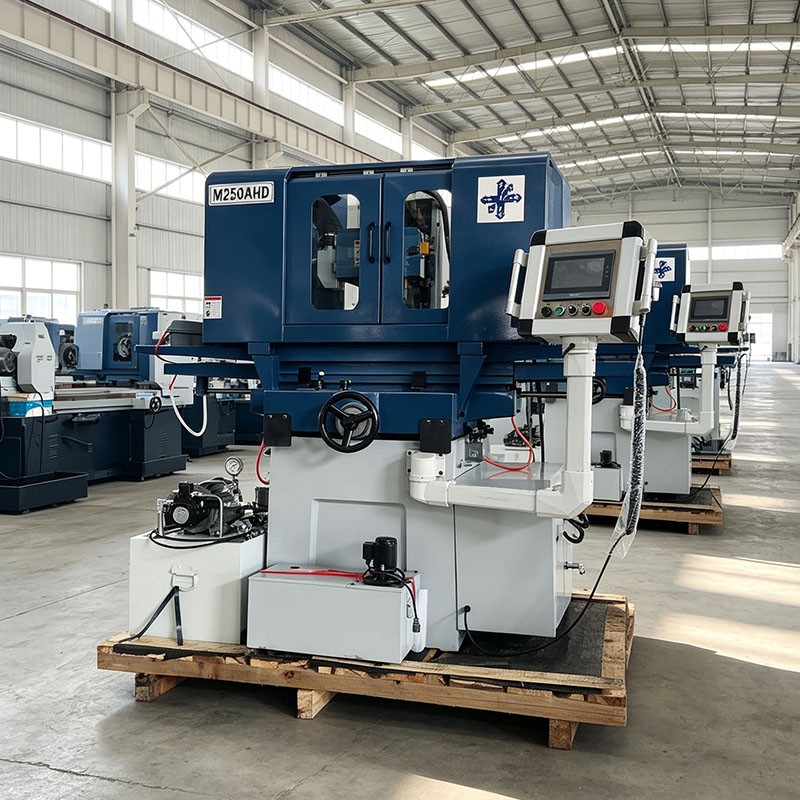

M250AHD Surface Grinder

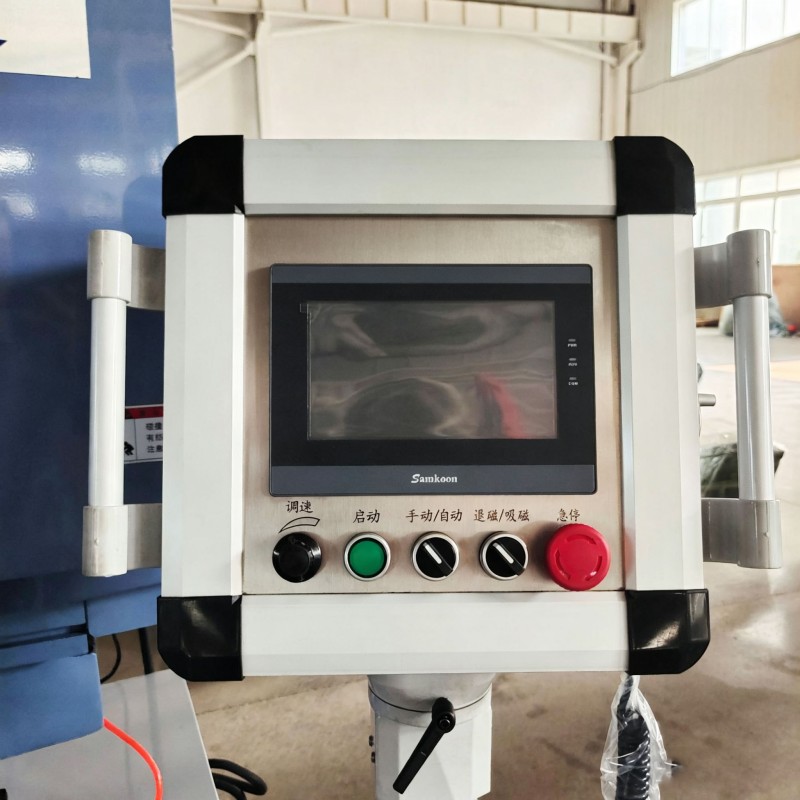

1.M250AHD is a 3 axis full automatic metal surface grinding surface grinder,with Taiwan PLC control panel , quality castings and magnetic chuck.
2.Longitudinal feeding: Hydraulic.
3.Cross feeding: motor electric.
4.Vertical feeding: rapid AC servo motor.
5.M250AHD surface grinder grinding machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.

Quantity:
Availability:





Inquire Add to Basket

Model:
M250AHD
Brand:
SDCNC

M250AHD surface grinder hydraulic grinding machine precision mold grinder magnetic chuck

Product Description

Model			Unit	M250AHD
Bench	Worktable size(L*W)		mm	500*250
	Max travel of table(L*W)		mm	550*250
	Table max cutting area(LWH)		mm	580260380
	Number of T-Slot		mm	1*14
Grinding head	Distance from Table Surface To Spindle Center		mm	470
	Wheel Size(dia width bore)		mm	Φ20020φ31.75
	Spindle speeds (50HZ)		r/min	2850
The amount of feed	Table longitudinal (left and right) speed (stepless)		m/min	3--23
	Table horizontal (before and after) the amount of feed	Continuous (variable speed)	mm/min	150
		Intermittent (stepless)	mm	0-5
		The handwheel rotatos	mm	2.5
		Hand wheel each grid	mm	0.02
	Vertical (up and down) feed	Handwheel rotates	mm	1.25
		Hand wheel each grid	mm	0.01
Motor power	Spindle motor		kw	1.5
	Cooling motor		w	40
Weight of machine& working precision	The machined surface of the base of parallelism		mm	300/0.005
	Surface Roughness		μm	Ra0.32
	Net weight		kg	950
	Cross weight		kg	1000
Machine size (LWH)			mm	170013001800
