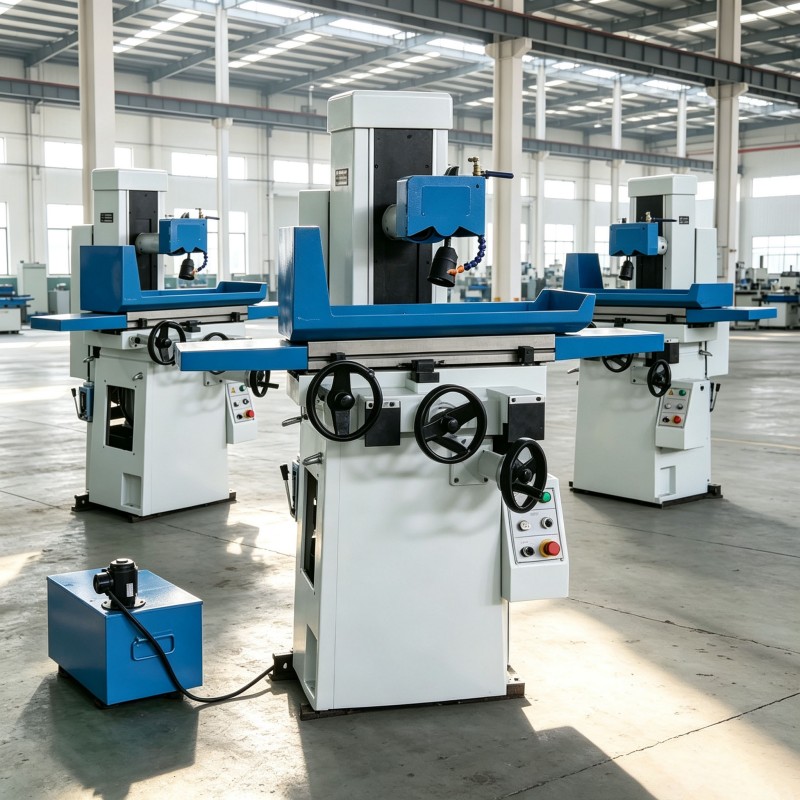

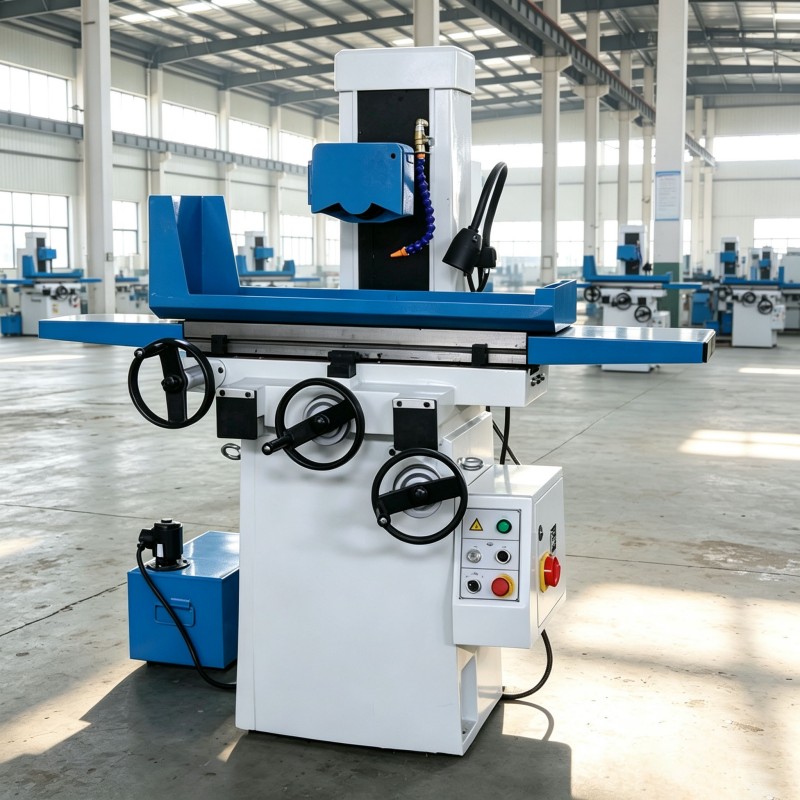

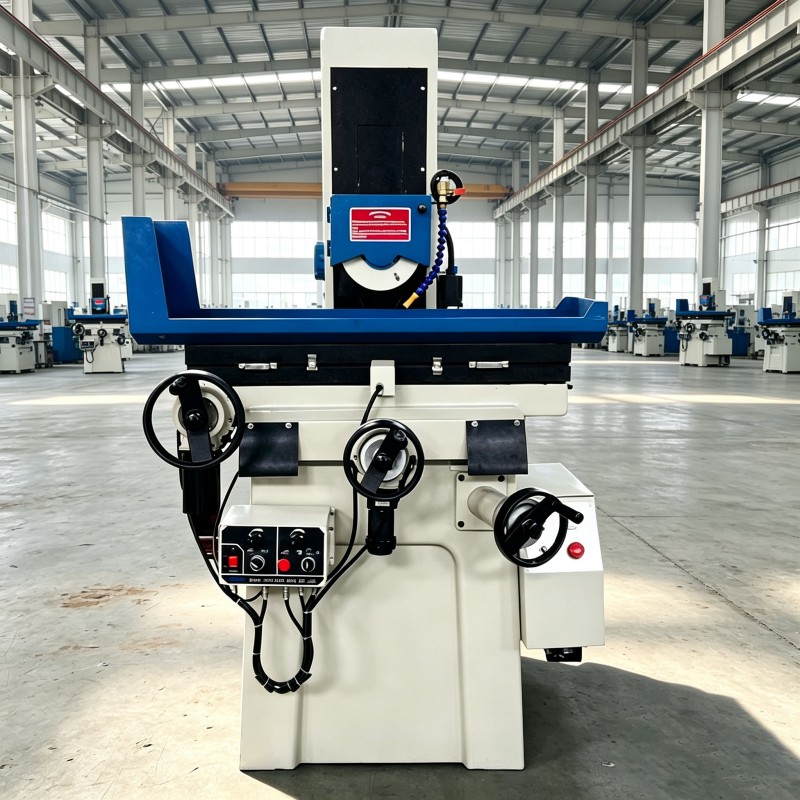

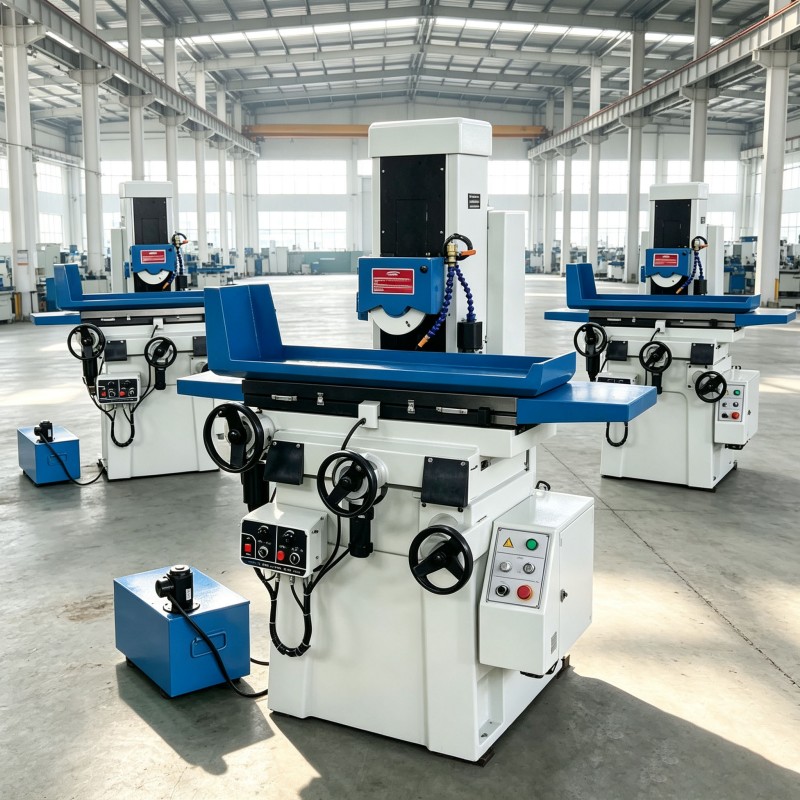

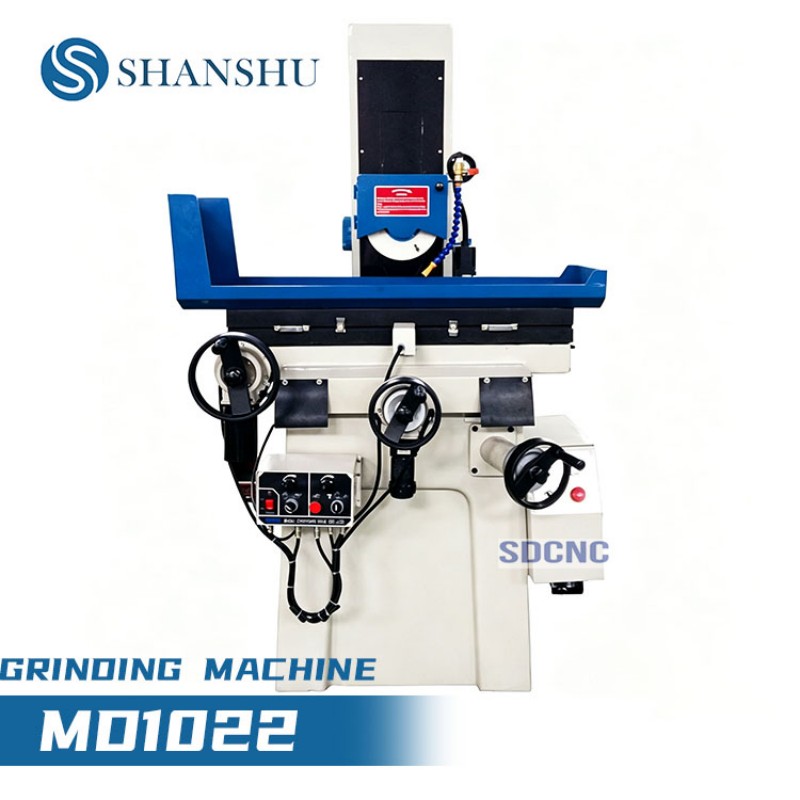

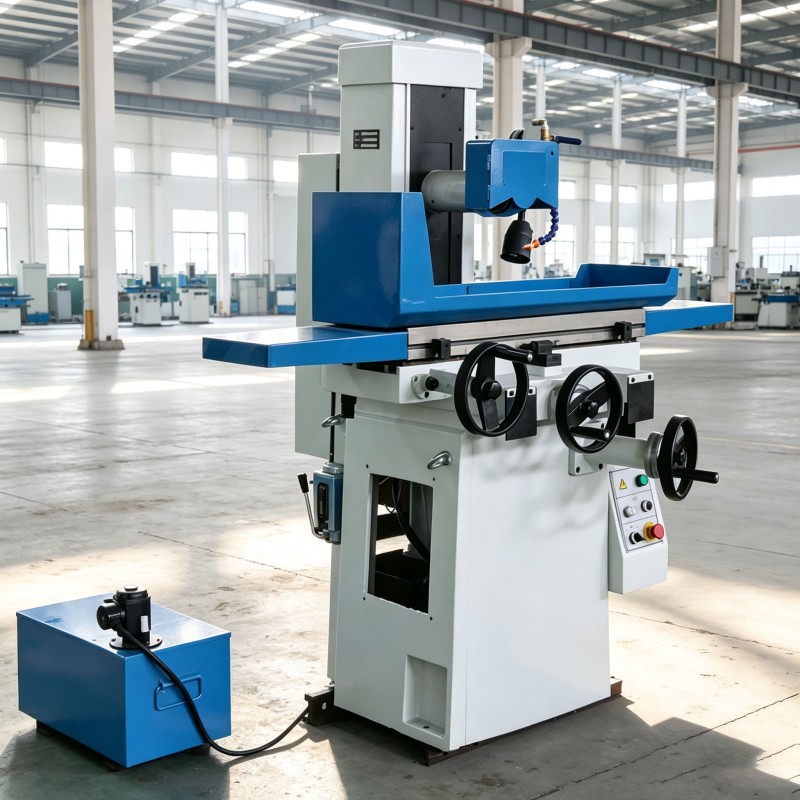

MD1022 Surface Grinding Machine

MD1022 hydraulic surface grinding machine is heavy-duty equipment with cast iron body. It features stable hydraulic feeding, high grinding precision Ra≤0.32μm and low vibration operation. Widely used for grinding steel, aluminum, alloy and cast iron workpieces in mold, hardware, auto parts factories. Easy operation and daily maintenance with 1-year warranty for core parts.

Quantity:
Availability:





Inquire Add to Basket

Model:
MD1022
Brand:
SDCNC

MD1022 grinder with spindle hole slide way gear component bearing clamp rod

Product Description

Model				MD1022
Working table	Table Size (L× W)		mm	540×250
	Max movement of working table (L× W)		mm	560×260
	T-Slot (number×width)		mm	1×14
Grinding head	Max distance from spindle center to table surface		mm	420
	Wheel Size (Outer diameter×width×Inner diameter)		mm	φ200×20×Φ31.75
	Wheel speed	50HZ	r/min	2850
		60HZ		3360
Feed amount	Longitudinal speed of working table		m/min	3-20
	Cross feed of working table	Continuously (Variable Transmission)	mm/min	400
		Intermittently (Variable Transmission)	mm/times	0-5
		Per revolution on handwheel	mm	5
		Per graduation on handwheel	mm	0.02
	Vertical feed on handwheel	Per revolution	mm	1.25
		Per graduation	mm	0.01
Reversing feeder	Total input power		W	150
	X- feeder output speed		R/min	0-225
	X- feeder size		mm	280×130×120
	Y- feeder output speed		R/min	0-120
	Y- feeder size		mm	280×130×120
Motor power	Spindle motor		kW	1.5
	Coolant pump motor		W	40
Working precision	The parallelism of working surface to base level		mm	300:0.005
	Surface roughness		μm	Ra0.32
Weight	Net		kg	880
	Gross		kg	980
Overall dimension (L×W×H)			mm	1680x1140x1760
Package dimension (L×W×H)			mm	1200x1400x1940
