GY4240 Double Column Horizontal Metal Bandsaw Machine

You are here: Home » Products » Sawing Machine » Metal Sawing Machine » GY4240 Double Column Horizontal Metal Bandsaw Machine

GY4240 Double Column Horizontal Metal Bandsaw Machine

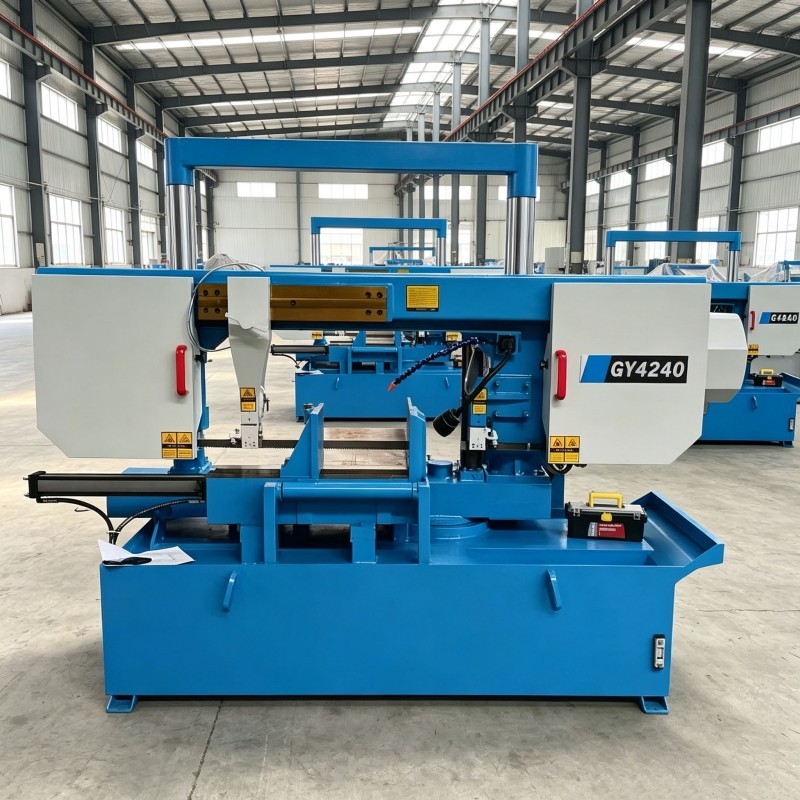

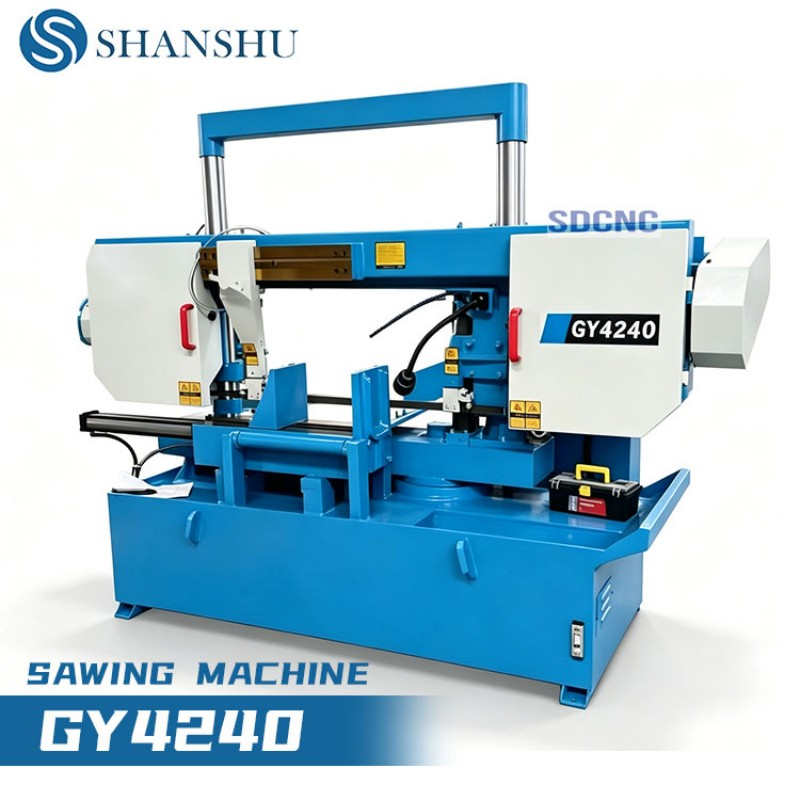

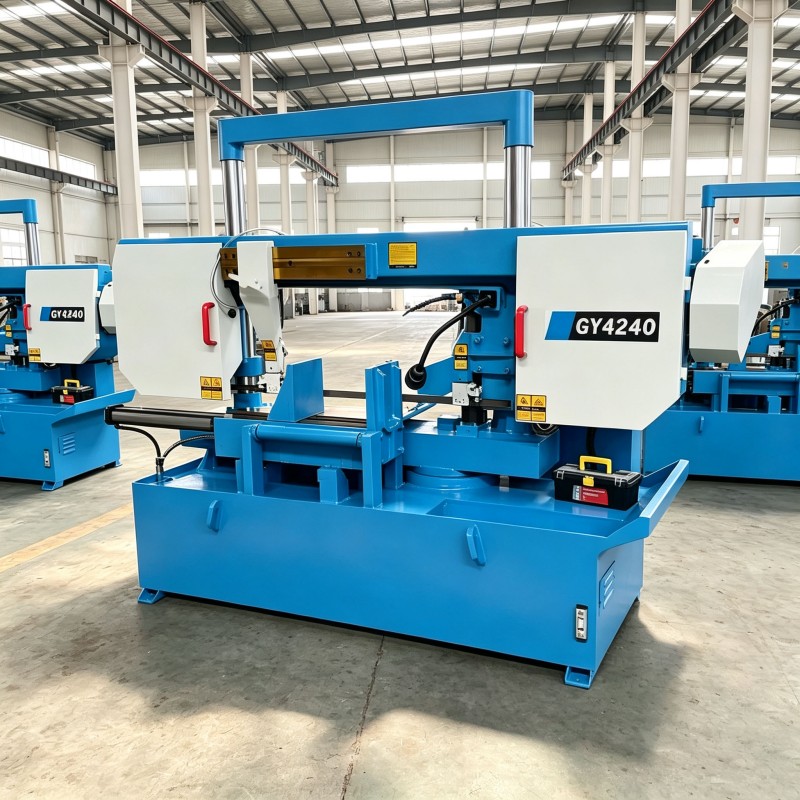

GY4240 double‑column horizontal metal bandsaw machine features 400mm cutting capacity. Its heavy‑duty double‑column frame ensures high rigidity and smooth metal cutting for carbon steel, alloy steel and metal tubes. Hydraulic control makes operation easy and labor‑saving. Ideal sawing equipment for metal fabrication workshops.

Quantity:
Availability:





Inquire Add to Basket

Model:
GY4240
Brand:
SDCNC

GY4240 Double Column Horizontal Metal Bandsaw Machine 400mm Cutting Capacity Hydraulic Semi Automati

Product Description

Model number	GY4232	GY4240	GY4265	GY4270
Sawing capacity	320×500	400×550	650×700	700×700
Band saw blade line speed (m/min)	22.32.42.56.65.90	22.32.42.56.65.90	27.36.46.60	27.46.60
Band saw blade size (mm)	34×1.1×4115	34×1.1×4750	41×1.3×6380	41×1.3×7100
Main motor Power (KW)	3	4	5.5	7.5
Hydraulic motor (kw)	0.75	0.75	1.5	1.5
Cooling pump (KW)	0.45	0.45	0.9	0.9
Table height (mm)	650	650	650	650
Working clamping mode	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Saw blade tensioning mode	Manual	Manual	Manual	Manual
Overall dimensions (mm)	2250×1350×1500	2350×1300×1600	3400×1450×2100	3600×1500×2300
Weight (t)	1	1.2	2.2	3.2
