GB4260 Semi Automatic Band Saw Machine

You are here: Home » Products » Sawing Machine » Metal Sawing Machine » GB4260 Semi Automatic Band Saw Machine

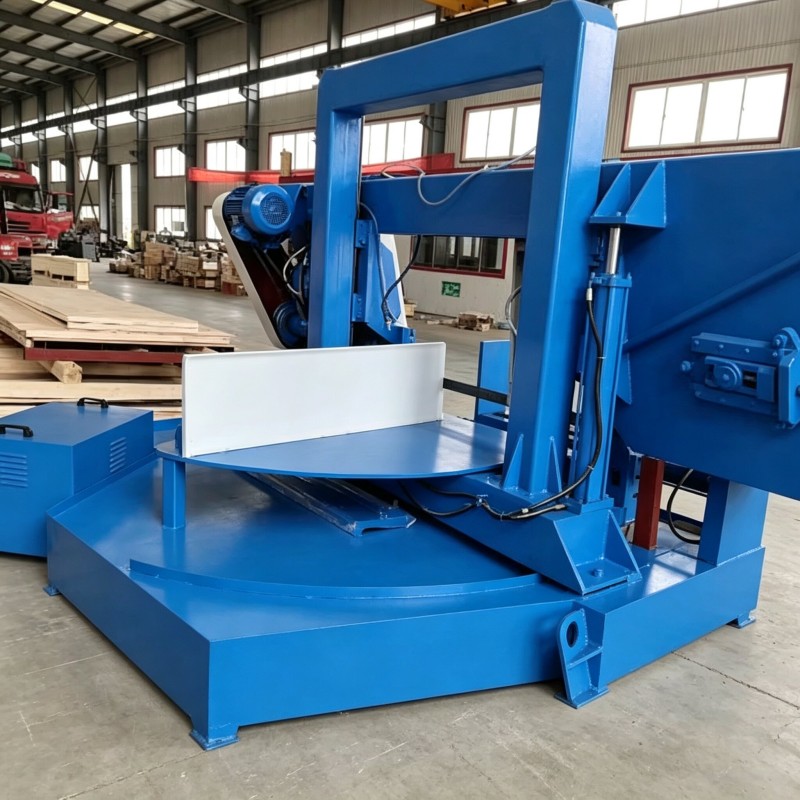

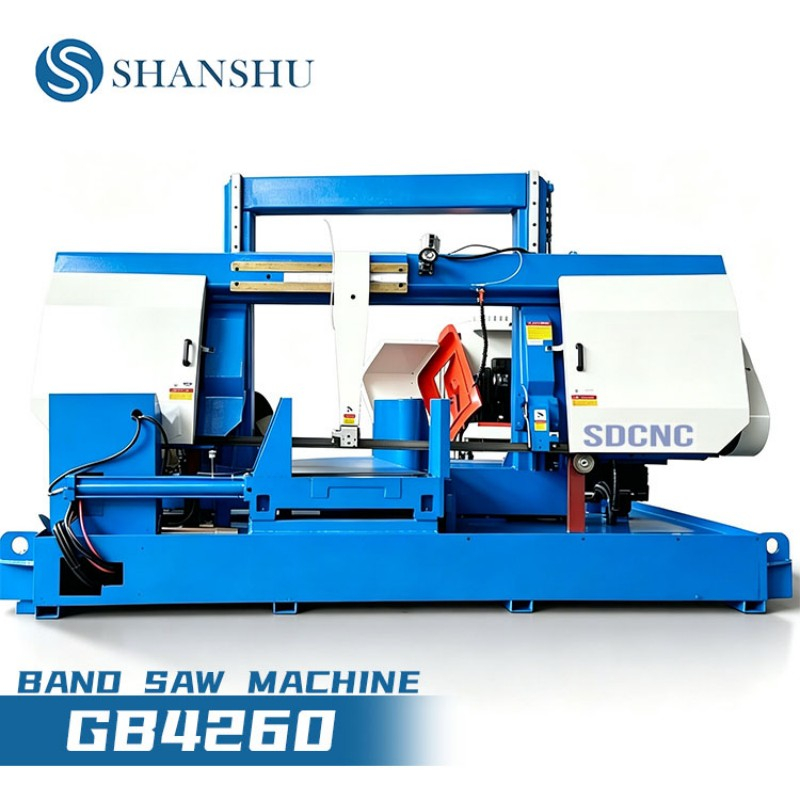

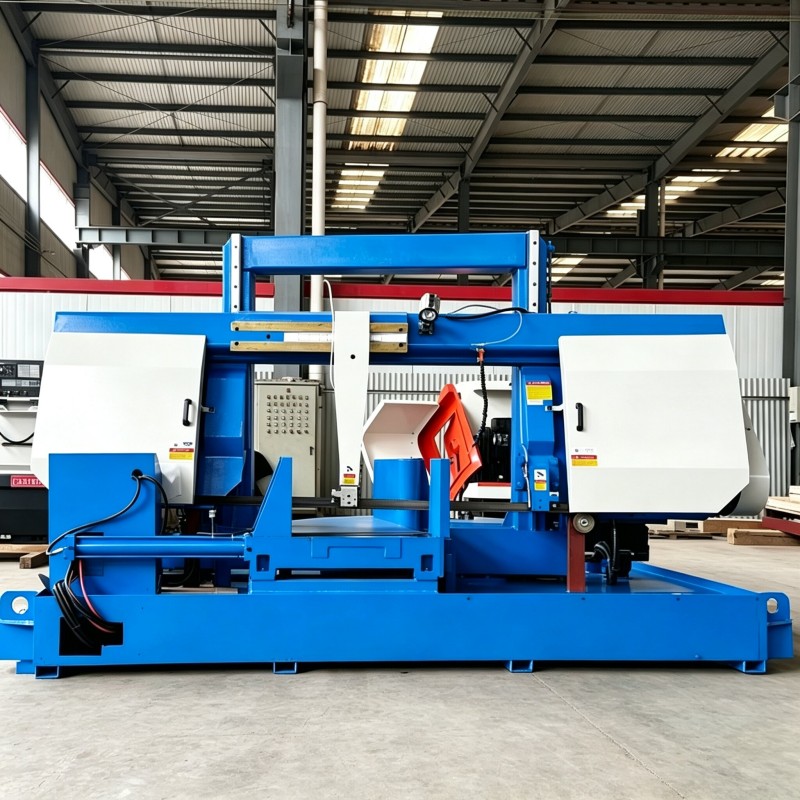

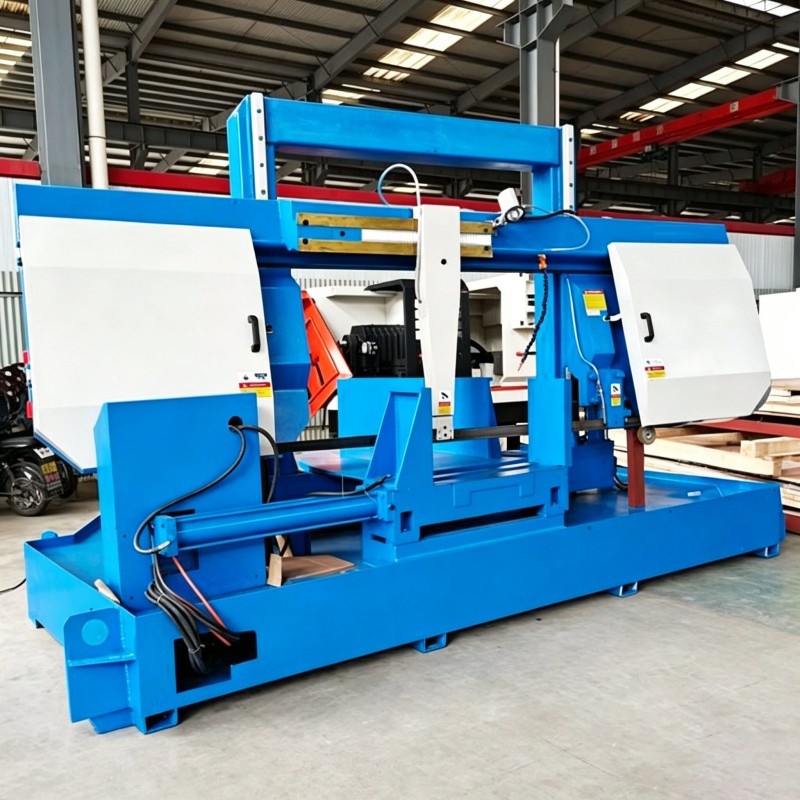

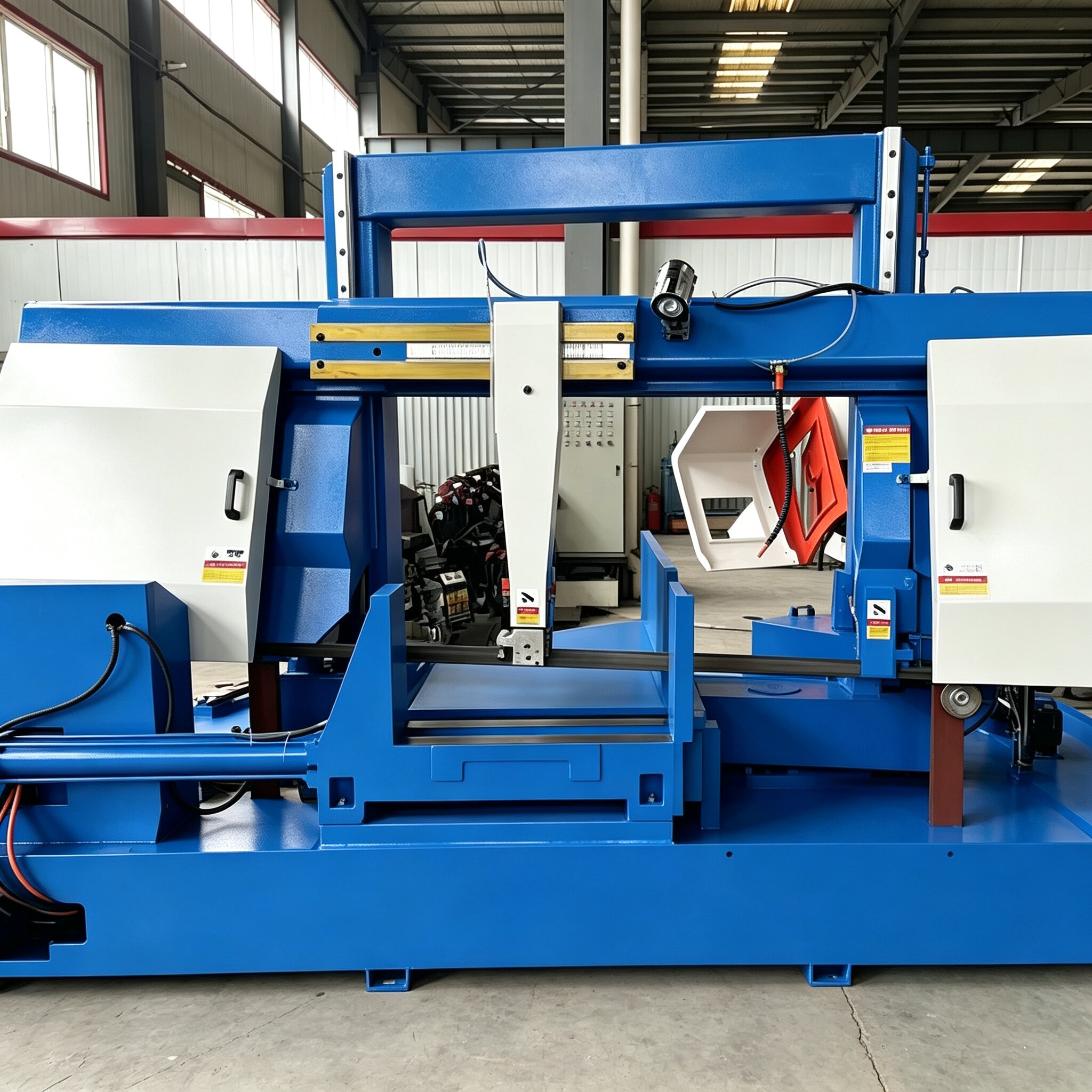

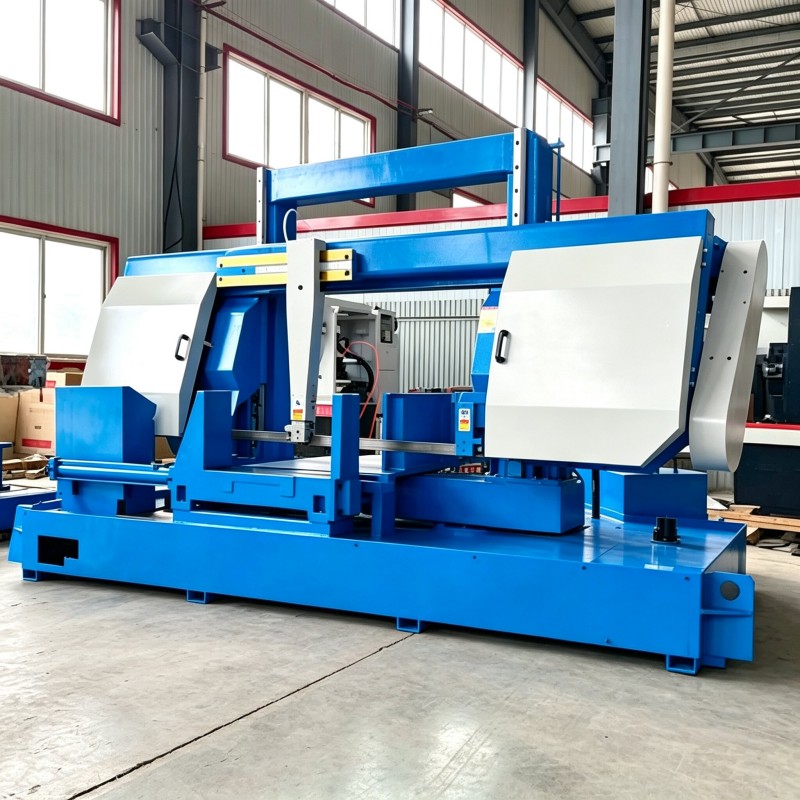

GB4260 Semi Automatic Band Saw Machine

GB4260 Semi‑Automatic Double Column Horizontal Band Saw Machine, hydraulic semi‑auto operation for metal bar cutting. Made by China manufacturer SDCNC, solid double‑column frame, stable cutting performance, factory direct supply with good after‑sales service.`

Quantity:
Availability:





Inquire Add to Basket

Model:
GB4260
Brand:
SDCNC

GB4260 Semi Automatic Band Saw Machine Double Column Horizontal Metal Bandsaw semi‑automatic metal cutting bandsaw

Product Description

Main technical parameters	GB4260 metal band saw
Sawing ability	600mm x 600mm
Linear speed of band saw blade	27/45/69m/min
Band saw blade specifications	6480x41x1.3mm
Main motor power	7.5kw
Oil pump motor power	1.5kw
Cooling motor power	90w
Feed Speed	Hydraulic endless speed
Main transmission structure	Turbine transmission
Tensioning method of band saw blade	Manual tensioning
Workpiece clamping method	hydraulic clamping
Saw belt feed speed	0-1 meter/minute
Hydraulic system pressure	2.5-3.5Mpa
External dimensions	2800x1200x2150mm
Weight	2550kg
