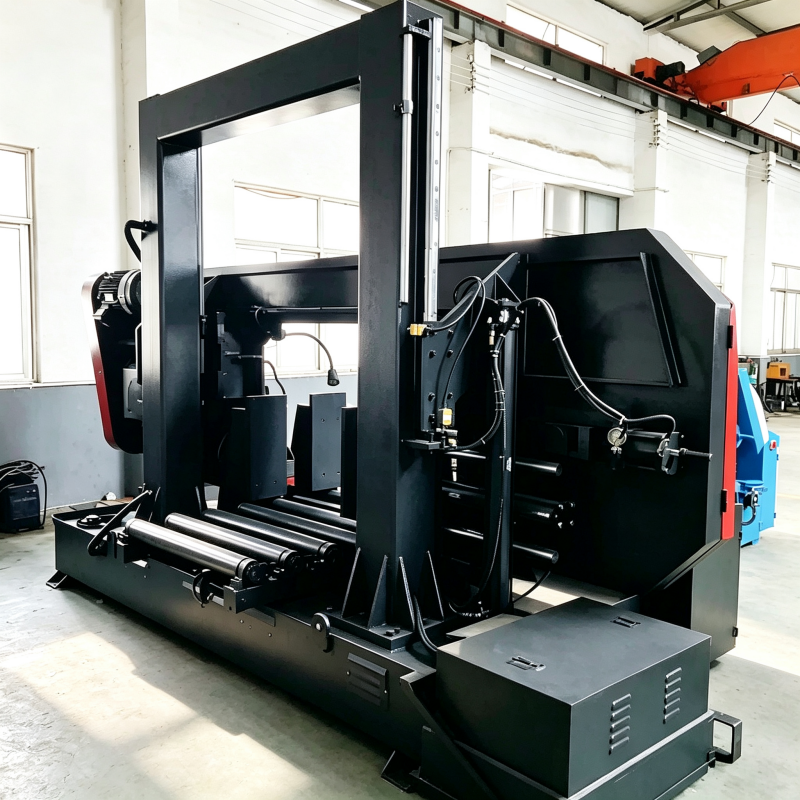

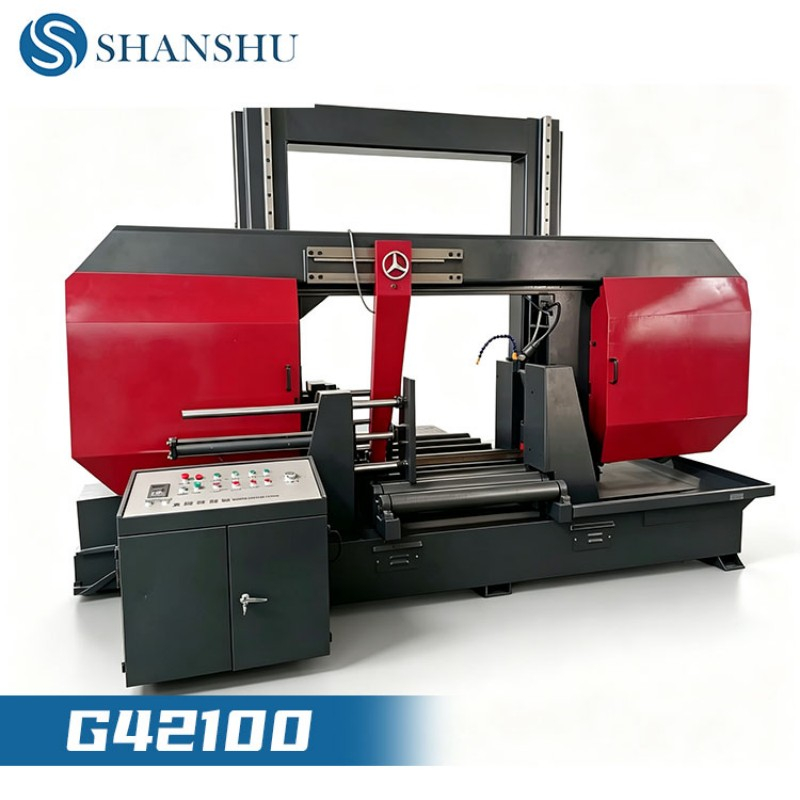

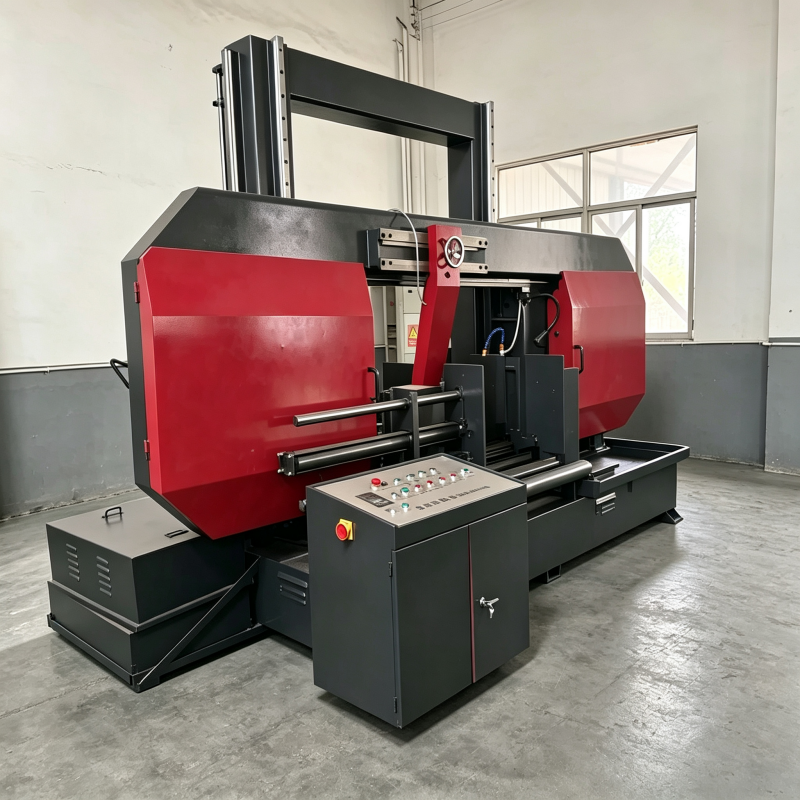

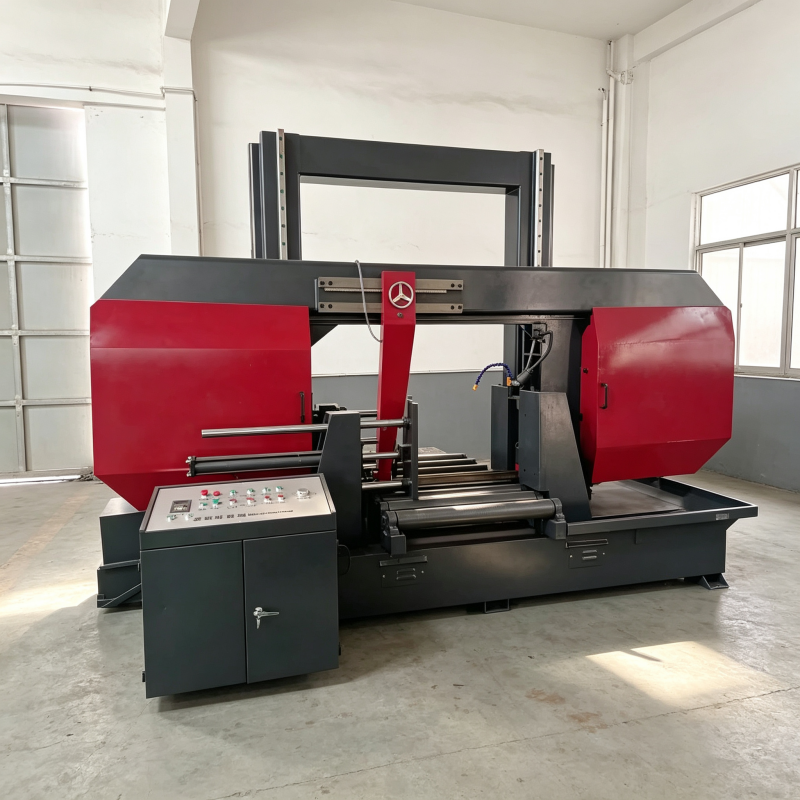

G42100 Heavy-Duty Gantry Metal Band Saw Machine

G4280

G42100

Technical Data

Cutting capacity(mm)

800mm for Round shape

1000mm for Round shape

800X800 for square shape

1000WX1000H for square shape

Blade speed(m/min)

20-80 (invertor)

20-80 (invertor)

Blade size(mm)

67×1.6×8820

67×1.6×8920

Main Motor(kw)

7.5

11

Hydraulic Motor(kw)

2.25

3.25

Workpiece Clamping

Hydraulic Vise

Blade Tension

Hydraulic tension

Main Drive

Worm wheel drive

Material feed

Hydraulic feeder

Hydraulic feeder

Machine size

4130×3900×2500

4560×4200×3040
