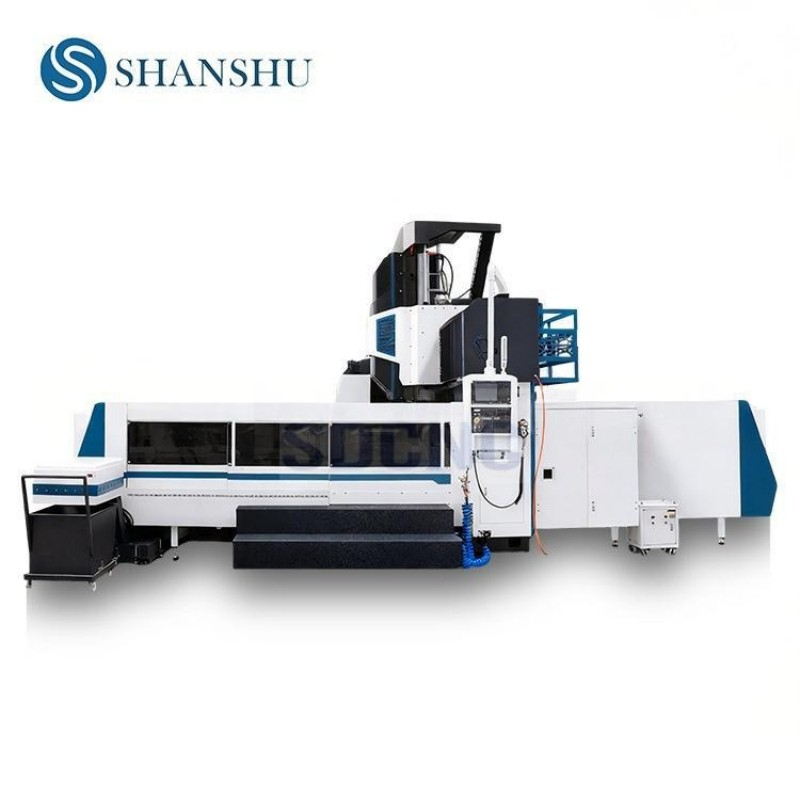

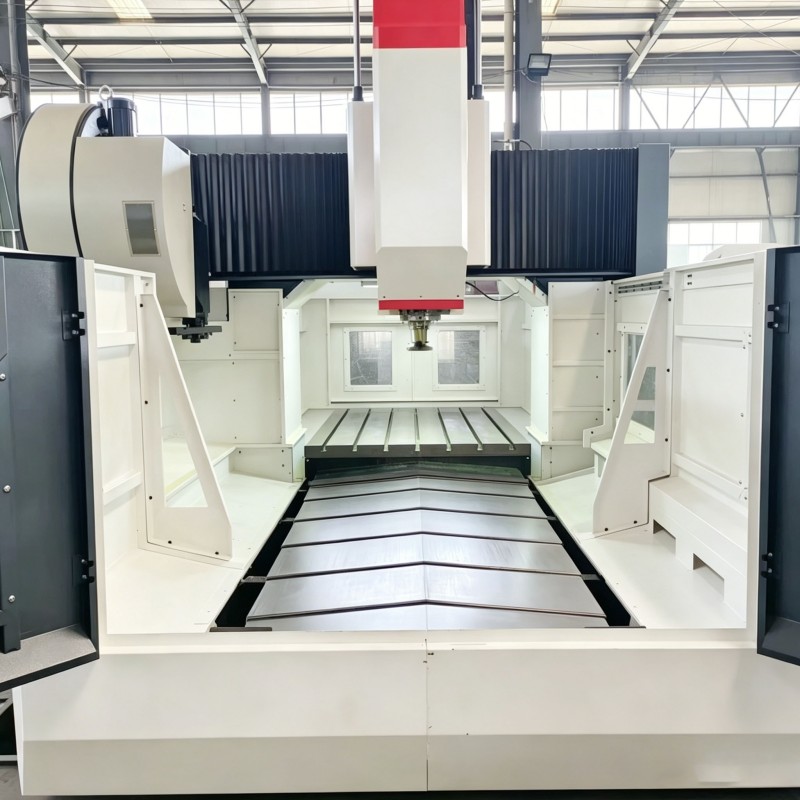

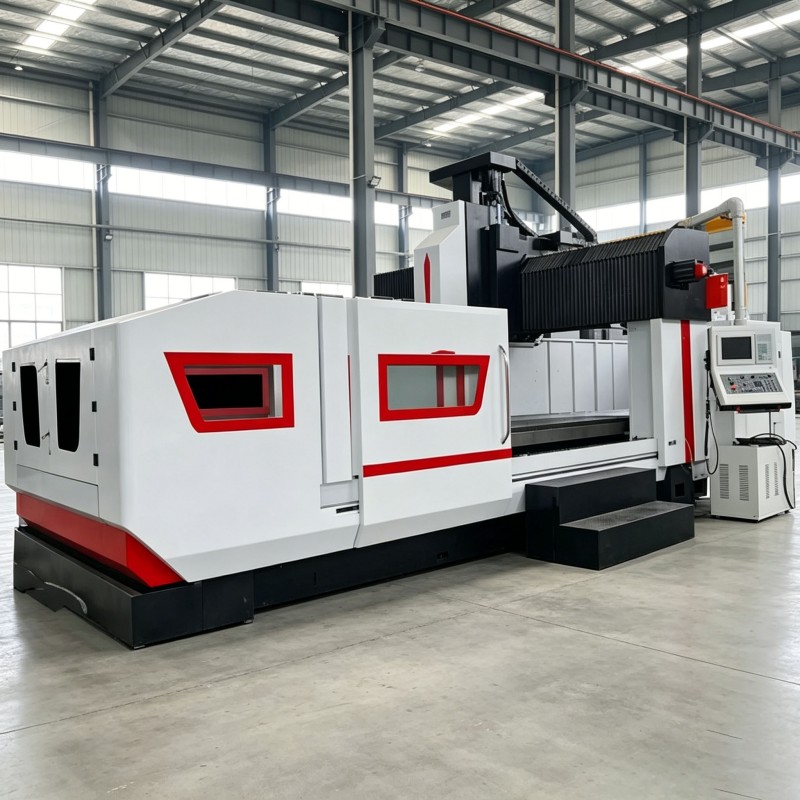

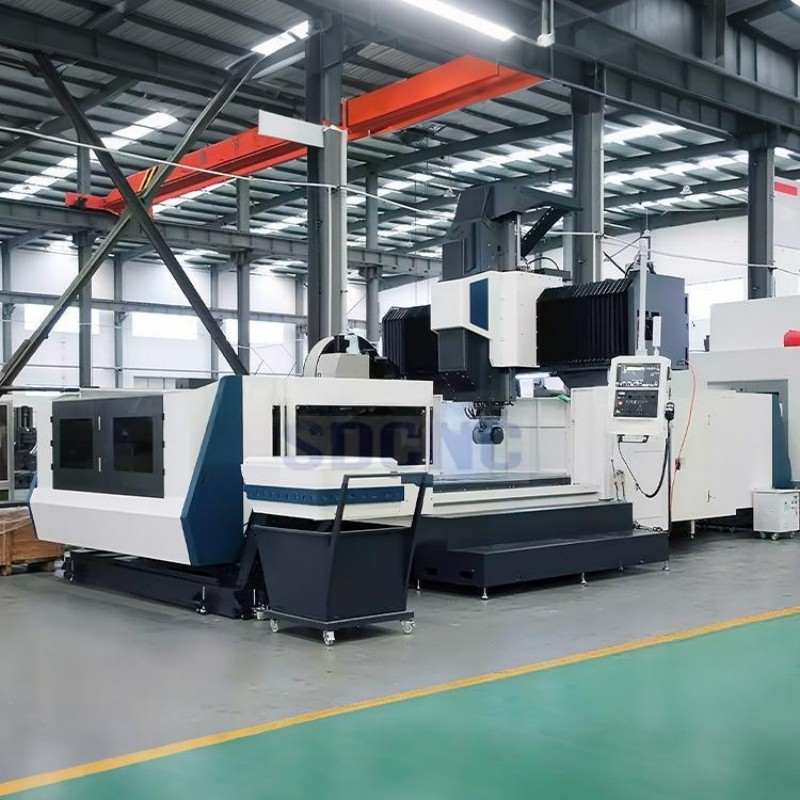

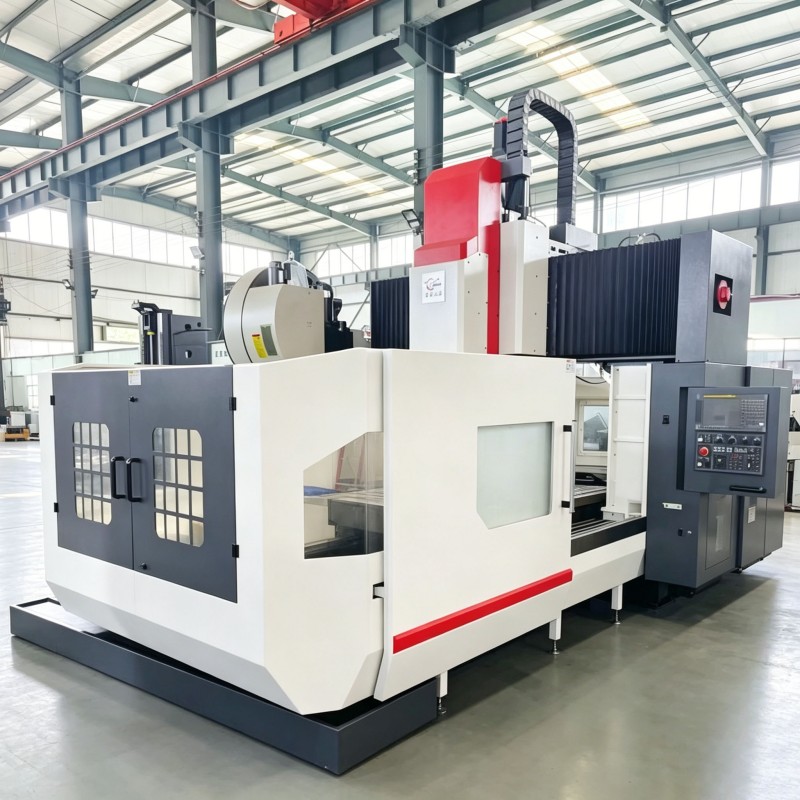

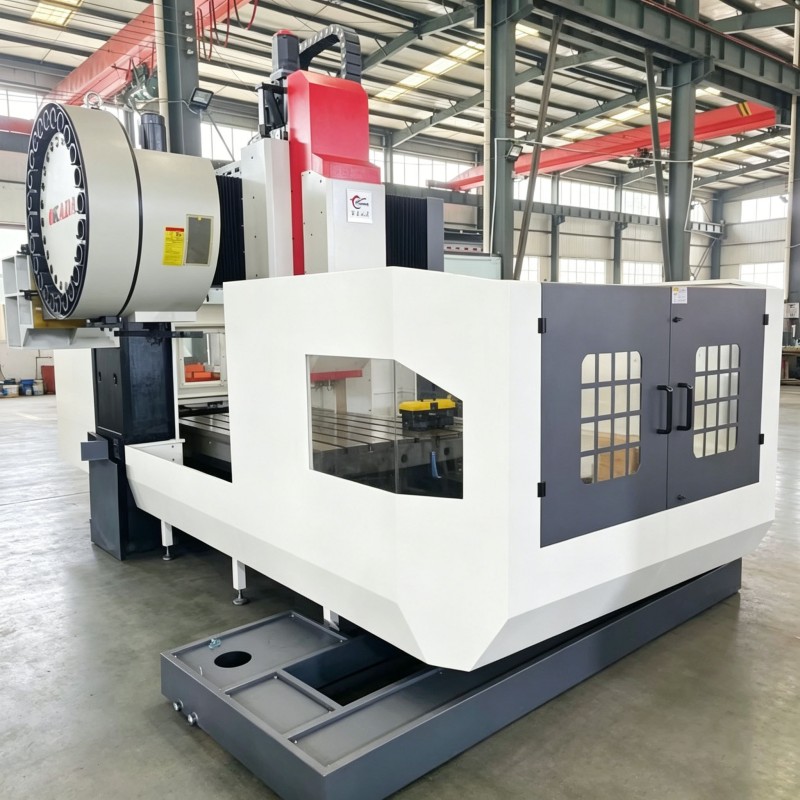

GMC3018 Gantry Machining Center
Large travel X3000×Y1800, integrated heavy cast gantry bed, anti-deformation under heavy cutting
• BT50 high-torque spindle, speed range 0-6000rpm for rough & finish milling
• 3-axis heavy-duty roller linear guides, max table load 6500kg, stable for large plates & molds
• 24-tool chain magazine, 3s fast ATC for continuous multi-process machining
• Positioning accuracy ±0.008mm, repeat accuracy ±0.005mm, consistent batch workpiece size
• Optional FANUC/SIEMENS/MITSUBISHI CNC system, easy programming for various processes
• Fully sealed protective covers + automatic centralized lubrication, low maintenance & long service life
• Heavy load structure, ideal for construction machinery, mold, wind power parts processing
• Customizable travel, spindle and tool magazine to match customer production line
• Full factory inspection, 1-year warranty, machine test report & delivery video provided
