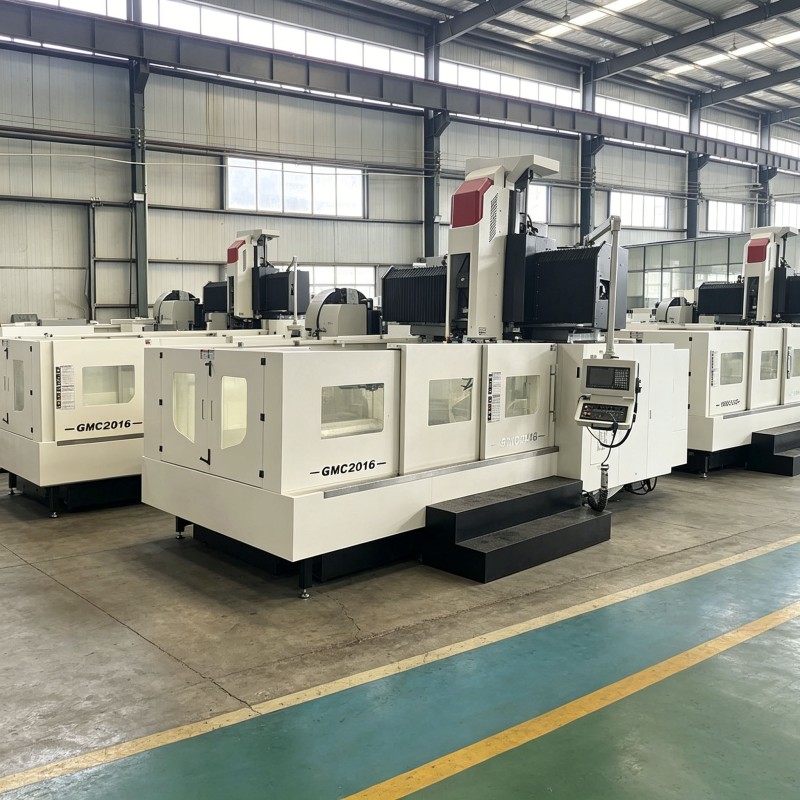

GMC2016 Gantry Machining Center

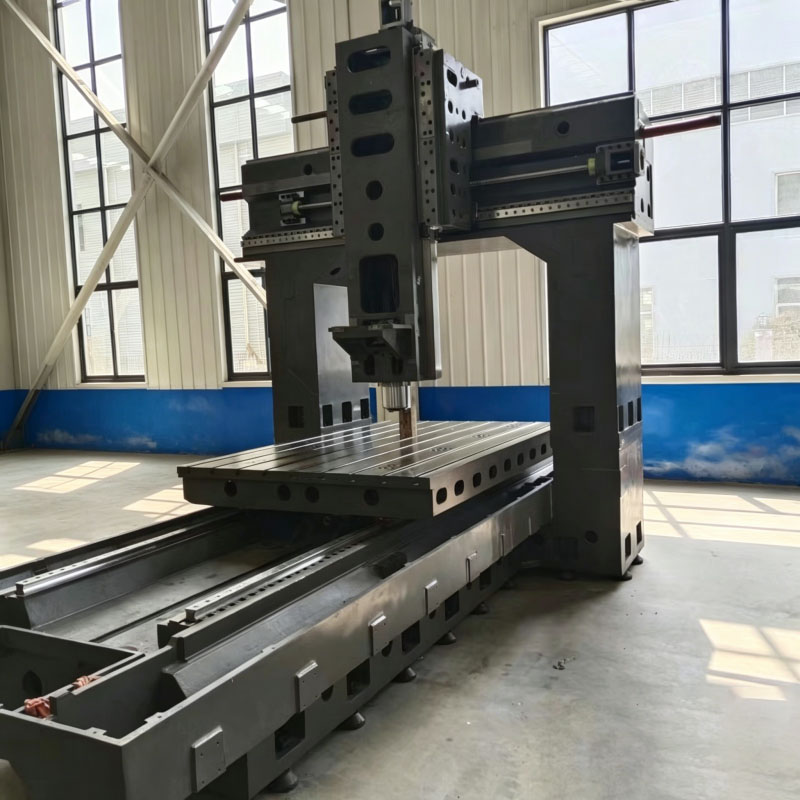

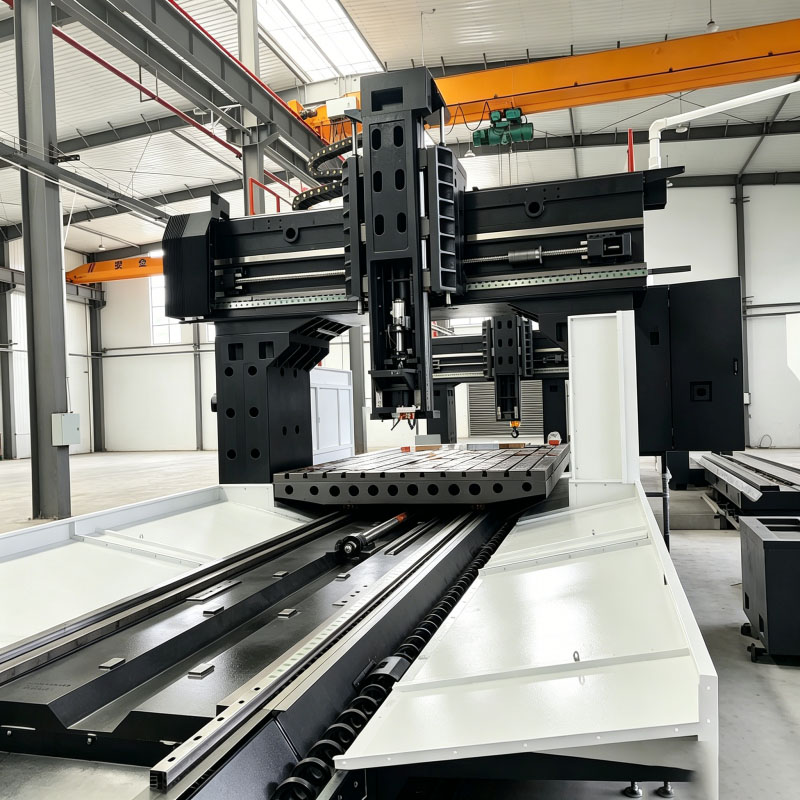

GMC2016 gantry machine adopts 2 linear +1 hard rail design with 13t rigid frame and 4t table load. Equipped with BT50 spindle and 24-tool magazine, it delivers stable precision. Multiple control systems optional for integrated machining of large molds, in stock with 1-year warranty.

Quantity:
Availability:





Inquire Add to Basket

Model:
GMC2016
Brand:
SDCNC

Product Description

SPECIFICATIONS	Units	GMC2016
Table size（W*L）	mm	1400*2100
X axis travel	mm	2000
Y axis travel	mm	1700
Z axis travel	mm	800
Gantry width/passing height	mm	W:1700/H:1080
Table load	t	4
Distance between spindle nose and table surface	mm	200～1000
T slot(number-width*pitch)	-	7-22*200
Spindle taper	-	BT50/190
Spindle speed	r/min	6000
Rapid traverse speed	m/min	15
Cutting feed speed	m/min	10
Main motor power	kw	15/18.5
Tool magazine		Arm24
Positioning accuracy	mm	X/Y 0.0075 Z 0.015
Repeat positioning accuracy	mm	0.005
Overall dimension(LWH)	mm	720045004300
Machine weight(about)	t	18.5
