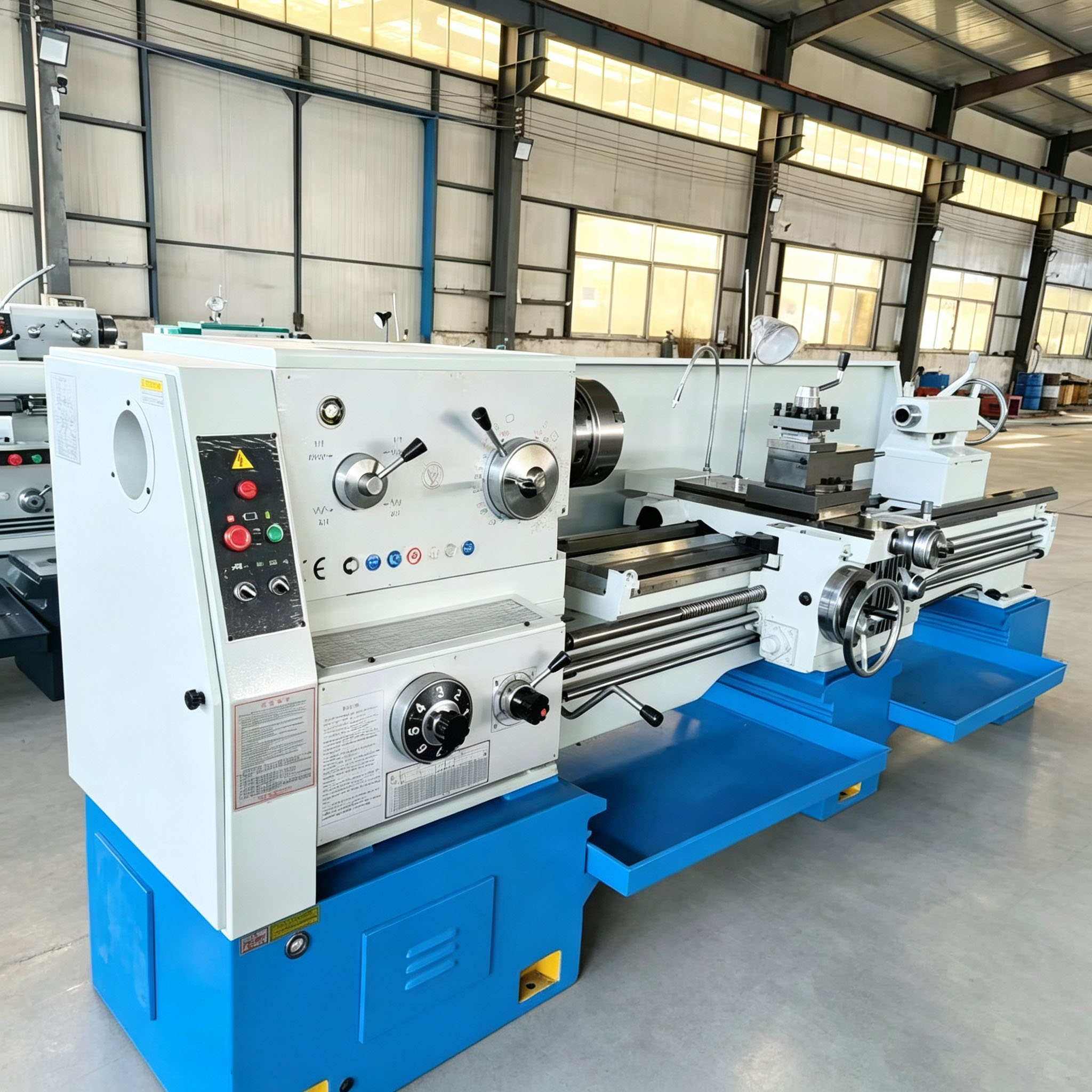

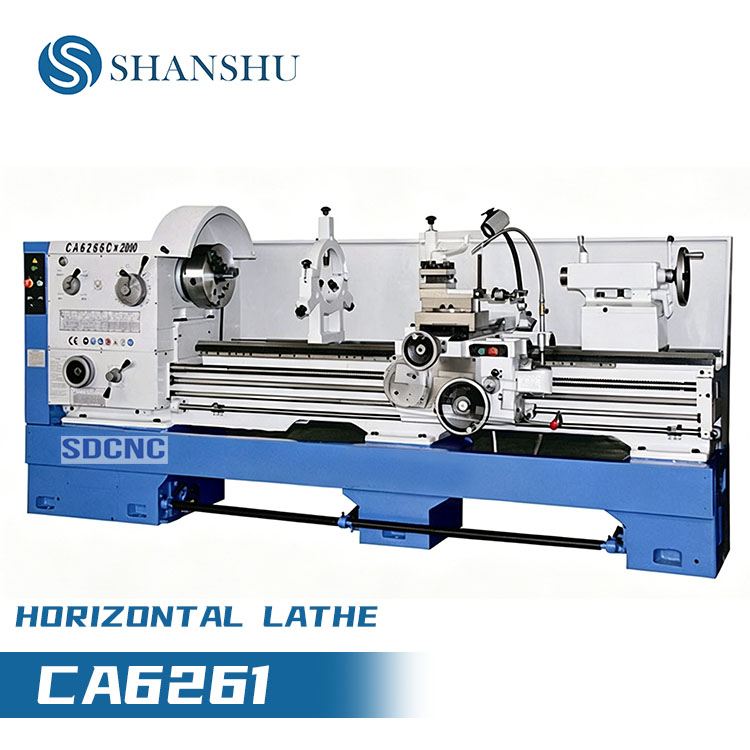

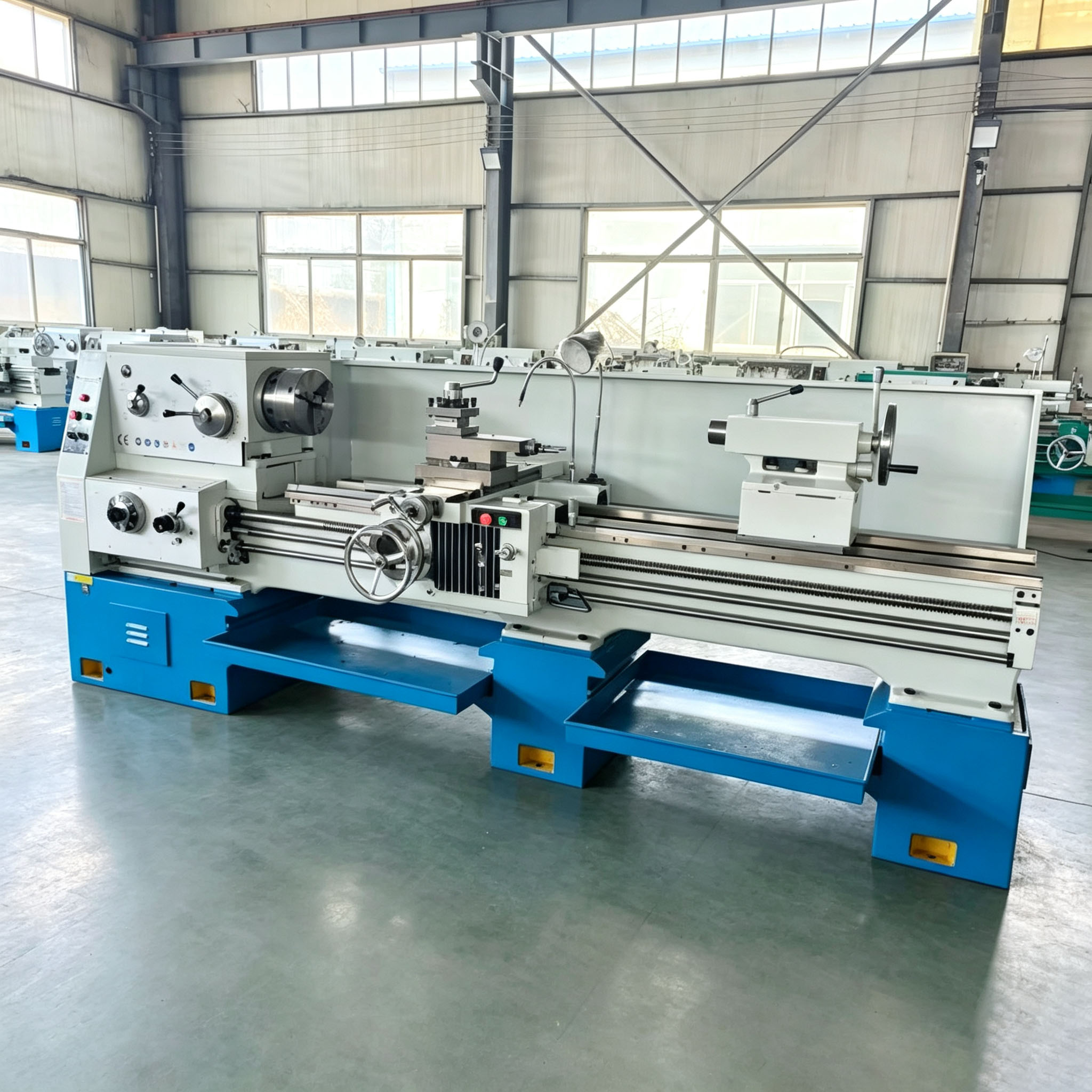

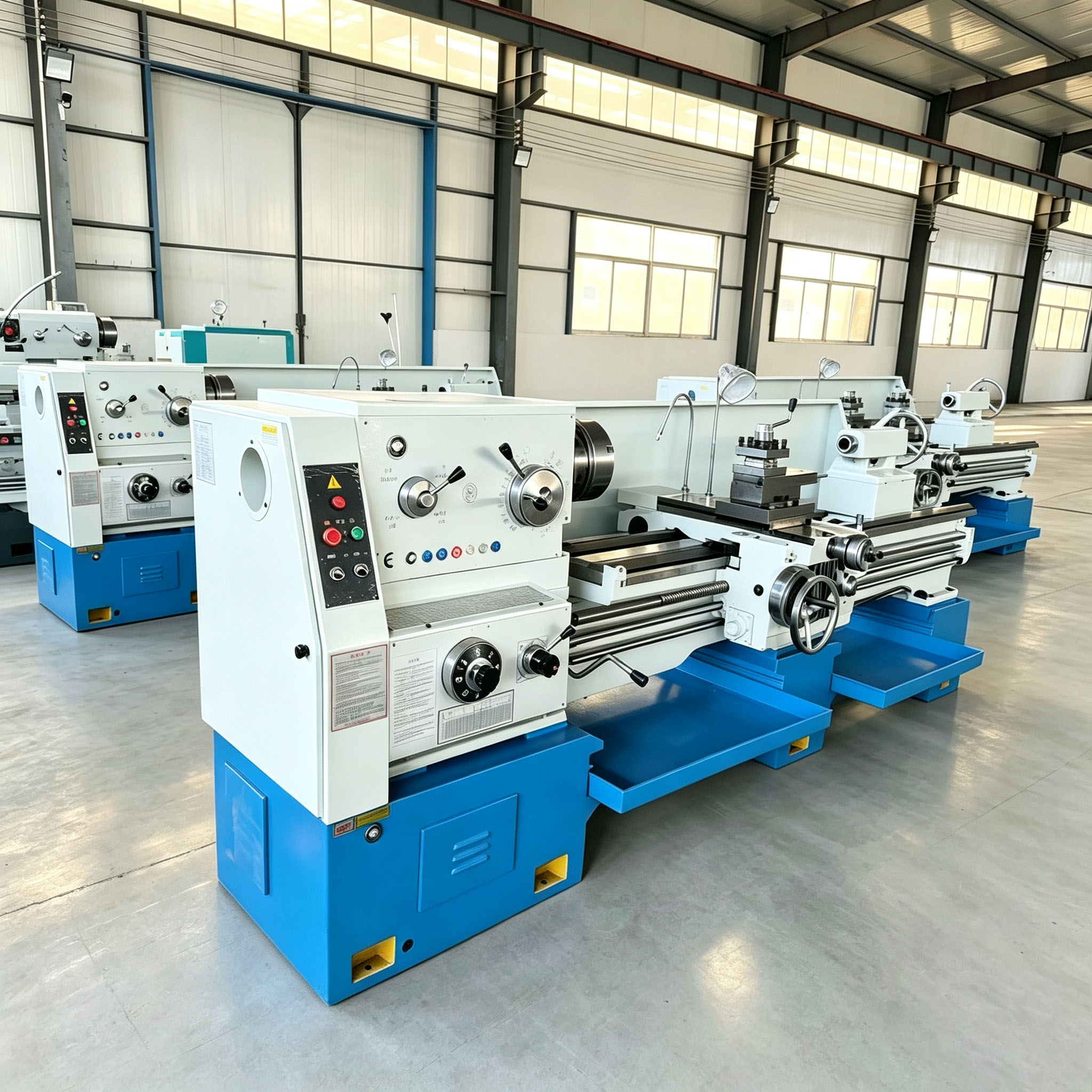

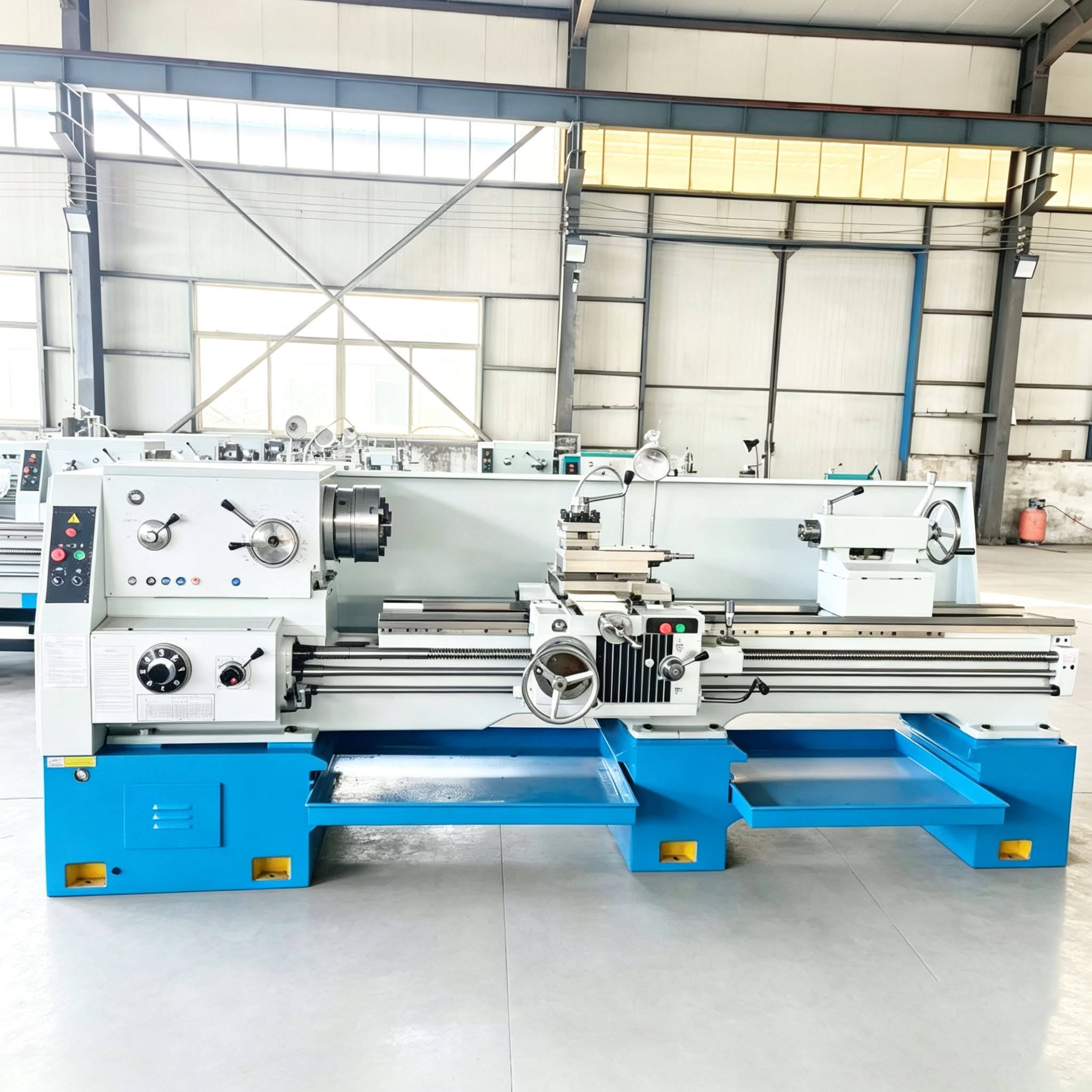

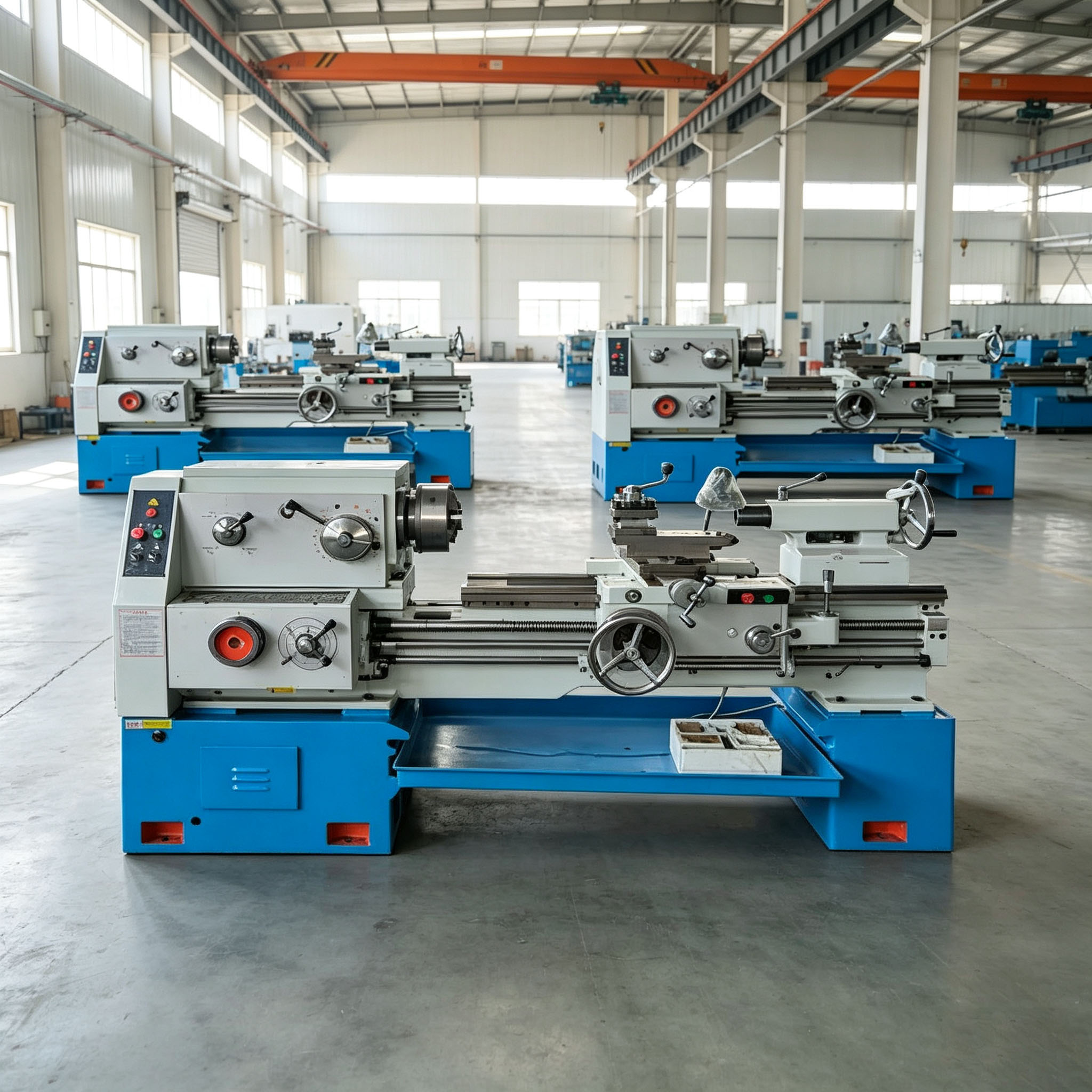

type | CA6140
CA6240 | CA6150
CA6250 | CA6161
CA6261 | CA6166
CA6266 | CA6180
CA6280 |
Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm |
Max. effective length in gap | 210mm |
Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm |
Width of bed | 400mm |
Section of turning tool | 25×25 mm |
Main spindle motor | 7.5kw(10HP) |
Spindle |
Spindle speed | 16--1400rpm(24step) |
Spindle bore | 52mm (80mm),(105mm) |
Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] |
Feed |
NO. of feed | (64 kinds)(for each) |
Range of metric threads | (1-192mm) (44 kinds) |
Range of inch threads | (1-24tpi) (21kinds) |
Range of module threads | 0.25-48 (module 39 kinds) |
Range of diametral pitch threads | 1-96DP (37 kinds) |
Tailstock |
Max. tailstock spindle travel | 150mm |
Tailstock spindle diameter | 75mm |
Taper of tailstock spindle centre hole | 1-96DP (37 kinds) |
Packing dimensions (L*W*H) |
Overall dimensions for 750mm | 2440×1140×1750mm |
Overall dimensions for 1000mm | 2700×1140×1750mm |
Overall dimensions for 1500mm | 3200×1140×1750mm |
Overall dimensions for 2000mm | 3700×1140×1750mm |
Overall dimensions for 2200mm | 4030×1140×1750mm |
Overall dimensions for 3000mm | 4800×1140×1750mm |
Overall dimensions for 4000mm | 5680×1140×1750mm |
Weight (kg) |
Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | 2520 |
Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | 2720 |
Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | 3000 |
Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | 3300 |
Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | 3500 |
Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | 4220 |
Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | 4900 |
