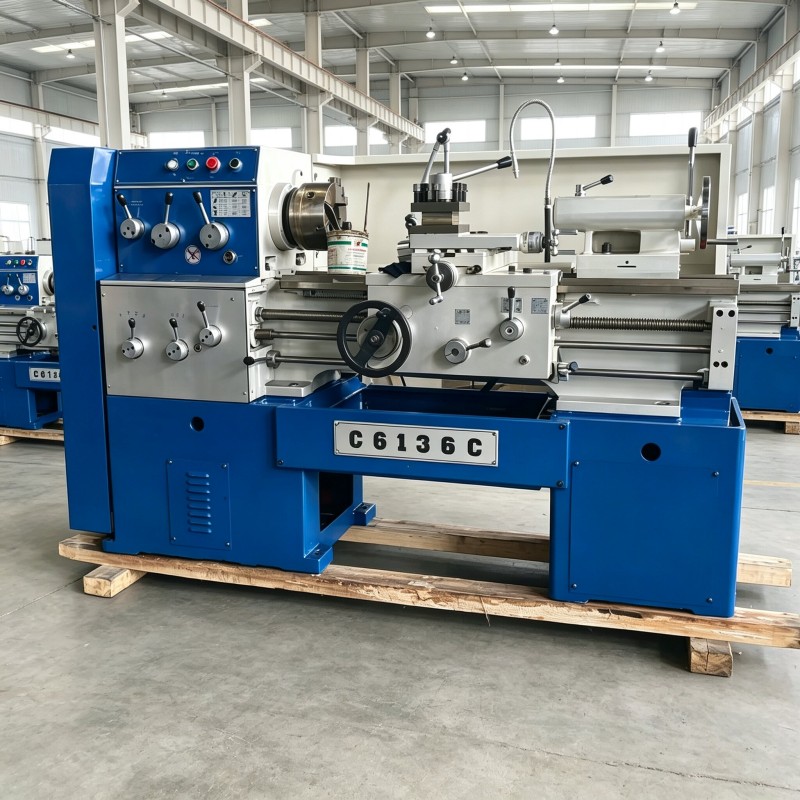

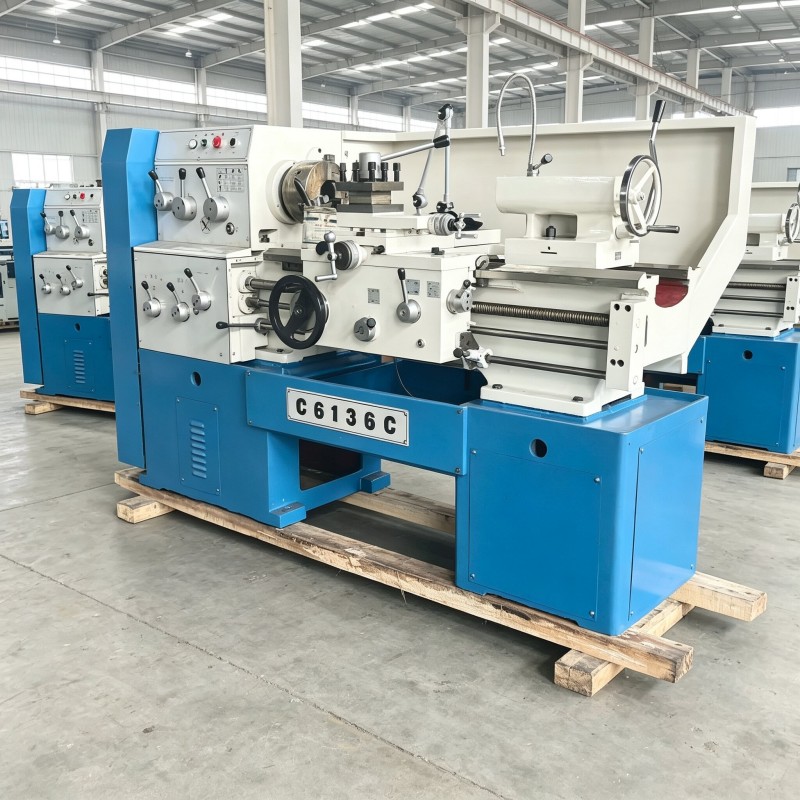

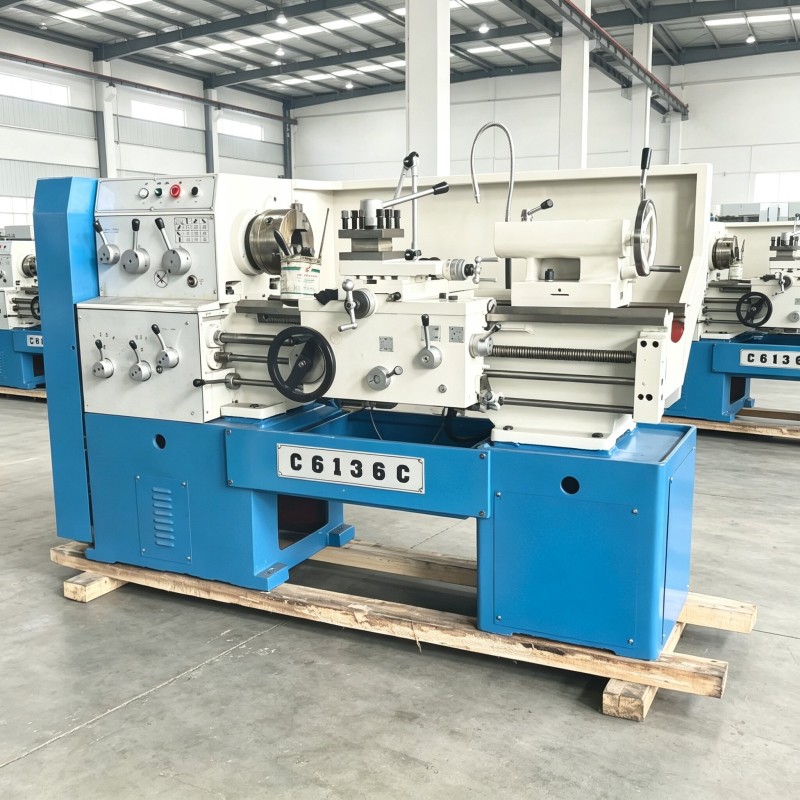

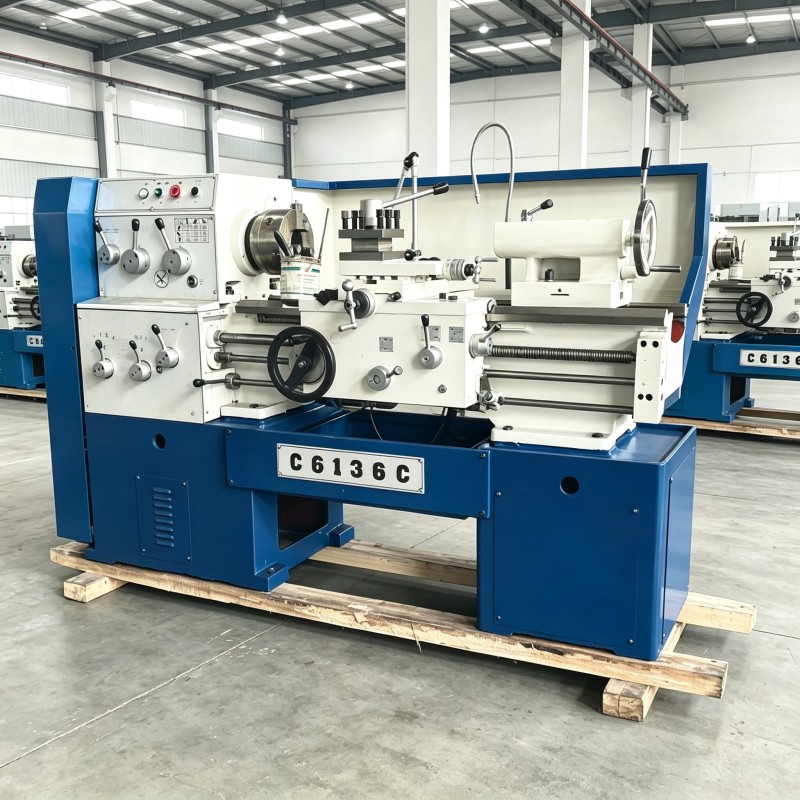

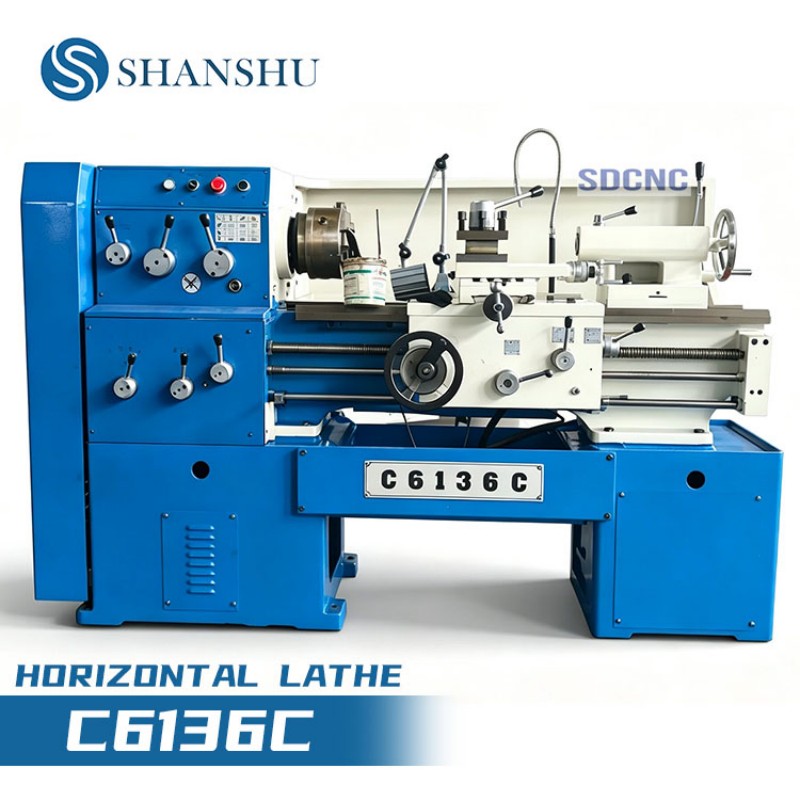

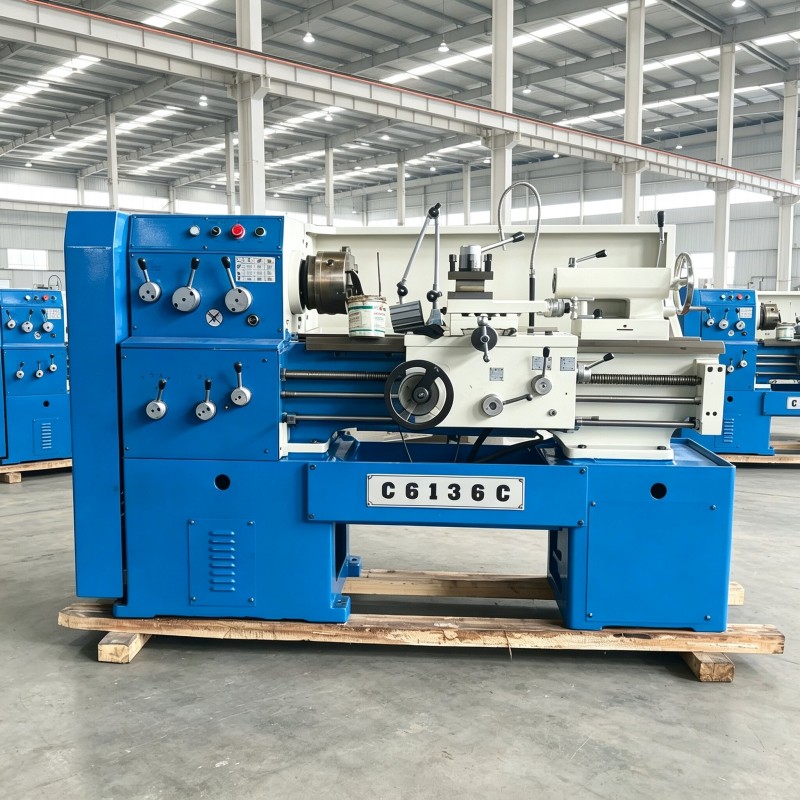

C6136C Horizontal Lathe

parameter

unit

C6136
C6236

C6140
C6240

C6150
C6250

C6160
C6260

C6170
C6270

Swing over bed

mm

360

400

500

600

700

Swing over cross slide

mm

190

230

330

400

500

Swing over bed

mm

520

560

660

760

860

Maximum processing length

mm

750/1000/1500/2000

Spindle nose

MT6

Spindle through-hole diameter

mm

52/80

Spindle speed range

r/min

40-1400

Spindle speed steps

9

Cross slide travel

mm

180

200

250

300

350

Tool post travel

mm

95

Tool size

mm

20X20

Longitudinal feed range

mm/r

0.0832-4.6569

Cross feed range

mm/r

0.048-2.688

Longitudinal fast movement speed

m/min

4

Cross fast movement speed

m/min

2

Kinds of metric threads

kinds

19

Range of metric threads

mm

0.25-14

Kinds of inch threads

kinds

28

Range of inch threads

T.P.I

2-40

Kinds of threads module

kinds

17

Range of threads module

M.P

0.25-3.5

Spindle power

kw

4

4

5.5

5.5

5.5

Cooling water pump

kw

0.09

chuck size

inch

8

8

10

12

12

Tailstock quill travel

mm

140

Tailsock quill diameter

mm

65

Tailsock quill taper

MT4

MT4

MT5

MT5

MT5

Rail width

mm

360

Dimensions 750mm

mm

2200x1150x(1600/1700/1800/1860/2000)

Dimensions 1000mm

mm

2400x1150x(1600/1700/1800/1860/2000)

Dimensions 1500mm

mm

2900x1150x(1600/1700/1800/1860/2000)

Dimensions 2000mm

mm

3400x1150x(1600/1700/1800/1860/2000)

Weight 750mm

kg

1200

1220

1250

1300

1500

Weight 1000mm

kg

1300

1320

1350

1400

1600

Weight 1500mm

kg

1500

1520

1550

1600

1800

Weight 2000mm

kg

1700

1720

1750

1800

2000
