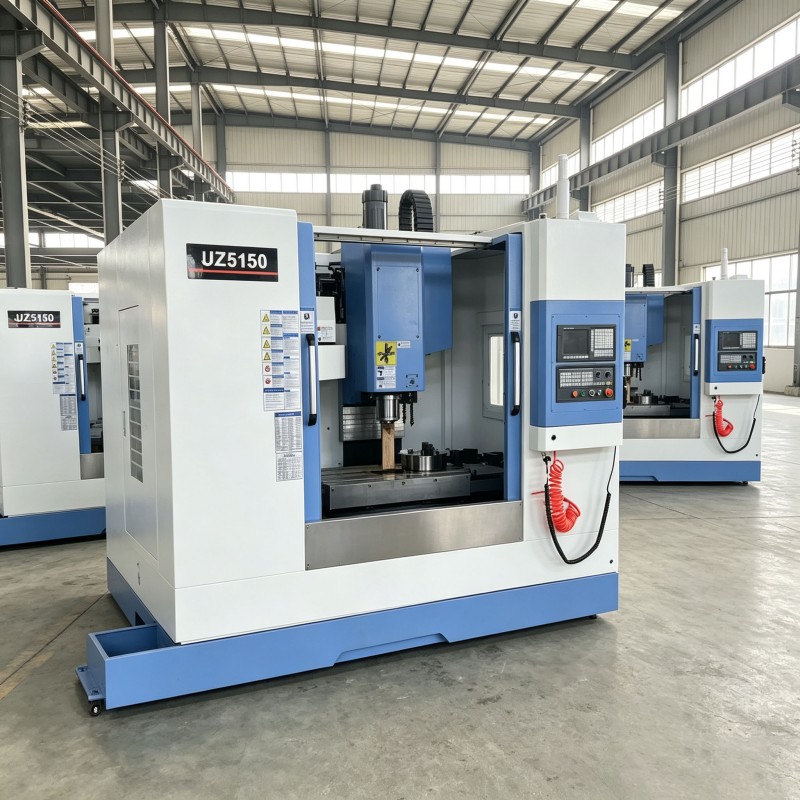

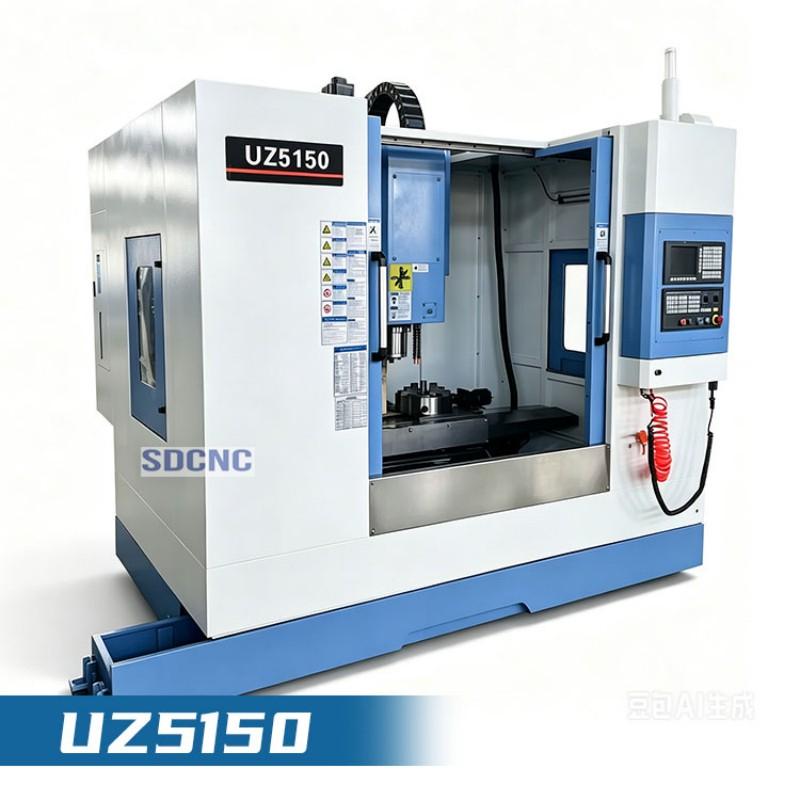

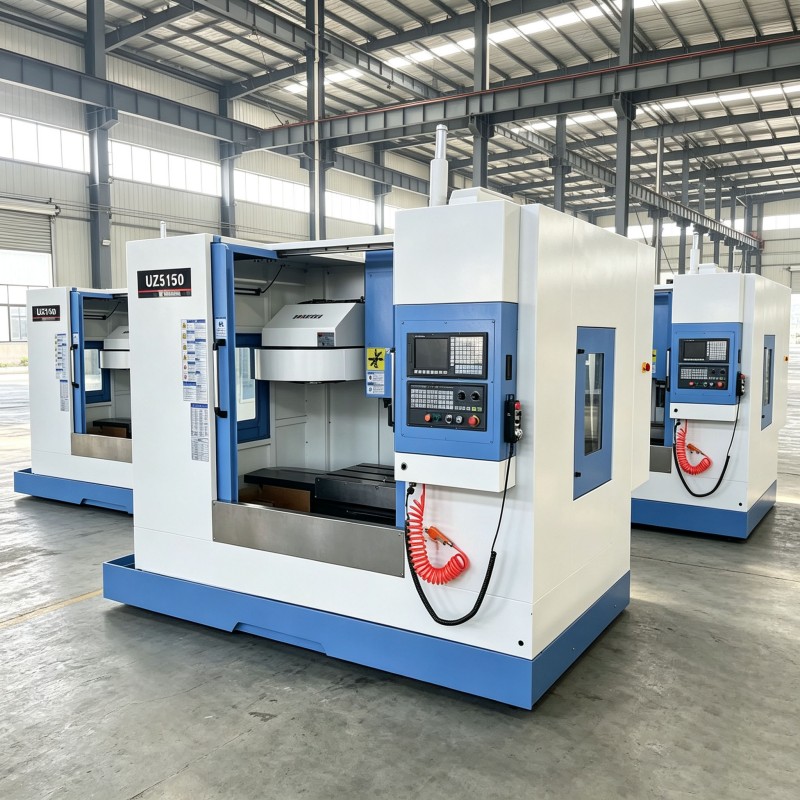

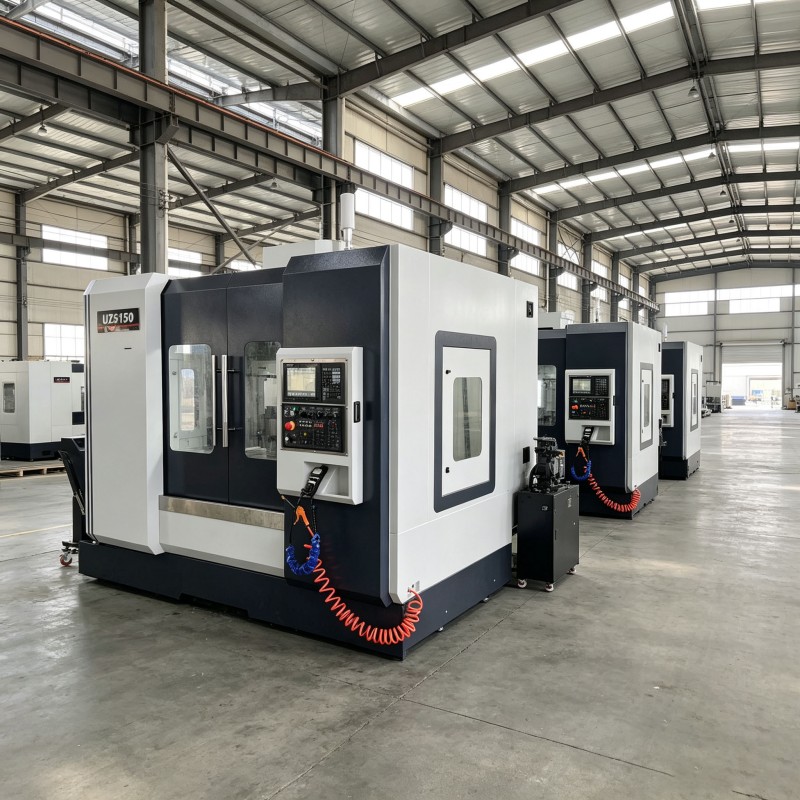

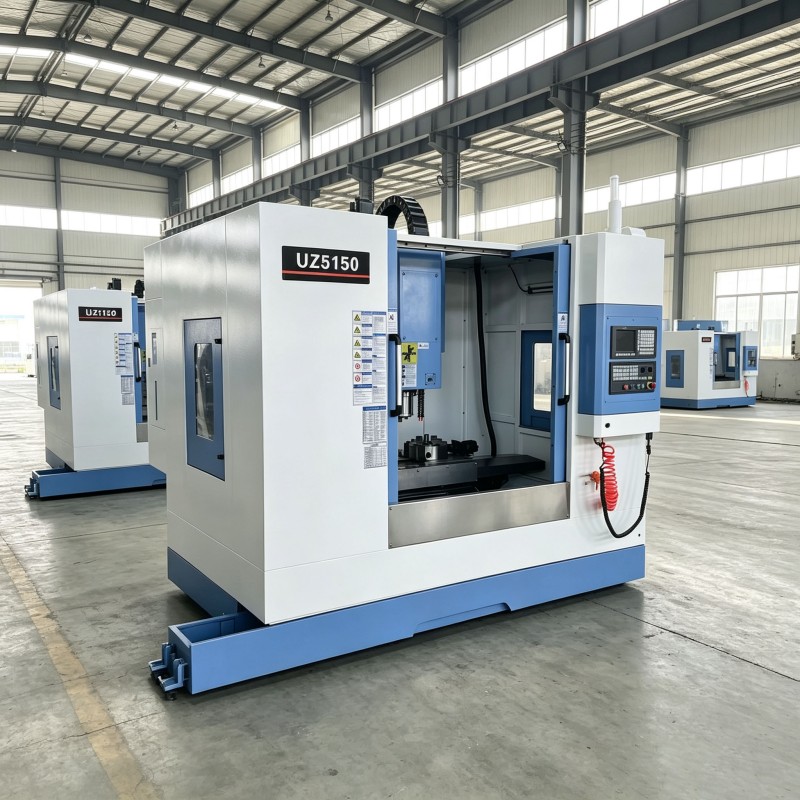

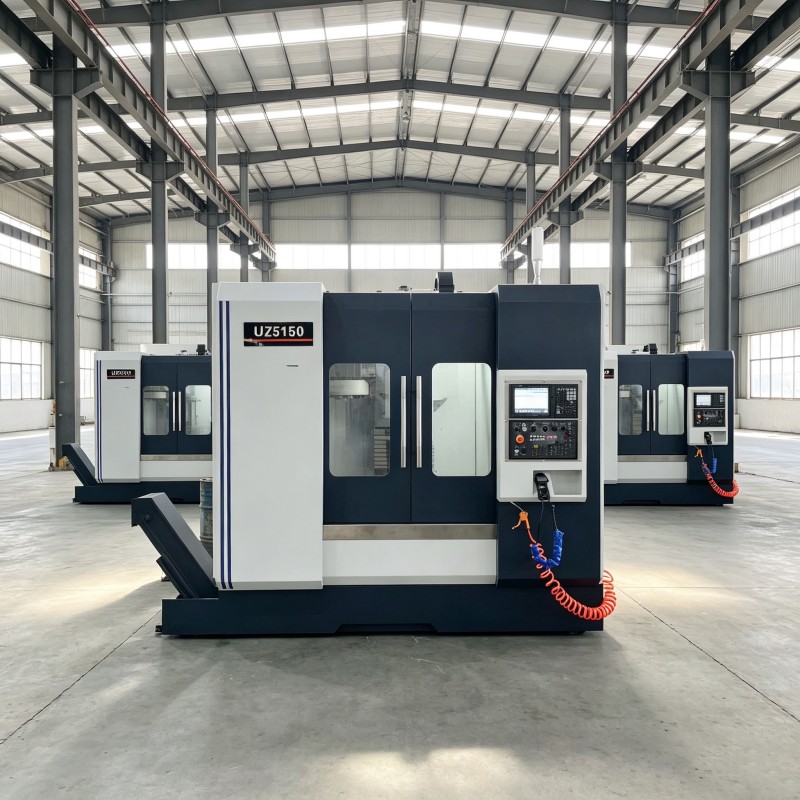

UZ5150 CNC Vertical Drilling Machine

This UZ5150 CNC vertical deep hole drilling machine is widely used for precision deep hole machining of molds, flanges, hydraulic components, automotive parts and general mechanical workpieces, performing deep hole drilling, U-drill machining and hole finishing for metal workpieces in mold manufacturing, hydraulic industry, automobile industry and heavy machinery processing.

Quantity:
Availability:





Inquire Add to Basket

Model:
UZ5150
Brand:
SDCNC

Product Description

name	unit	UZ5150
Hole diameter	mm	50
Main motor power	KW	11
Maximum revolution	R/min	3000
Principal axis		BT40
Spindle travel	mm	480
Distance from spindle center to column guide rail	mm	420
Z-axis roller guide	mm	45
Z axis screw	mm	Oct-32
Z-axis machine	nm	20N-130
Z-axis positioning accuracy	mm	0.02
Y-axis screw	mm	Oct-32
Y-axis travel	mm	400
Y-axis machine		6N-110
Y-axis positioning accuracy	mm	0.02
X axis screw	mm	Oct-32
X-axis travel	mm	600
X-axis machine		6N-110
X-axis positioning accuracy	mm	0.02
Table size	mm	800/400
Maximum distance from spindle end face to work surface	mm	1000
Table T-slot dimensions	mm	18-3-125
Sheet metal		Full defense
Water pump	kw	0.55
Oil pump		1.5L
Cutting cylinder	kg	4.5T
Weight (approx)	kg	2300/2600
dimension	mm	2200x2200x2250
