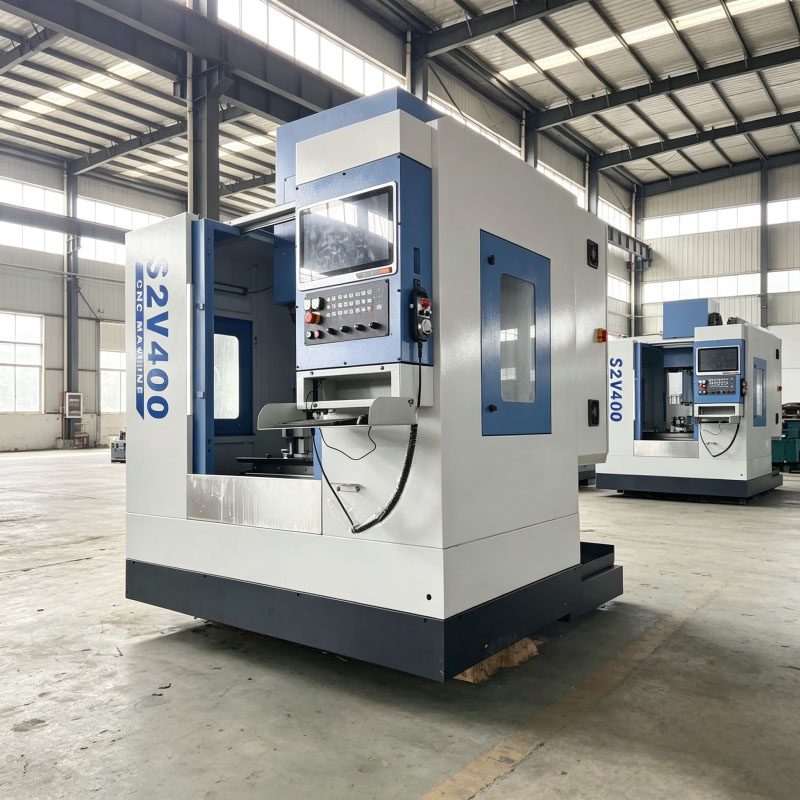

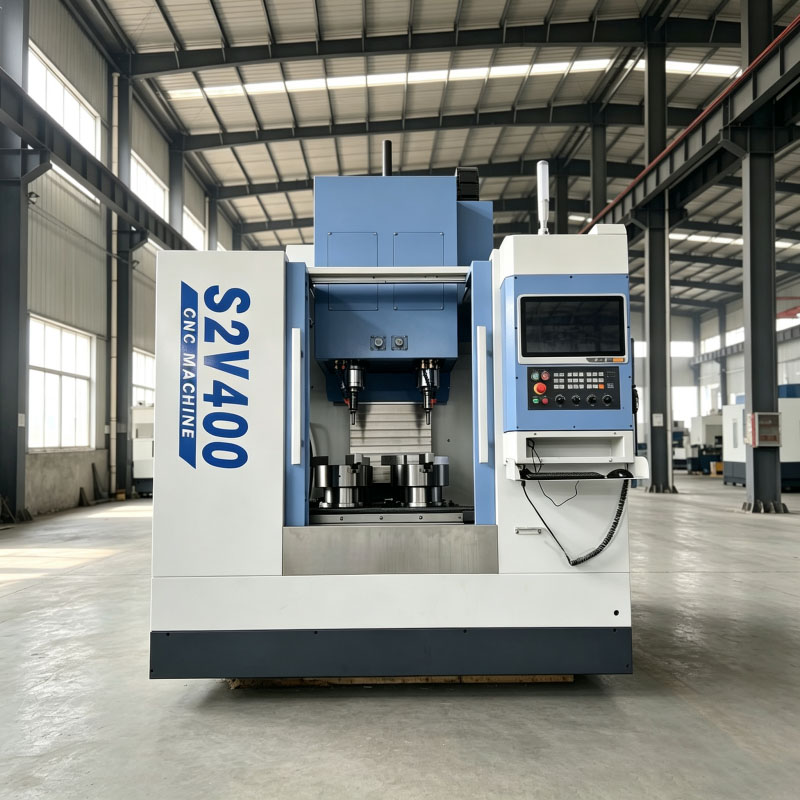

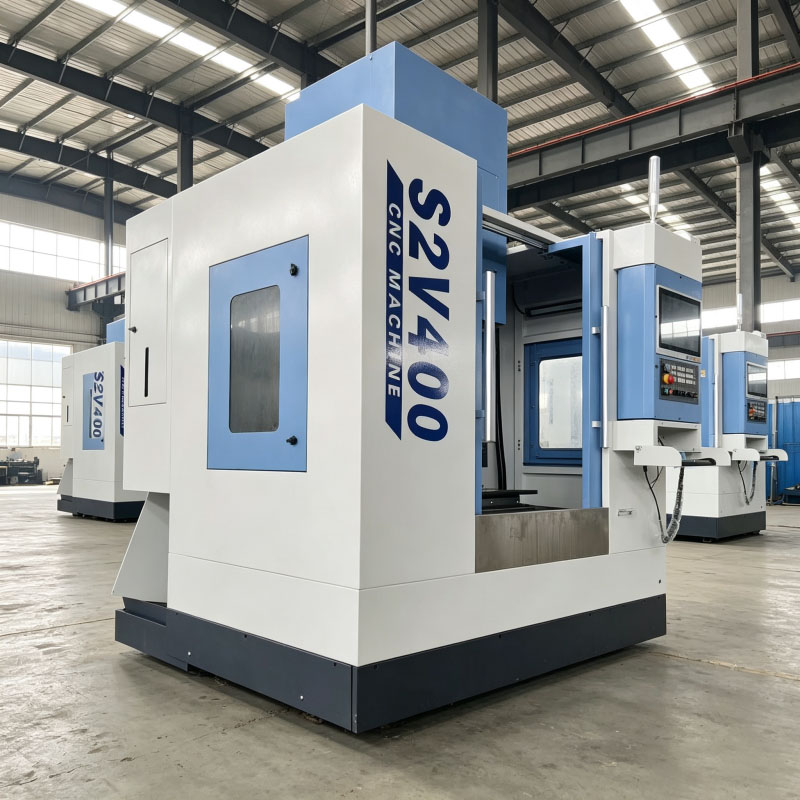

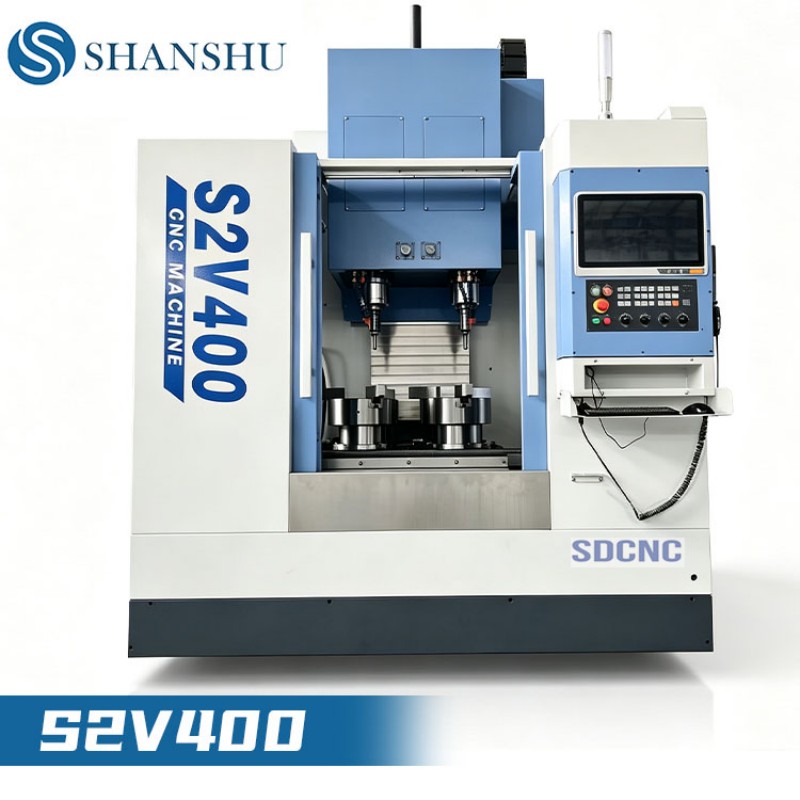

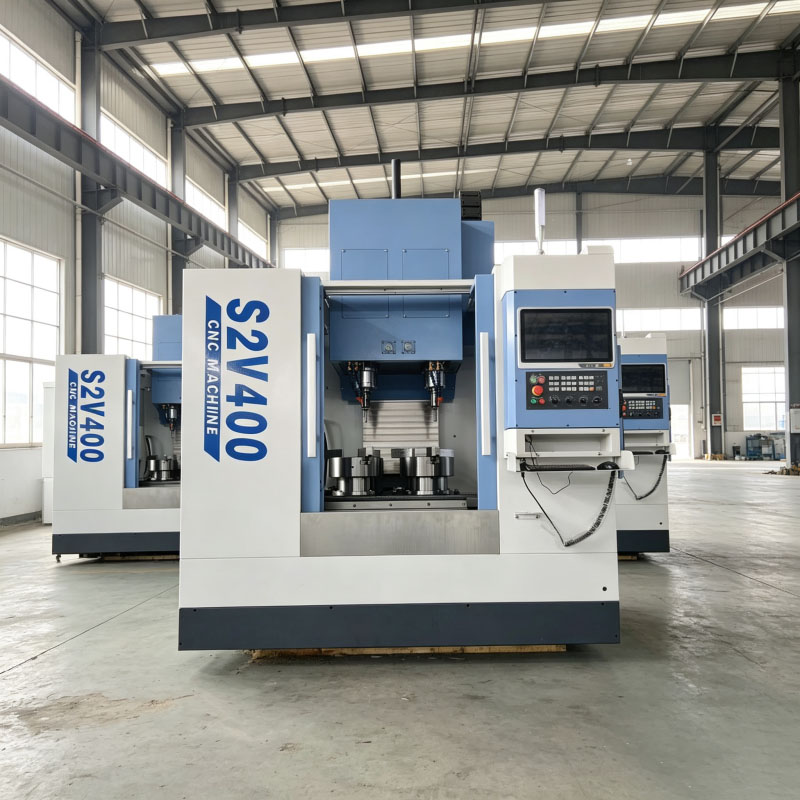

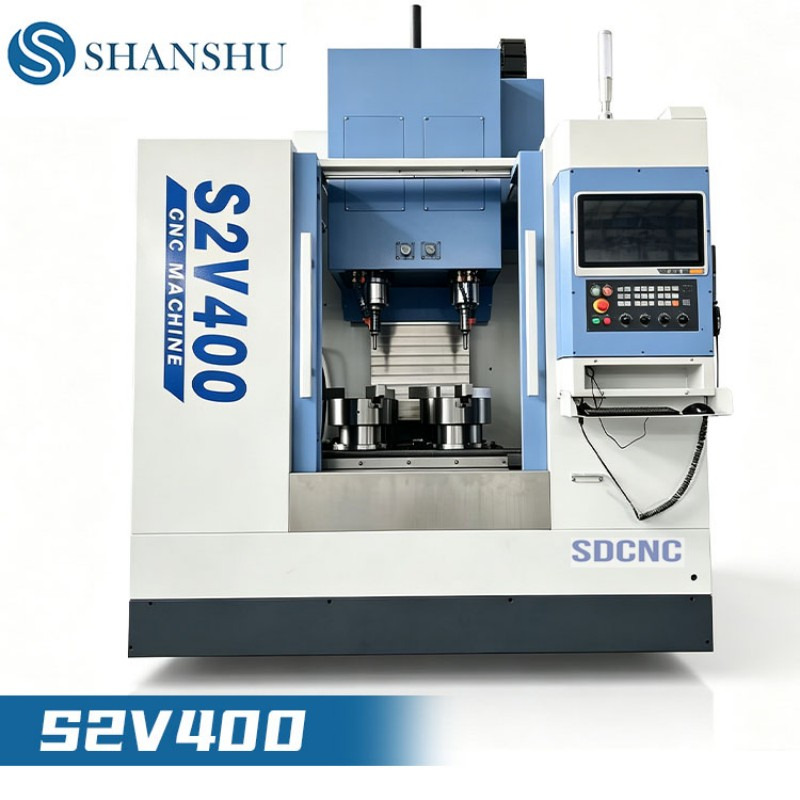

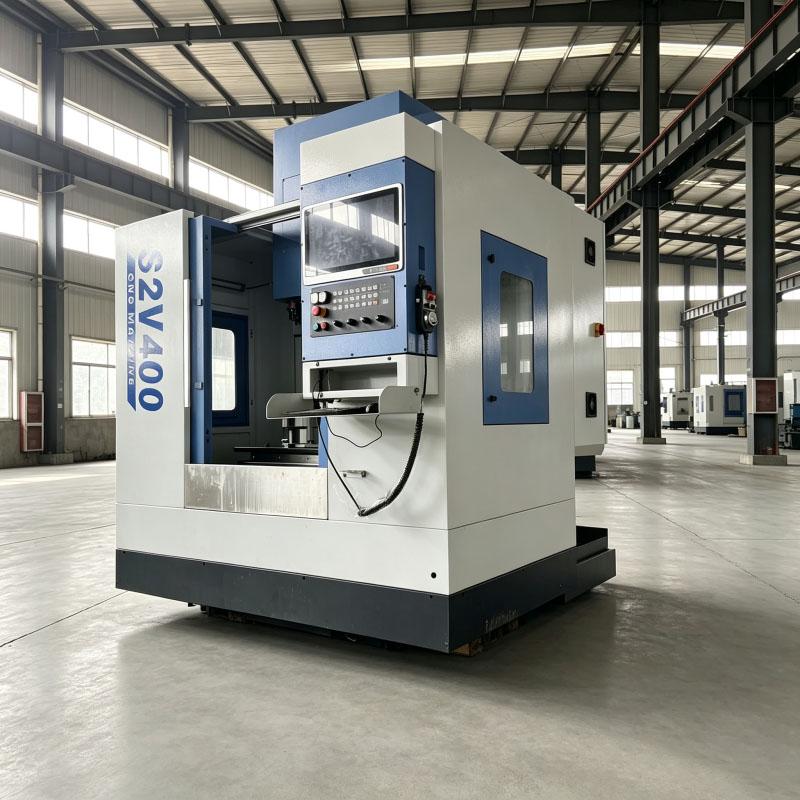

S2V400 CNC Double Workstation Flange Drilling Machine

S2V400 is a CNC double-station flange drilling machine equipped with dual spindles and hydraulic chucks, adopting a heavy rigid frame structure and professional CNC control system. It can realize simultaneous batch drilling of flanges, featuring high positioning accuracy, stable operation and high processing efficiency, specially designed for pipe and valve flange hole machining to meet continuous heavy-duty industrial production.

Quantity:
Availability:





Inquire Add to Basket

Model:
S2V400
Brand:
SDCNC

Product Description

Machine tool model: S2V400 (Z axis rail)
principal axis	Spindle bore\spindle unit shaft diameter	BT40 (2 main shafts 400 spacing)
	Shaft speed (rpm)	3000
	Master servo motor (KW)	7.5
Feed motor	XYZ axle （Nm）	XY7 Z20
route or distance of travel	X-axis stroke (mm)	600
	Y-axis stroke (mm)	400
	Z-axis stroke (mm)	450
	Shaft end face to working table surface (mm)	250-700
	Center of spindle to column guide surface (mm)	420
staging	Workbench area (mm)	800X400
	T-shaped groove (width × number × distance) (mm)	18-3-130
	Workbench load (Kg)	400
feed	Fast movement (XYZ) (m/min)	XY10 Z10
screw	Diameter/ Pitch (XYZ) (mm)	3210/4010
Type of rail	linear guide rail （mm）	Z45 rollers
accuracy	positioning accuracy （mm）	±0.02
	Repeatability accuracy (mm)	±0.01/300
system		GSK 980MDi
else	Air power source (pressure/capacity) (Mpa)	0.6
	Type of protection	Full protection
	Lubrication, cooling	Electronic timed mandatory lubrication Water-cooled dual circuit
	Weight of machine tool (kg)	3300
