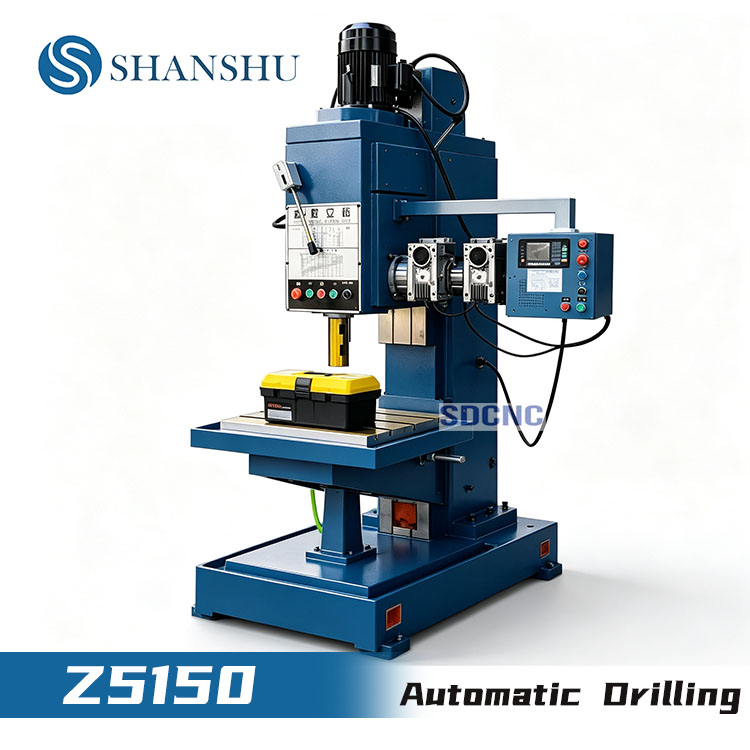

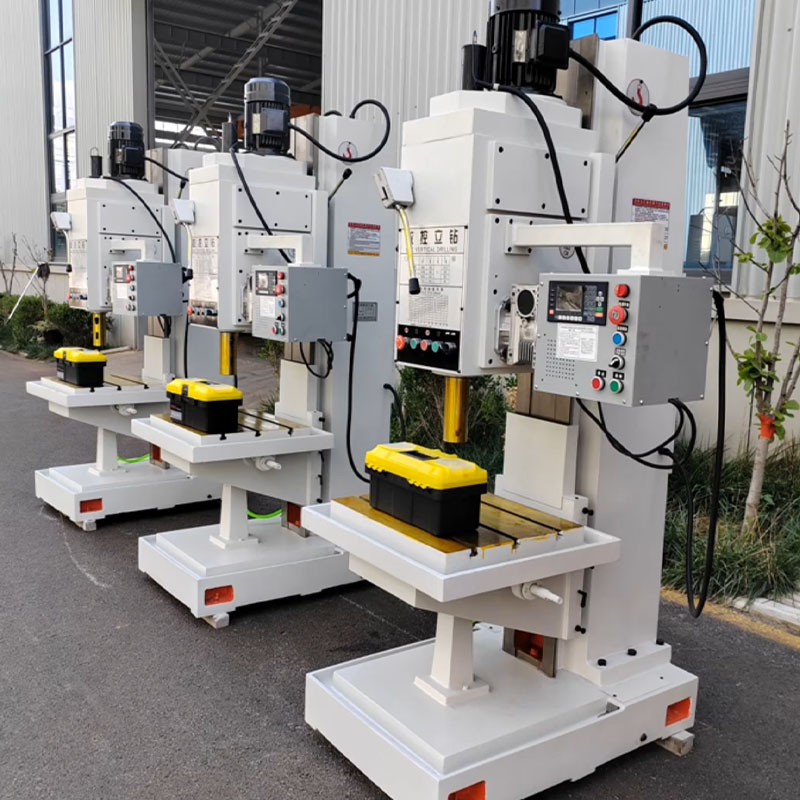

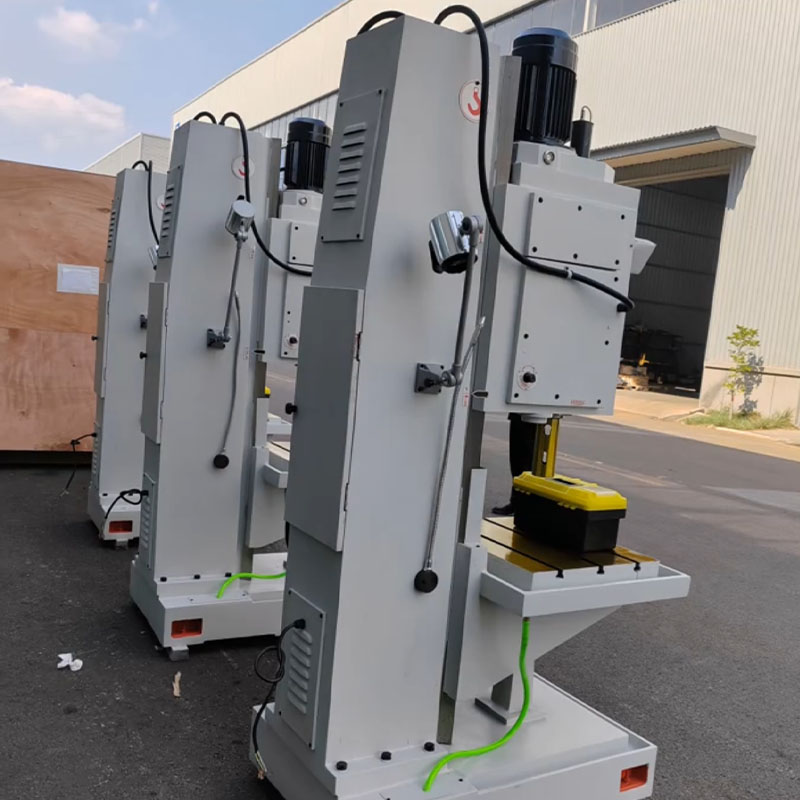

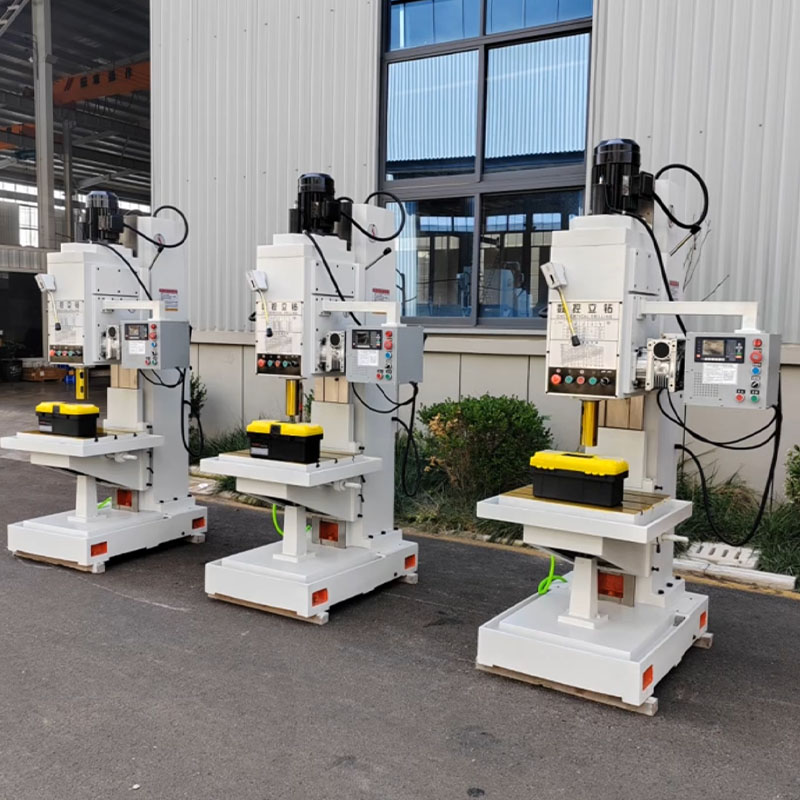

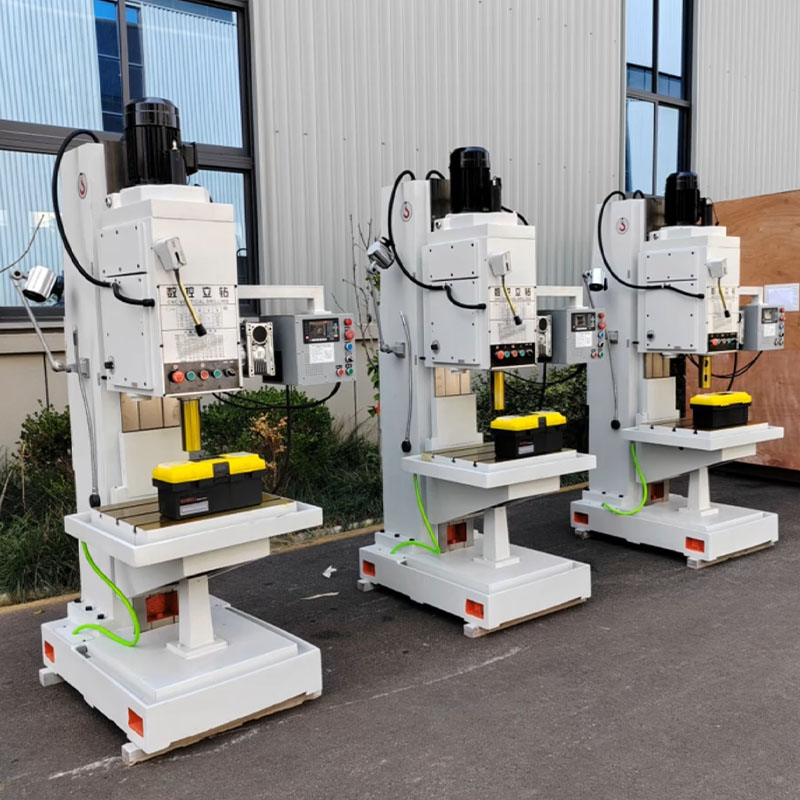

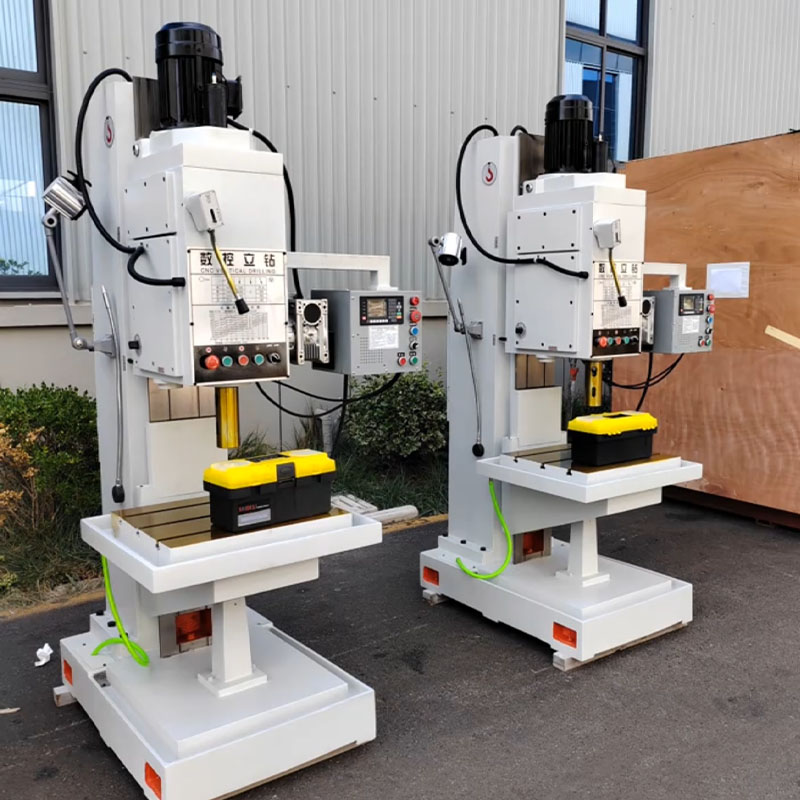

Z5150 CNC Vertical Drilling Machine

Rigid cast iron column ensures stable heavy-duty drilling.
CNC automatic feed improves hole positioning accuracy.
Multi-speed spindle supports drilling, tapping and boring.
Large T-slot worktable facilitates workpiece clamping.
Easy operation, low failure rate and convenient maintenance.

Quantity:
Availability:





Inquire Add to Basket

Model:
Z5150
Brand:
SDCNC

Z5150 CNC Vertical Drilling Machine Multi-Speed Spindle Drill Press

Product Description

Specifications	UNITS	ZK5140C	ZK5150C
Max. drilling diameter	mm	40	50
Max. Feed resistance	n	16000	16000
Max. Torque of spindle	nm	350	400
Spindle taper	morse	4	5
Main motor power	kw	3
Range of spindle speed	r/min	31.5-1400
X.Y axis	mm/min	0.6-3000/0.3-2000
Rapid feed Z axis	mm/min	6000(9000)/ 3000(4500)
Spindle box stroke	mm	470
Table X-axis	mm	600
Table Y-axis	mm	400
Spindle Z-axis	mm	250
Distance between spindle nose to worktable	mm	0-600	0-560
Positioning accuracy(X and Y)	mm	0.05(0.04)
Repeat positioning accuracy (X and Y)	mm	0.02(0.015)
Dimensions (LWH)	mm	1550×1530×2512

Related Products

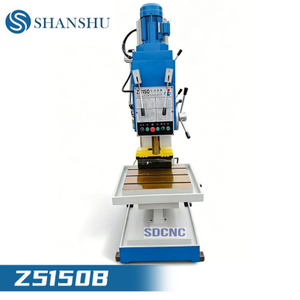

Z5150B Vertical Drilling Machine
