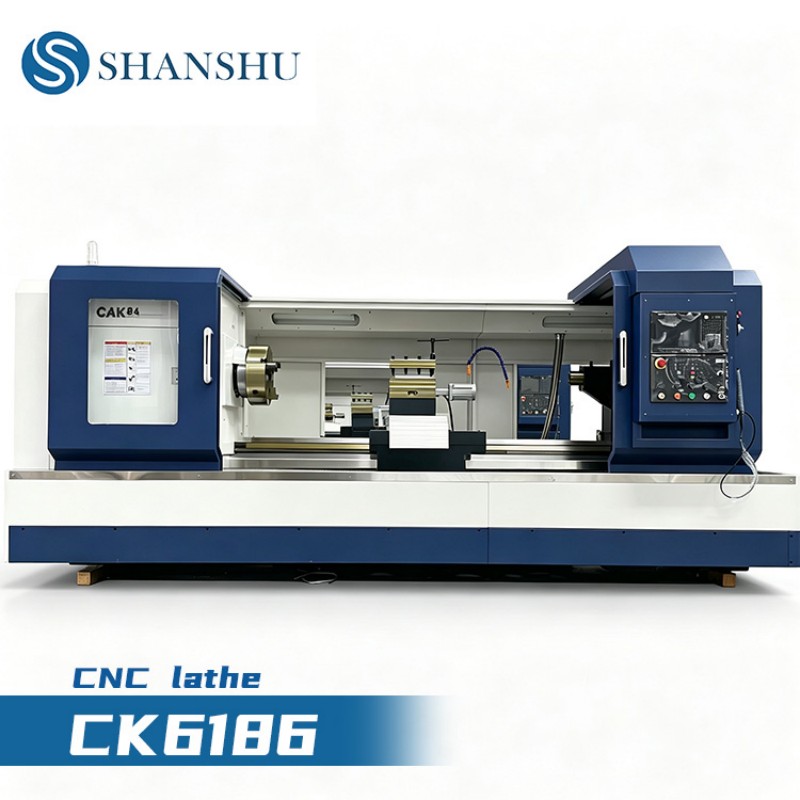

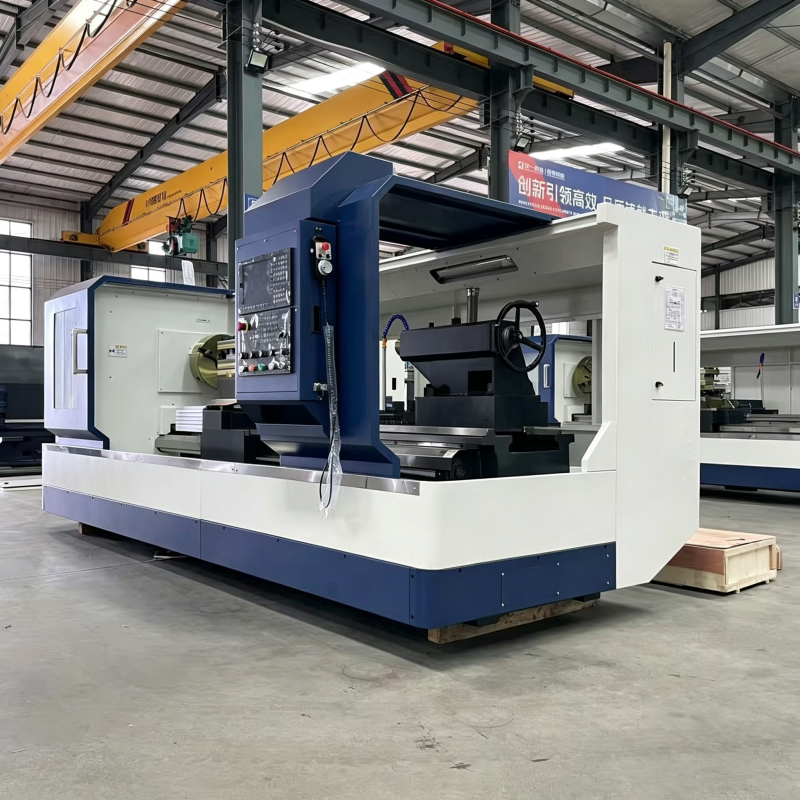

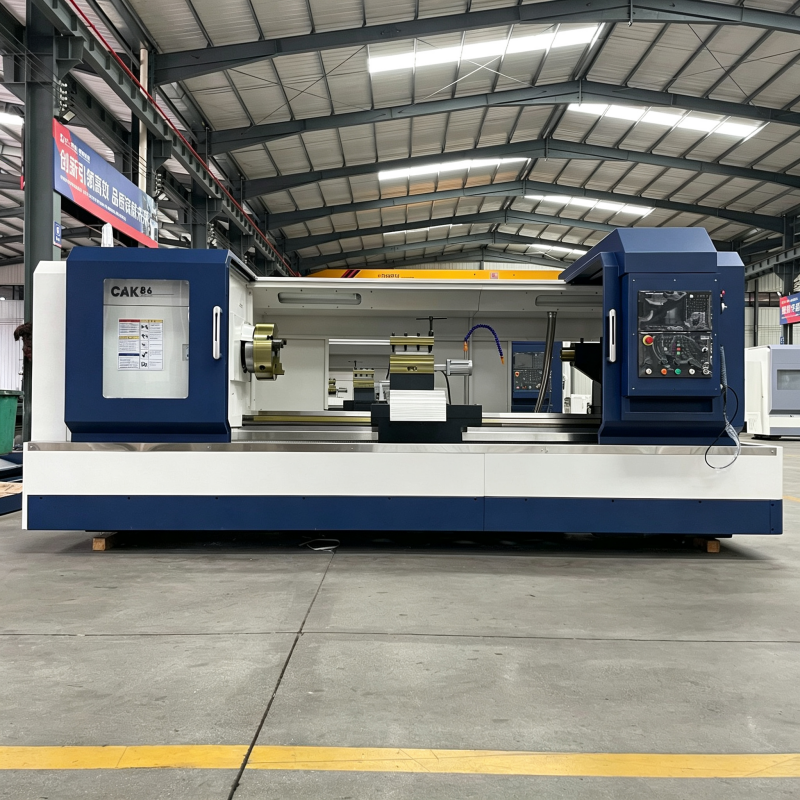

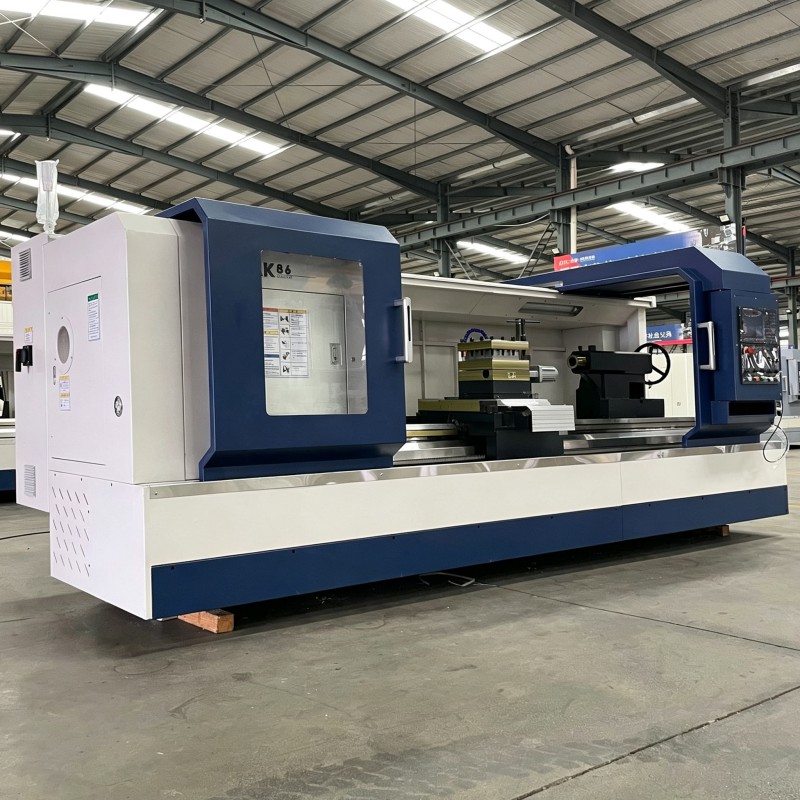

CK6186 Flat Bed Horizontal CNC Lathe

CK6186 heavy duty horizontal CNC lathe adopts integral cast iron flat bed and hardened hard rails, with strong rigidity and good shock resistance. It has a maximum swing diameter of 860mm, suitable for turning large workpieces such as shafts and flanges. Multiple CNC control systems are optional to guarantee stable operation and high machining precision. Widely used in heavy metal processing industries, the machine meets CE standards and comes with reliable after-sales support.

Quantity:
Availability:





Inquire Add to Basket

Model:
CK6186
Brand:
SDCNC

CNC Lathe Horizontal Lathe Heavy Duty Lathe Flat Bed Lathe Metal Turning Lathe

Product Description

Specifcatons	Unit	CK6180/CK6186	CK61100
Max.swingover bed	mm	860	1000
X-axis rail span	mm	330	330
Z-axis rail span	mm	600/700	600/700
Max.swingover cross slide	mm	500	650
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000	1000/1500/2000/3000/4000/5000/6000
Maximum plate type machining diameter	mm	860	1000
Maximum turning length	mm	1000/1500/2000/3000/4000/5000/6000	1000/1500/2000/3000/4000/5000/6000
Spindle bore	mm	105/130	130
Spindle speed class	rpm	10-85，40-350，100-850r/min	10-85，40-350，100-850r/min
Bar diameter	mm	104	128
Hollowchucktierodthroughhole	mm	88	115
Spindle end type		A2-11	A2-11

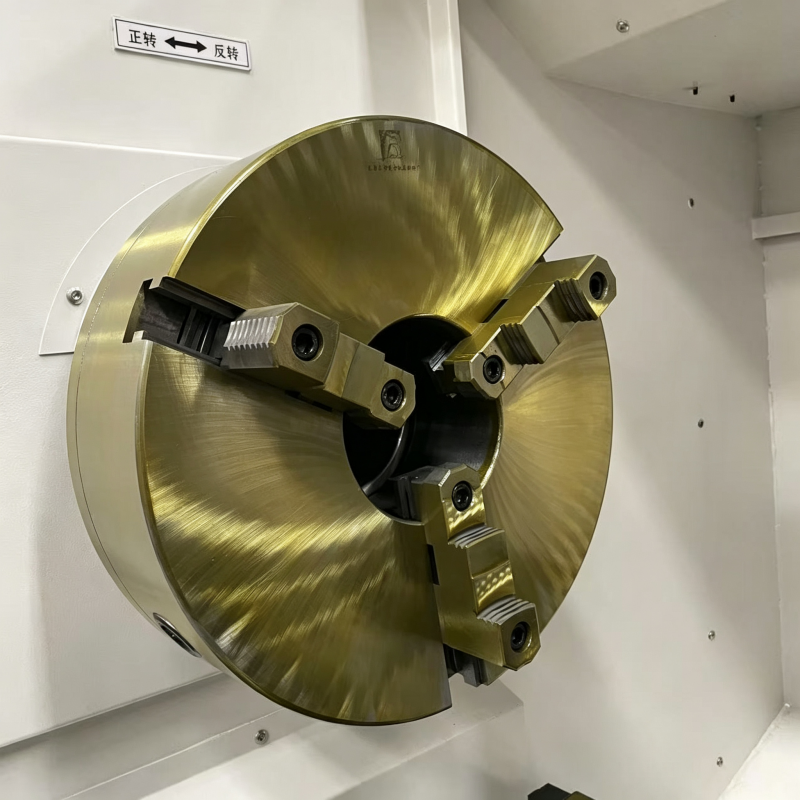

Chuck	mm	Manual Φ400	Manual Φ630
Spindle bore taper		Metric 120，1：20	Metric 120，1：20
Spindle speedsteps	rpm	850	850

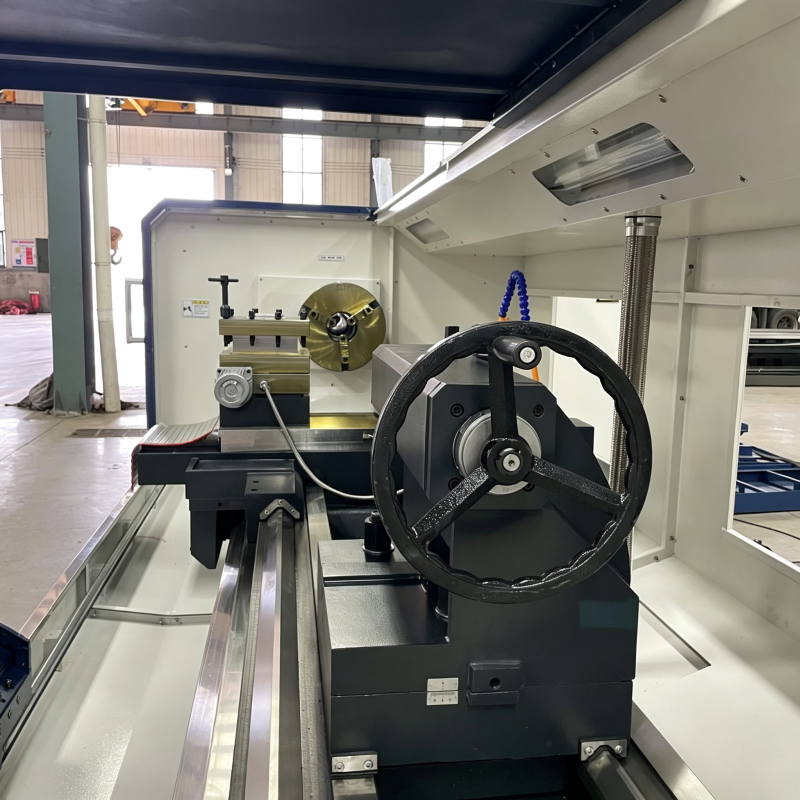

Tailstock quill diameter	mm	130	130
Tailstock quill taper		MT6#	MT6#
Tailstock quill travel	mm	265	265
Tailstock configuration		Manual	Manual
Number of electrictool holder positions		4	4
Tool shake size	mm	32*32	32*32
X/Z axis rapidtraverse	m/min	4/5	4/5
X axis travel	mm	450	500
Z axis travel	mm	1000/1500/2000/3000/4000/5000/6000	1000/1500/2000/3000/4000/5000/6000
Minimum setting unit	mm	0.001	0.001
Main motor power	kw	15	15
Total power supply	kw	20	20
Net weight	kg	5100/5700/6200/7200	5200/5800/6300/7300
Dimensions (L×W×H)	mm	3500/4000/4500/550019001900	3500/4000/4500/550019001900
