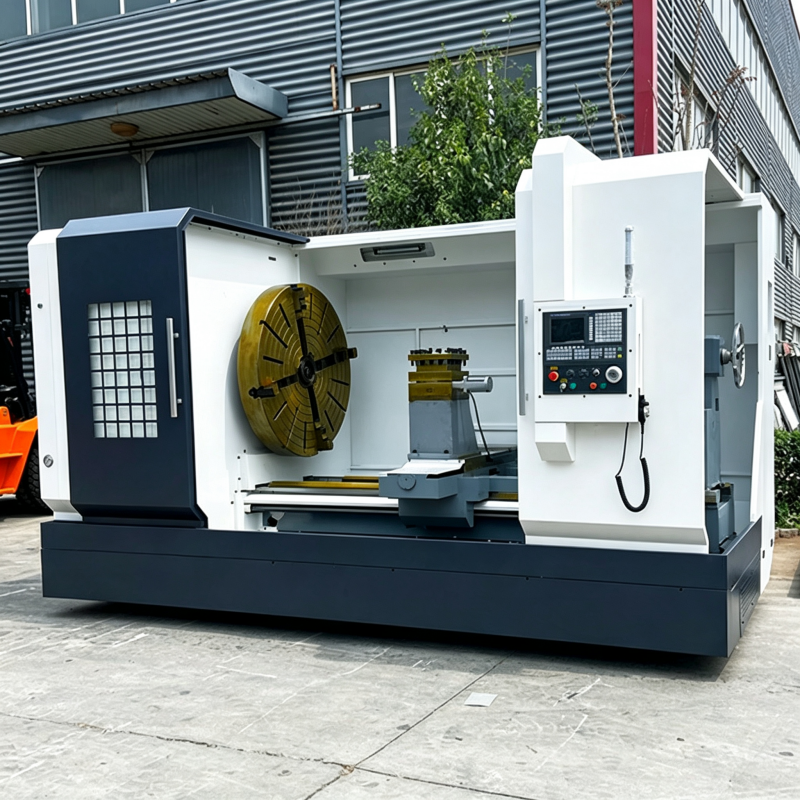

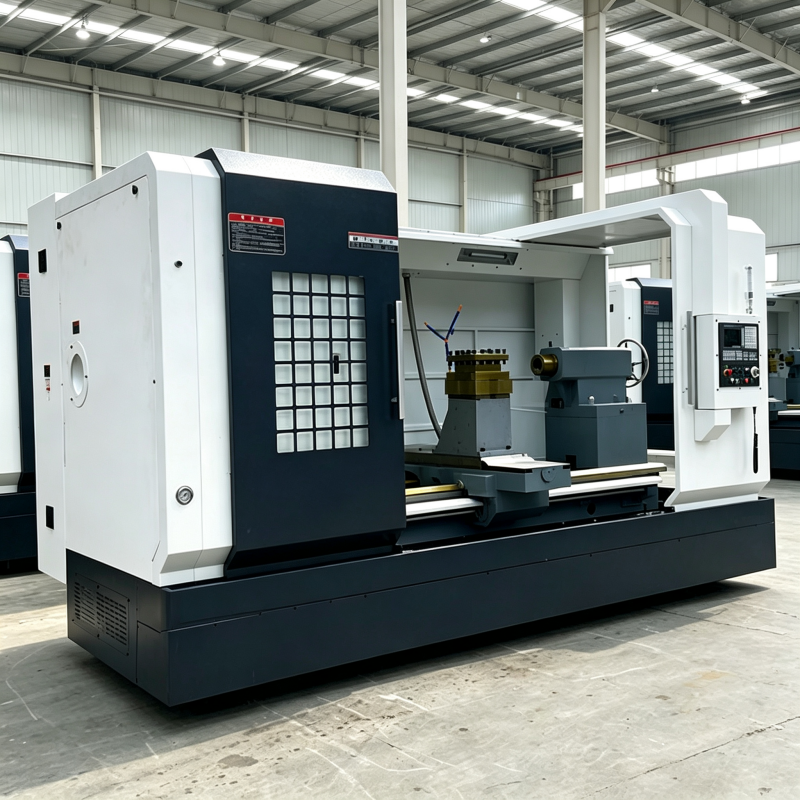

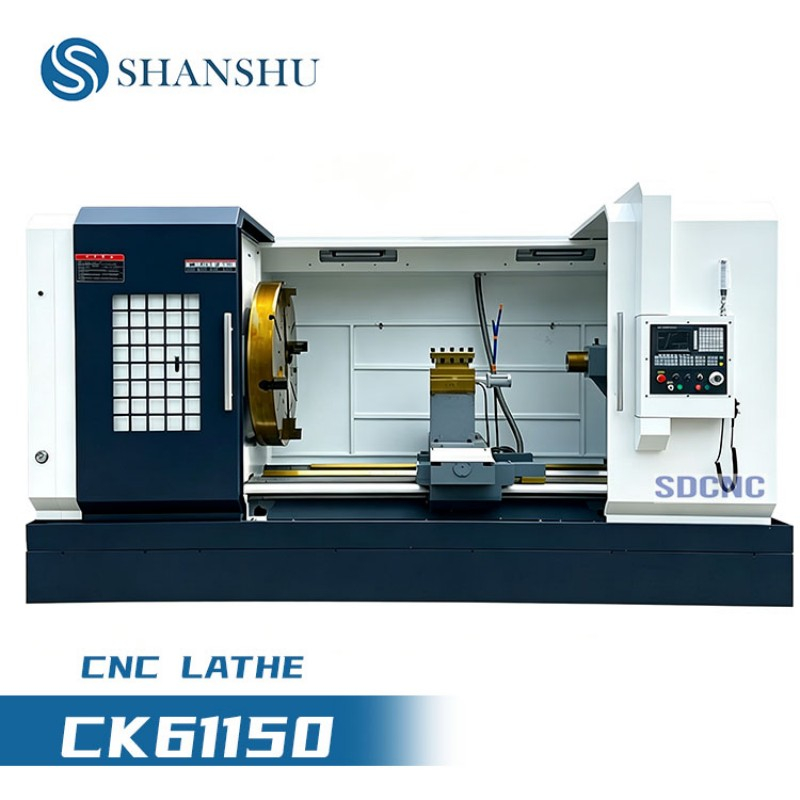

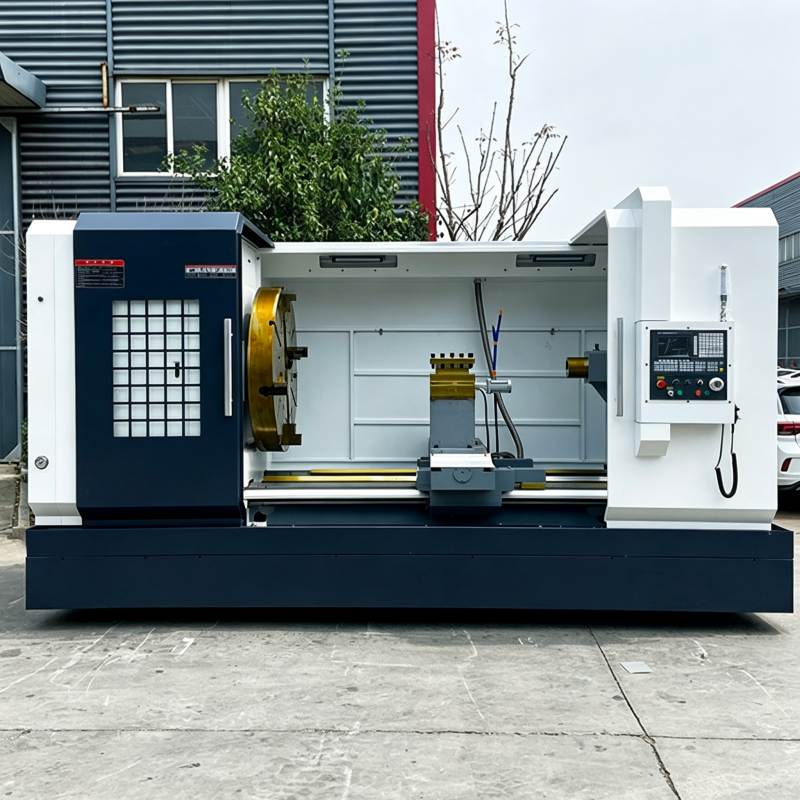

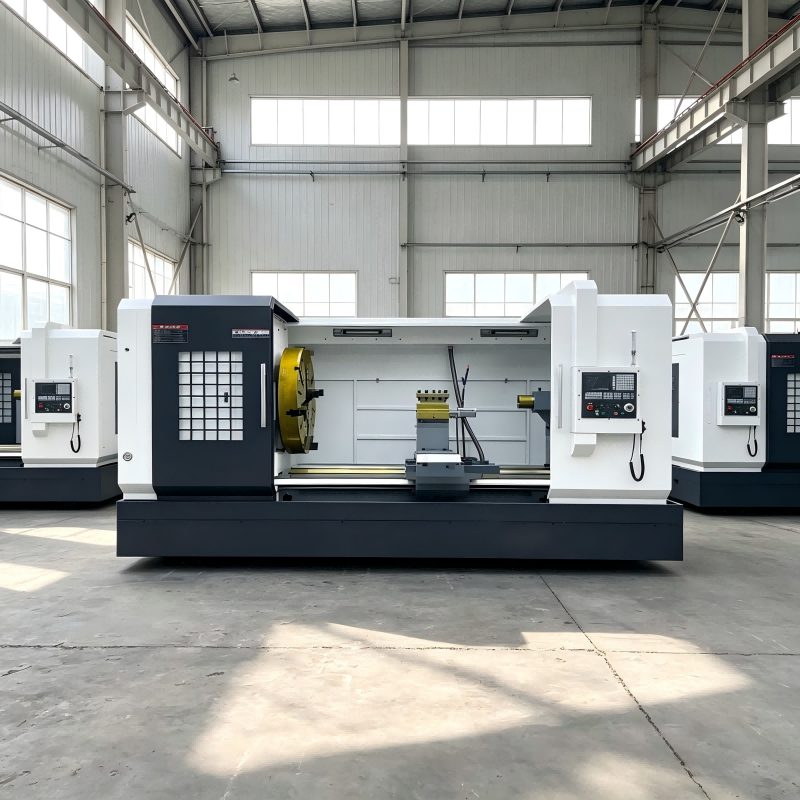

CK61150 Horizontal CNC Lathe

CK61150 is heavy‑duty horizontal CNC turning lathe. Max swing over bed 1500mm, maximum workpiece length 5000mm. High‑rigidity cast iron bed realizes heavy‑load cutting. It is widely used for shaft, roller, flange and heavy metal components in metallurgy, mining, heavy machinery and energy equipment industries.

Quantity:
Availability:





Inquire Add to Basket

Model:
CK61150
Brand:
SDCNC

CK61150 New Horizontal CNC Lathe Max Swing 1500mm 5000mm Workpiece Length Heavy-Duty Metal Workpiece

Product Description

Main Technical Data	Unit	CK61150
Maximum turning diameter of the bed	mm	Φ1500
Maximum turning diameter on the pallet	mm	Φ1100
Maximum Processing length	mm	1500/2000/3000
Spindle drive form		Fouth Gear
Spindle speed series		None
Spindle speed	r/min	30-84/53-150/125-350/300-835
Spindle head form		D11
Spindle hole front taper		Metric 140 1:20
Spindle through hole diameter	mm	105/130
Main motor power	kw	18/22
X/Z axis positioning accuracy	mm	0.025/0.03
Workpiece machining accuracy	mm	0.01/0.015
X fast moving speed	mm/min	4000
Z fast moving speed	mm/min	6000
Tailstock sleeve diameter	mm	160
Tool Holder form		Motorized 4 - station
Tool holder maximum stroke X/Z	mm	40*40
Machine diamentions	mm	4600/5100/610023002600
Machine weight	T	8.3/9.5/11.0
