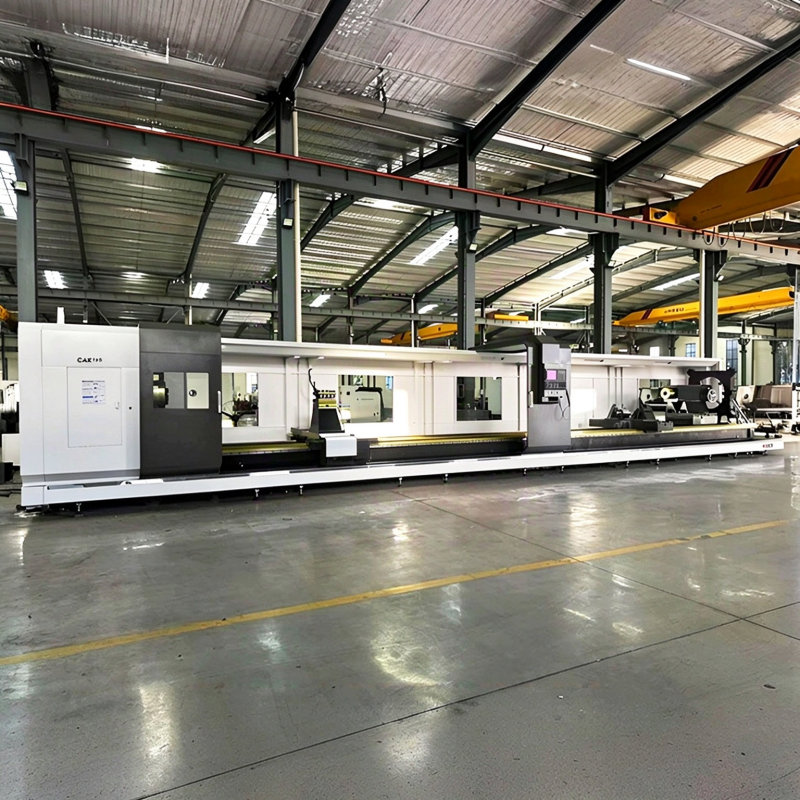

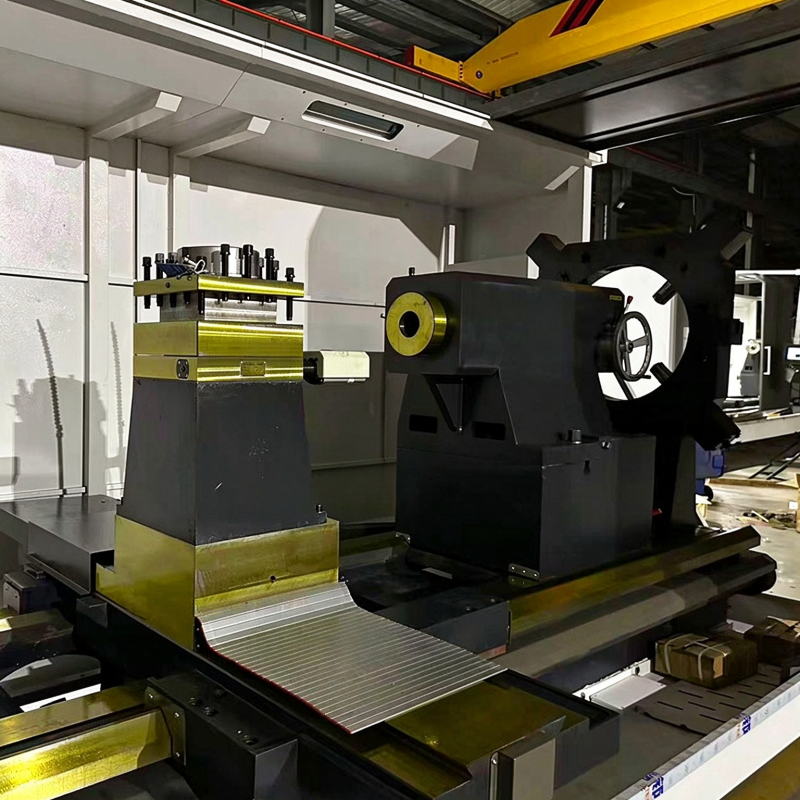

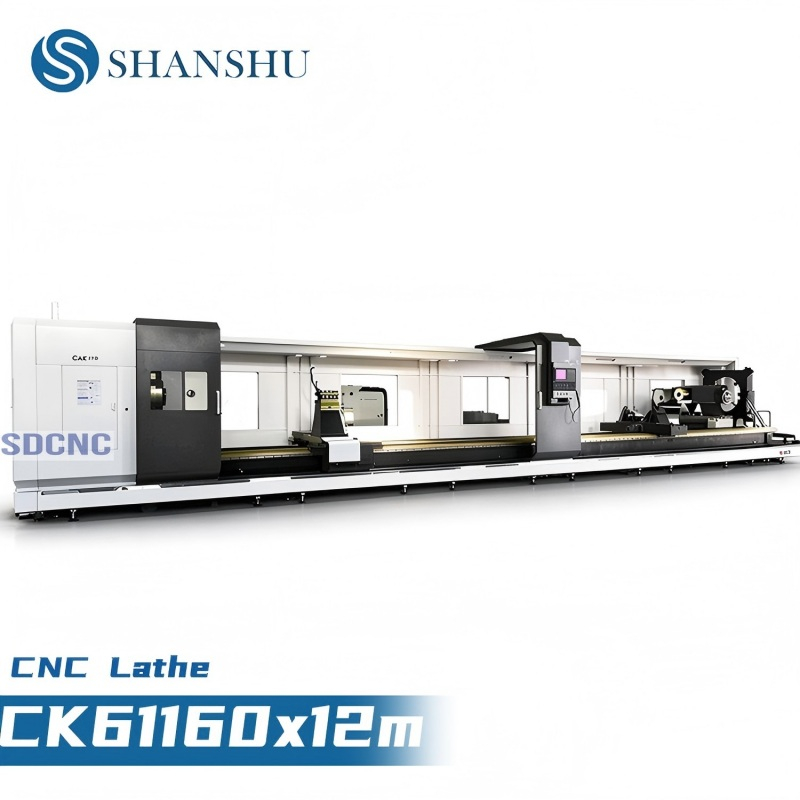

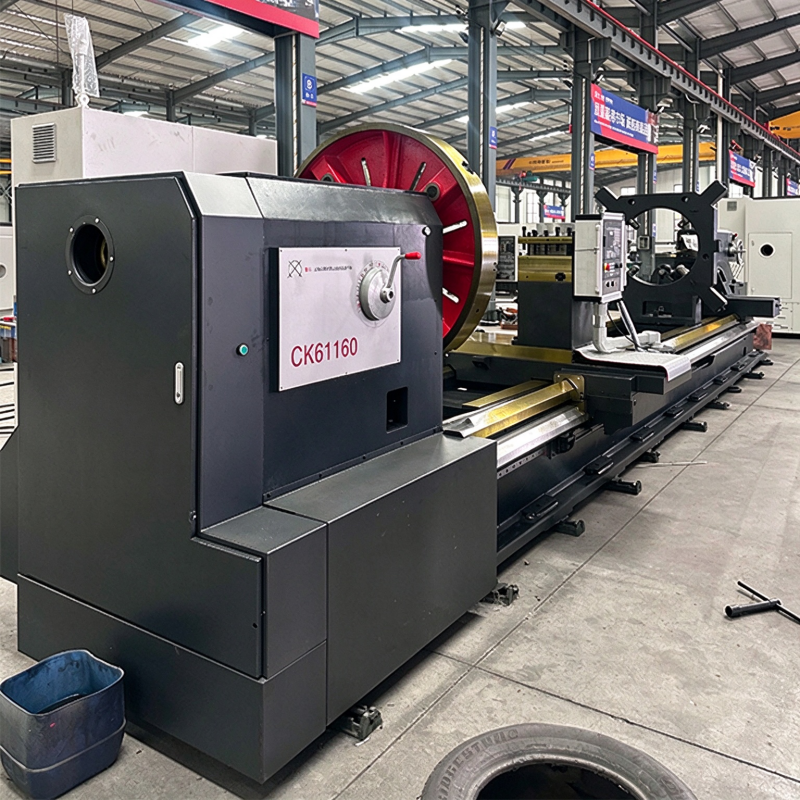

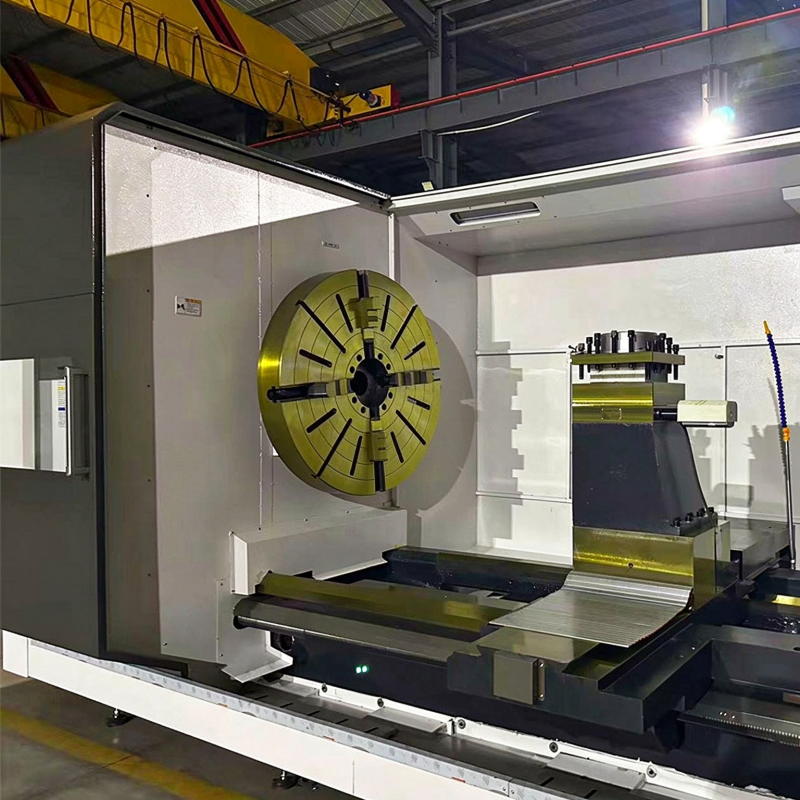

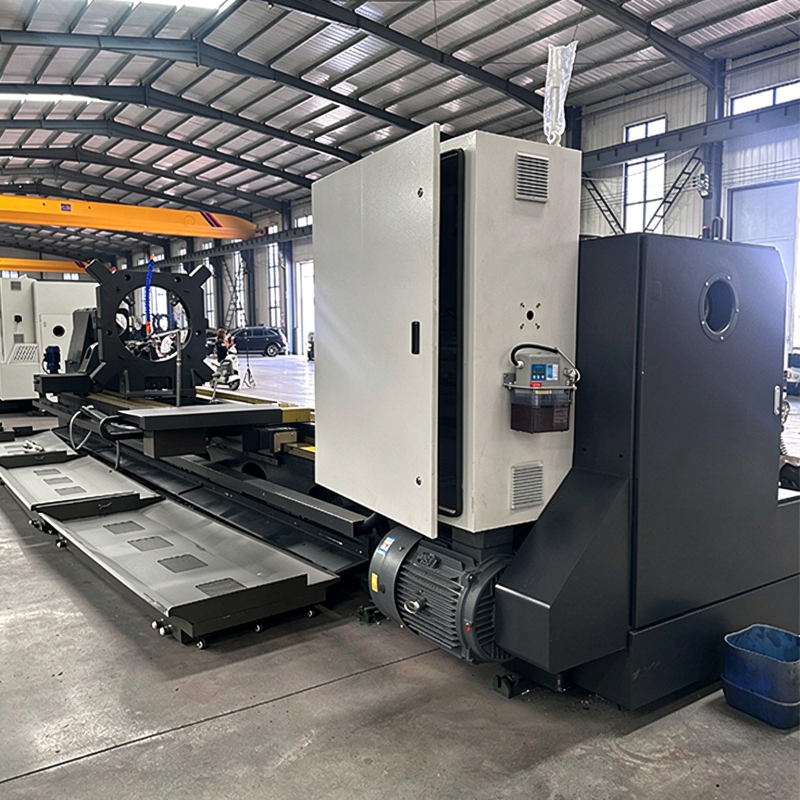

CK61160×12000 Heavy Duty Flat Bed CNC Lathe

CK61160×12000 is a heavy-duty flat bed horizontal CNC lathe, specially designed for processing extra-long and large-diameter metal workpieces. The integral cast bed provides high rigidity and stable cutting performance. It can complete turning of outer circle, inner hole, end face, taper, arc surface, grooving and various threads.

Equipped with optional Siemens or FANUC CNC system, this machine is widely used in energy, mining, shipbuilding, heavy machinery industries for long shaft, roller and large disc parts processing. Custom configuration and technical support are available.

Quantity:
Availability:





Inquire Add to Basket

Model:
CK61160×12000
Brand:
SDCNC

Flat Bed CNC Lathe Long Bed Lathe Heavy Duty Lathe Metal Turning Lathe Large Bore Lathe CNC Turning Machine Industrial Lathe

Product Description

Specification	Unit	CK61100	CK61125	CK61140	CK61160
Max. swing over bed	mm	1000	1250	1400	1600
Max. swing over cross slide	mm	610	860	1010	1210
Max. length of work - piece	mm	1500/2000/3000/4000/5000/6000/7000/8000/9000
Guideway width	mm	755
Max. load capacity	T	6
Spindle center height	mm	500	625	700	800
Spindle bore	mm	140
Spindle nose	-	A2 - 15
Spindle taper hole	-	150/120（Metric）
Mode of spindle speed	-	Three gears, smooth adjustment）
Range of spindle speed	r/min	（L）10 - 50（M）50 - 115（H）115 - 300
Power of spindle motor	KW	22
Max. traverse of X/Z	mm	X:520 Z:1250 - 9700	X:650 Z:1250 - 9700	X:720 Z:1250 - 9700	X:820 Z:1250 - 9700
X/Z rapid traverse	mm/min	4000/6000
Diameter	mm	160
Travel	mm	300
Taper	-	MT6
Tool shank size	mm	40×40
Chuck	-	K72 - 1000 （Four jaw chuck）
Overall dimensions - Length	mm	5000 - 14000
Overall dimensions - Width×Height	mm	2270×2200	2350×2400	2500×2550	2650×2680
Machine weight	T	10.5 - 19.5	11.5 - 20.5	12.5 - 21.5	13.5 - 22.5
