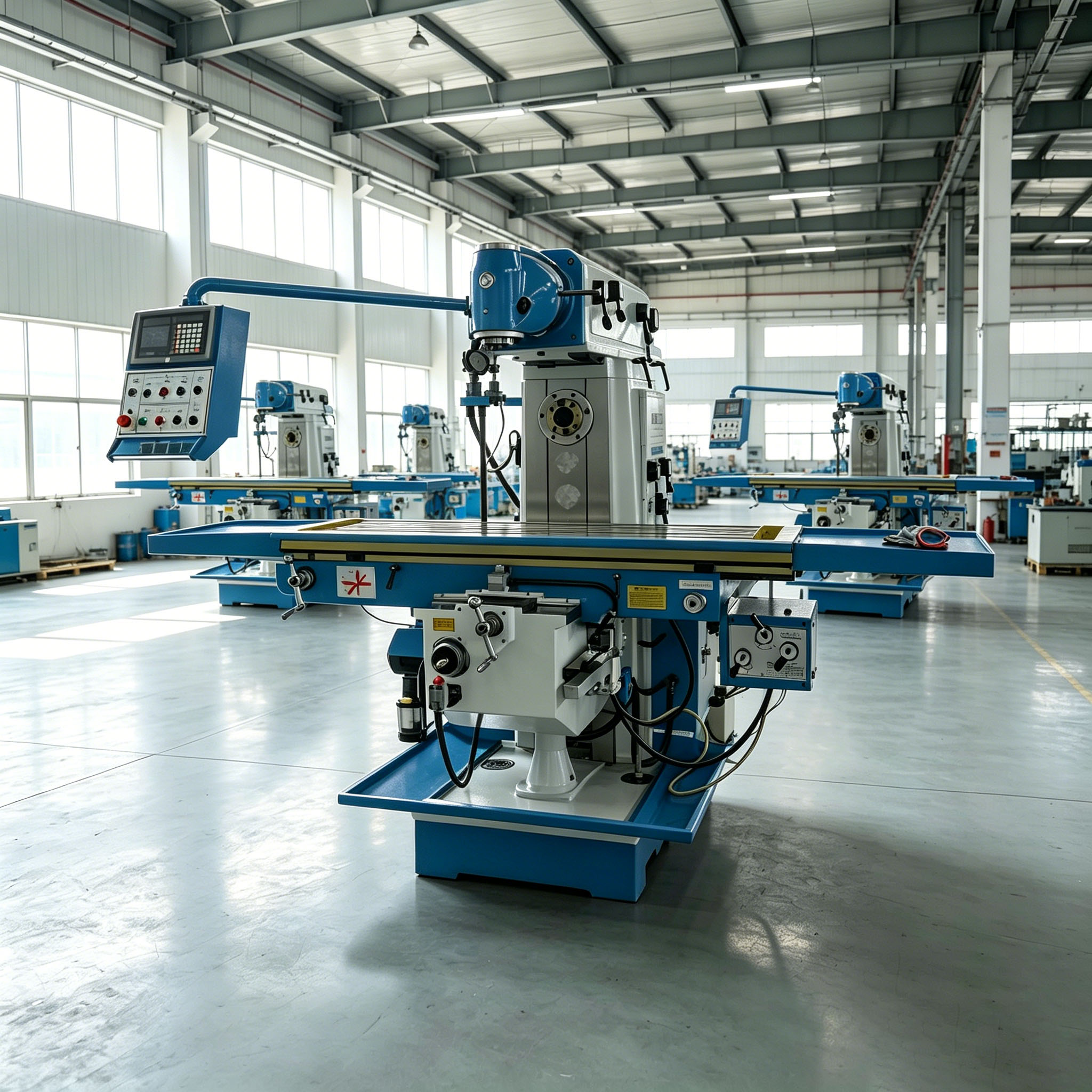

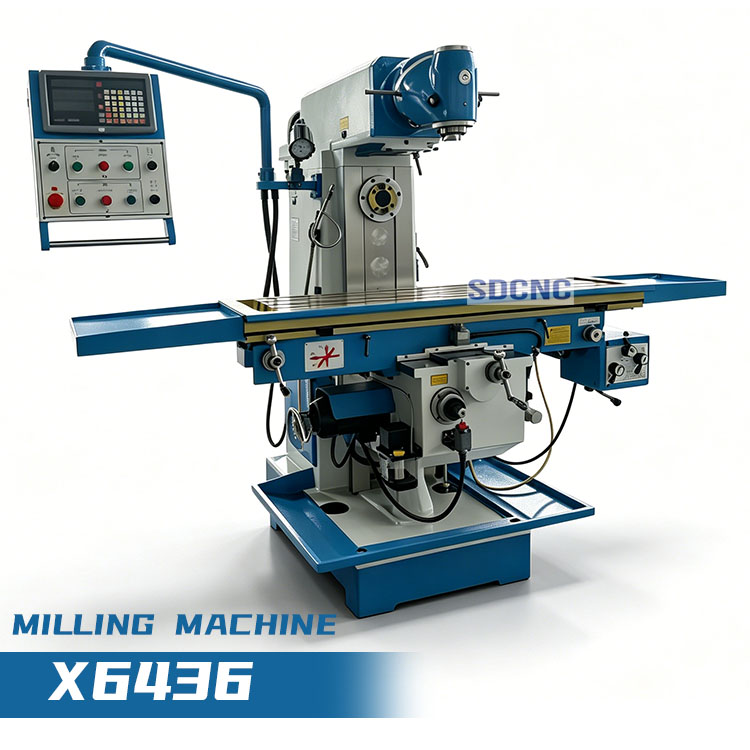

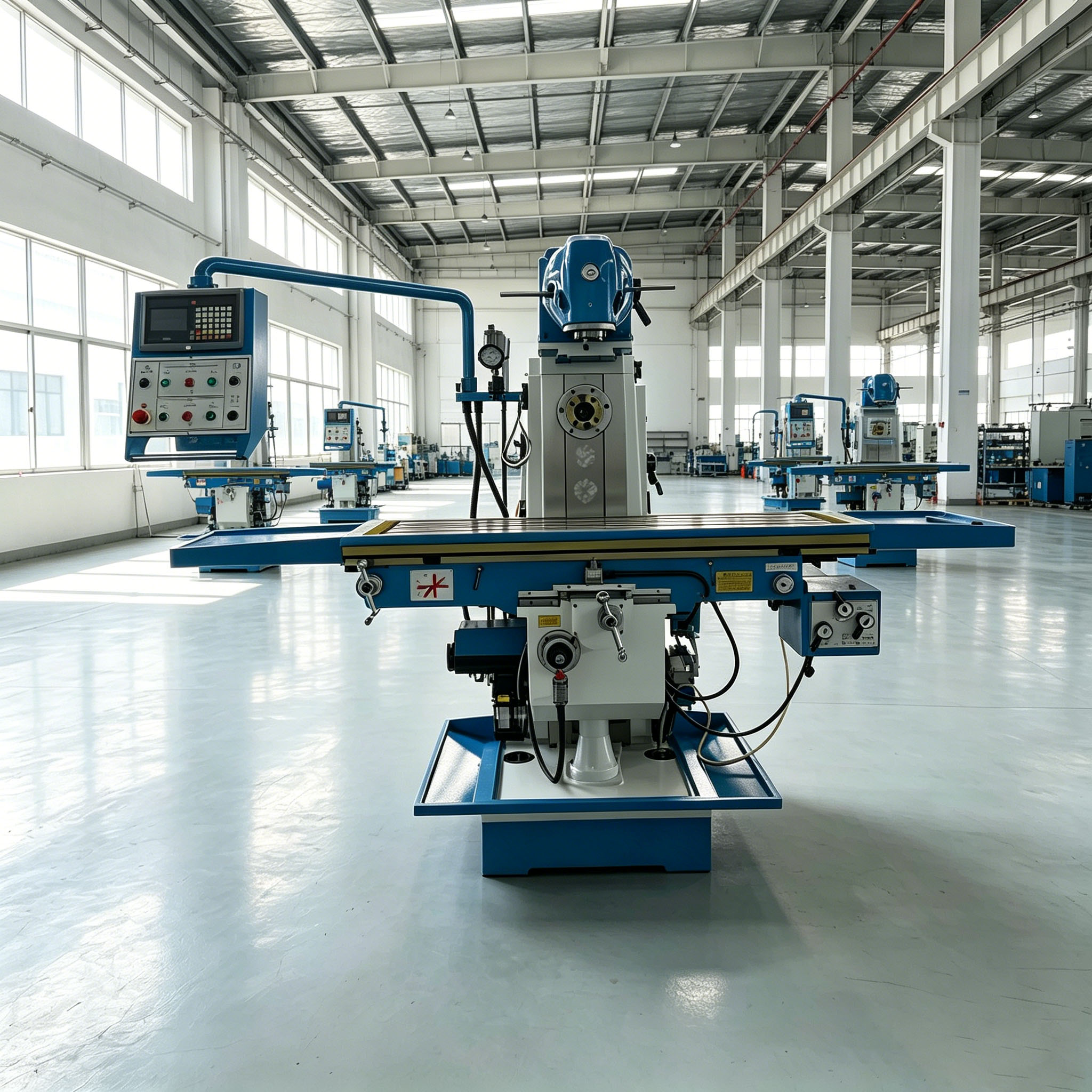

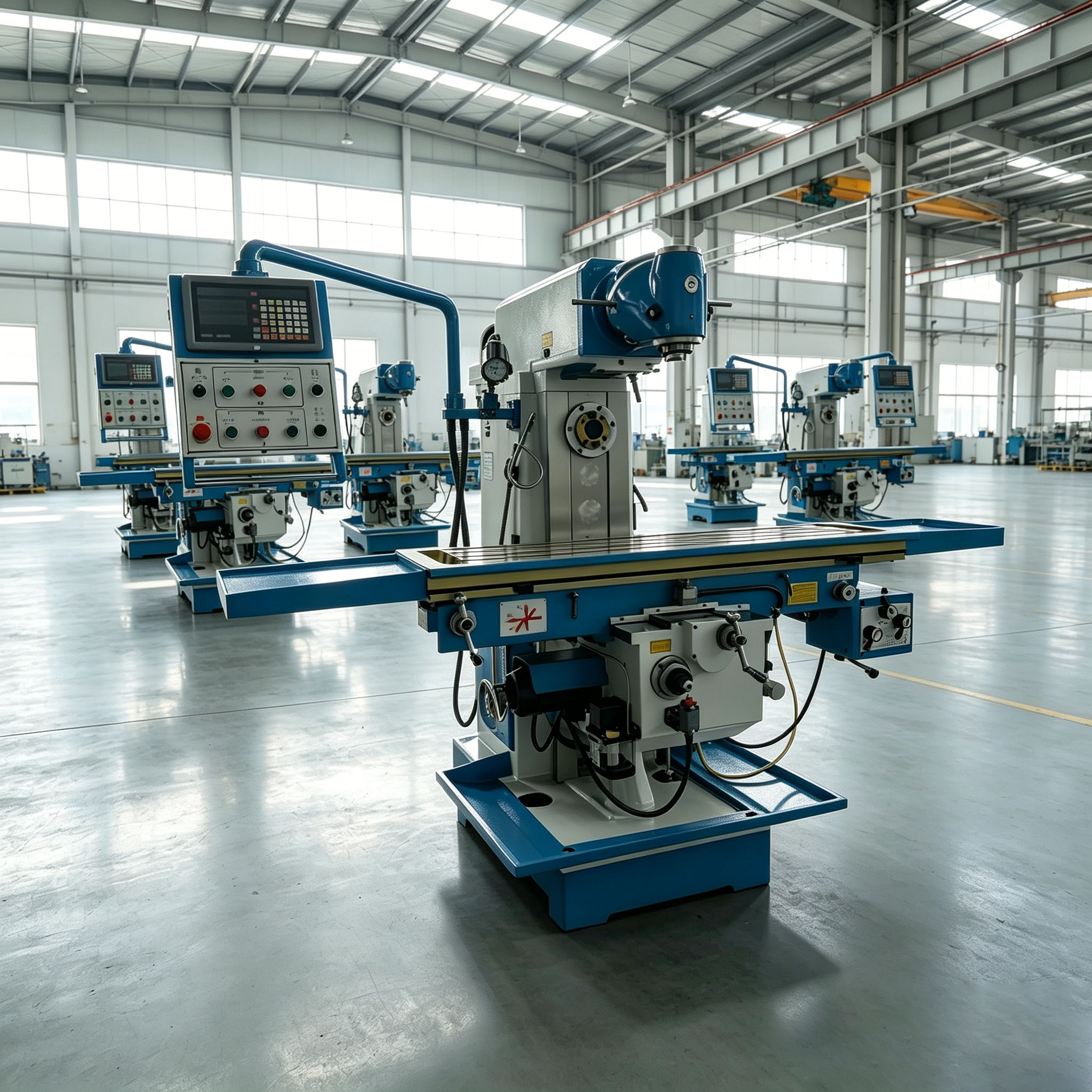

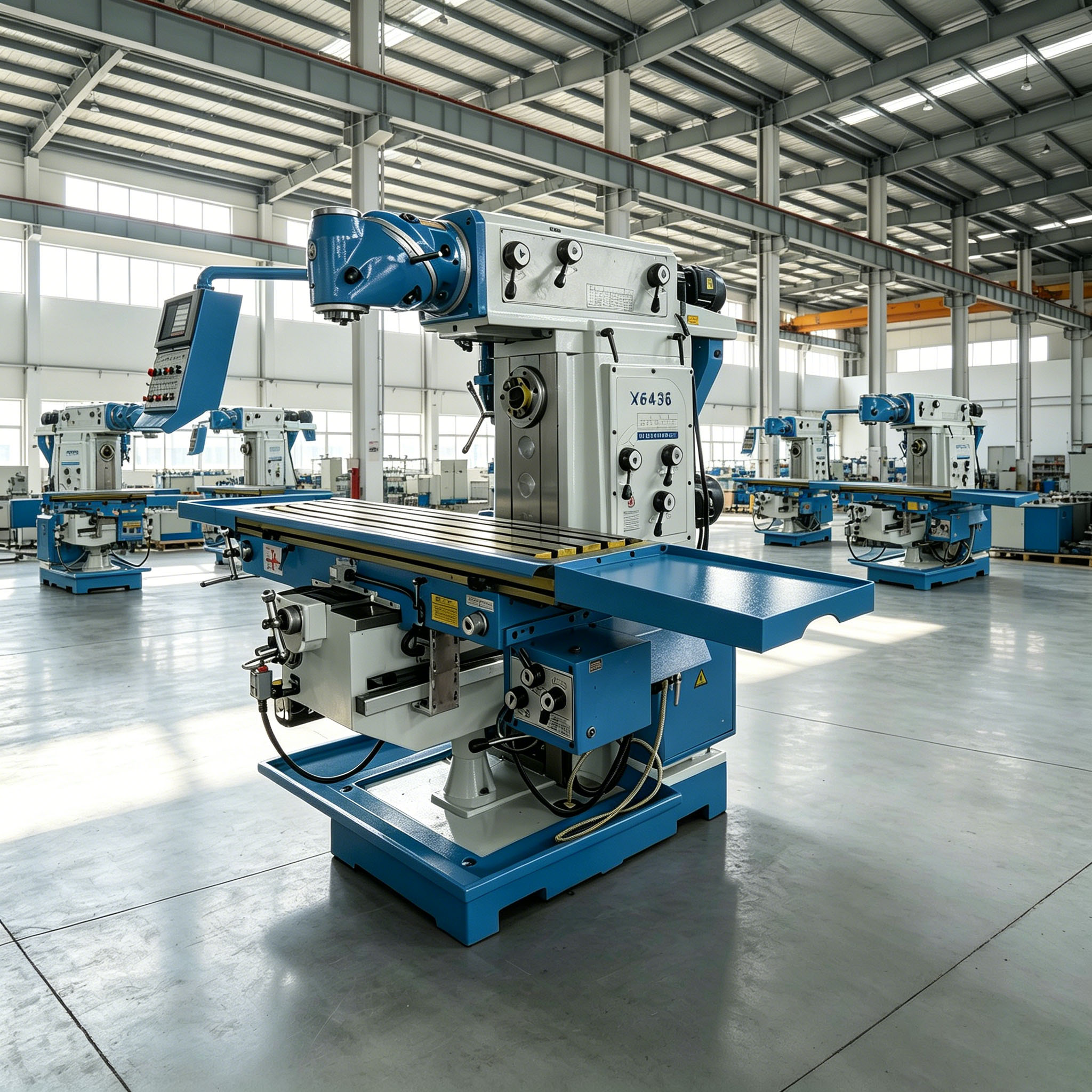

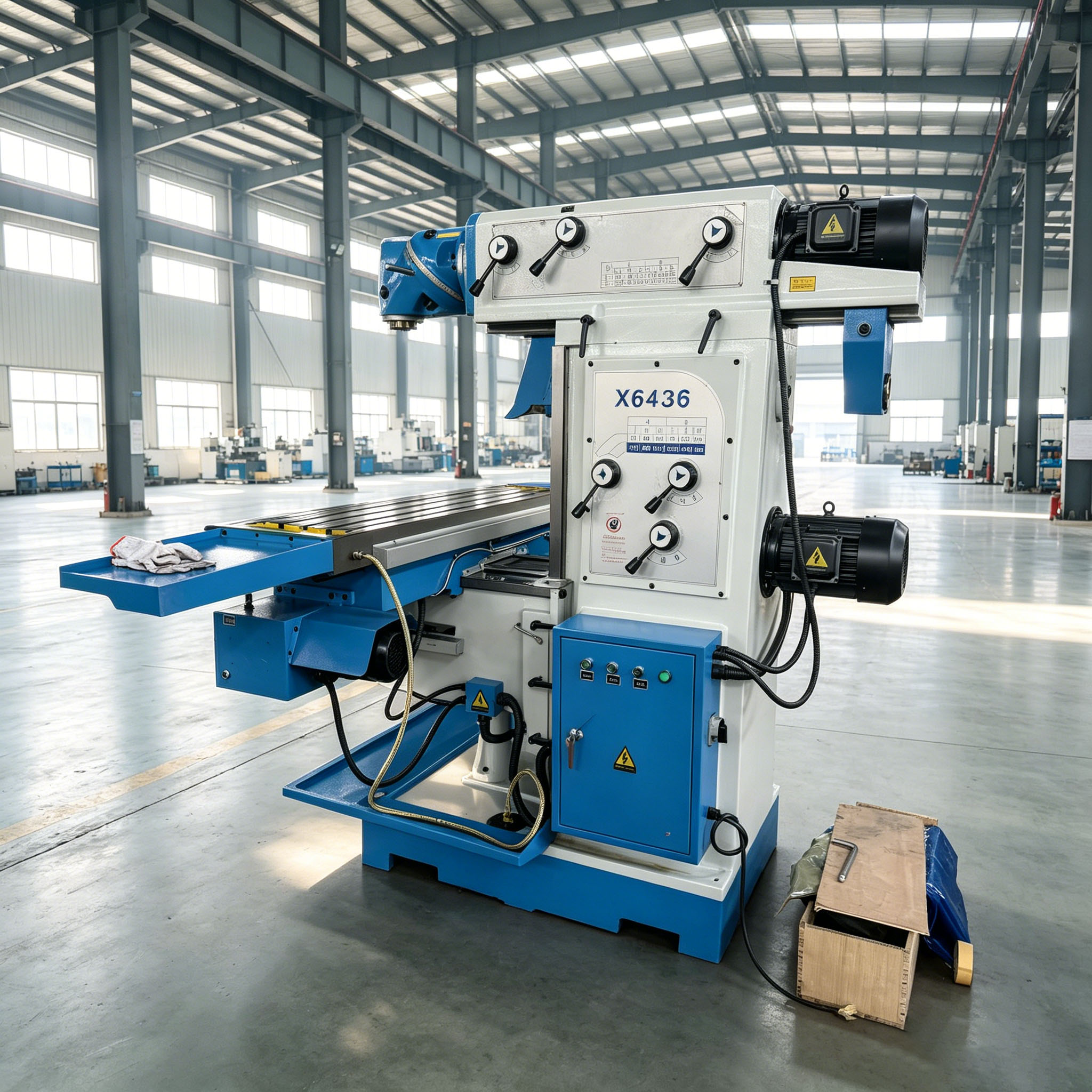

X6436 Universal Horizontal Knee Type Milling Machine

X6436 is a classic universal horizontal knee type milling machine, equipped with rotatable spindle head that can realize multi-angle inclined plane and complex contour processing. The whole machine adopts one-piece thick cast iron structure, which effectively reduces vibration and ensures stable processing precision. It can complete milling, drilling, tapping and boring in one clamping, suitable for batch processing of molds, automobile parts, mechanical flanges and other workpieces. Multiple optional accessories and complete after-sales technical support are provided.

Quantity:
Availability:





Inquire Add to Basket

Model:
X6436
Brand:
SDCNC

Product Description

Specification	unit	X6436
TABLE
Table size	mm	1320x360
No. of T slot	no	3
T slot Size ( Width )	mm	14
Centre distance of T slot	mm	95
Max. load of Table	kg	300
swivel angle of table	degree	±35º
machining range
table Longitudinal travel(manual/auto)	mm	1000
table Cross travel (manual/auto)	mm	280
table Vertical travel(manual/auto)	mm	400
MAIN SPINDLE :
Spindle taper		(Horizontal)ISO50/(Vertical)ISO50
spindle speed /step -- Vertical	rpm	58-1800
spindle speed /step--Horizontal	rpm	60-1750
swivel angle of swivel head	degree	360º
Distance from vertical spindle axis to column surface	mm	220-720
Distance from vertical spindle nose to table surface	mm	170-570
Distance from horizontal spindle axis to table surface	mm	0-400
Distance from horizontal spindle axis to arm bottom	mm	175
arm travel	mm	500
FEEDS :
Longitudinal/cross feed	mm / min	22-420(X), 22-393(Y)
Vertical feed /step	mm/min	10-168(Z)
Longitudinal/cross rapid speed	mm / min	1290(X),1205(Y)
Rapid Traverse vertical	mm/min	513(Z)
POWER :
main motor	kw	4
(X/Y/Z) feed motor	kw	1.1
coolant motor	kw	90W
overall dimension	mm	2070x2025x2020
Machine weight	kg	2480
