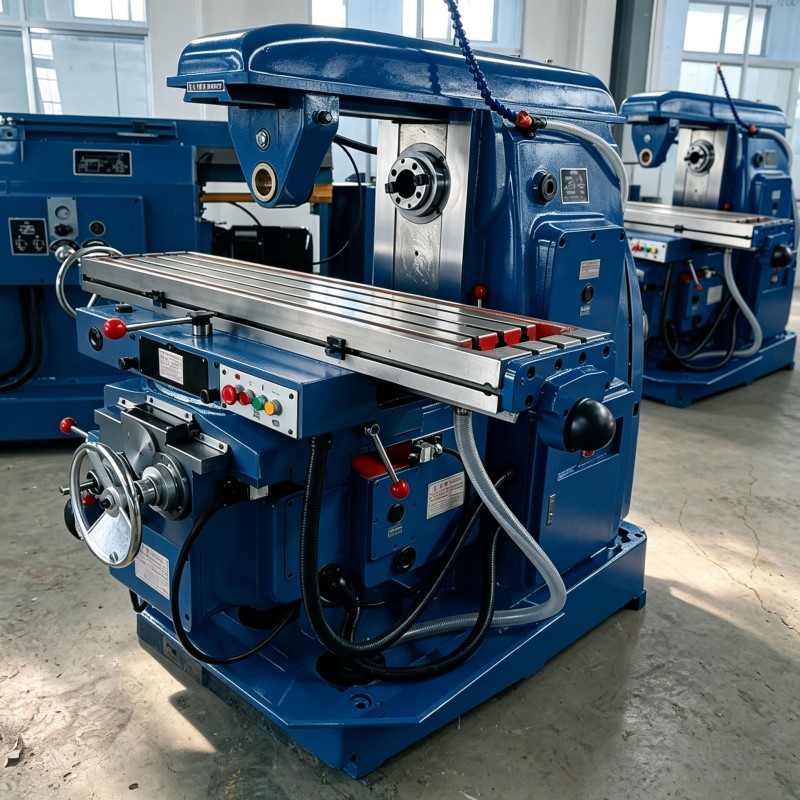

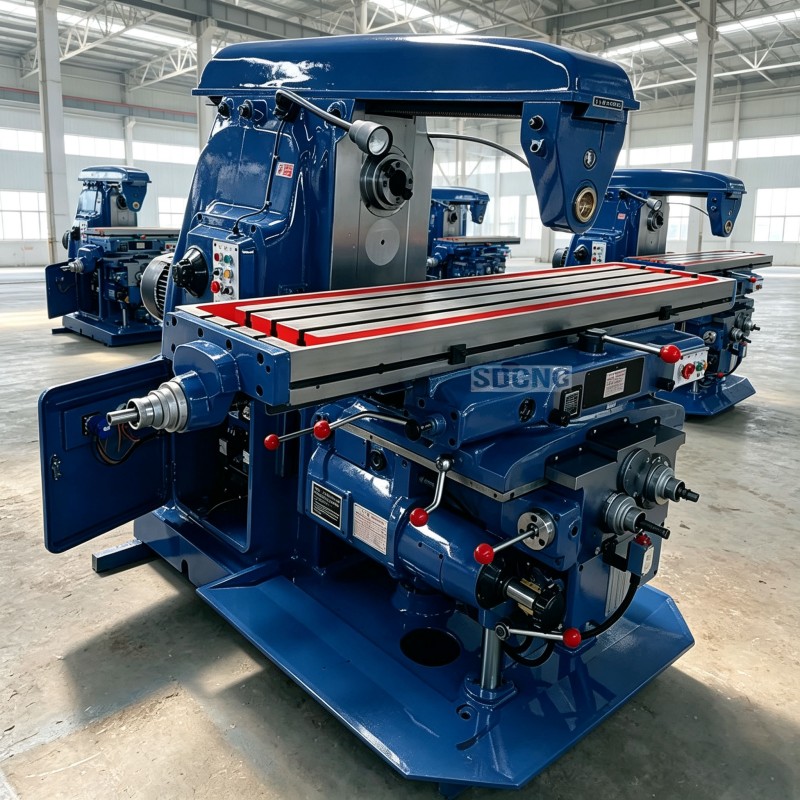

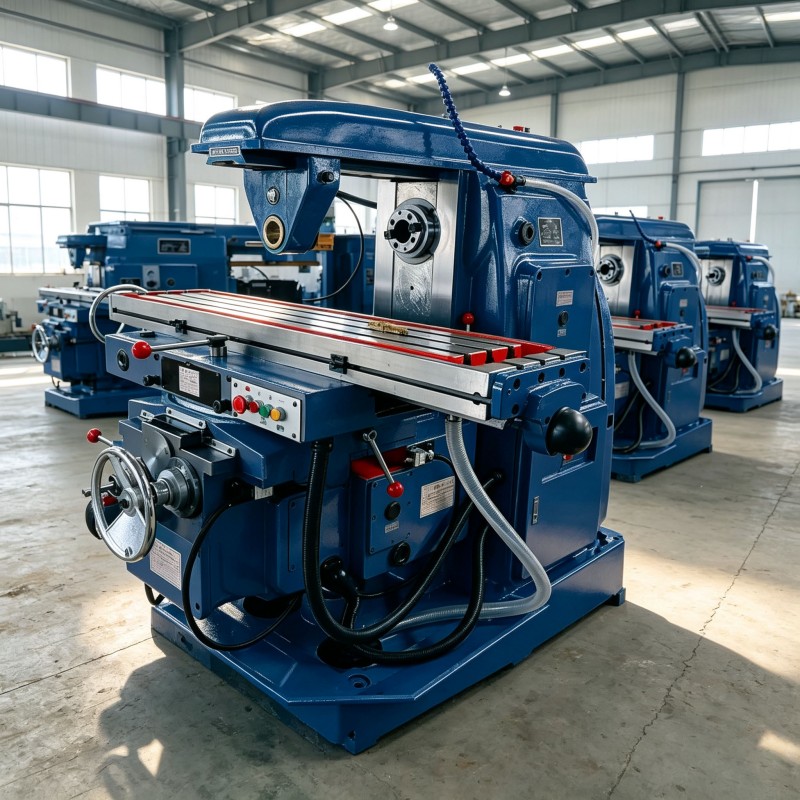

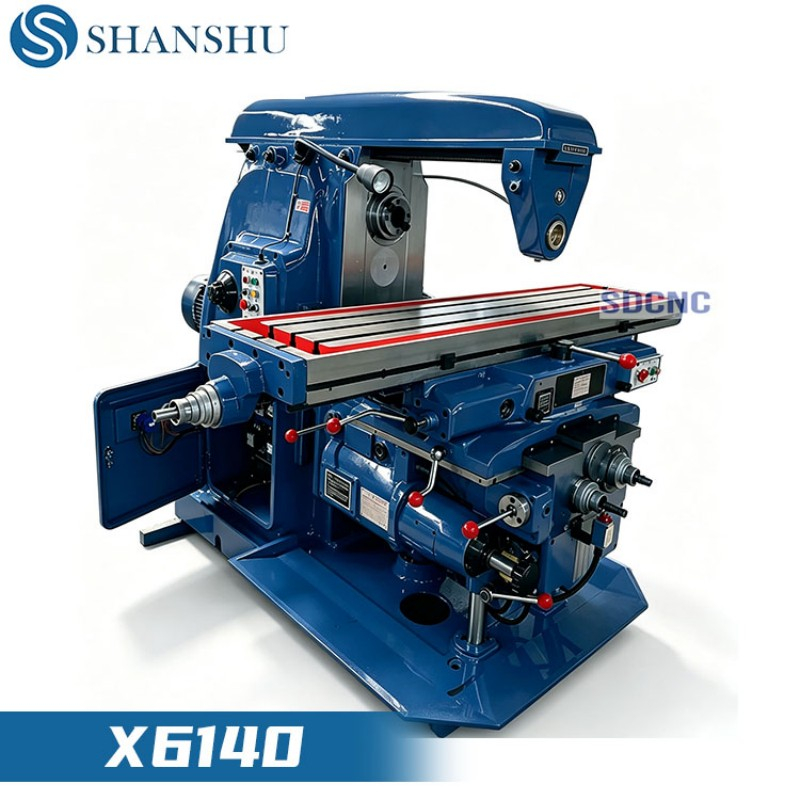

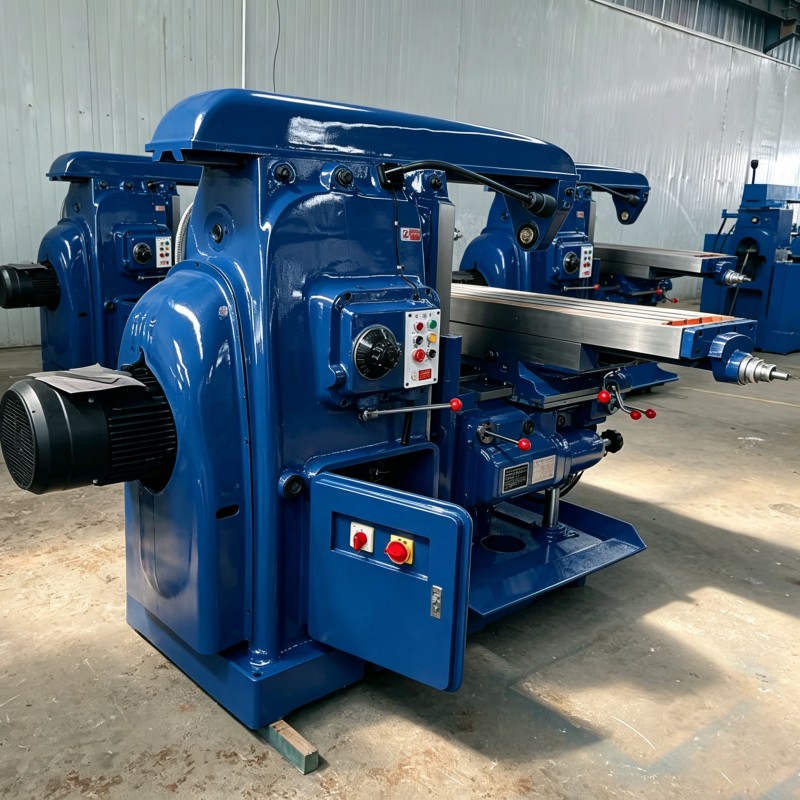

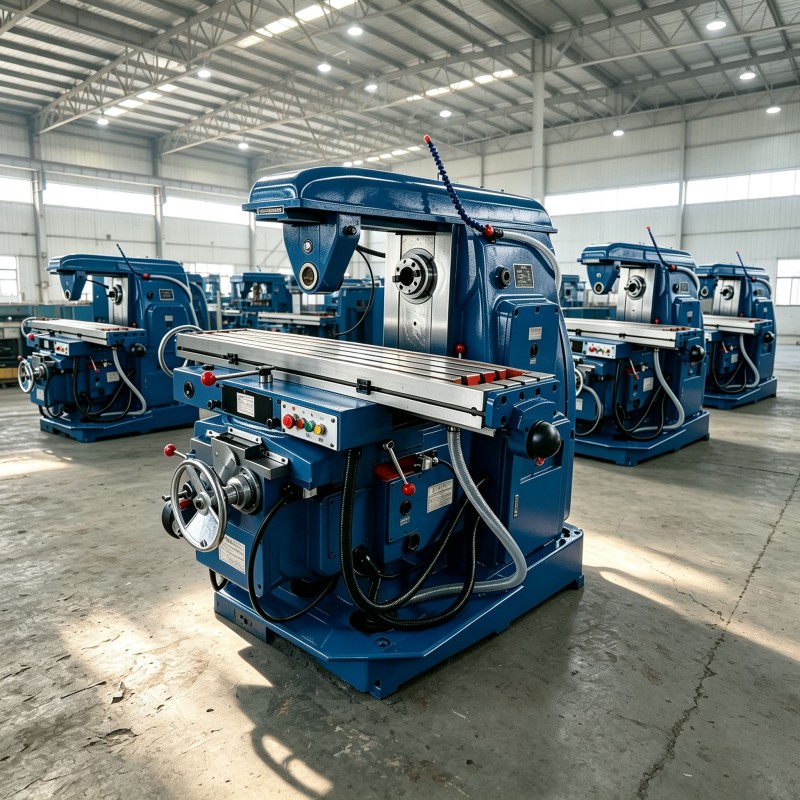

X6140 Universal Knee‑Type Horizontal Milling Machine

The X6140 knee‑type universal milling machine is a heavy‑duty manual metal‑cutting equipment.
Equipped with hardened‑ground guideway, 18‑speed spindle and ±45° rotatable worktable, it supports 3‑axis automatic rapid‑feed movement.
The 1700×400 mm worktable bears maximum 800‑kg load. It is adaptable for milling flat surfaces, grooves, fixtures, flange and hardware work‑pieces.
Certified with CE,ISO9001,RoHS and GS. Custom‑tuned machine appearance and paint colour are available.

Quantity:
Availability:





Inquire Add to Basket

Model:
X6140
Brand:
SDCNC

X6140 milling machine knee‑type mill universal milling machine metal milling machine manual mill

Product Description

Specifications	Units	X6140
Table size	mm	1700×400
Table load	kg	800
T slot(number-width-pitch)	mm	3-18-90
Table travel	mm	900/880 315/300 350/330
Range of table feed	mm /min	XY:23.5-1180 Z:8-394
Rapid speed of table	mm /min	XY:2300 Z:770
Spindle taper		ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)
Swivel angle oftable	°	±45
Distance between spindleaxisand table surface	mm	30-380
Spindle motor power	kw	11
Feed motor power	kw	1.5
Weight	kg	3950/4200
Overall dimension	mm	2560×2160×2100
