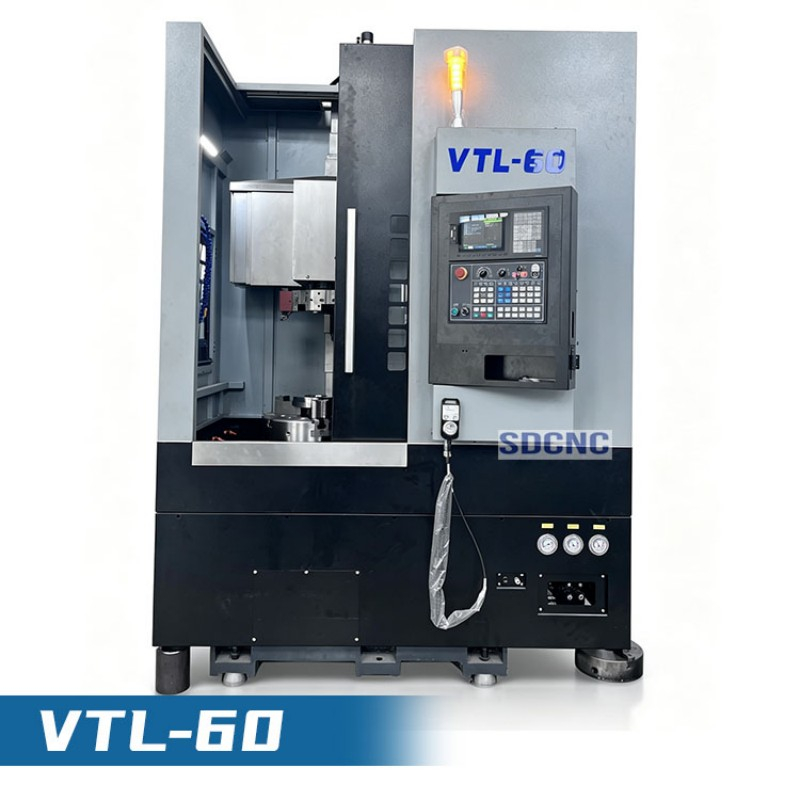

VTL60 High Speed CNC Vertical Lathe

Full NSK spindle bearings, 340N・m high torque, stable heavy cutting
Large swing & travel, ideal for large disc workpieces

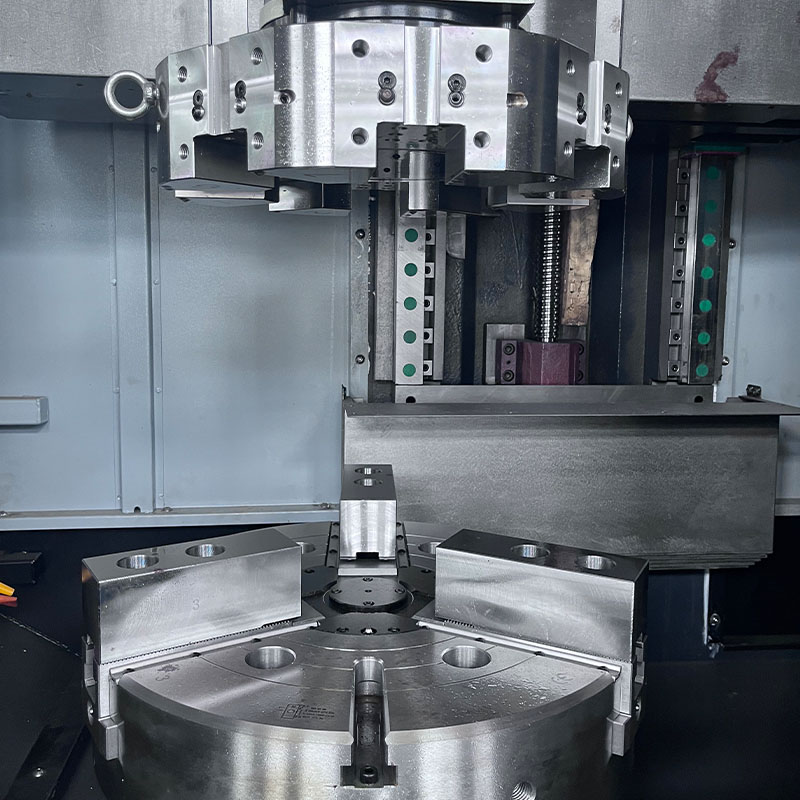

15" 3-jaw hydraulic chuck + 8-station turret, high processing efficiency
11kW servo spindle, wide speed range 100-2500rpm

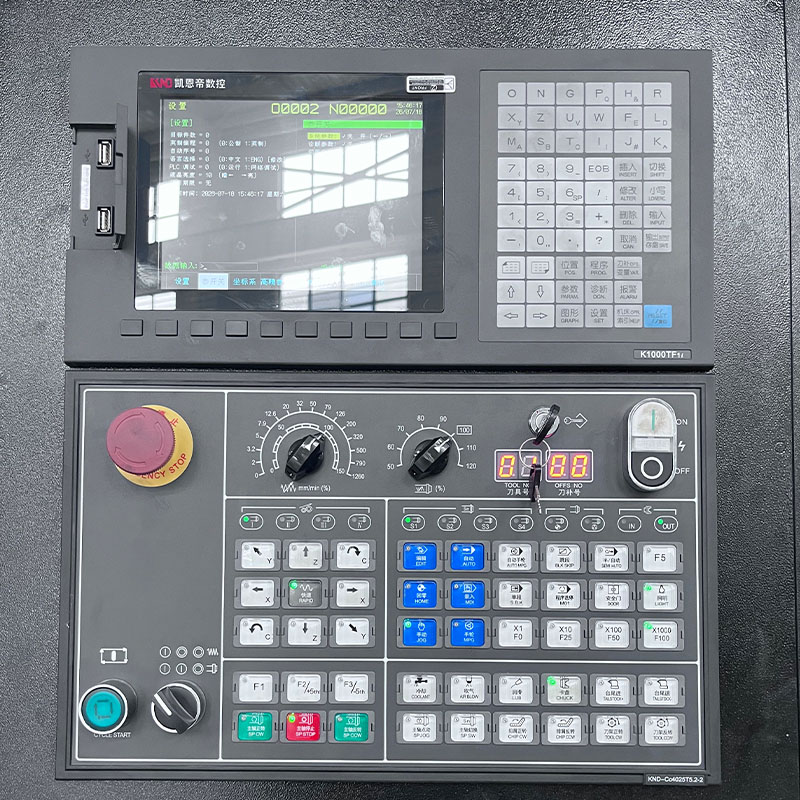

Standard GSK980TC3 CNC, optional systems, easy operation
Straight spindle nose, strong compatibility with fixtures

Quantity:
Availability:





Inquire Add to Basket

Model:
VTL60
Brand:
SDCNC

Product Description

Model	VTL60
Control System	Standard GSK980TC3, optional
X-axis Travel	520mm
Z-axis Travel	800mm
Max. Swing Diameter	Φ700mm
Max. Turning Diameter	Φ600mm
Max. Turning Height	400mm
Spindle Speed	100~2500rpm
Spindle Motor Power	11kW
Spindle Nose Type	Straight
Spindle Rated Torque	340N·M (direct drive)
Spindle Bearing Grade	NSK
Front Bearings	NSK
Rear Bearings	NSK
Spindle Outer Diameter	Φ130mm
Reduction Ratio	1:2 (belt drive)
Chuck Type	3-jaw hydraulic chuck
Chuck Diameter	V-3R / 15" (Φ381)
Tool Turret Stations	Horizontal 8-station turret
