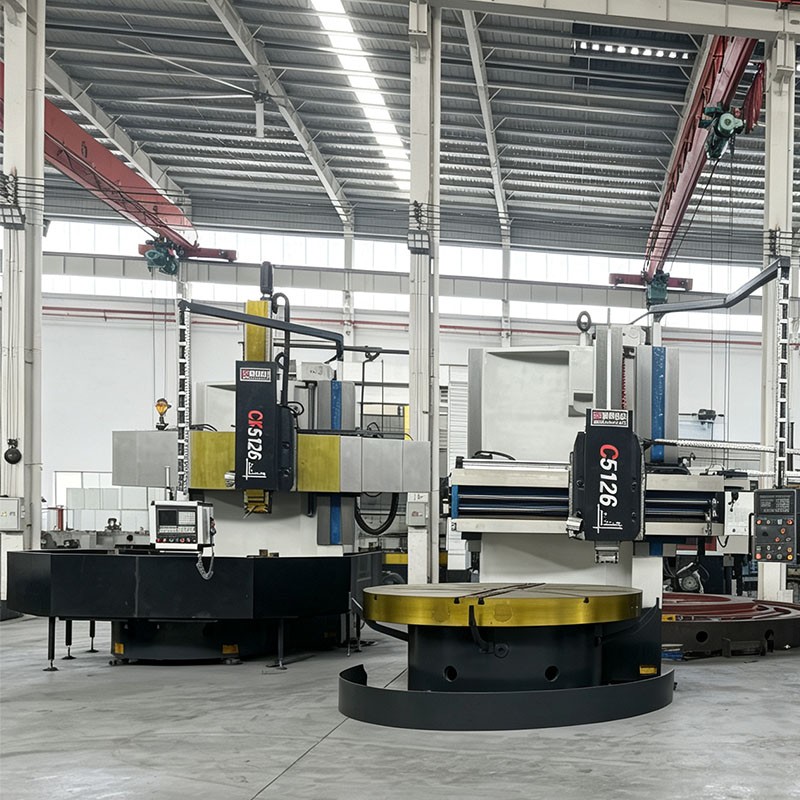

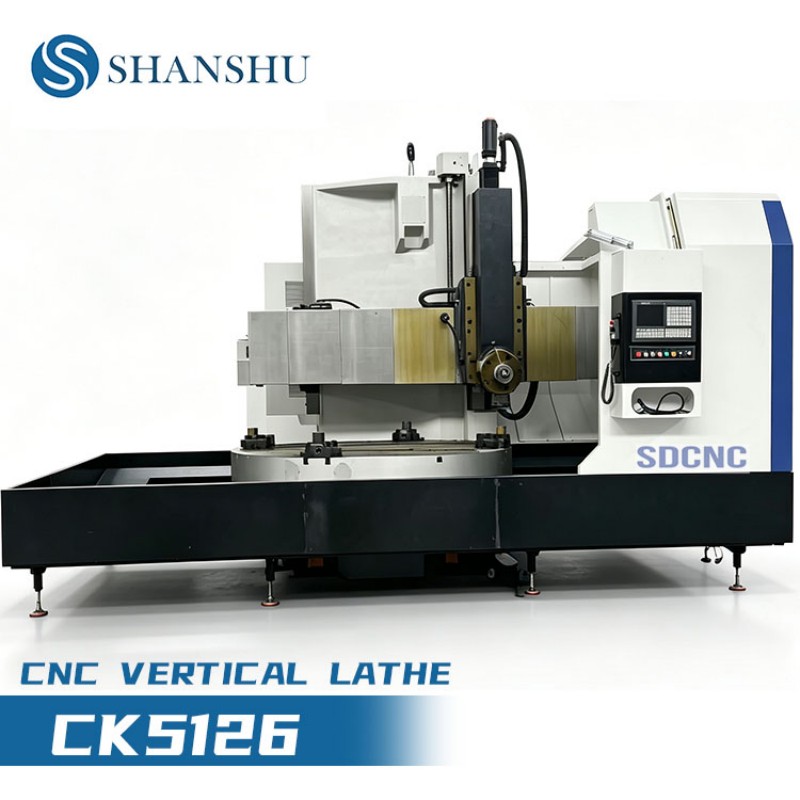

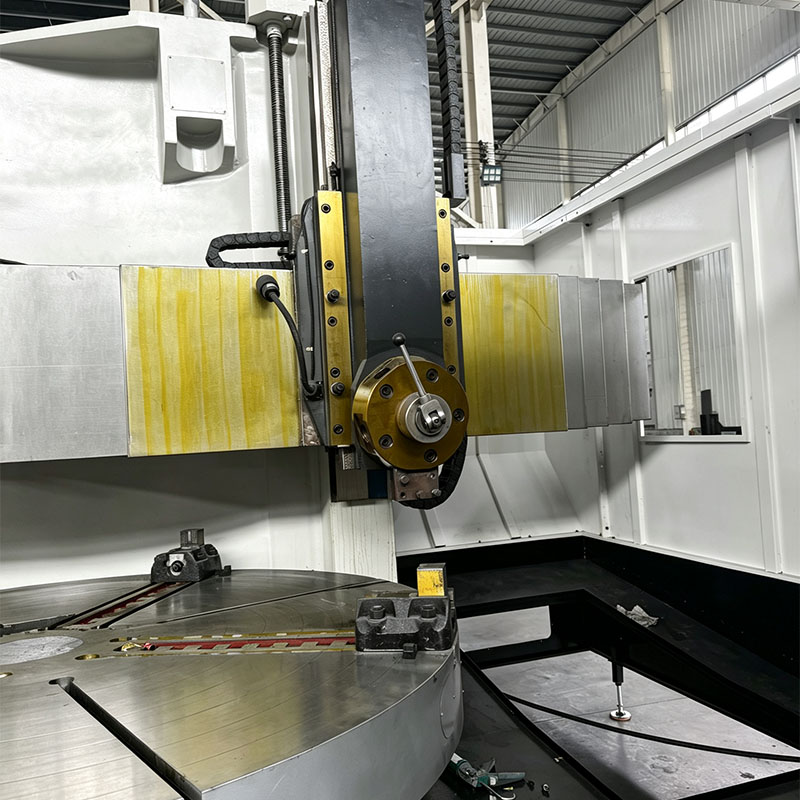

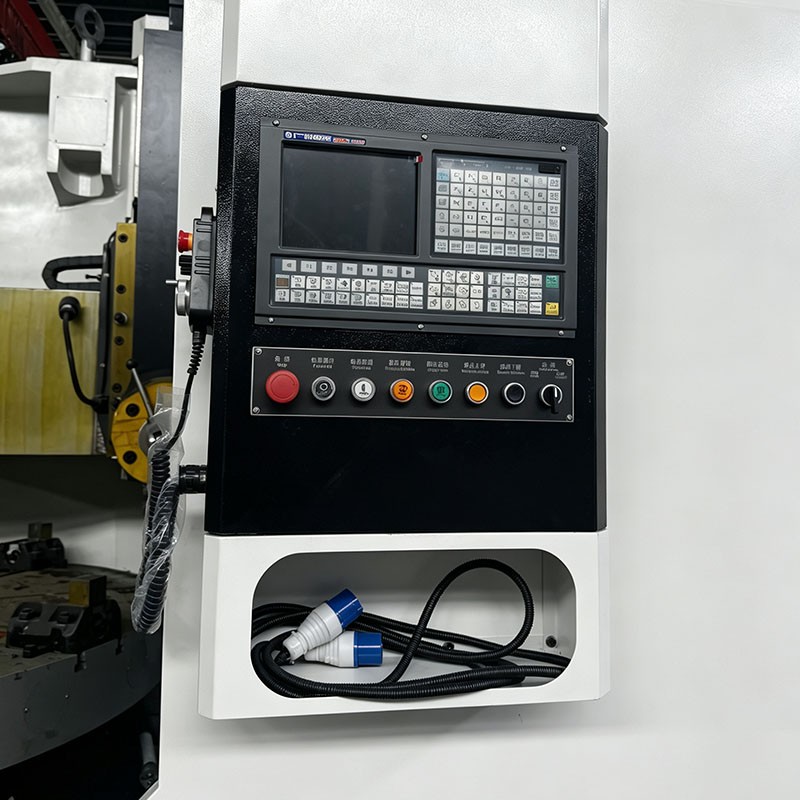

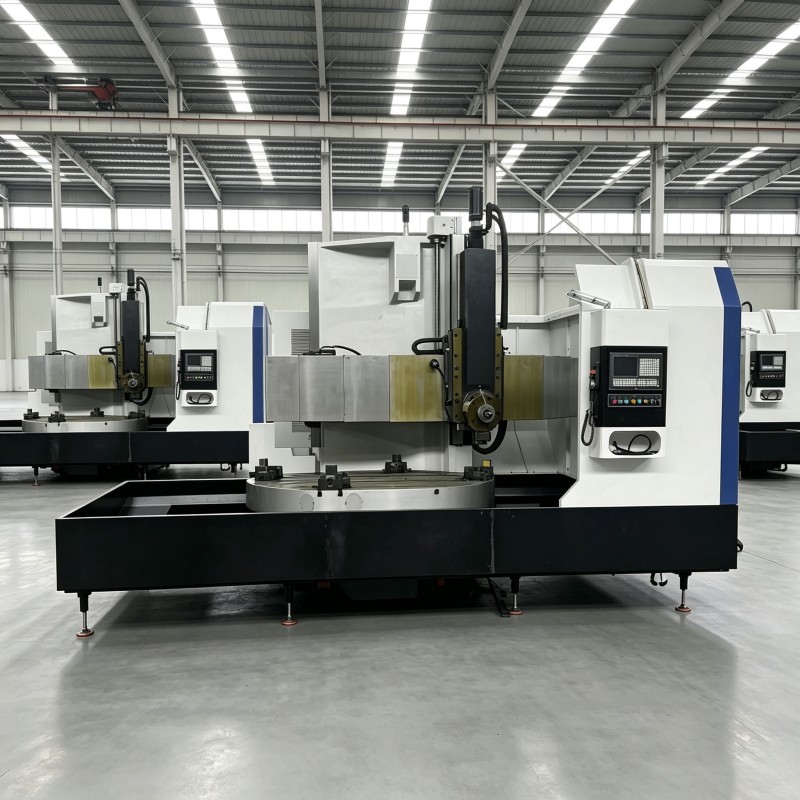

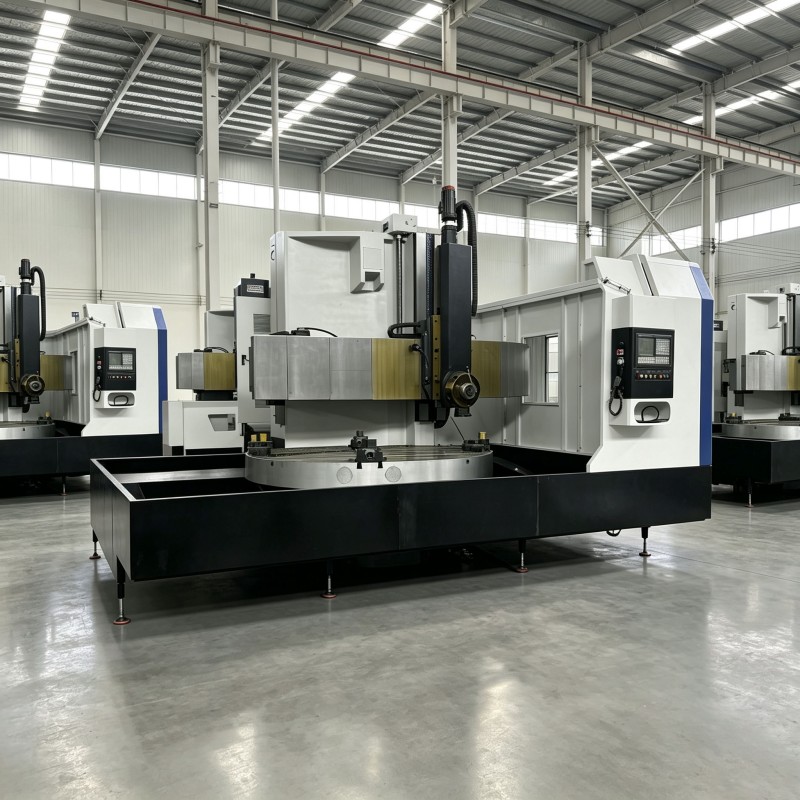

CK5126 Vertical CNC Lathe

Specification

Units

CK5126

CK5132

Table diameter

mm

2300

2830

Max.turning diameter

mm

2600

3200

Max.height of workpiece

mm

1500/1800

1500/1800

Max.weight of workpiece

T

10

12

Table speed range

rpm

2.5-80

2-63

Table speed steps

22

22

Max.torque of table

N·m

45000

45000

Vertical tool post feed range

mm/min

0-500

0-500

Vertical tool post feed steps

steps

16

16

Max.Cutting force of vertical tool post

KN

22

22

Max.travel of vertical tool post(horizontal)

mm

1600

1800

Max.travel of vertical tool post(verticall)

mm

1000

1000

Swivel angle of vertical tool post

°

±30

±30

Max.Cutting force of side tool post

N

23000

23000

Side tool post travel(horizontal)

mm

630

630

Side tool post travel(vertical)

mm

900

900

Tool post rapid traverse

mm/min

2300

2300

Tool size

mm

30*40

30*40

Max.travel of cross beam

mm

1000

1000

Cross beam lifting speed

mm/min

440

440

Cross beam lifting motor power

kw

2.2

2.2

Main motor power

kw

37

45

Machine weight

kg

21000

26000

Overall dimension

mm

3300*4000* 3500/3800

3300*4000* 3500/3800
