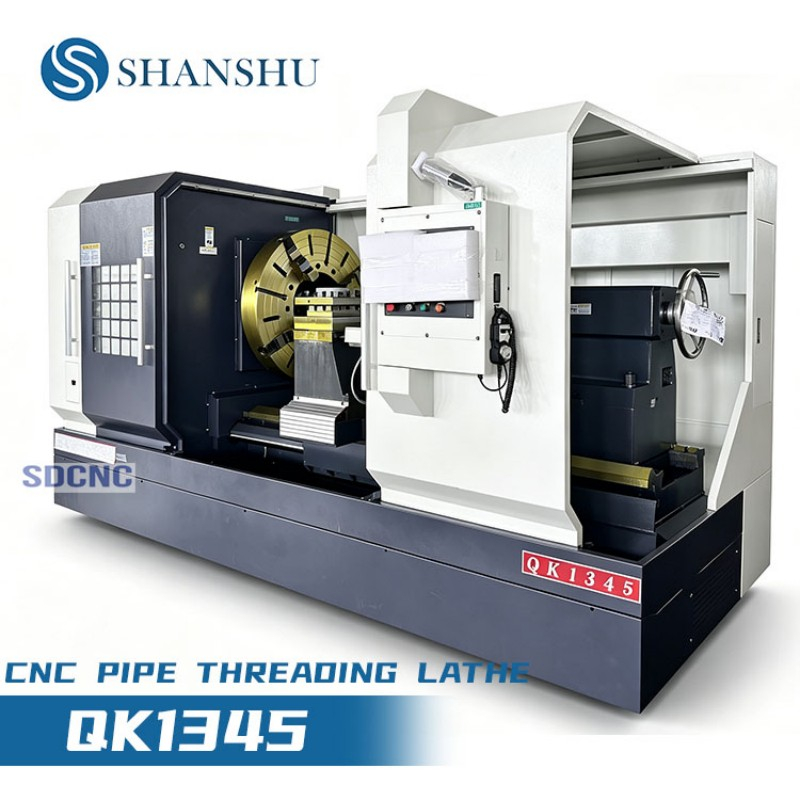

QK1345 CNC Pipe Thread Lathe

SPECIFICATION

Units

Swing over bed

mm

1000

Swing over cross slide

mm

610

Distance between centers

mm

1500/3000

Pipe threading range

mm

190-320

Guideway width

mm

755

Max. load capacity

T

6

Spindle bore

mm

330

Spindle speed steps

-

VF. 3 steps

Spindle speed range

rpm

10-280

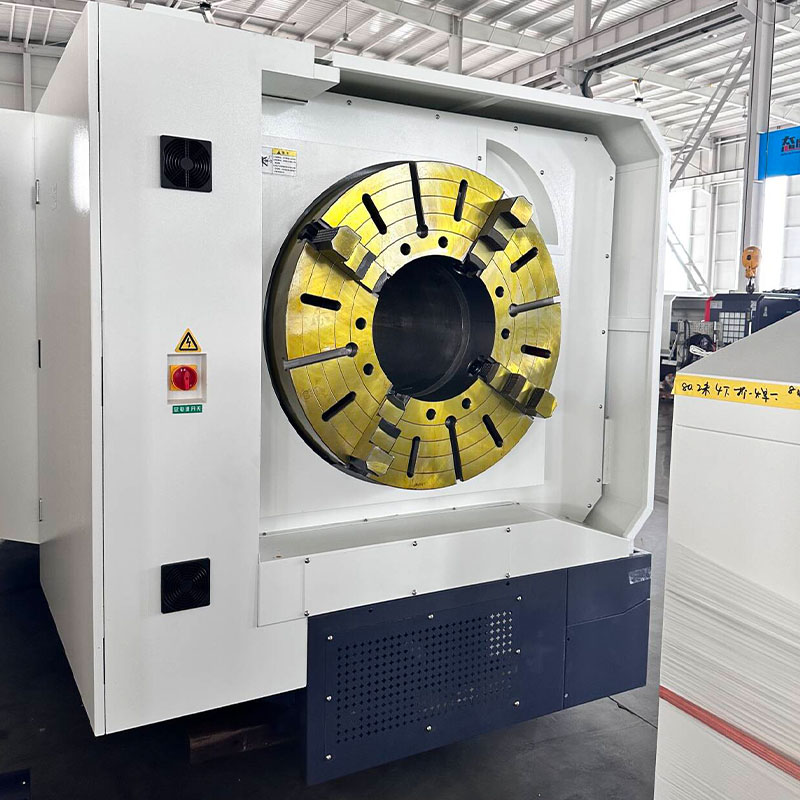

Chuck

mm

4-jaw electric

Turret/tool post

-

NC turret 4 position

Tool shank size

mm

40 x 40

X axis travel

mm

520

Z axis travel

mm

1250/2750

X axis rapid traverse

mm/min

4000

Z axis rapid traverse

mm/min

4000

Tailstock quill diameter

mm

φ160

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

300

Main spindle motor

kW

22

Coolant pump motor

kW

0.125

Weight for 1500

kg

11500

Weight for 3000

kg

12500

Dimension for 1500

mm

5000x2080x2080

Dimension for 3000

mm

6500x2080x2080
