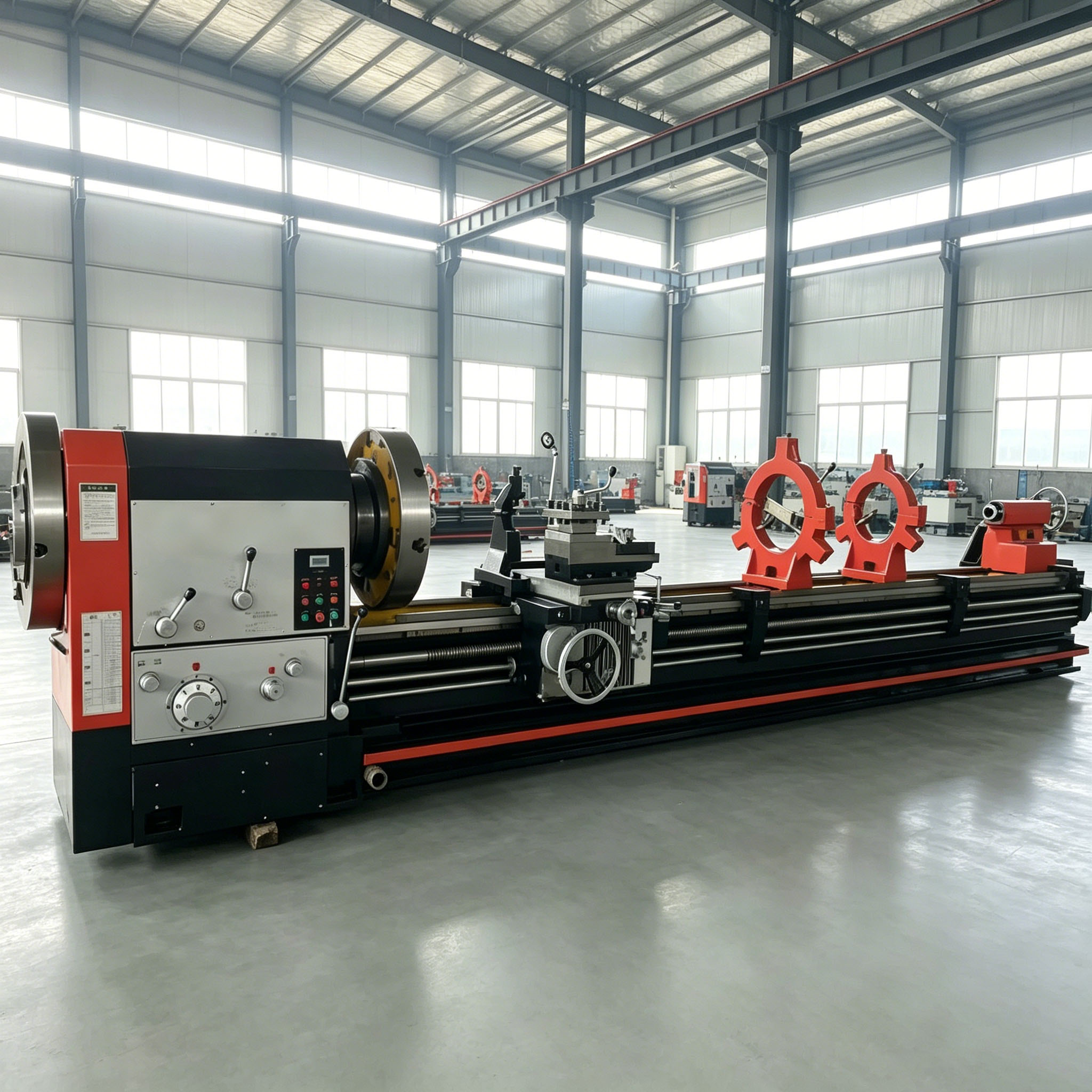

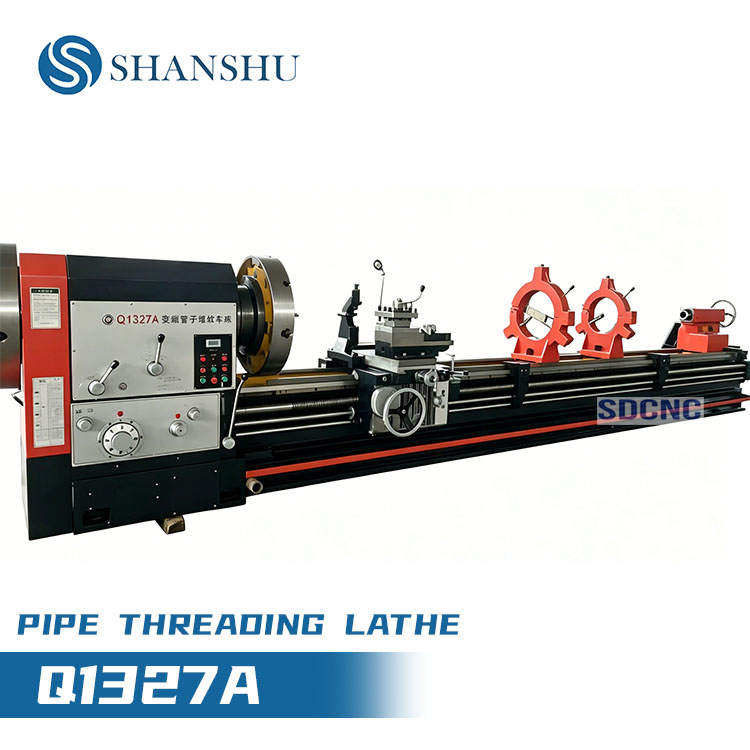

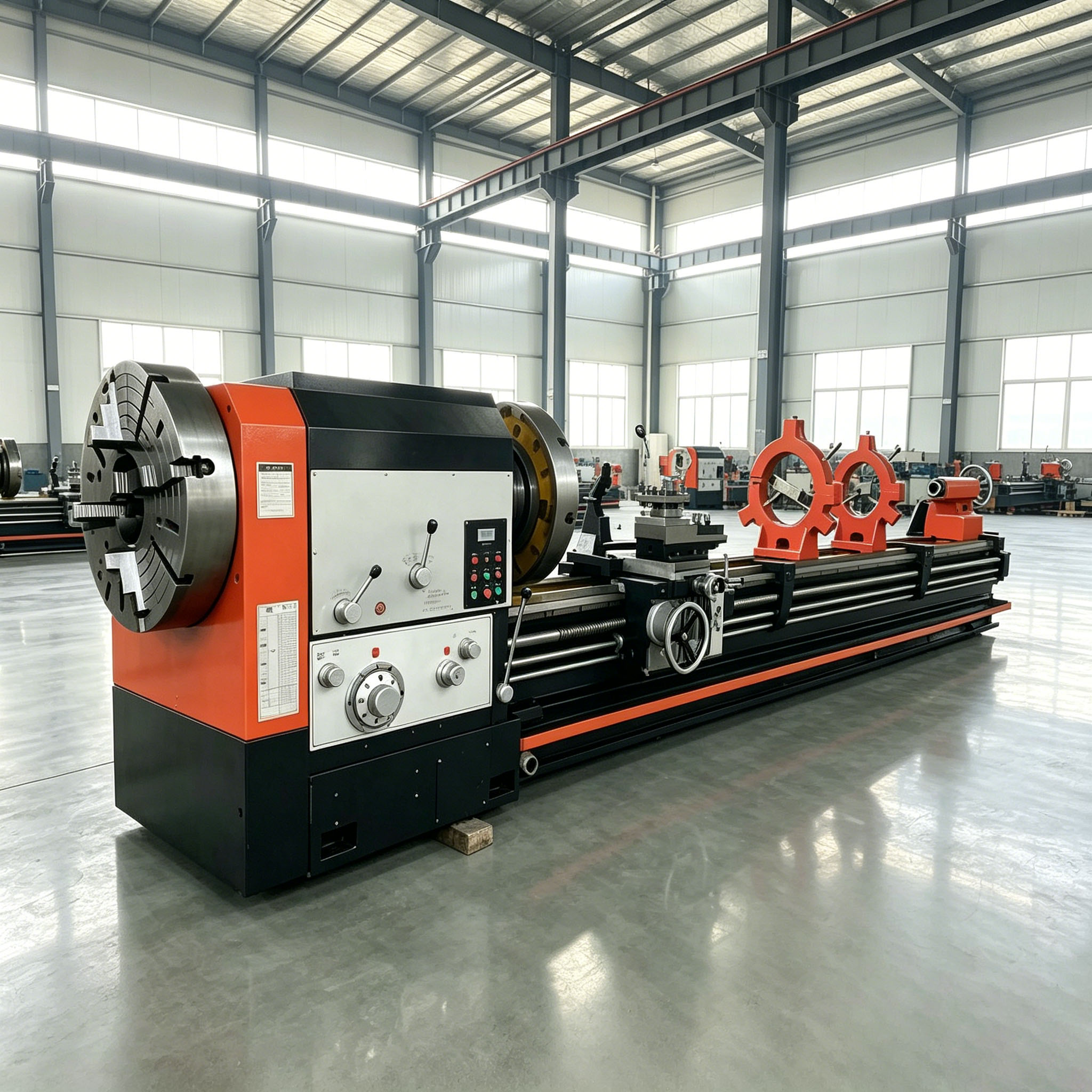

Q1327A Heavy Duty Pipe Threading Horizontal Lathe

Q1327A is a professional heavy-duty oil country pipe threading lathe specially designed for petroleum and mining industries. It features a super large 270mm spindle bore to pass through big-diameter drill pipes and casings. The integral thick cast iron bed with 755mm wide wear-resistant guideway ensures strong rigidity under heavy load cutting. It can process metric, inch and taper internal & external threads, and complete turning, boring and facing of shaft & pipe workpieces. Optional 1500/3000mm center distance, complete spare parts and professional after-sales technical support are available.

Quantity:
Availability:





Inquire Add to Basket

Model:
Q1327A
Brand:
SDCNC

Product Description

Model	Q1313A	Q1319A	Q1323A	Q1325A	Q1327A
Guideway width	550mm	550mm	550mm	600mm	600mm
Max.swing over bed	630mm	630mm	670mm	800mm	800mm
Max swing over carriage	340mm	340mm	340mm	540mm	540mm
Hole through spindle	130mm	200mm	230mm	255mm	280mm
Max.processing Pipe diameter	30-126mm	50-196mm	50-225mm	100-250mm	100-275mm
Max. length of turning	1350 1850 2850 3850 4850mm
Max. length of workpiece	1500 2000 3000 4000 5000mm
Max. load of Lathe bed	3000kg
No.and range of metric thread	1-15/23mm
No.and range of inch thread	2-28/22
Rapid traverse speed	4000mm/min
Maximum taper of thread	1：4
Max. taper machining length	500mm
