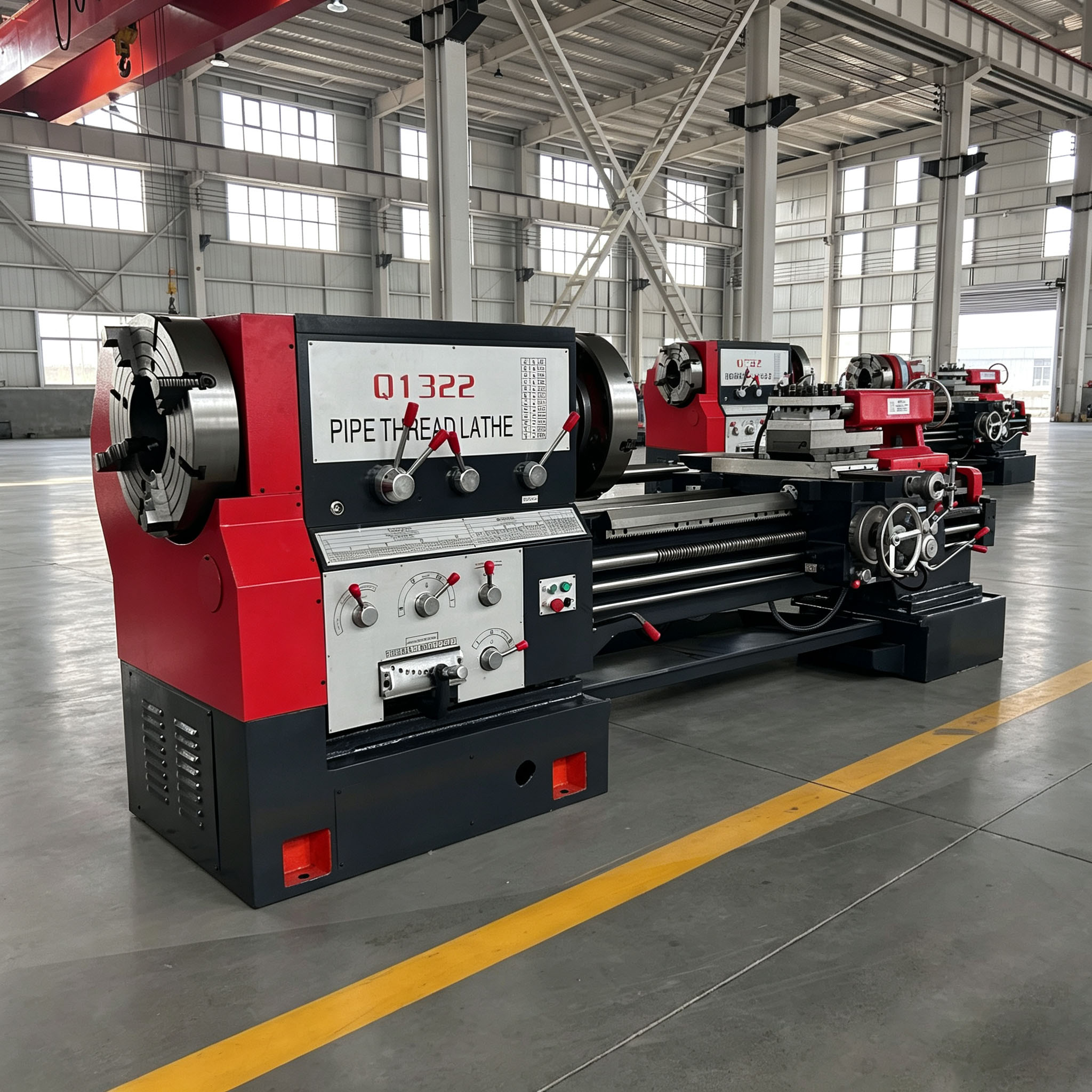

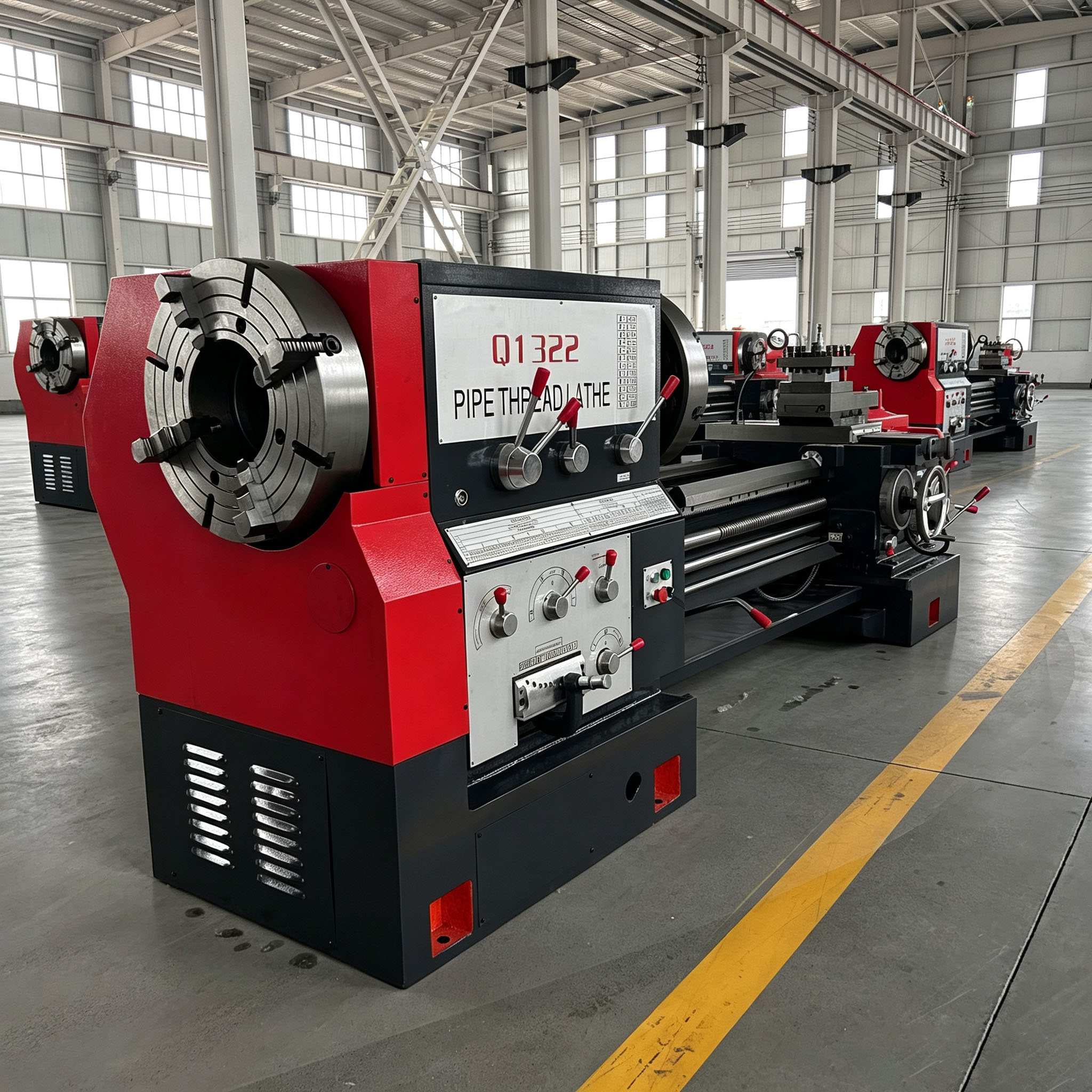

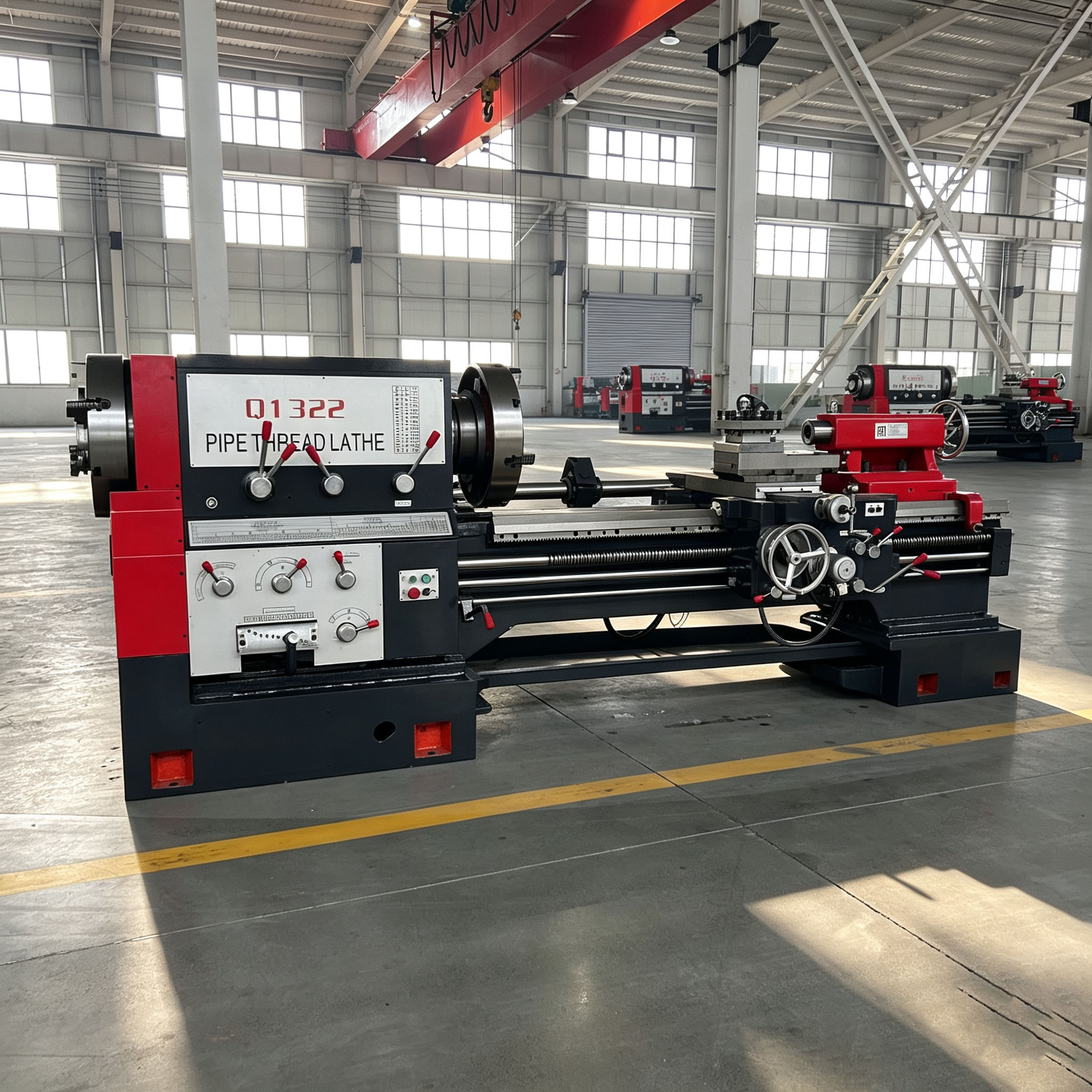

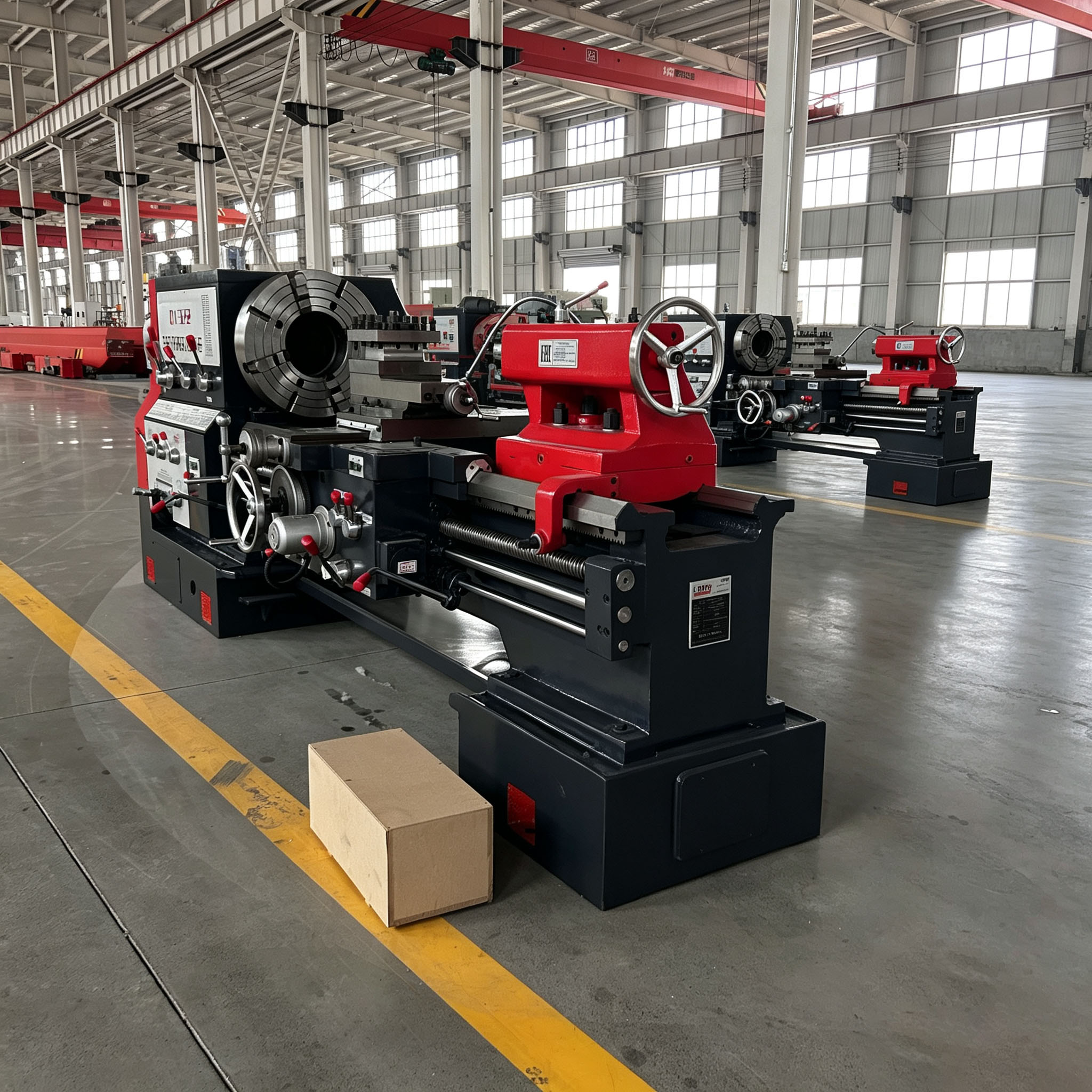

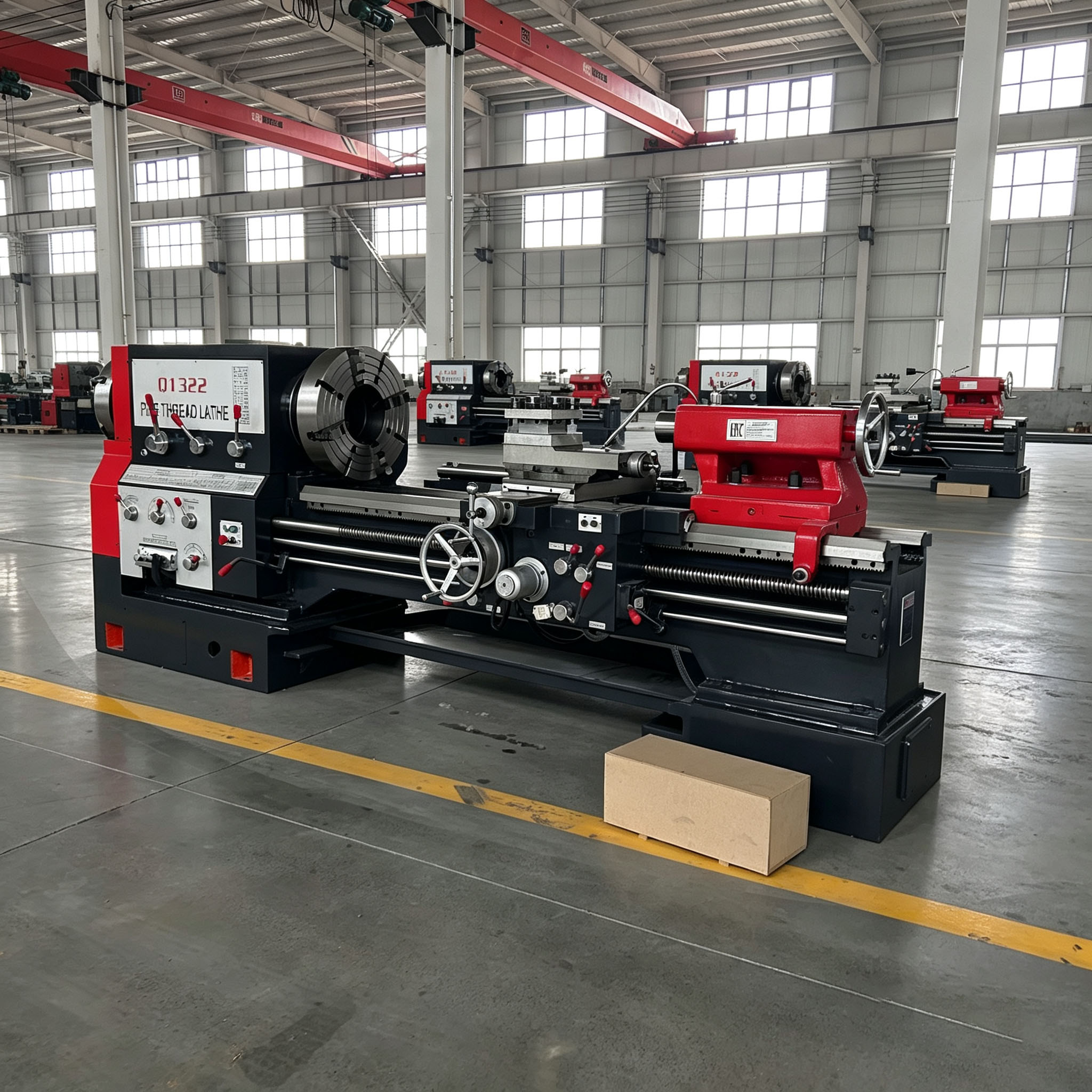

Q1322 Pipe Thread Lathe

Q1322 pipe threading lathe is heavy-duty equipment dedicated to pipe machining. Its large spindle bore fits all kinds of steel pipe threading and turning. With strong rigidity and precise thread effect, it suits mass production in oil field and pipe workshops, easy to operate and highly stable.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Q1322

  • SDCNC

Q1322 Pipe Thread Lathe horizontal pipe threading lathe metal pipe cutting lathe oil country lathe
Product Description
SPECIFICATIONS
Units
Q1322
Swing over bed
mm
630/800
Swing over cross slide
mm
340/520
Distance between centers
mm
1500/3000
Pipe threading range
mm
50-220
Guideway width
mm
550
Max. load capacity
kg
3000
Spindle bore
mm
230
Spindle speed steps
-
VF. 4 steps
Spindle speed range
rpm
20-550
Chuck
mm
φ520 4-jaw manual
Turret/tool post
-
Manual 4 position
Tool shank size
mm
32 x 32
X axis travel
mm
320/420
Z axis travel
mm
1350/2850
X axis feed steps/range
mm/r
22/0.02-0.45
Z axis feed steps/range
mm/r
26/0.07-1.33
X axis rapid traverse
mm/min
2300
Z axis rapid traverse
mm/min
4000
Metric thread kinds /range
mm
1-15
Inch thread kinds /range
T.P.I
14-1
Tailstock quill diameter
mm
100
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
250
Main spindle motor
kw
11
Rapid traverse motor
kw
0.3
Coolant pump motor
kw
0.125
Weight for 1500
kg
4500
Weight for 3000
kg
5700
Dimension for 1500
mm
3700x1650x1550
Dimension for 3000
mm
5200x1650x1550
