Y5150 Gear Shaper High Speed Gear Shaper

The Y5150 series gear shaper, as a classic model, combines high rigidity, high precision, ease of operation, and simple maintenance, while also featuring high efficiency and low noise. It is mainly used for machining internal and external spur gears, and can flexibly adapt to the processing requirements of various gear types.

Quantity:
Color:	blue green
Availability:





Inquire Add to Basket

Model:
Y5150
Brand:
SDCNC
Code:
84614090.00

High Speed Gear Shaper Precision Gear Shaping Machine CNC Gear Shaper

Product Description

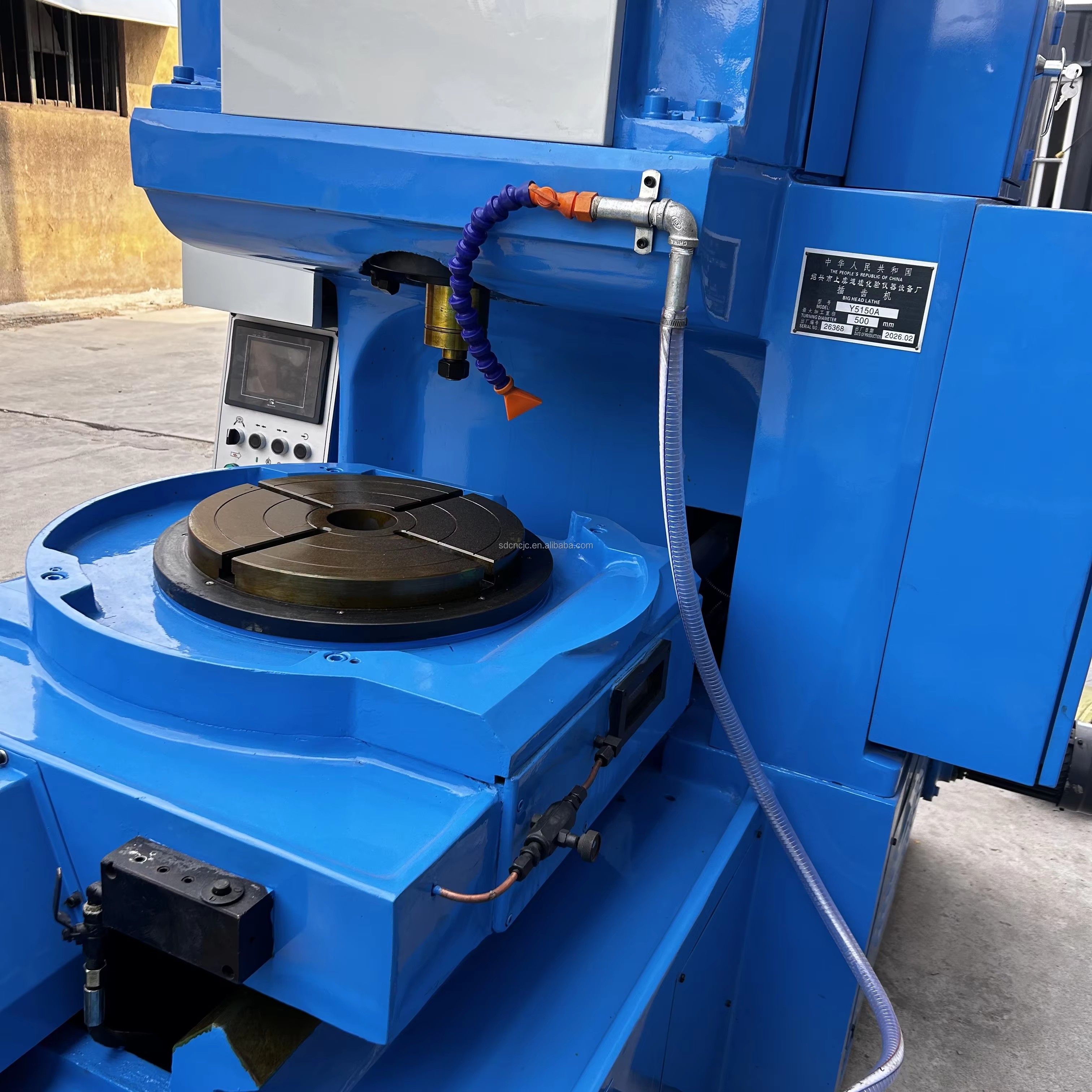

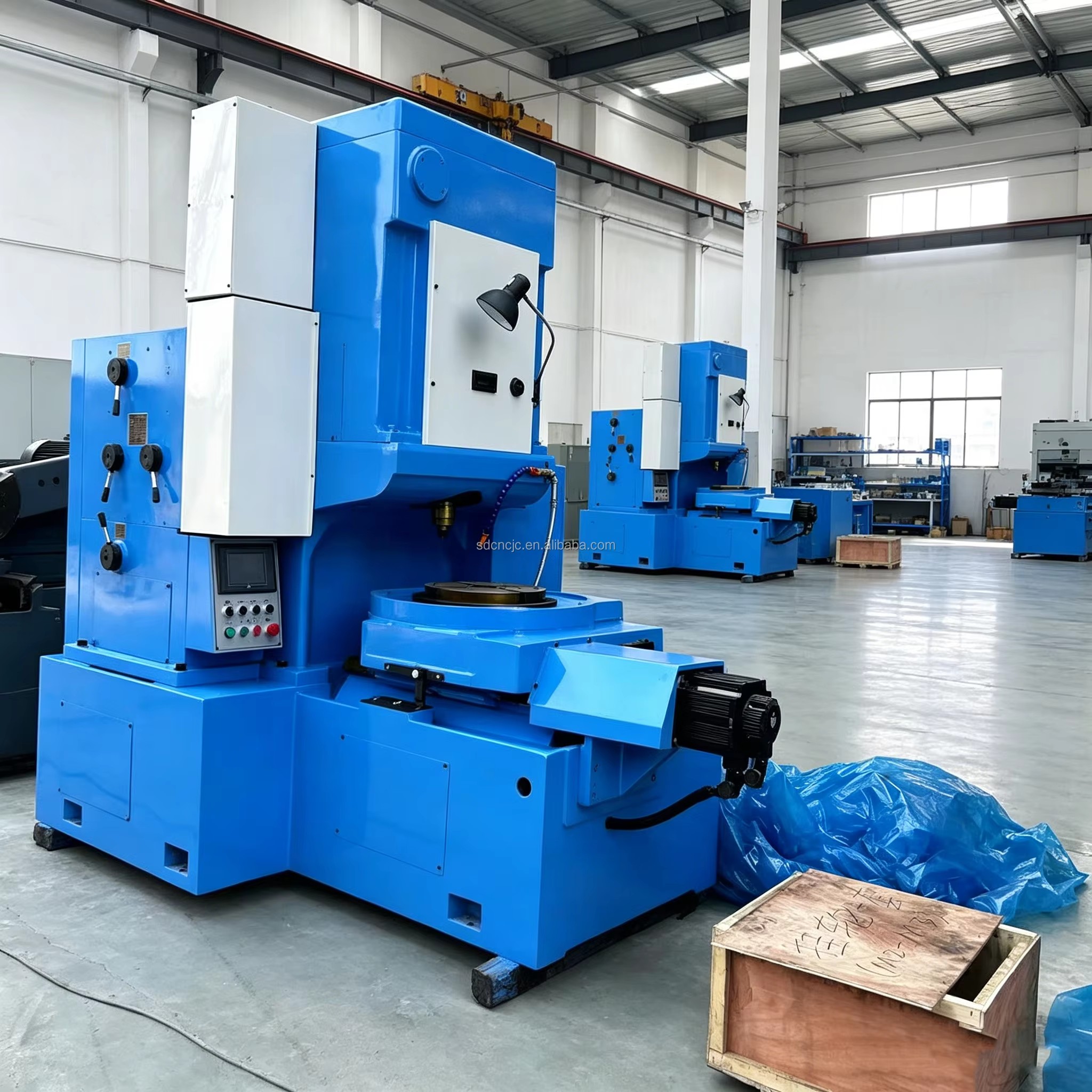

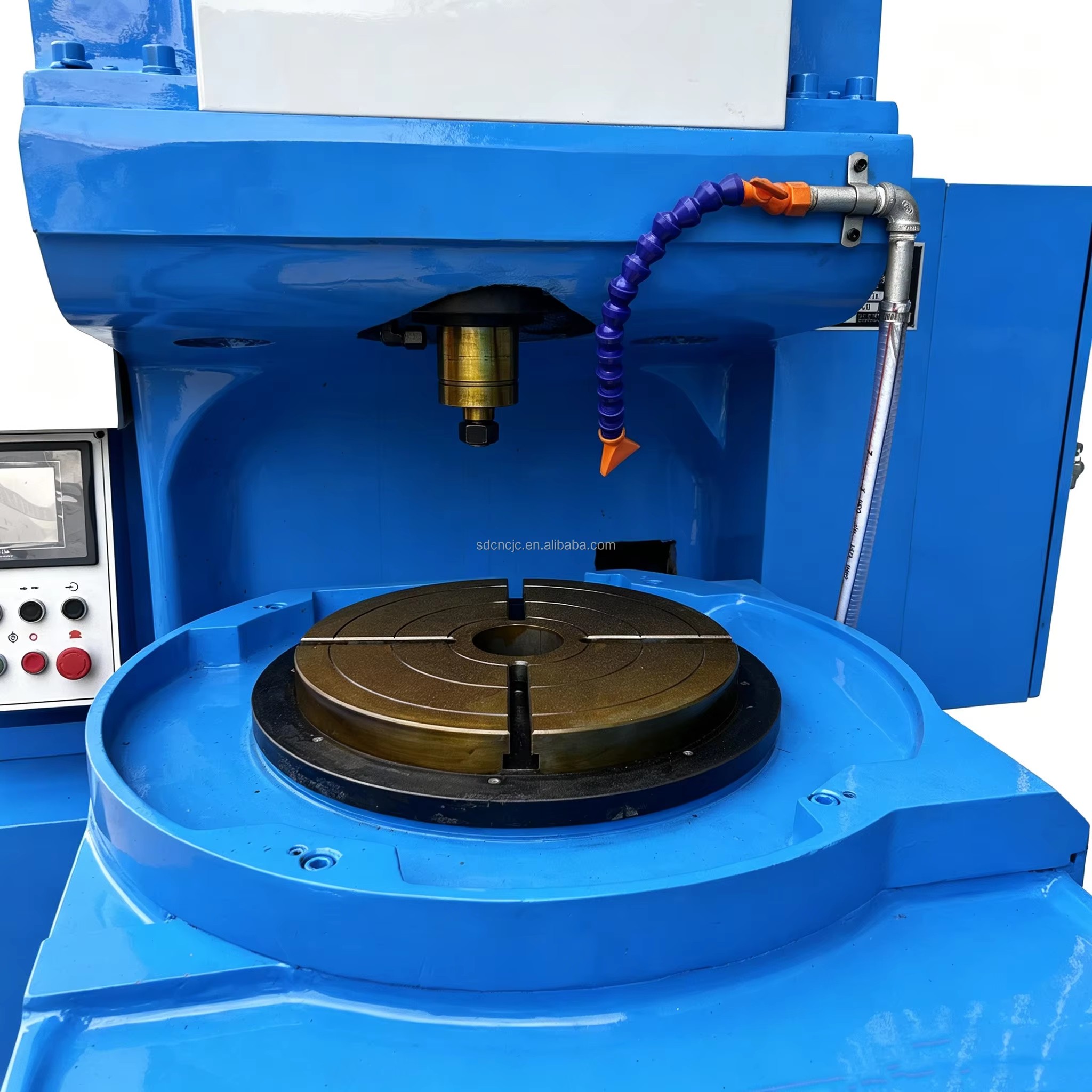

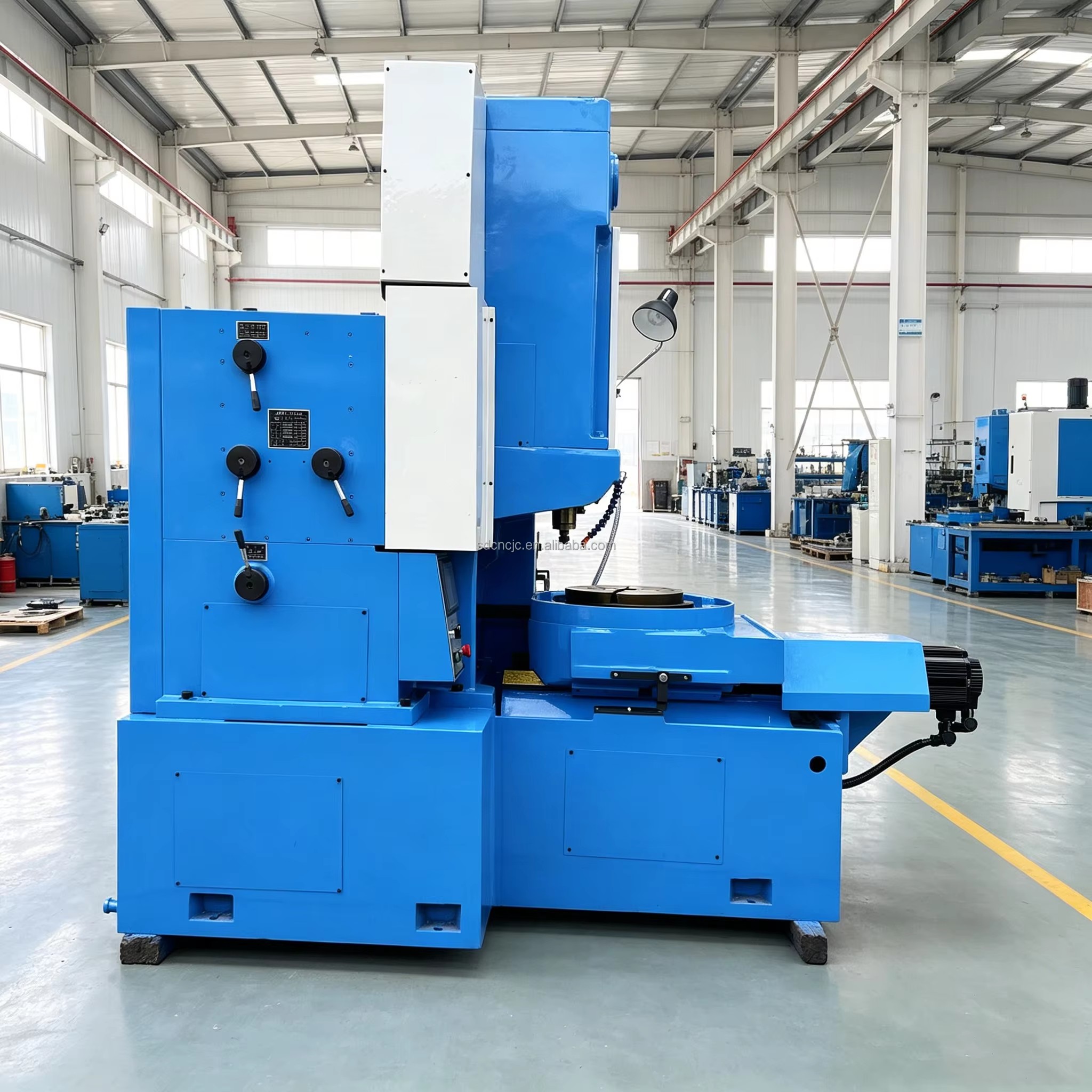

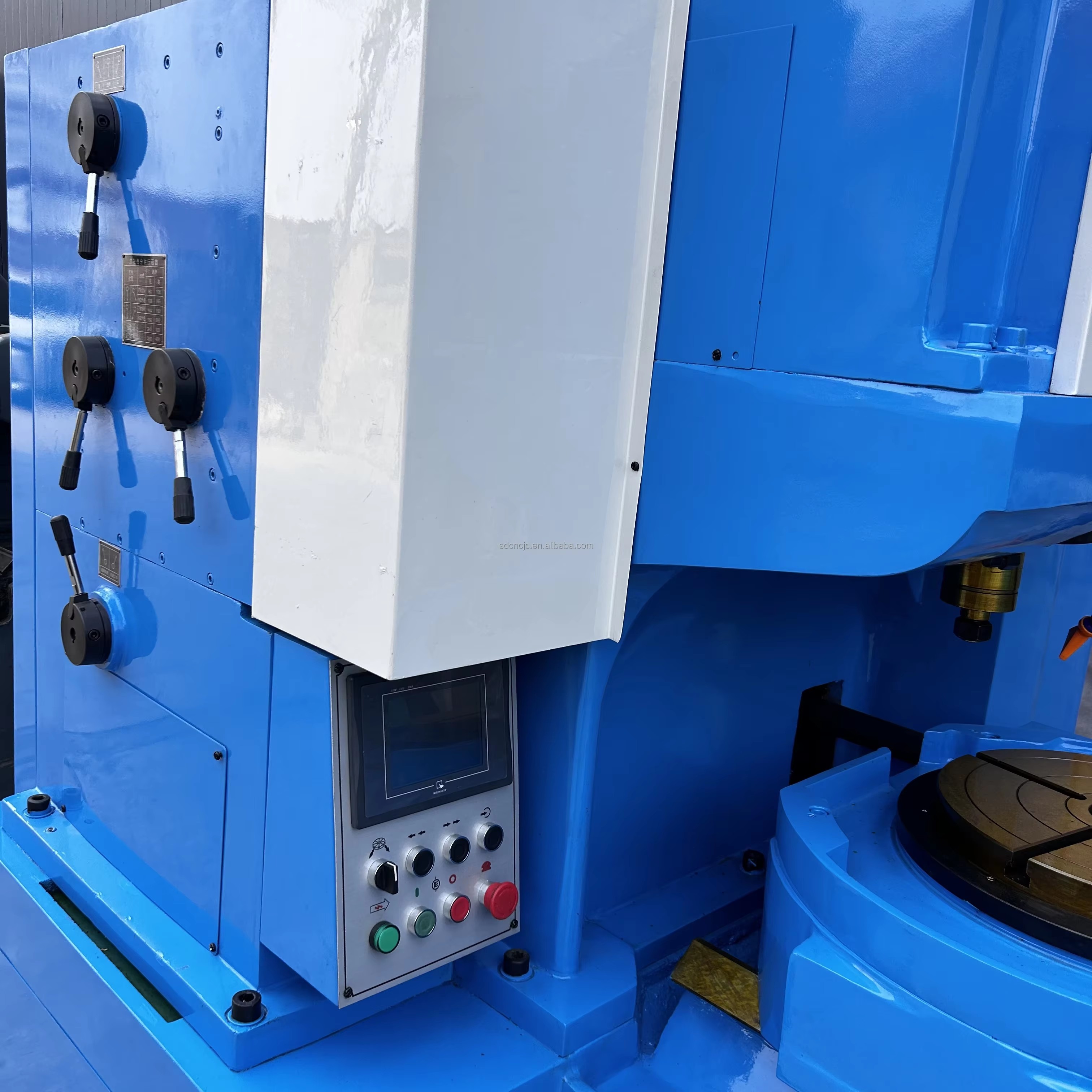

Product image

Professional Y5150 Gear Shaper from China manufacturer SDCNC. High precision gear shaping machine for various gear processing, stable performance, reliable quality, competitive factory direct price, customized service available for global buyers.

No.	Parameter	Required Value
1	Maximum pitch diameter of external and internal gears	Not less than 500 mm
2	Maximum module of gears	Not less than 8
3	Maximum gear face width	100–120 mm
4	Diameter of table working surface	560–575 mm
5	Center hole diameter in table	110–120 mm
6	Distance from table surface to tool spindle end face	120–270 mm
7	Distance from tool spindle axis to table axis	0–355 mm
8	Maximum pitch diameter of gear shaper cutter	125–135 mm
9	Tool spindle taper	Morse taper No. 5
10	Number of ram double strokes	55–560 strokes/min
11	Circular feed (with Ø100 mm cutter)	6–590 mm/min
12	Radial feed	0.02–0.2 mm/double stroke
13	Main drive motor power	4 / 4.5 / 7.5 kW
14	Overall dimensions (L×W×H)	1975 × 1690 × 2510 mm ±10%
15	Machine weight	7500 kg ±10%
16	Equipment color	Green
