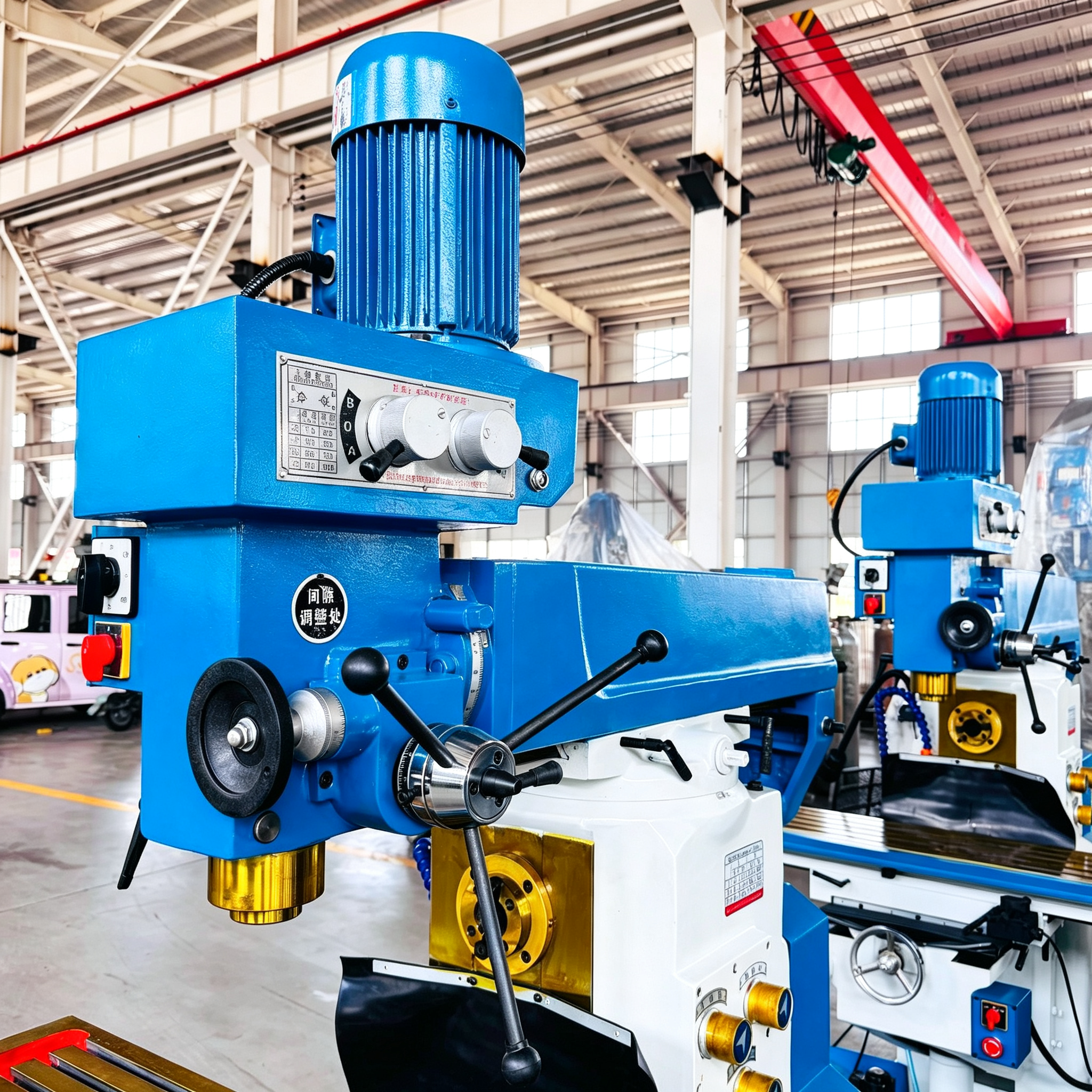

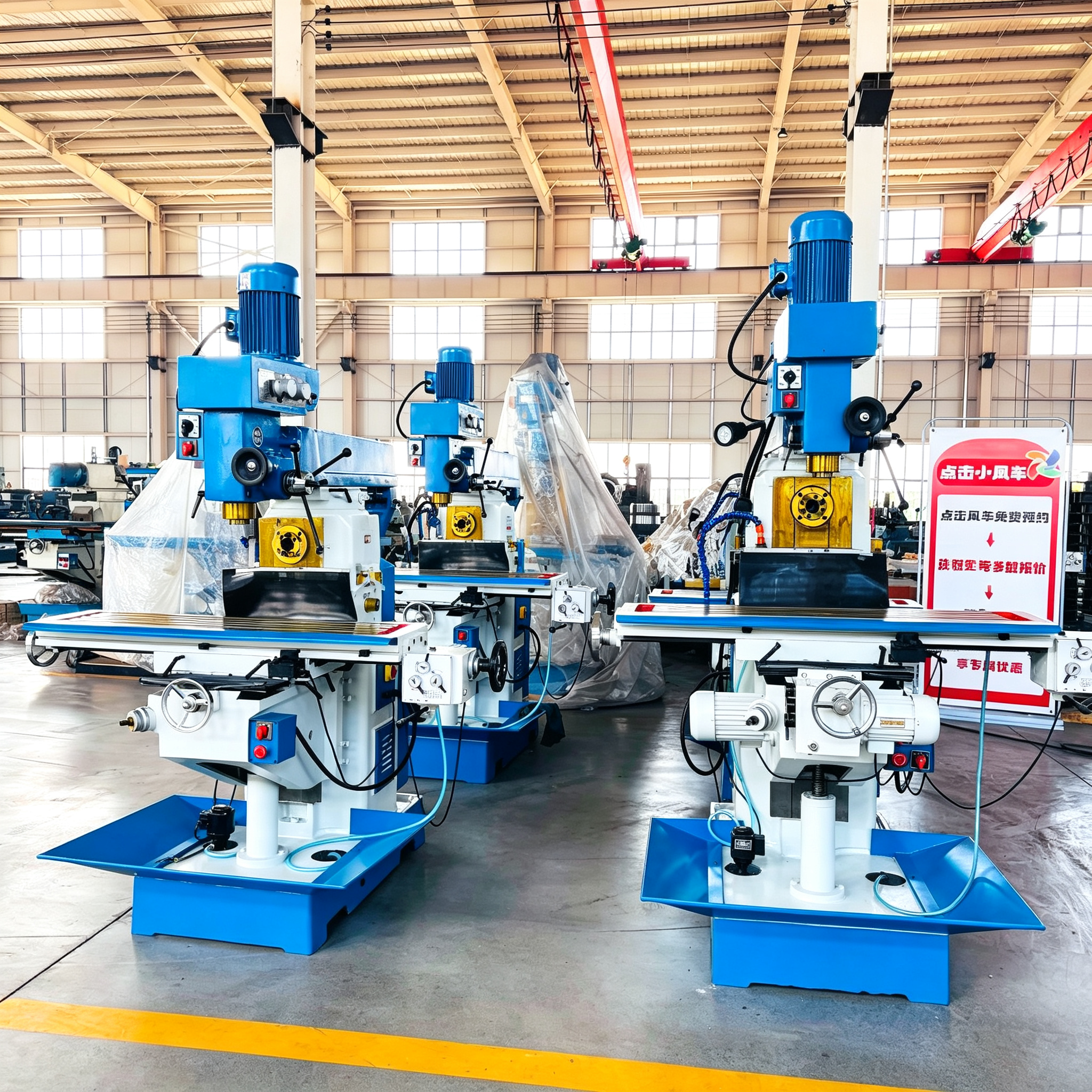

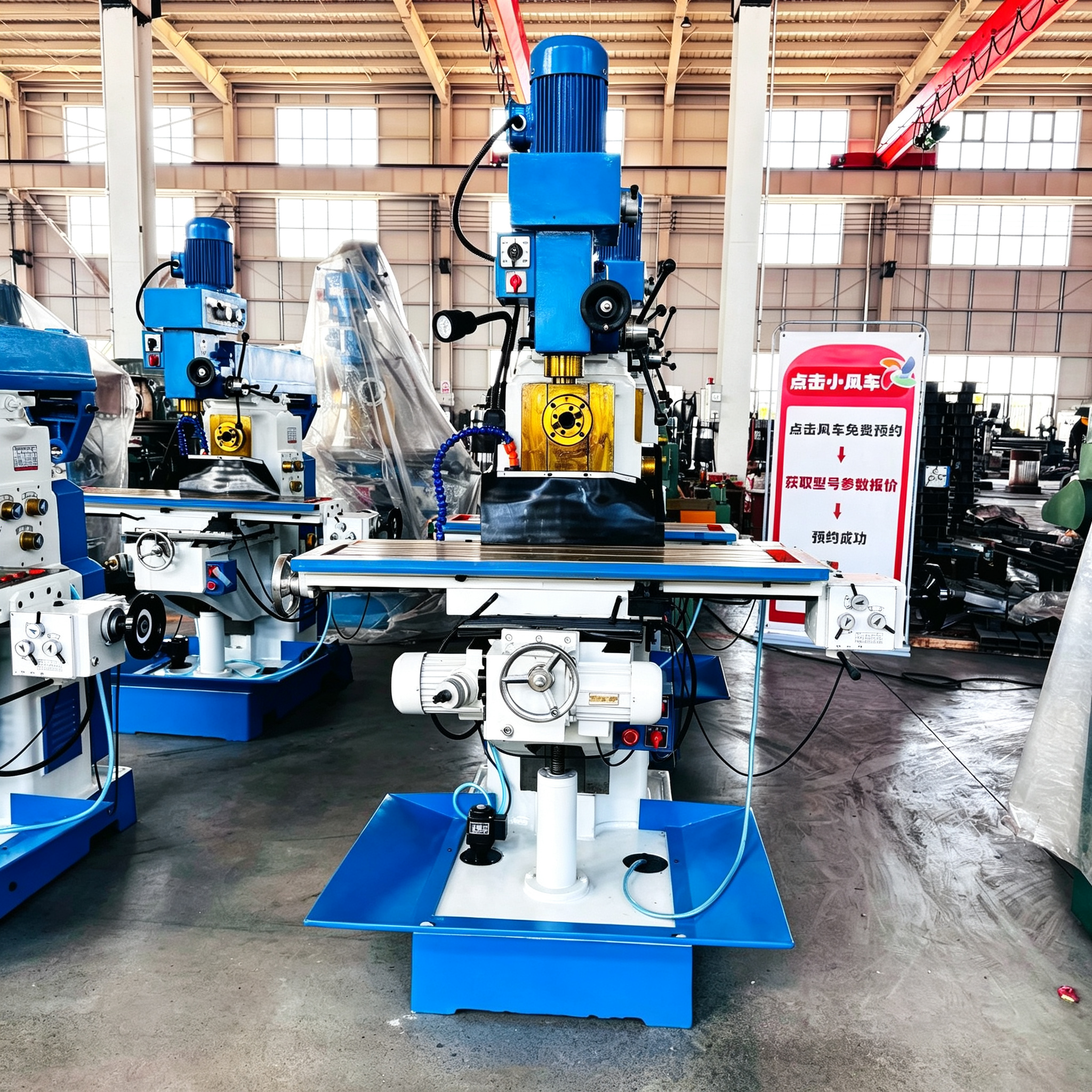

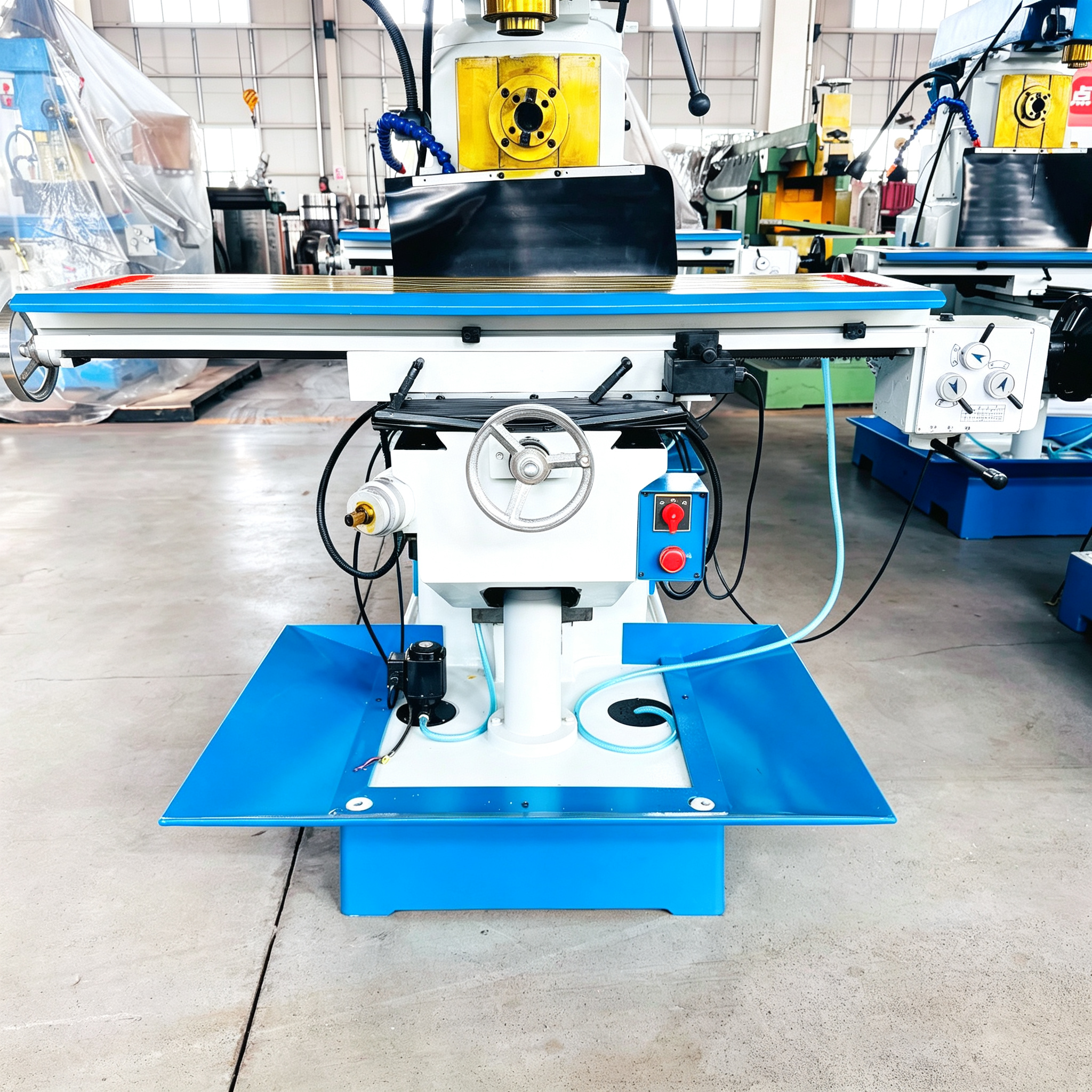

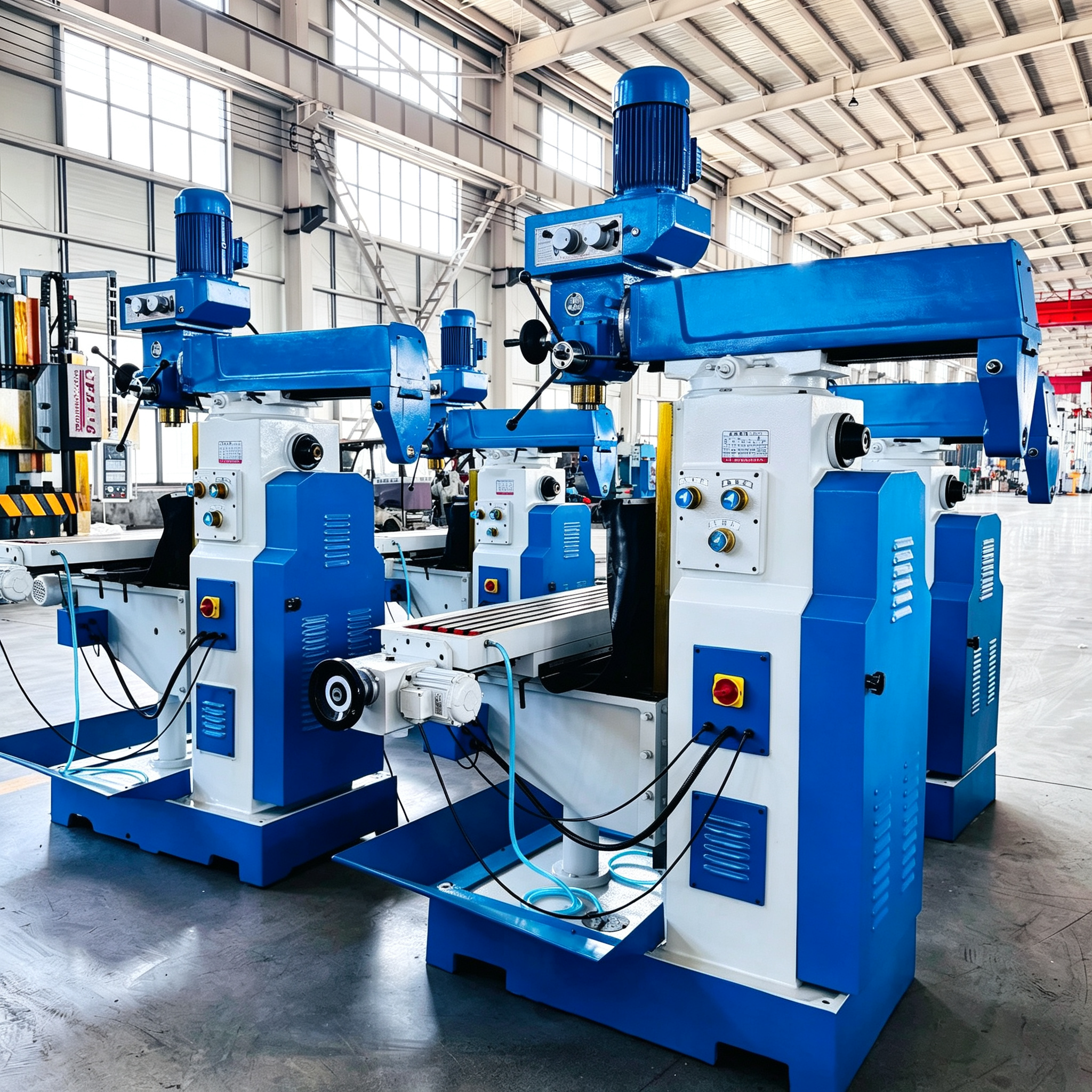

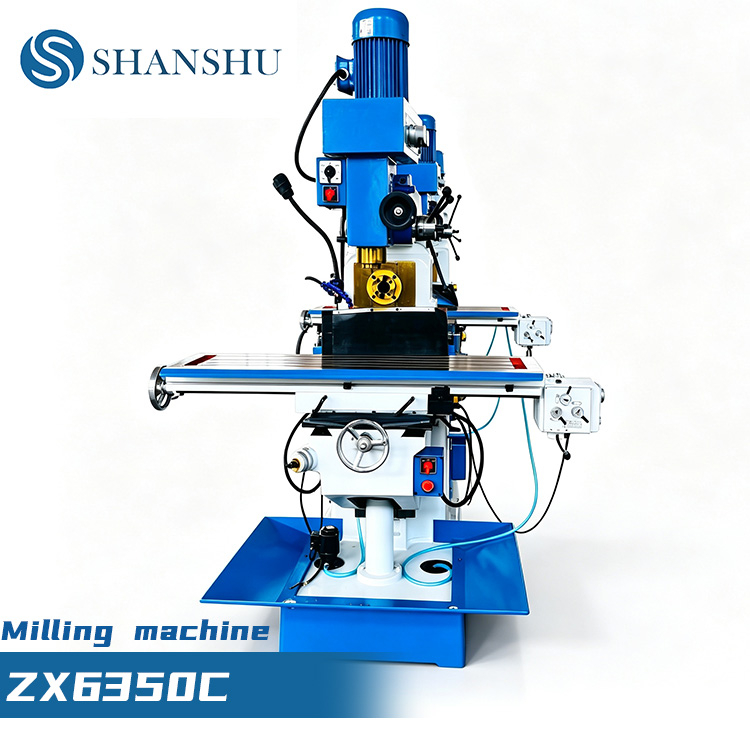

ZX6350C Universal Rotary Head Milling Machine

ZX6350C universal rotary head drilling and milling machine is a multi-purpose metal processing machine. It can complete milling, drilling, boring, tapping and slotting operations. The milling head can rotate in multiple directions to machine inclined surfaces, planes and grooves. Widely used in machinery repair, mold making and hardware processing.

Quantity:
Availability:





Inquire Add to Basket

Model:
ZX6350C
Brand:
SDCNC

ZX6350C drilling milling machine universal rotary head milling machine mill drill

Product Description

Model	unit	ZX6350
Maximum drilling diameter	mm	50
Maximum end milling diameter	mm	100
Maximum vertical milling diameter	mm	25
Maximum boring diameter	mm	120
Maximum tapping diameter		M16
Spindle speed range	rpm	(8steps)115-1750(V)
Spindle speed range	rpm	(12steps)40-1300(H)
Spindle travel	mm	120
Table size	mm	1200*280
Table travel	mm	700x280
Table feed speed	mt	X:16-480
Main motor power	kw	1.5/2.2(V);2.2(H)
Cooling pump motor power	kw	0.04
Overall dimension	mm	168014002350
Weight	kg	1350

Related Products

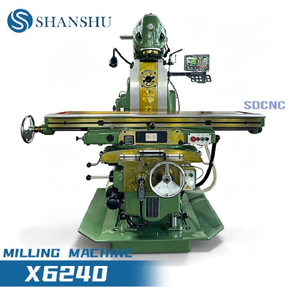

X6240 Universal Milling Machine
