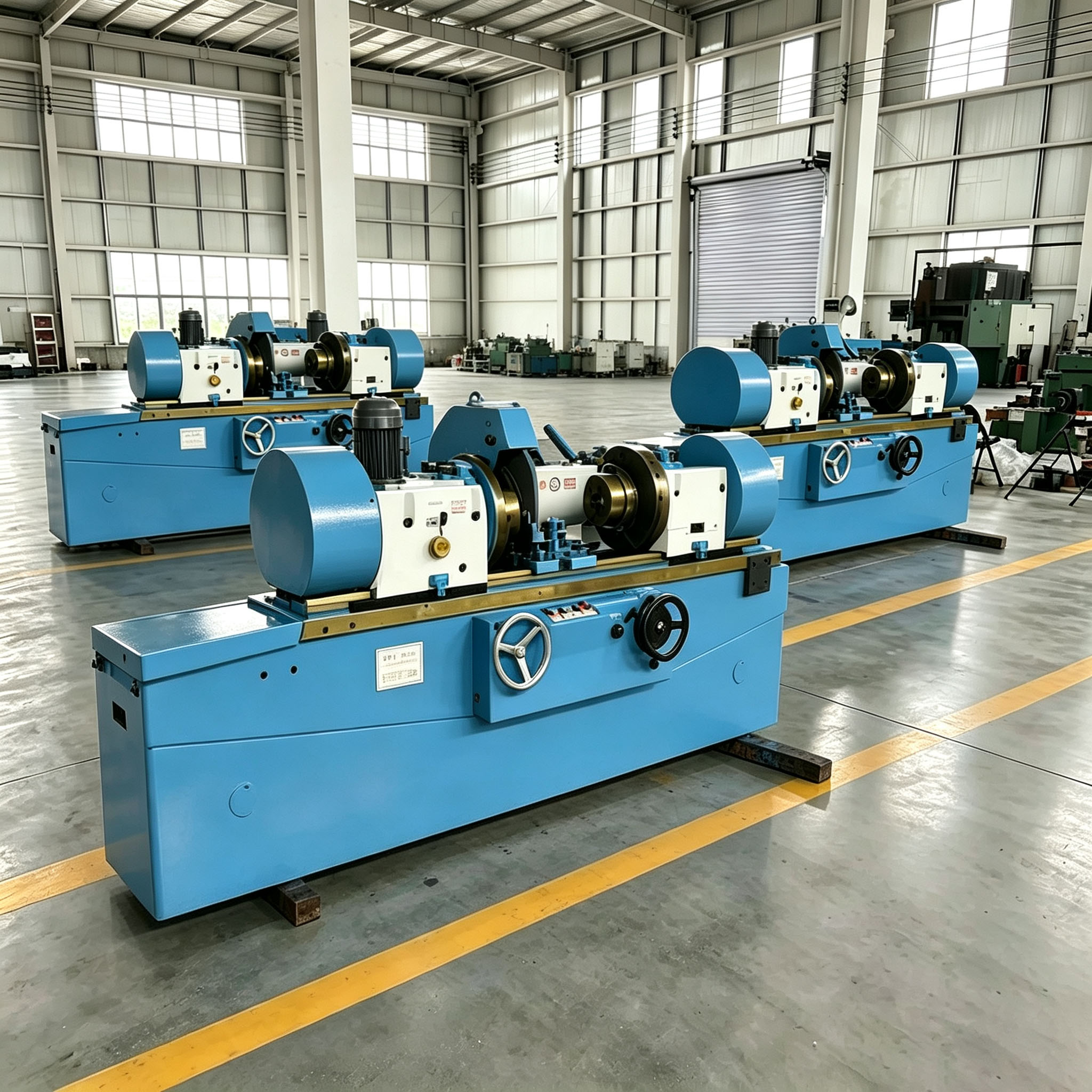

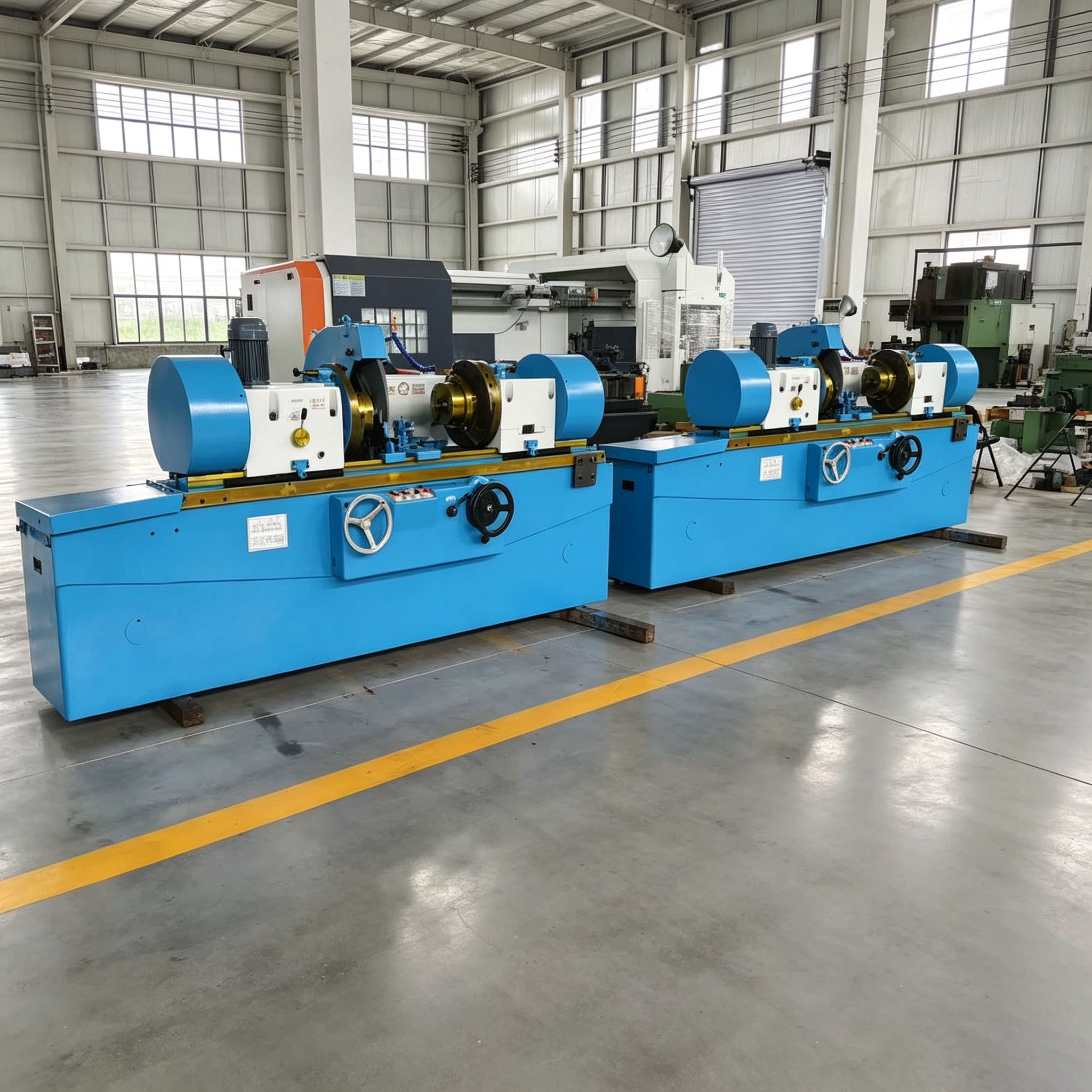

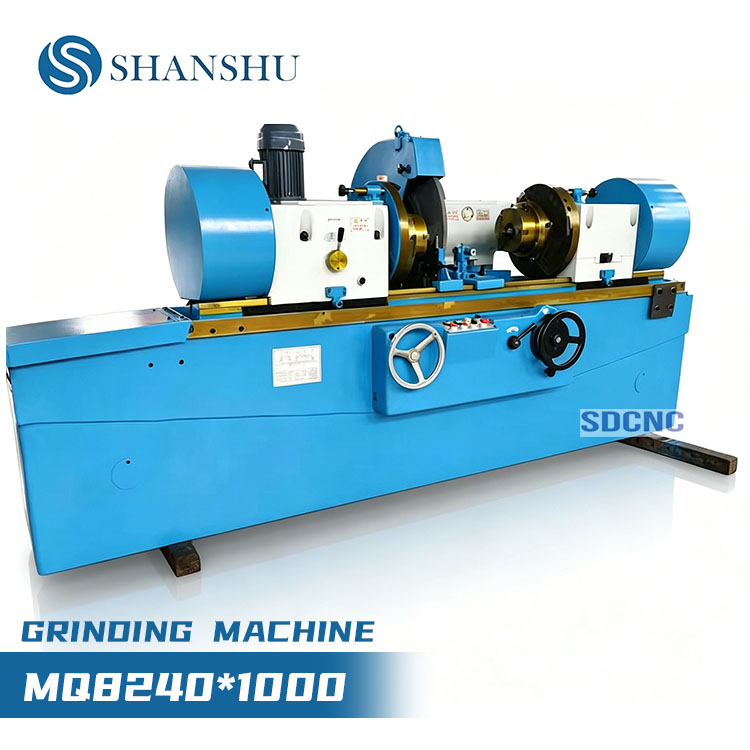

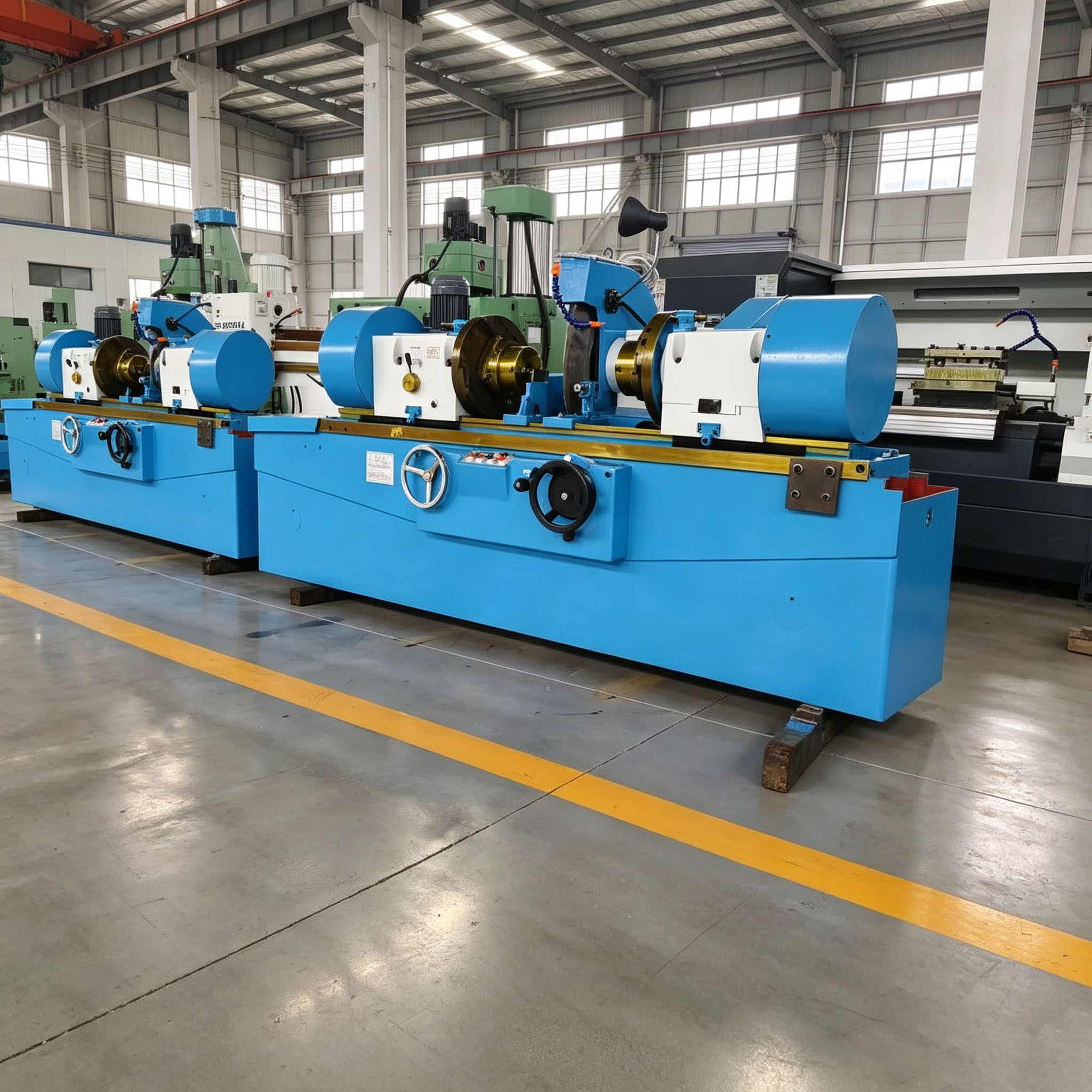

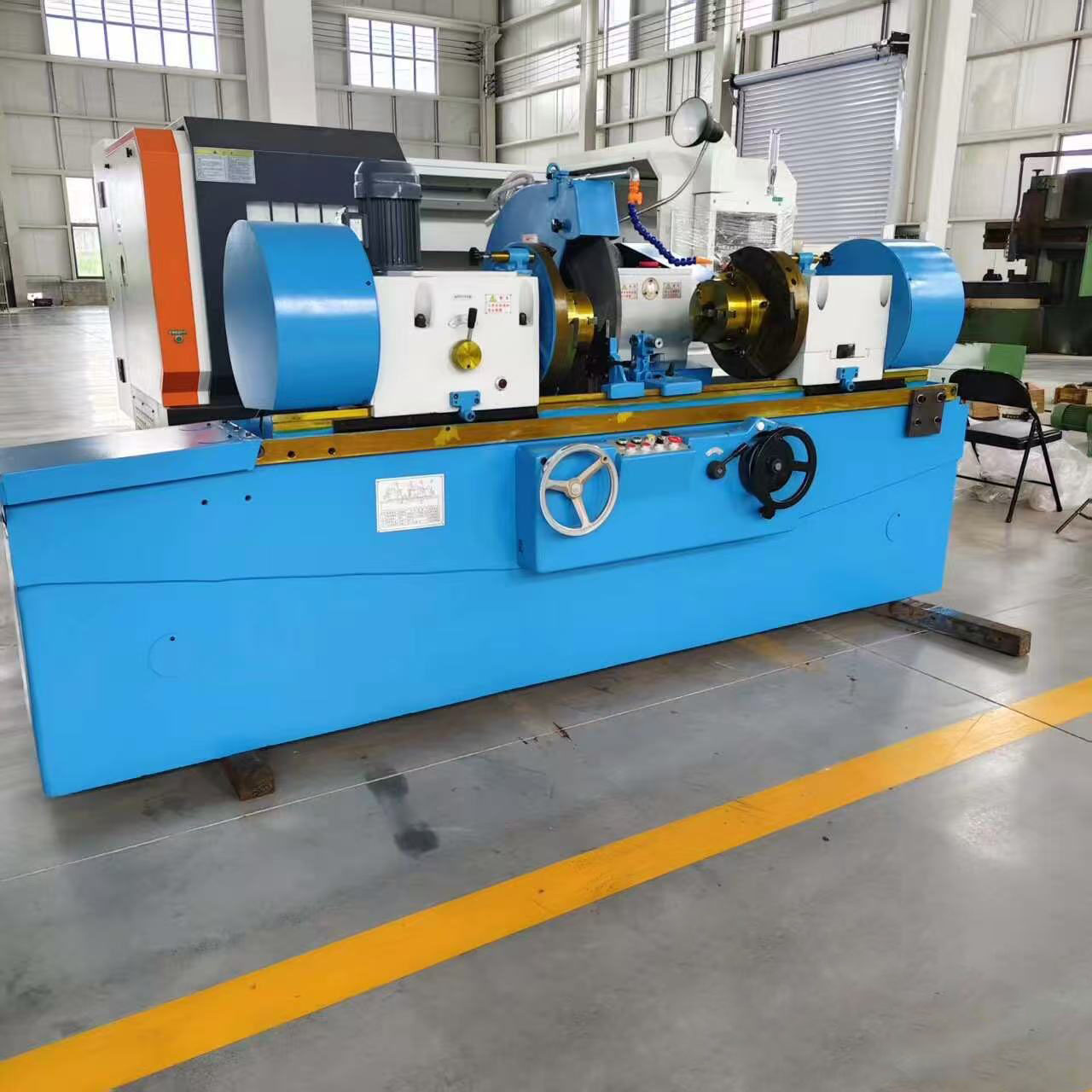

Model | Unit | MQ8240X1000 |
The crank radius of the crankshaft | mm | 0~80 |
Longitudinal grinding outer diameter | mm | 30~200 |
Maximum workpiece weight | kg | 80 |
Center height | mm | 220 |
Maximum turning diameter on the workbench | mm | 400 |
Maximum machinable working length | mm | 1000 |
Rotating speed of rotating head frame box | r/min | 42/65/84/130 |
Tail spindle setting tube movement momentum | mm | 30 |
Spindle speed of grinding wheel holder | r/min | 930 |
Maximum stroke of axial head | mm | 275 |
Rapid movement of grinding wheel | mm | 100 |
The amount of grinding wheel movement per grid on the handwheel dial | Rough feed | mm |
The amount of grinding wheel movement per grid on the handwheel dial | Jingjin | mm |
Grinding wheel size | mm | 750x32x305 |
Longitudinal movement speed of working device liquid press | m/min | 0.1~4 |
Maximum swing amplitude on stage | clockwise | |
Maximum swing amplitude on stage | anticlockwise | |
Maximum movement of workbench | mm | 1540 |
Total power | kw | 9.12 |
Grinding wheel motor power | kw | 7.5 |
Overall dimensions | mm | 4100x1950x1800 |
Approximate weight | kg | 5000 |
Machining accuracy |
Roundness | mm | 0.005 |
Consistency of longitudinal section | mm | 0.01 |
Surface roughness | um | Ra0.32 |
