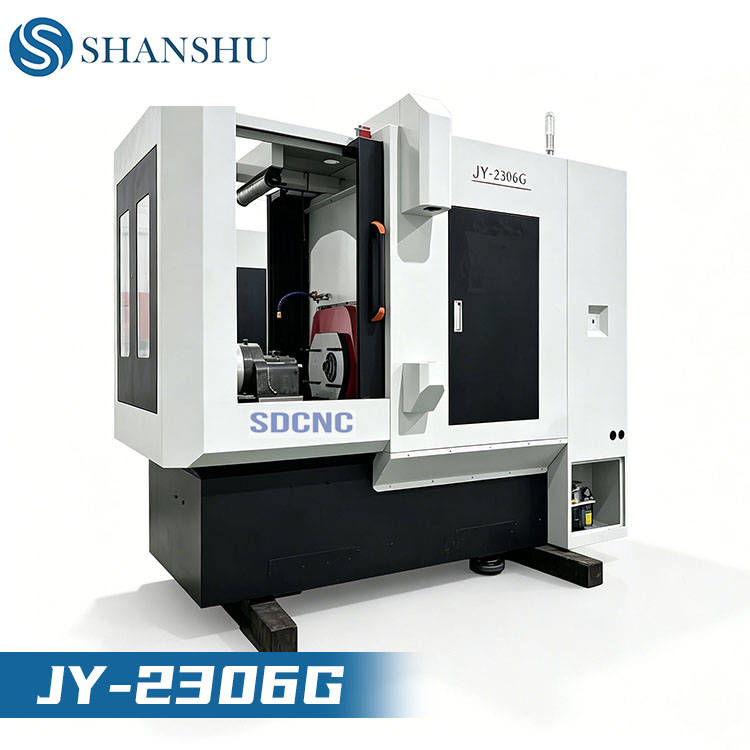

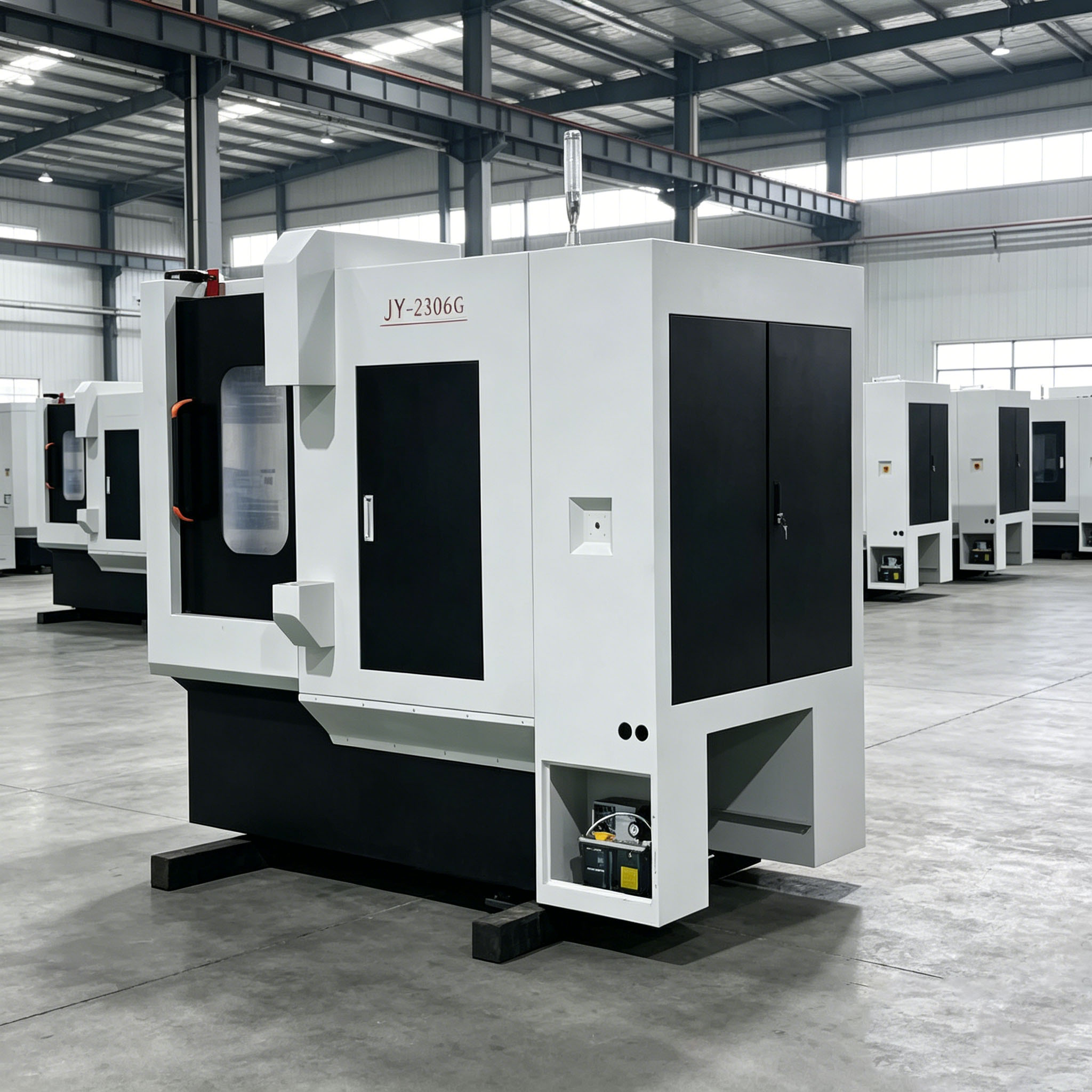

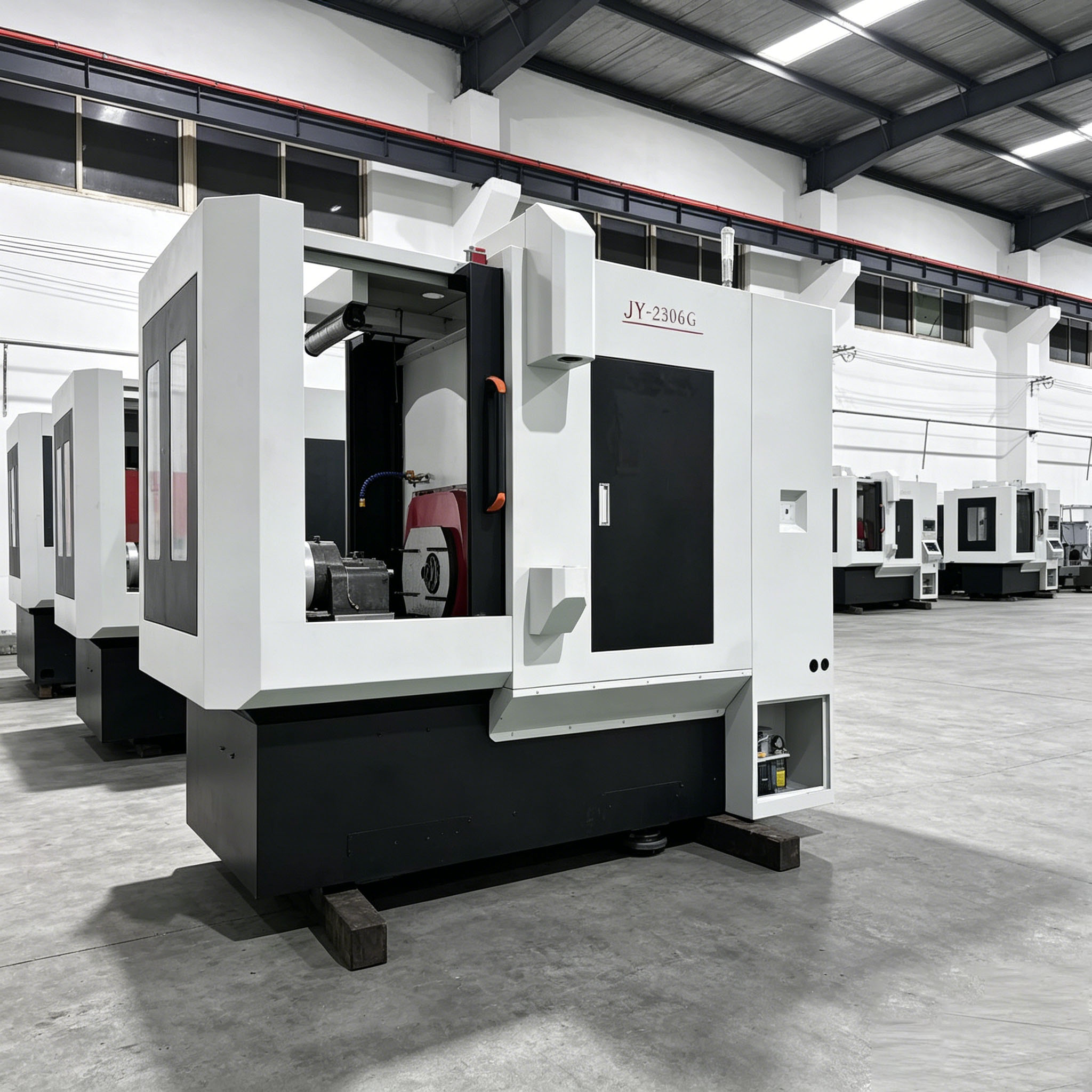

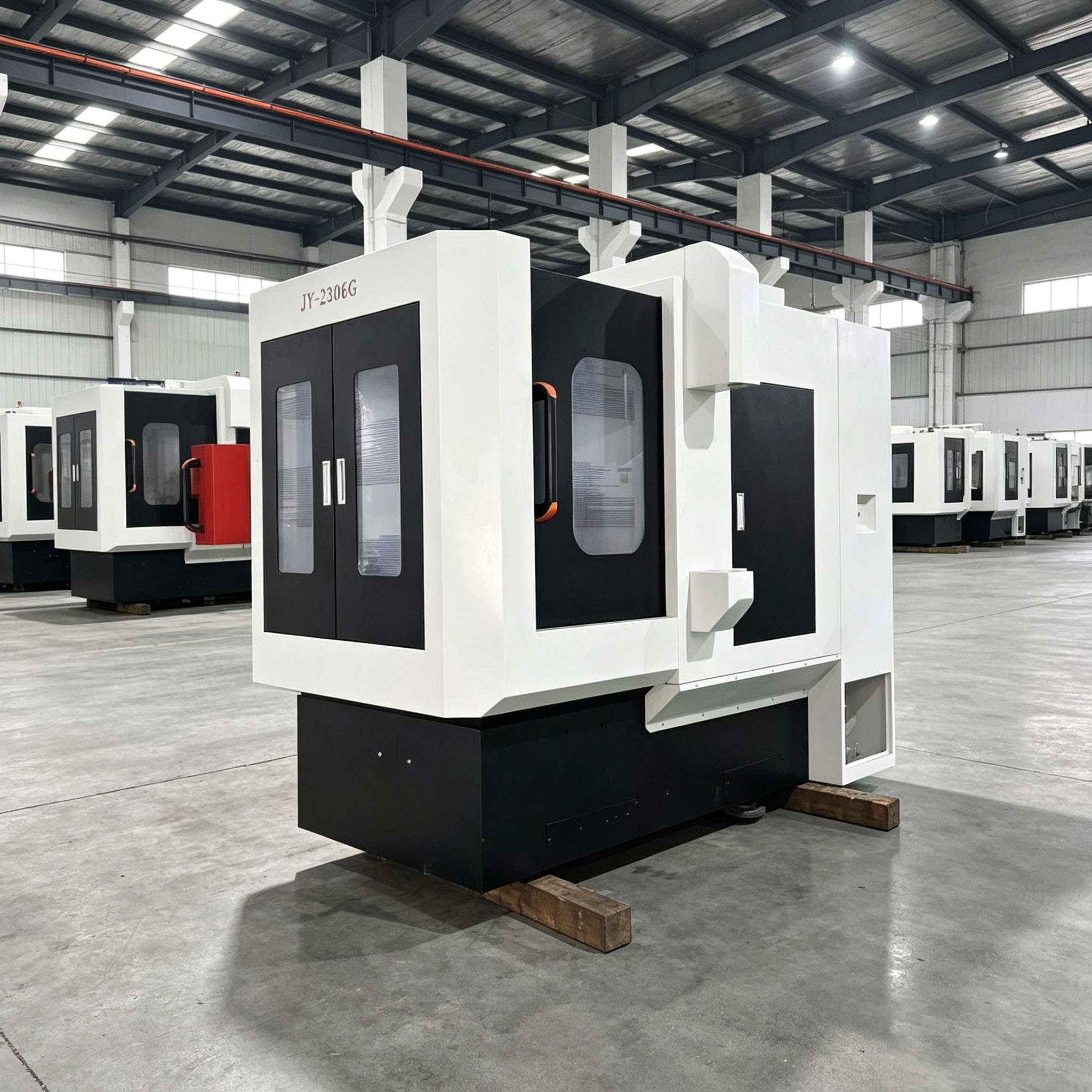

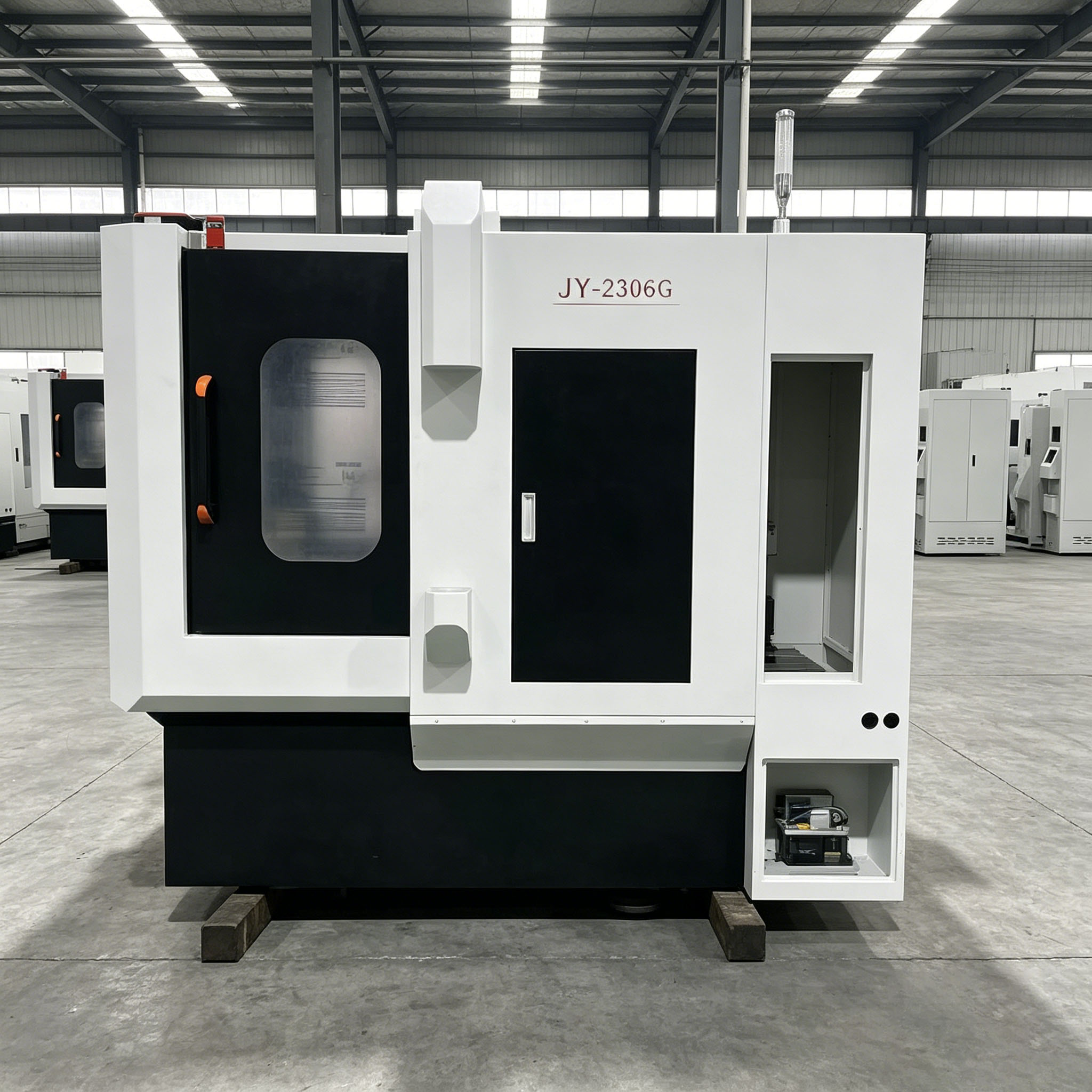

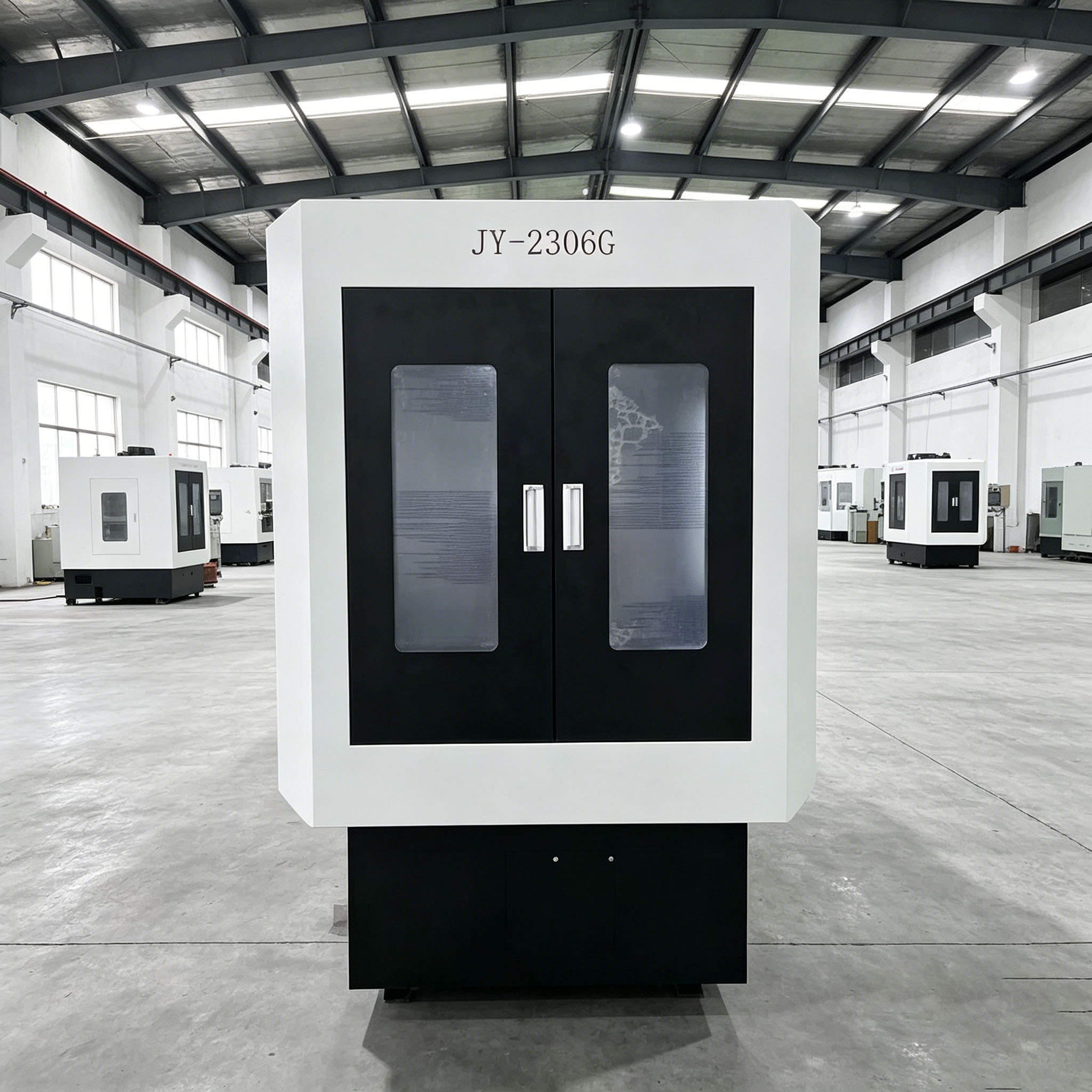

JY2306G CNC Straight Bevel Gear Shaping Machine

ITEM

UNIT

JY2306G

JY2340

Dimensions of Work

Max. module of work

mm

2.5

6

Max. length of pitch element

mm

55

200

Max. pitch diameter（Ratio 10 : 1）

mm

85

400

Max.Root angle

°

90

85

Min.Root angle

°

4

7

Extreme ratio（At 90° shaft angle）

-

10：1

17：2

Max. tooth depth

mm

5.5

12

Max. face width

mm

20

50

Number of teeth

-

5-150

10-200

Work Spindle

Diameter of taper hole at large end

mm

Φ31.267

Φ63.348

Taper

-

Morse No.4

Morse No.4

Taper length

mm

80

120

Diameter of through hole

mm

Φ22H11

40

Distance from face of spindle to machine center

mm

25-100

60-320

Cutter Head

Adjusting angle

°

360

120

Max. cradle roll

°

80

60

Max. positioning angle of tool holder

°

12

12

Max. travel of cutter

mm

28

65

Over run of cutter（ At inner end）

mm

3

3

Over run of cutter ( At outer end)

mm

5

5

Cutter

Type GR83-60I straight bevel gear cutter

-

/

//

Cutter strokes per minute

stroke/min

850

560

Voltage

v

380

380

Machine weight

t

2.4

7.4

Overall dimensions（L×W×H）

mm

2400×2000×2270

3030×2200×2600
