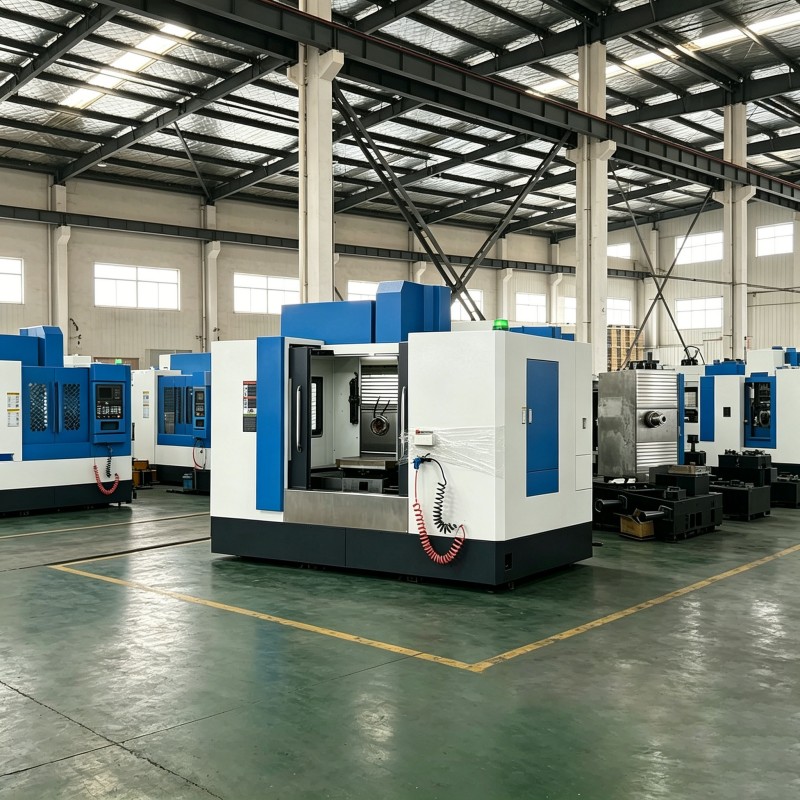

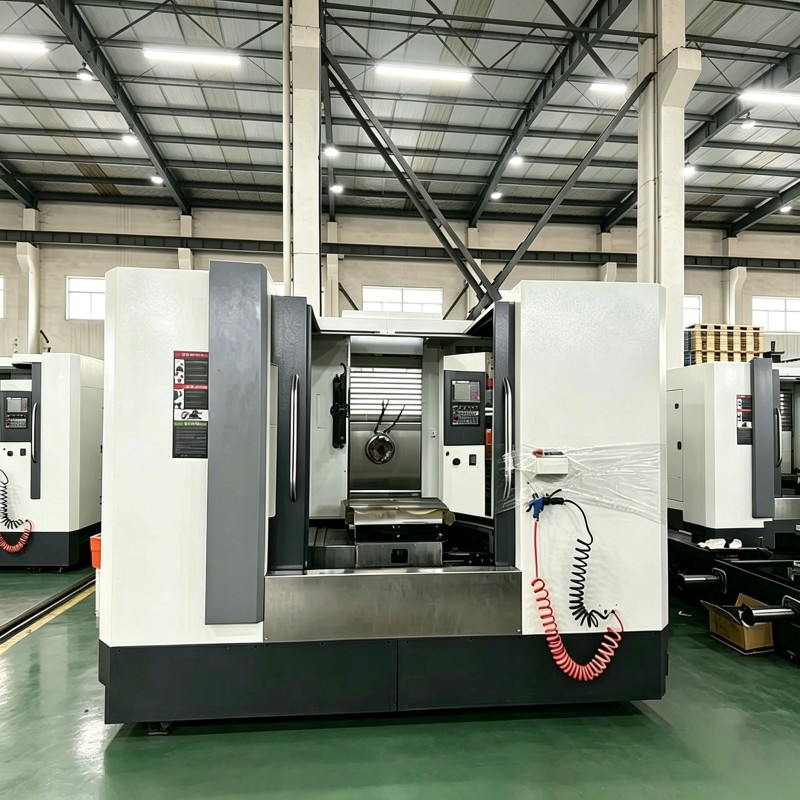

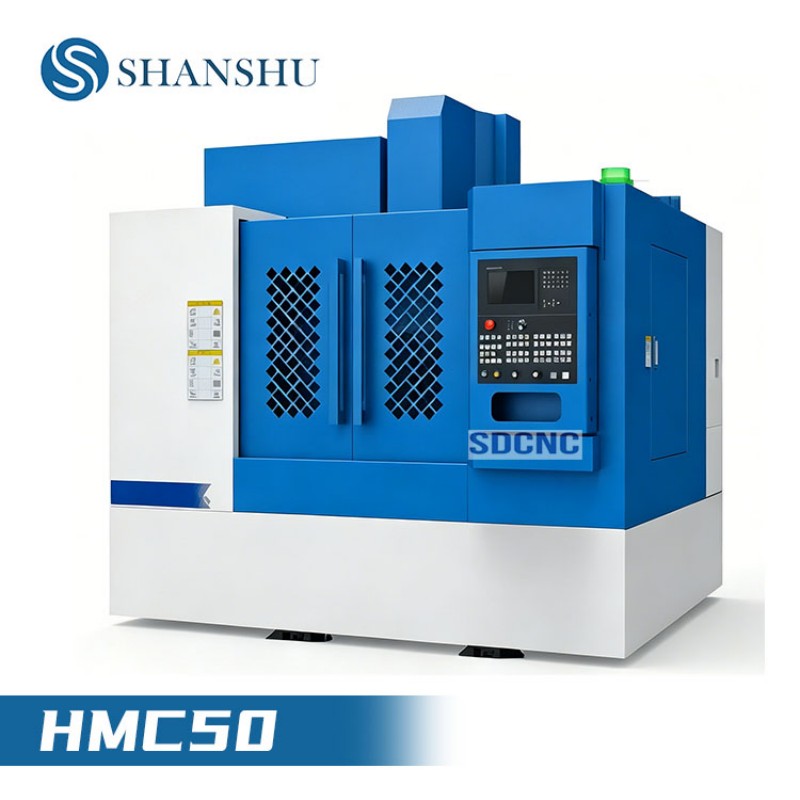

HMC50 Horizontal Machining Center

Heavy-duty rigid body,
net weight 7500kg stable cutting for heavy metal removal
1100×700×600mm large X/Y/Z travel,
BT40 high-speed spindle up to 8000rpm
24-arm disc tool magazine,
fast 3s tool-to-tool change time
Precision grade:
±0.01mm positioning accuracy, ±0.005mm repeat accuracy
500kg heavy load worktable with 1°×360° B-axis indexing
Multi CNC system optional: Fanuc / Siemens / GSK / KND / Syntec
Brand new machine, 1-year full machine warranty, factory direct supply in stock

Quantity:
Availability:





Inquire Add to Basket

Model:
HMC50
Brand:
SDCNC

Product Description

SPECIFICATIONS	Units	HMC50
Table size	mm	500*500
X axis travel	mm	1100
Z axis travel	mm	600
Y axis travel	mm	700
Distance from spindle center to table surface	mm	145-725
Distance between spindle nose and table center	mm	120-700
Table quantity	pcs	1
T slot(number-width*pitch)	mm	5-18*100
Max. worktable load	kg	500
Table indexing	°	1°*360
Maximum speed of table	r/min	10
Main motor power	kw	11 15
Spindle taper		BT40
Max. spindle speed	rpm	8000
Cutting feed speed	mm/min	1-10000
Rapid traverse speed	m/min	36/32/32
Tool magazine		Arm 24
Max. tool diameter	mm	112/200
Max. tool length	mm	400
Max. tool weight	kg	18
Tool change time (tool to tool)	sec	3
Machine minimum setting unit	mm	0.001
X,Y,Z axis positioning accuracy	mm	0.01
X,Y,Z axis repeat positioning accuracy	mm	0.005
B axis positioning accuracy	″	10″
B axis repeat positioning accuracy	″	5”
Machine weight	kg	7500
Overall dimension(LWH)	mm	465032503000
